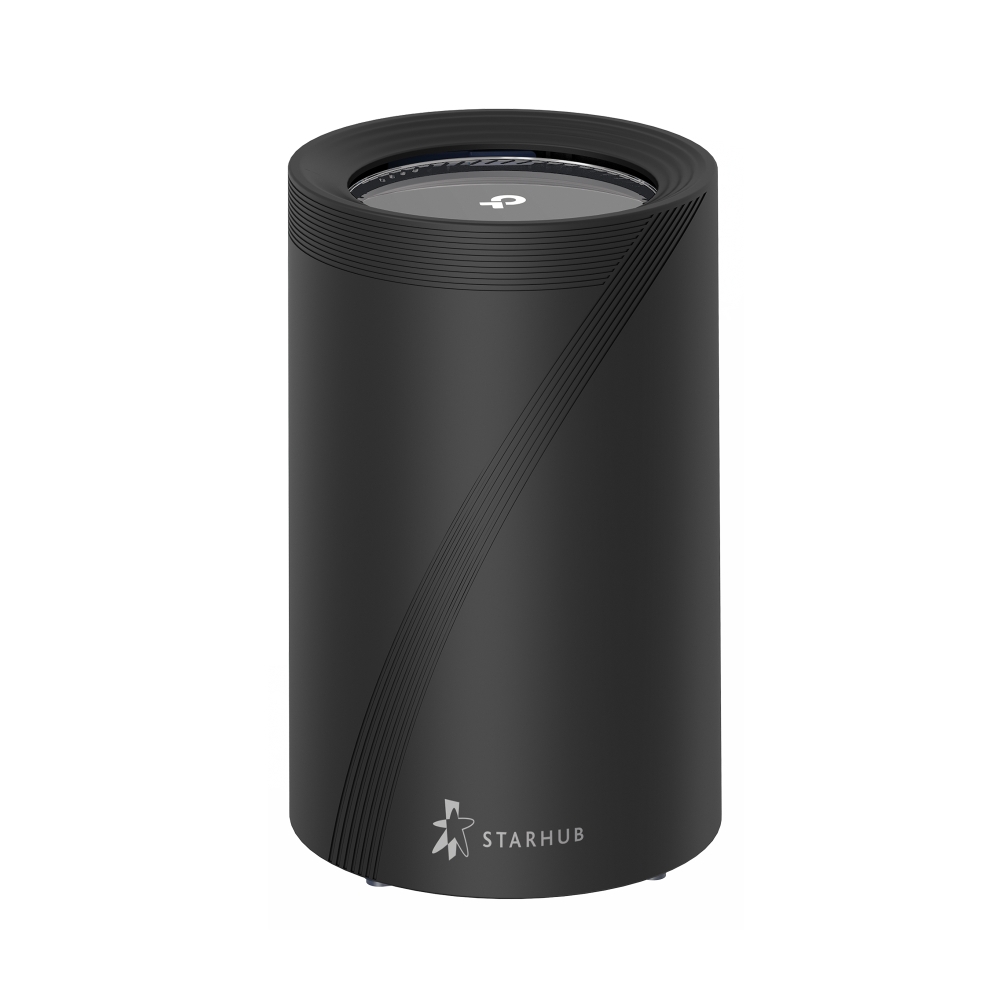

HB615
Coming SoonBE11000 Whole Home Mesh WiFi 7 AP
- 11 Gbps Tri-Band WiFi 7: 6-stream tri-band WiFi enables gaming, 4K/8K streaming, AR/VR, and high-speed downloading on multiple devices—all at the same time.*
- 5G Multi-Gig Connectivity: Unlock speeds up to 5 Gbps and future-proof your home network for the ultra-fast internet era.△
- Superior Coverage: High-performance antennas and beamforming technology combine to extend strong, reliable WiFi throughout your home.
- Multi-Link Operation (MLO): Achieve higher throughput for each device with lower latency and higher reliability via multi-link aggregation across three bands.†
- Clear 320 MHz Channels: Enjoy robust, high-speed connectivity with doubled throughput on 320 MHz channels on the expansive and less-congested 6 GHz band.†
- Works on the 6 GHz Band: Minimizes congestion with greenfield spectrum, delivering robust high-speed connections.
- Whole Home Coverage: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.‡
- More Connections: OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices.†
- Enhanced Security: WPA3 encryption, multi-SSID, and parental controls provide a personalized and safer online experience.†
- Easy Setup and Use: Set up and manageyour mesh network in minutes with the powerful Aginet app.
- Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with TR-069, TR-098, TR-181, TR-111, and TR-143 protocols.

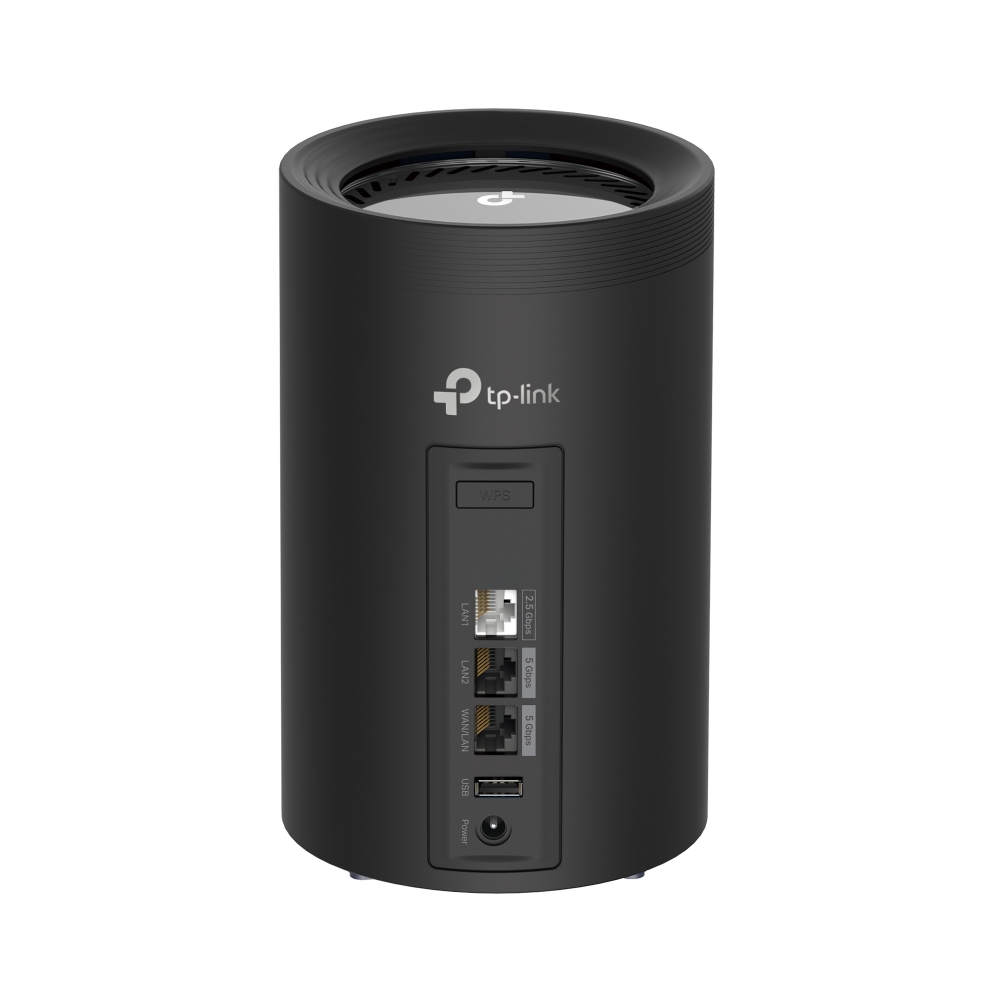

| Interface | 1× 5 GbE WAN/LAN Port1× 5 GbE LAN Port1× 2.5 GbE LAN Port1× USB 2.0 Port*Per Unit |
|---|---|
| Button | WPS ButtonReset Button |
| External Power Supply | 12V/3.3A |
| Dimensions ( W x D x H ) | 4.23 × 4.23 × 6.93 in(107.5 × 107.5 × 176 mm) |
| Wireless Standards | IEEE 802.11be/ax 6 GHzIEEE 802.11be/ax/ac/n/a 5 GHzIEEE 802.11be/ax/n/g/b 2.4 GHz |
|---|---|
| Frequency | 2.4 GHz, 5 GHz, and 6 GHz |
| Signal Rate | BE110006 GHz: Up to 5760 Mbps (EHT320)5 GHz: Up to 4320 Mbps (EHT240)2.4 GHz: Up to 688 Mbps (EHT40)* |
| Wireless Security | WPA/WPA2/WPA3-Personal |
| Transmission Power | IMDA: <23 dBm (2.4 GHz) <30 dBm(5 GHz) <24 dBm(6 GHz) |
| Multi-SSID | 2× 6 GHz Multi-SSID2× 5 GHz Multi-SSID2× 2.4 GHz Multi-SSID |
| Mesh Technology | EasyMesh compatible and supports 802.11k/v/r |
| Quality of Service | WMM |
|---|---|
| Advanced Features | Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RU,OFDMA, MU-MIMO, Beamforming, BSS ColorQoS (Quality of Service), Port Forwarding, CWMPParental Controls, WiFi Schedule, Wireless Statistics, Guest Network, Band Steering, Airtime Fairness, Network Diagnostic, Traffic Statistic |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP |
| Management Features | Local management: WebGUI, Aginet app (for end users)Remote management:TR-069, TR-098, TR-181, TR-369, TR-111, and TR-143 for service providersAginet App for end users (need to log in with TP-Link ID and bind your device to it)Cloud management: TP-Link Aginet Unified Cloud (TAUC) |
| VPN | PPTP, OpenVPN, IPSec |
| Firewall Security | DoS, SPI Firewall, IP and MAC Address Binding |
| Protocols | IPv4 IPv6 |
| Working Modes | Router ModeAccess Point Mode |
| Package Content | HB615 (1-Pack)1× HB615 Unit1× Power Adapter1× RJ45 Ethernet Cable1× Quick Installation Guide |
|---|---|
| Certifications | FCC IMDA, CLS Level 1 |
| Environment | Operating Temperature: 0℃–40℃ (32℉–104℉)Storage Temperature: -40℃–60℃ (-40℉–140℉)Operating Humidity: 10%–90% non-condensingStorage Humidity: 5%–90% non-condensing |
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
†Use of WiFi 7 (802.11be), WiFi 6E/WiFi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO, BSS Color, and WPA3 requires clients to also support the corresponding features. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for WiFi 6 mesh.
‡Mesh networking requires two or more devices. This product is compatible with standardized EasyMesh technology but has not obtained the Wi-Fi EasyMeshTM certification. It supports either wireless or wired backhaul, with wired backhaul taking priority. Seamless roaming/No-Drop WiFi refers to the WiFi roaming that supports IEEE 802.11 k/v protocol, helping connected devices search and shift from one AP to another within 0.3 seconds. Clients need to support 802.11 k/v and may require additional setup. Performance may vary depending on the client device.
△5 Gbps or multi-gig internet speeds require compatible service plans and equipment. The WAN/LAN port will operate as either a WAN or LAN port. Only one port can serve as a WAN port at a time. Actual data throughput is not guaranteed and may vary as a result of network conditions, client limitations, the rate supported by the network cable, internet service provider factors, and other environmental factors.
