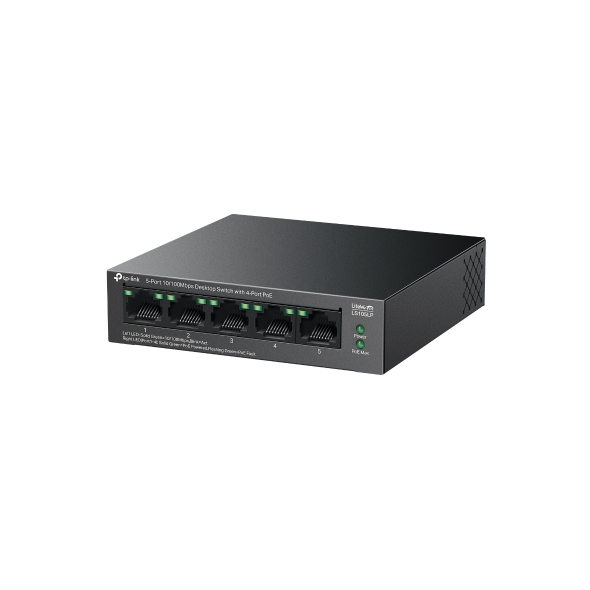

LS105LP
5-Port 10/100Mbps Desktop Switch with 4-Port PoE
- 41 W PoE Budget: Four 10/100 Mbps 802.3af-compliant PoE ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 15.4 W PoE output is supported by each PoE port.*
- Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
- Plug and Play: Simply plug and play for instant connectivity with no configuration required.
- Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
- Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
| Hardver jellemzők | |
|---|---|
| Csatlakozások | • 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af PoE Ports)• AUTO Negotiation• AUTO MDI/MDIX |
| Hálózati összeköttetés | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
| Ventilátorok száma | Fanless |
| Beüzemelés | • Desktop• Wall Mounting |
| Hálózati tápegység | External Power Adapter (Output: 53.5VDC / 0.81A) |
| LED | • Power• Link/Act• PoE Status• PoE MAX |
| PoE portok (RJ45) | • Standard: 802.3 af compliant• PoE Ports: Ports 1–4, up to 15.4 W PoE output per port• Power Supply: 41 W |
| Méretek (Sz x Mé x Ma) | 3.9×3.9×1.0 in (100×98×25 mm) |
| Max. áramfelvétel | • 2.40 W (220 V/50 Hz no PD connected)• 46.45 W (220 V/50 Hz with 41 W PD connected) |
| Max Heat Dissipation | • 8.15 BTU/h (220 V/50 Hz no PD connected) • 157.93 BTU/h (220 V/50 Hz with 41 W PD connected) |
| Működési jellemzők | |
|---|---|
| Switching teljesítmény | 1 Gbps |
| Csomagtovábbítási sebesség | 0.744 Mpps |
| Fizikai (MAC) cím tábla | 2K |
| Jumbo Frame | 2 KB |
| Szoftver jellemzők | |
|---|---|
| További jellemzők | • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)• PoE Auto Recovery Button (Ports 1-4)• Compatible With IEEE 802.3af Compliant PDs• Mac Address Auto-Learning and Auto-Aging• IEEE 802.3x Flow Control• Green Technology |
| Továbbítás módja | Store and Forward |
| Egyéb jellemzők | |
|---|---|
| Tanúsítványok | CE, FCC, RoHS |
| Csomagolás tartalma | • LS105LP• Power Adapter• Installation Guide |
| Környezet | • Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to the power consumption of PoE-powered devices or the cable quality and type.
