Mobile Wi-Fi M7000 V4

M7000 V4

4G LTE Mobile Wi-Fi

10-Hour Working Time – 2100 mAh battery keeps you connected during all-day trip.***
Seamless Group Sharing – Share Wi-Fi with up to 10 devices among family and friends.**
Broad Global Compatibility – Supports 4G LTE for reliable roaming in most countries.*
Upgraded Wi-Fi 6 Tech – Move beyond Wi-Fi 4 for a more reliable Wi-Fi experience.**
Simple App Management – Set up and manage your network effortlessly via Tether App.

Overview

Go Anywhere

Connect Everywhere

LTE Mobile Wi-Fi

M7000

Do More with A Faster Connection

The M7000 supports the latest generation 4G FDD/TDD-LTE networks, providing convenient carry-on Wi-Fi in most countries and regions. Now you can enjoy lag-free HD video, fast file downloads, and stable video chats regardless of where life takes.

Share with Friends Internet Access for up to 10 Devices Simultaneously

This compact device works seamlessly with an impressive range of wireless gadgets. The M7000 can easily share a 4G/3G connection with up to 10 wireless devices like tablets, laptops, and mobile phones at the same time.

Power through Your Day with up to 10 Hours of Sharable 4G

With its powerful 2100 mAh battery, the M7000 can provide up to 10 hours of wireless connectivity, making it the perfect companion for travel, business trips, outdoor activities, and more.

hours

* Battery life may vary in accordance with environmental conditions

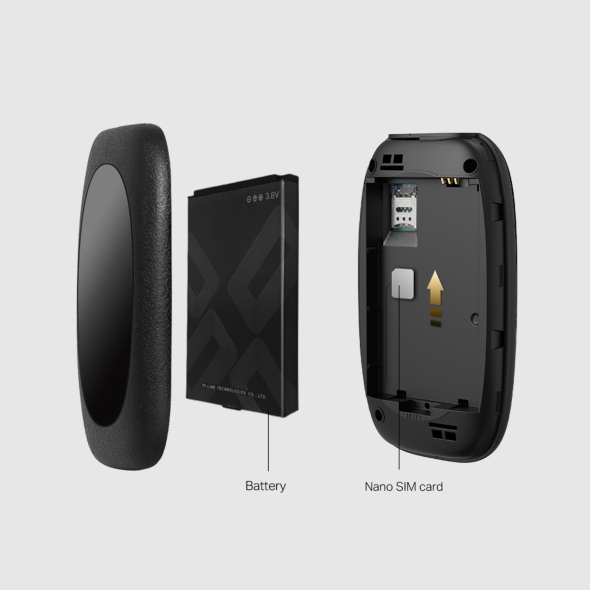

Get Your Network Up and Running in Seconds

M7000 features a compact and user-friendly design, all you need is to insert a nano SIM card and press the power button. Your high-speed 4G hotspot will be operational within a half-minute.

Battery Nano SIM card

Specifications

4G
Network Type	4G: FDD-LTE B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/750 MHz) TDD-LTE B38/B40/B41 (2600/2300/2500 MHz) 3G: HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900 MHz)
Speed	Download Speed:150 Mbps Upload Speed: 50 Mbps

HARDWARE FEATURES
Interface	1 USB-C port for power supply 1 Nano SIM card slot
Button	Power Button, Reset Button
Power Supply	Internal 2100 mAh Rechargeable Battery (TBL-65A2150) External 5V/1A
Dimensions ( W x D x H )	3.7×2.2×0.8 in. (94×56.7×19.8 mm)
Antenna	Internal Antennas
LED Display	Wi-Fi status, Internet connection status, Battery status

WIRELESS FEATURES
Wireless Standards	IEEE 802.11b/g/n
Wireless Speeds	Up to 300 Mbps
Frequency	2.4 GHz
Reception Sensitivity	11b 11Mbps: -87.5dBm; 11g 54Mbps: -74dBm; 11n HT20 MCS7: -70dBm; 11n HT40 MCS7: -68dBm;
Wireless Security	Support WPA-PSK/WPA2-PSK,Wireless MAC Filtering, Enable/Disable SSID Broadcast
DHCP	Server, Client, DHCP Client List
Transmission Power	<20dBm

OTHERS
Network Services Enabled by Default	Web Server Manage and configure device through web or app • Port: 80/443 Protocol: HTTP/HTTPS DNS DNS • Port: 53; Protocol: UDP DHCP/DHCPv6 IP address assignment • Port: 67/547; Protocol: UDP
RNDIS Support	Yes System Requirement: Windows XP/7/8/10/11
Package Content	Mobile Wi-Fi M7000 1m USB-C Cable 2100 mAh Battery Quick Installation Guide
System Requirements	Windows 11/10/8/7/vista/XP, Mac OS, Android, iOS, Windows Phone
Certifications	CE, RoHS
Environment	Operating Temperature: 0℃~35℃ (32℉ ~95℉) Storage Temperature: -20℃~60℃ (-4℉ ~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

For additional version information, please go to the support page.

Support

*Actual mobile broadband speeds vary due to network configuration, signal strength, subscription terms, or etc.

**Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

***Actual battery time may vary due to different user environments.

****This device requires an activated SIM card without a PIN lock. If the SIM is locked, please consult the quick installation guide for unlocking instructions. SIM card sold separately
