Touch P5

End of Life

AC1900 Touch Screen Wi-Fi Gigabit Router

  • One-Minute Touchscreen Setup - Effortlessly set up a network and modify settings with the responsive touchscreen
  • Ease of Use - Manage settings, including parental controls, access policies, mode selection, and more as easy as using an app on smartphone
  • AC1900 Speed – Enjoy streaming 4K video and online gaming without lag on the 2.4GHz and 5GHz bands
  • 1GHz Dual-Core Processor – Powers through multiple tasks at the same time without interruptions
  • Superior Coverage – Three dual band antennas with high-powered amplifiers provide powerful Wi-Fi across your home

  • Beamforming – Focuses Wi-Fi towards devices to form stronger connections
  • Multi-Purpose Design – Serves as a router, repeater, or access point, satisfying your unique needs in any situation
  • AC1900 Touch Screen Wi-Fi Gigabit Router



Wi-Fi Experience Redefined, with the Power of Touch

AC1900 Touch Screen Wi-Fi Gigabit Router

Touch P5

Wi-Fi at Your Fingertips

Imagine a world in which your router is as easy to use as your smartphone. The Touch P5, with its responsive touchscreen, makes this possible today. In addition to adding to the beauty of your router, the integrated touchscreen also dramatically revolutionizes the way you set up and interact with your network. Just tap, swipe, and connect. The Touch P5 - The easiest way to Wi-Fi.

One-minute touchscreen set up. Get started with a few simple taps. The responsive touchscreen allows you to set up.

  • No Computer
    Needed
  • No Tablet
    Needed
  • No Smartphone
    Needed






Completely new, yet surprisingly familiar. Wi-Fi management is easier than ever.

Forget the days of ending up lost and confused as you search through your router’s advanced functions. Now you can easily access and modify almost all of your router’s functions and settings with just few taps on the touchscreen. Managing your wireless network is as easy as using an app on your smartphone. From parental controls to access management to mode selection, the Touch P5 utilizes a completely familiar touchscreen experience to keep you in control.

A truly buzzworthy presence.
An elegant addition to your home.

With the dynamic guest network password displayed on the screen, your guests can enjoy easy access and you can keep your main network safe. Moreover, visitors will be impressed by the elegance and beauty of the Touch P5, which undoubtedly earns a prominent position in your home’s decor.

As Powerful as it is Beautiful. Ideal for seamless streaming and online gaming.

Stream Ultra HD video without buffering, play online games without lag, download large files in a flash, and discover countless other ways for the Touch P5 to exceed your wireless expectations. Blazing fast AC Wi-Fi speeds of up to 1900Mbps ensure that everyone on your network can enjoy smooth streaming video and low-latency online gaming.

  • 5GHz
    1300Mbps
  • 2.4GHz
    600Mbps

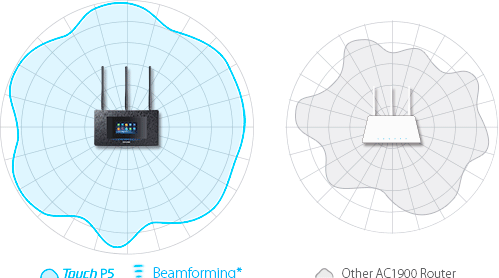

Wi-Fi where you need it. Up to 10,000* square feet of coverage.

Three dual band antennas with 700mW high-powered amplifiers allow the Touch P5 to provide up to 10,000* square feet of Wi-Fi coverage. Beamforming Technology further improves long-range stability by delivering highly targeted connections. The 1GHz dual core Broadcom processor ensures excellent performance and allows you to experience stable connections throughout your entire home.

*Maximum extended Wi-Fi coverage specifications are based on performance test results. Actual Wi-Fi coverage may vary due to environmental factors and external sources of wireless interference.

A flexible, multi-purpose device.
Valuable, all-in-one functionality.

The Touch P5 effectively replaces several networking devices. It can serve as a router, repeater, or access point, satisfying your needs in any situation and giving you the freedom configure your network in any way you choose.





  • Router Mode
  • Repeater Mode
  • Access Point Mode

Experience Redefined - From the Inside Out

AC1900 Touchscreen Router

  • Processor1GHz Dual Core CPU
  • PA3 700mW High
    Powered Amplifiers
  • WAN/LAN4 Gigabit Ethernet Ports
    1 Gigabit WAN Port
  • USBUSB 3.0 Port
    USB 2.0 Port
  • Antennas3 External
    Antennas
  • Touchscreen Display
    Size: 4.3"
    Resolution: 480x272
    The right size for an excellent view
    Screen: Capacitive
    Higher touch sensitivity eliminates the need for a stylus
    Color: 16bit RGB,
    Up to 65536 Colors
    For more vivid, natural colors and a better visual experience
    Panel: G + F
    (Glass + Film)
    Exhibits excellent light transmitting properties
    Driver: Independent MCU
    Ensures high sensitivity, accuracy, and stability
WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX11000
5 GHz: 4804 Mbps (802.11ax)
5 GHz: 4804 Mbps (802.11ax)
2.4 GHz: 1148 Mbps (802.11ax)
WiFi Range 4 Bedroom Houses
8× Detachable High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Capacity Very High
Tri-Band
Allocate devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

12 Streams
Connect your devices to more bandwidth
Working Modes Router Mode
Access Point Mode
HARDWARE
Processor 1.8 GHz 64 Bit Quad-Core CPU
Ethernet Ports 1× 2.5 Gbps WAN Port
8× Gigabit LAN Ports

Link Aggregation (802.3ad) available with 2× LAN ports
USB Support 1× USB-C 3.0 Port
1× USB-A 3.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Buttons Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button
Power 12 V ⎓ 5 A
SECURITY
WiFi Encryption WPA
WPA2
WPA3
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeCare™ Antivirus
Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server OpenVPN
PPTP
SOFTWARE
Protocols IPv4
IPv6
Game Center Game Accelerator
Detects and optimizes gaming streams to keep latency as low as possible

Game Statistics
Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail

Game Protector
Keep your accounts and system safe with HomeCare™ antivirus protection
Service Kits HomeCare™
Learn More>
Parental Controls HomeCare™ Parental Controls
Custom Profiles
Content Filtering
App Block
URL Filtering
Time Limit
Time Schedule (Bedtime)
Log Insight
Monthly Report
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service Game Accelerator QoS
QoS by Device

HomeCare™ QoS
QoS by Application
Cloud Service Auto Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Tether App
Webpage
Check Web Emulator>
PHYSICAL
Dimensions (W×D×H) 11.3 × 11.3 × 7.2 in
(288 × 288 × 184 mm)
Package Contents Wi-Fi Router Archer AX11000
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE:
<20dBm(2.4GHz)
<23dBm(5.15GHz~5.35GHz)
<30dBm(5.47GHz~5.725GHz)
FCC:
<30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)
<24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz)
WiFi Reception Sensitivity 5 GHz_1:
11a 6Mbps:-96dBm, 11a 54Mbps:-78dBm
11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm
11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm
11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm
11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm
11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm
11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm
11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm
11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm
5 GHz_2:
11a 6Mbps:-96dBm, 11a 54Mbps:-78dBm
11ac VHT20_MCS0:-95dBm, 11ac VHT20_MCS11:-65dBm
11ac VHT40_MCS0:-93dBm, 11ac VHT40_MCS11:-62dBm
11ac VHT80_MCS0:-90dBm, 11ac VHT80_MCS11:-59dBm
11ac VHT160_MCS0:-87dBm, 11ac VHT160_MCS11:-54dBm
11ax HE20_MCS0:-94dBm, 11ax HE20_MCS11:-62Bm
11ax HE40_MCS0:-91dBm, 11ax HE40_MCS11:-59dBm
11ax HE80_MCS0:-88dBm, 11ax HE80_MCS11:-57dBm
11ax HE160_MCS0:-84dBm, 11ax HE160_MCS11:-54dBm
2.4 GHz:
11g 6Mbps:-97dBm, 11a 54Mbps:-79dBm
11n HT20_MCS0:-97dBm, 11n HT20_MCS7:-78dBm
11n HT40_MCS0:-95dBm, 11n HT40_MCS7:-75dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-67dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-64dBm
11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-64dBm
11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-61dBm
Awards
  • Good Choice
    Touch P5 earned a "Good Choice" award from PC For Alla.
    2015, Sweden
  • Excellent
    Touch P5 has received the award of "Excellent" from HWI
    2015, Netherlands
  • The best Router of year 2015
    Touch P5 is the best Router of 2015 by TuExpertow
    2015, Spain
  • Recommended Product
    Touch P5 was recommended by TuExperto
    2015, Spain
  • Recommended Product
    Touch P5 has gained Gold award from Profesional Review
    2016, Spain
  • Recommended Product
    Touch P5 was recommended by zero13wireless
    2016, Spain
  • Recommended Product
    Touch P5 was recommended by Muy Computer
    2016, Spain

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
