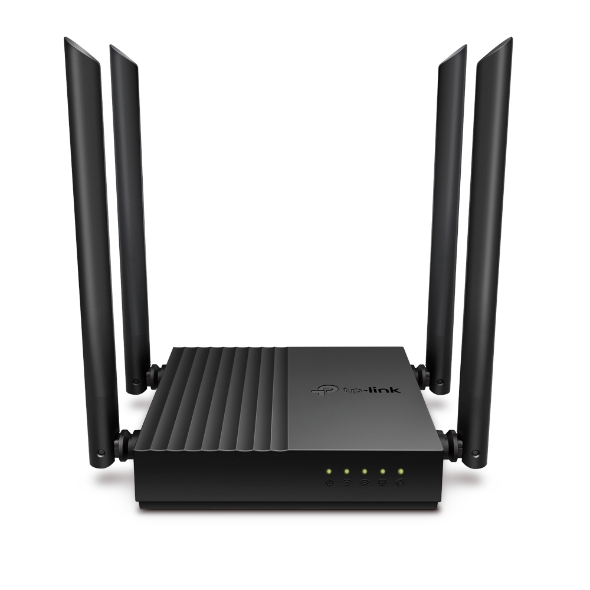

AC1200 Wireless MU-MIMO WiFi Router
- 802.11ac Wave2 WiFi – 867 Mbps on the 5 GHz band and 400 Mbps on the 2.4 GHz band†
- Boosted WiFi Coverage – 4 antennas provide stable wireless connections and optimal coverage.
- MU-MIMO – Easy network management at your fingertips with TP-Link TetherMU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once‡
- Beamforming – Beamforming technology delivers a highly efficient wireless connection.
- AP Mode – Supports Access Point mode to create a new WiFi access point.
- Intelligent Connection – Smart Connect directs clients to the less congested band and Airtime Fairness optimizes the time usage.
- Easy Setup – Easy network management at your fingertips with TP-Link Tether.
- EasyMesh-Compatible - Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage.§
High-Performance WiFi for Gigabit Network Entry
Dual Band | Full Gigabit
AC1200 MU-MIMO WiFi Router
5 GHz Band
2.4 GHz Band
AC1200 Dual Band WiFi Meets Your Smooth Network Needs
The Archer C64 allows you to connect more devices and stream simultaneously with its dual 2.4GHz and 5GHz bands. The 2.4GHz band provide reliable connections for sending emails, web browsing and other simple tasks. The 5GHz band delivers speed up to 867Mpbs, great for media-intense applications like video streaming and online gaming†. With a lag-free connection, you will never miss out again.
Take Your Network Security to the Next Level
The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home WiFi.☆

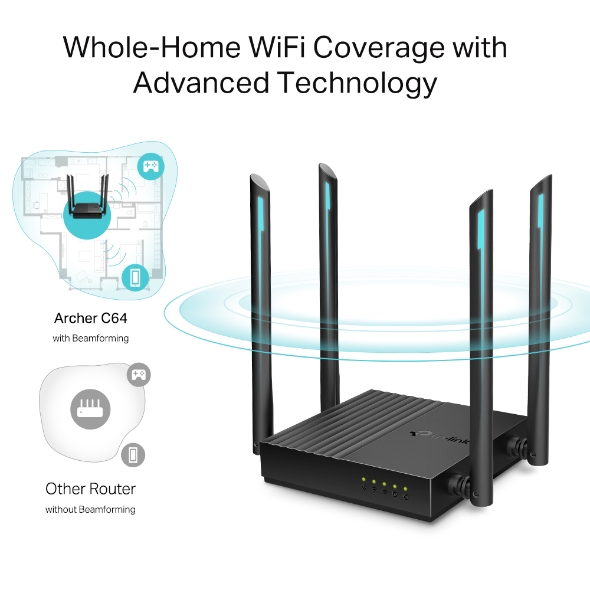

Extensive WiFi Coverage Throughout Your Home
With 4 high-performance external antennas, Archer C64 boosts WiFi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, particularly for previously hard to reach outlets.
Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another EasyMesh-compatible devices to further form your whole home mesh WiFi. No more searching for a stable connection.§
(Router + Range Extender)
with Extender Wi-Fi
WiFi Dead Zone Killer
Eliminate weak signal areas with WiFi coverage for the whole house
Uninterrupted streaming when moving around your home
One WiFi Name
No more switching WiFi network names

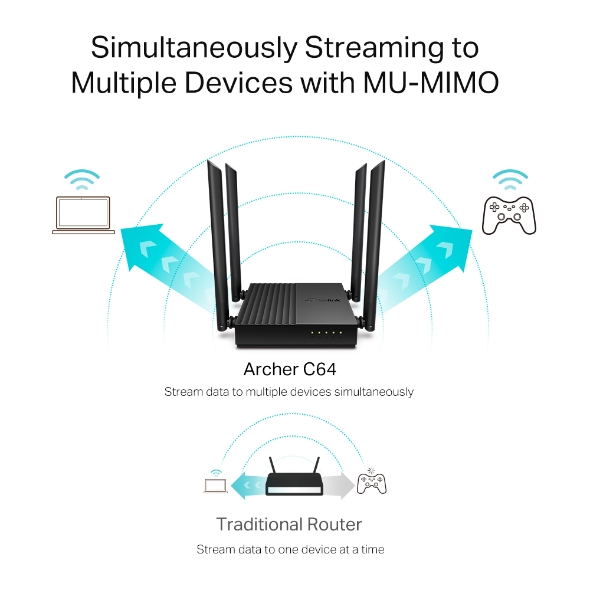

Simultaneously Streaming to Multiple Devices with MU-MIMO
AC1200 WiFi with MU-MIMO‡, it establishes multiple simultaneous connection for you to enjoy higher speeds and greater stability. No more bandwidth congestion or latency. Enjoy non-stop entertainment on all your devices — lag free.
Stream data to multiple devices simultaneously
Stream data to one device at a time
10 × Faster — Wired or Wireless

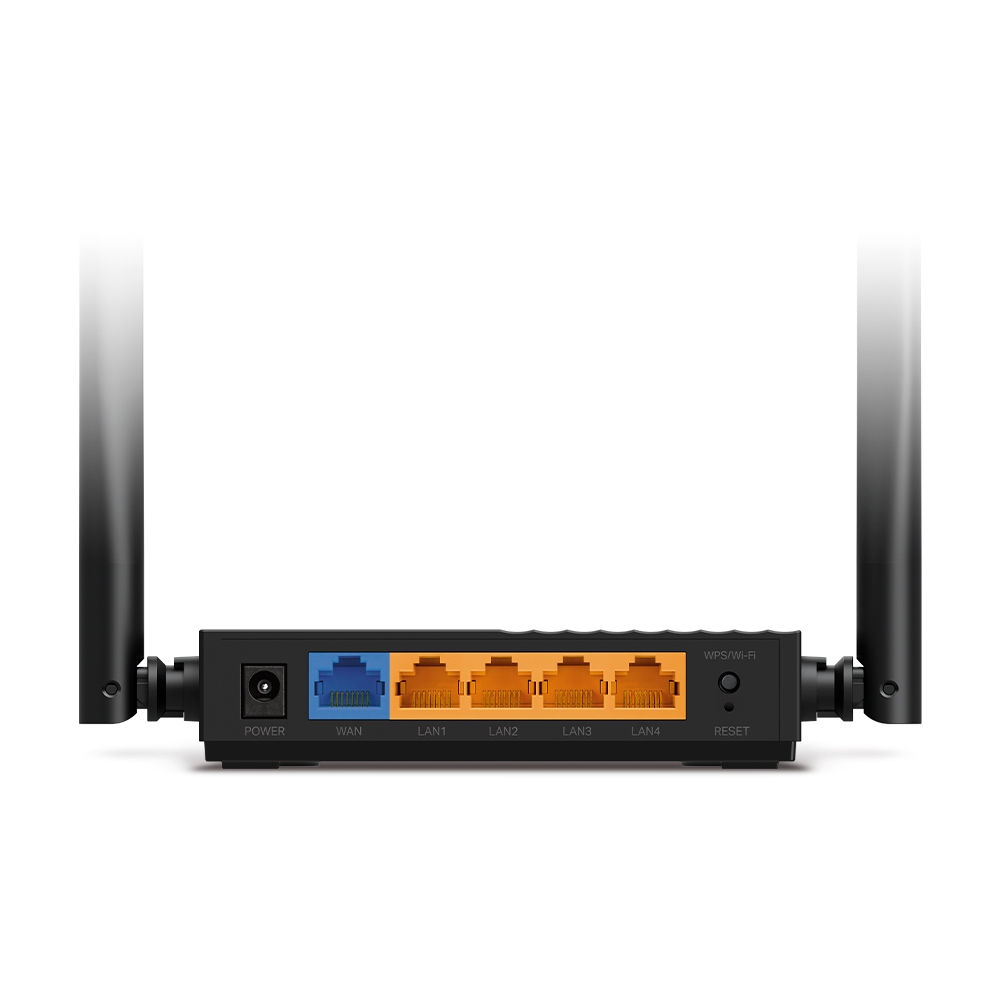

Gigabit Ethernet ports (1 WAN+ 4 LAN) deliver speeds up to 10 × faster than standard Ethernet connections. Plug in your PCs, smart TVs, and game consoles for fast and reliable connections.※
Archer C64 is your best choice for high-performance Gigabit network entry, with a competitive price advantage, full Gigabit Ethernets ports drive your devices to peak performance.
Access Point Working Mode
Switch Archer C64 from router working mode to Access Point mode, to transform your existing wired network into a wireless one.
Block inappropriate content and set daily limits for how much time your children spend online with Parental Controls
Smart Connect directs clients to the less congested band and Airtime Fairness optimizes the time usage
Future-proof your network with IPv6 (Internet Protocol Version 6) support
Improve your IPTV streaming experience with IGMP Proxy/Snooping Bridge and Tag VLAN
Receive software updates and control your router remotely through your cloud account
|Standards||Wi-Fi 5IEEE 802.11ac/n/a 5 GHzIEEE 802.11n/b/g 2.4 GHz|
|WiFi Speeds||AC12005 GHz: 867 Mbps (802.11ac)2.4 GHz: 400 Mbps (802.11n)|
|WiFi Range||3 Bedroom Houses
4× Fixed High-Performance AntennasMultiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi range
Dual-BandAllocate devices to different bands for optimal performanceMU-MIMOSimultaneously communicates with multiple MU-MIMO clientsAirtime FairnessImproves network efficiency by limiting excessive occupation
|Working Modes||Router ModeAccess Point Mode|
|Ethernet Ports||1× Gigabit WAN Port4× Gigabit LAN Ports|
|Power||12V = 1A|
|WiFi Encryption||WPAWPA2WPA3WPA/WPA2-Enterprise (802.1x)|
|Network Security||SPI FirewallAccess ControlIP and MAC Binding|
|Guest Network||1× 2.4 GHz Guest Network1× 5 GHz Guest Network|
|EasyMesh||Mesh networking creates smooth, fast, stable roaming. Archer C64 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability. Learn More>|
|Parental Controls||URL FilteringTime Controls|
|WAN Types||Dynamic IPStatic IPPPPoE(Dual Access)PPTP(Dual Access)L2TP(Dual Access)|
|Quality of Service||QoS by Device|
|Cloud Service||OTA Firmware UpgradeTP-Link IDDDNS|
|NAT Forwarding||Port ForwardingPort TriggeringUPnPDMZ|
|IPTV||IGMP ProxyIGMP SnoopingBridgeTag VLAN|
|DHCP||ServerDHCP Client ListAddress Reservation|
|Management||Tether AppWebpageCheck Web Emulator>|
|Environment||Operating Temperature: 0℃~40℃ (32℉ ~104℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing|
|WiFi Transmission Power||CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)FCC:<30dBm(2.4 GHz & 5 GHz)|
|WiFi Reception Sensitivity||5 GHz:11a 6Mbps:-95dBm11a 54Mbps:-77dBm11ac VHT20 MCS8:-71dBm11ac VHT40 MCS9:-67dBm11ac VHT80 MCS9:-63dBm2.4 GHz:11g 6Mbps: -96dBm11g 54Mbps: -78dBm11n HT20 MCS7:-77dBm11n HT40 MCS7:-74dBm11ac VHT20 MCS8:-73dBm11ac VHT40 MCS9:-68dBm|
|Dimensions (W×D×H)||4.7 × 4.7 × 1.1 in (120 × 120 × 27.9 mm)|
|Package Contents||Wireless Router Archer C64Power AdapterRJ45 Ethernet CableQuick Installation Guide|
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
‡Use of MU-MIMO requires clients to also support MU-MIMO.
※Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
§TP-Link EasyMesh-Compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-Compatible function is still being developed on some models and will be supported in subsequent software updates.
☆Use of WPA3 requires clients to also support WPA3.
