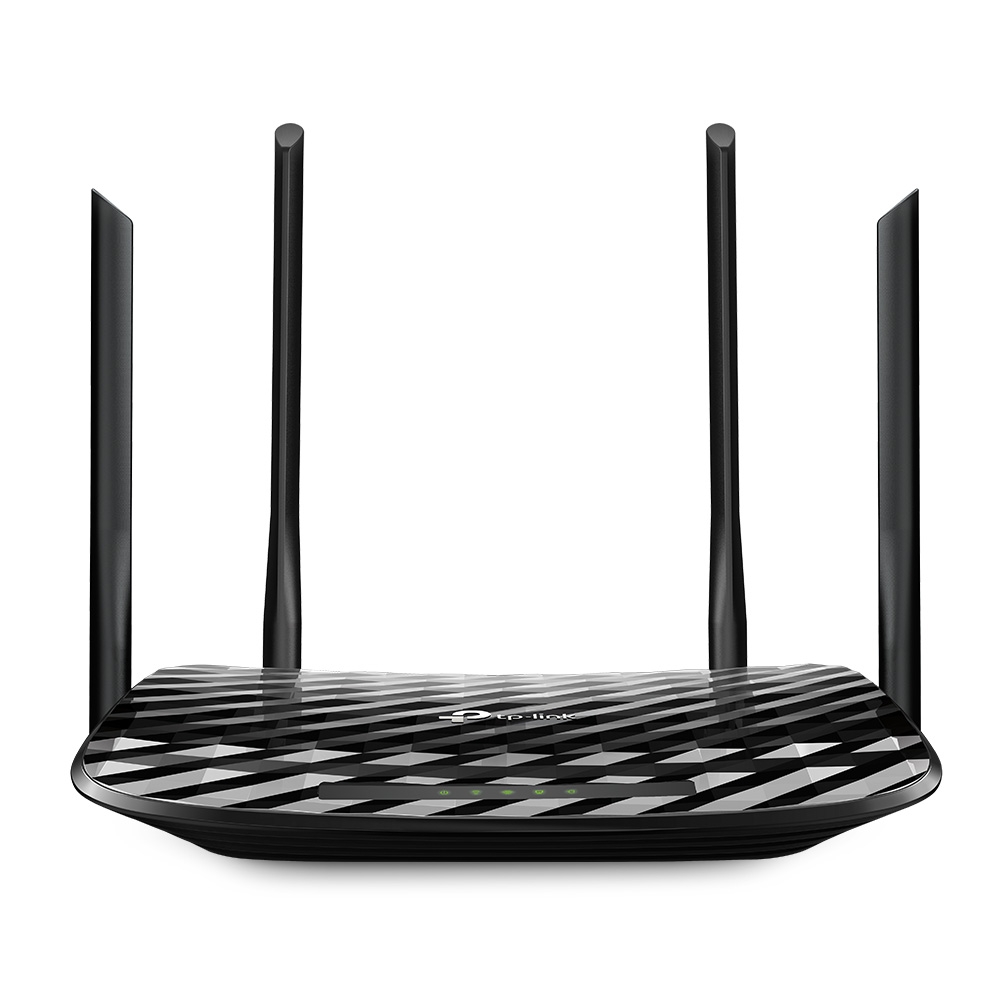

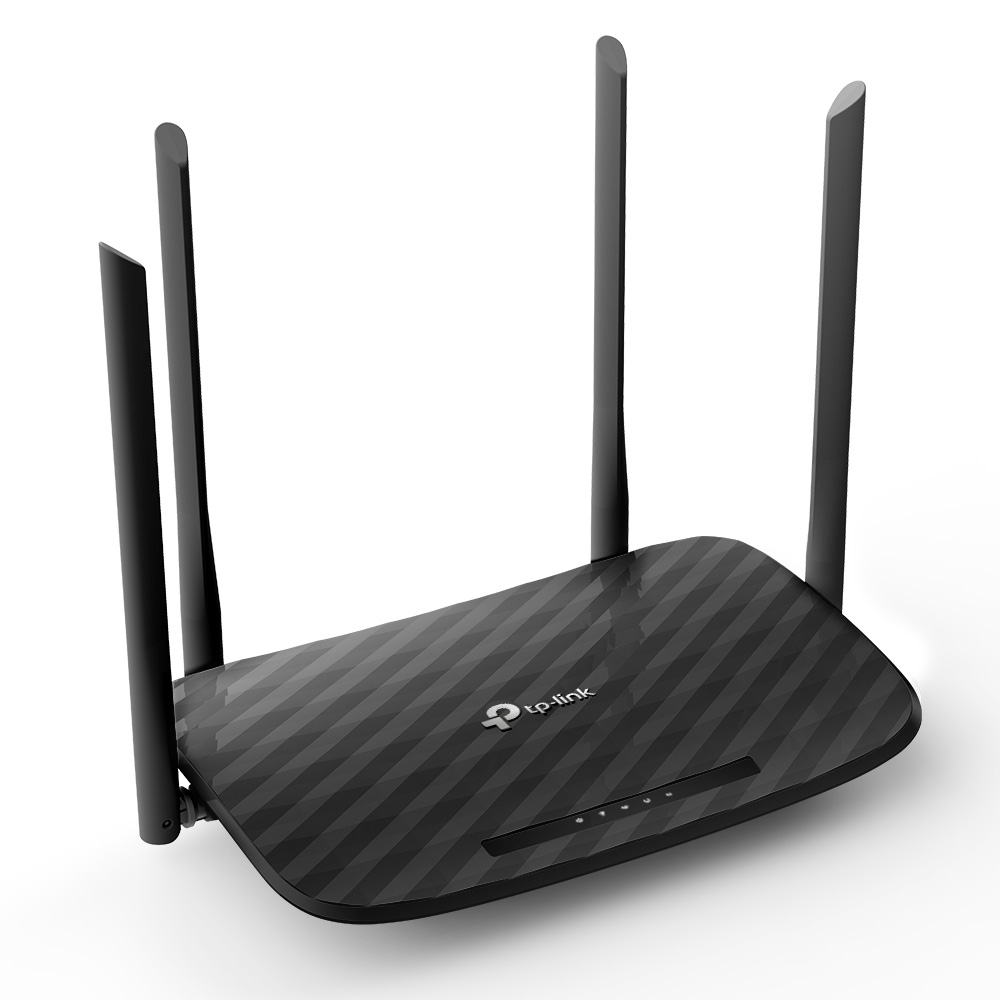

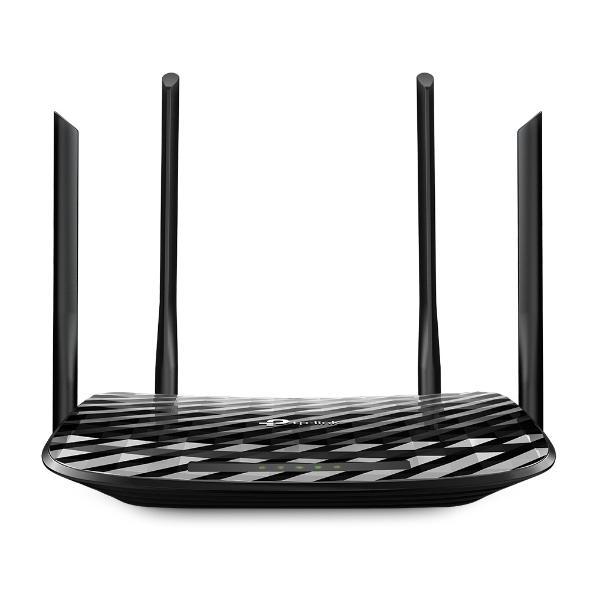

AC1200 Wireless Dual Band Router Archer C50
- Supports 802.11ac standard
- Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of total available bandwidth
- 4 external antennas provide stable wireless connections and optimal coverage
- Easy network management at your fingertips with TP-Link Tether
- Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
- Supports Access Point mode to create a new Wi-Fi access point
AC1200 Wireless Dual Band Router
High-Speed Dual Band Wi-Fi for Better Connections
The Archer C50 lets your PC or laptop enjoy connections 3x faster than Wireless N with Wireless AC technology.
With 300Mbps over the 2.4GHz band and 867Mbps over the the crystal clear 5GHz band, the Archer C50 is
the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.
Innovative Antenna Design for Maximum Coverage
Four well-ordered antennas make all of your connections more efficient and stable. Advanced antenna technology increases the receiving sensitivity to enlarge Wi-Fi coverage for your home.
Easy Parental Control
Supervise children and staff with responsible access, controlled by parents or administrators. Use key words to easily set up a black list and limit the level of web access.
Guest Network Access
Allow guests to join your Wi-Fi network, while protecting your privacy. Make sharing easy, maintain security.
Efficient Guest Authentication with Facebook
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. Easily share your facebook account to anyone who connects to your network.
Easy Setup and Use
Set up the Archer C50 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
|Interface||4 10/100Mbps LAN Ports1 10/100Mbps WAN Port|
|Button||Reset ButtonWPS/Wi-Fi On/Off ButtonPower On/Off Button|
|External Power Supply||9VDC / 0.85A|
|Dimensions ( W x D x H )||9.1 x 5.7 x 1.5 in. (229.87 x 144.19 x 36.85 mm)|
|Antenna Type||4 External Antennas|
|Wireless Standards||IEEE 802.11n/g/b 2.4GHz
IEEE 802.11ac/n/a 5GHz
|Frequency||2.4GHz and 5GHz|
|Signal Rate||2.4GHz: Up to 300Mbps
5GHz: Up to 867Mbps
|Reception Sensitivity||5GHz:11a 54M: -73dBm11ac VHT20 MCS8: -68dBm11ac VHT40 MCS9: -64dBm11ac VHT80 MCS9: -60dBm2.4GHz:11g 54M: -76dBm11n HT20 MCS7: -74dBm11n HT40 MCS7: -71d|
|Wireless Functions||Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics|
|Wireless Security||64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption|
|Quality of Service||WMM, Bandwidth Control|
|WAN Type||Dynamic IP/Static IP/PPPoE/
BigPond/ /L2TP(Dual Access) /PPTP(Dual Access)
|DHCP||Server, Client, DHCP Client List,
|Port Forwarding||Virtual Server, Port Triggering, UPnP, DMZ|
|Dynamic DNS||DynDns, Comexe, NO-IP|
|VPN Pass-Through||PPTP, L2TP, IPSec|
|Access Control||Parental Control, Local Management Control, Host List, Access
Schedule, Rule Management
|Firewall Security||DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
|Protocols||Supports IPv4 and IPv6|
|Guest Network||2.4GHz guest network × 1
5GHz guest network × 1
|Certification||CE, FCC, RoHS|
|Package Contents||AC1200 Wireless Dual Band Router Archer C50Power supply unitEthernet CableQuick Installation Guide|
|System Requirements||Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8/8.1/10
MAC OS, NetWare, UNIX or Linux
|Environment||Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
