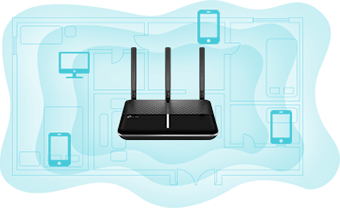

AC2300 Wireless MU-MIMO Gigabit Router
- Faster Wi-Fi Speeds - Dual band speeds up to 2.25Gbps: 1625Mbps on 5GHz, 600Mbps on 2.4GHz
- Powerful Processing - 1.8GHz Dual-Core Processor with co-processor
- More Devices - MU-MIMO achieves 3X efficiency by communicating with up to 3 devices at once
- Higher Efficiency - Beamforming technology delivers highly efficient wireless connection
- Ultra Range - Range Boost + Power Amplifier + High-performance Antennas, giving you even greater coverage
- Smoother Performance - Smart Connect intelligently assigns devices to the best available band
- Better VPN Connection - OpenVPN & PPTP VPN server supported and VPN Acceleration speeds up VPN connection to ultra-level
Best for Simultaneous
4K Streaming and Gaming
MU-MIMO Gigabit Router
Wave 2 AC Wi-Fi for More Bandwidth
With NitroQAM Technology, Archer C2300 boosts the Wi-Fi Speed up to 1625Mbps on 5GHz and
600Mbps on 2.4GHz. It can perfectly handle your favorite activities like gaming online, watching
4K movies, or sharing large files.
- Family Gaming Time
- Friends Movie Time
64-Bit CPU and XStream Processing for Smoother Performance
With XStream processor architecture, the Archer C2300 dedicates one processor to each of its Wi-Fi bands. These processors handle Wi-Fi traffic, freeing the router’s powerful 1.8 GHz dual-core 64-bit CPU to take care of everything else.
- Wi-Fi Performance
- USB Performance
- Archer C2300
- Router at Similar Level
1.8GHz Dual Core CPU
According test result from lab environment
MU-MIMO and Smart Connect for Better Connections
MU-MIMO lets the Archer C2300 talk to several devices at once, and Smart Connect automatically places each device on the best available Wi-Fi band. With both working together, everyone can hop online at the same time without having to wait, and each device can always get the best connection.
Stream data to one device at a time
Stream data to multiple devices simultaneously
RangeBoost for Far-Reaching Wi-Fi
RangeBoost amplifies the router's ability to detect and receive Wi-Fi signal from devices that are located farther away. Stream, game and enjoy what you love anywhere in your home, from your favorite spot on the couch to the comfort of your bed.
- Further-away /
Low powered devices
- Archer C2300
With Range Boost
- Regular Router
Without Range Boost
TP-Link HomeCare™ for All Day Protection
Anti-Viruss : Already protecting your home network. It blocks all malicious viruses and malware.
Parental Controls : Keeps kids surfing safely online when they are home.
Quality of Service : Prioritizes specific devices/apps for faster when network comes to busy time.
- Already protecting your home network. It blocks all malicious viruses and malware.
- Parental Controls
- Keeps kids surfing safely online when they are home.
- Quality of Service
- Prioritizes specific devices/apps for faster when network comes to busy time.
Media Sharing for More Fun
USB 3.0 and 2.0 ports make it easy to share photos, videos, and music on your home network.
When away from home, a VPN allows you to securely access NAS drives and other devices connected to the router through USB.
- Combine and get 2Gbps
- 10x faster speed
VPN Acceleration for Fast and Stable VPN
Archer C2300 is not only supporting safe and secure OpenVPN and PPTP VPN connection, but also using VPN Acceleration to boost the connection speed. All of the data you're transmitting is guaranteed to be secured by these VPN functions.
Intuitive Tether App for Easy Management
Setup and manage your Wi-Fi through the free TP-Link Tether app, available for both Android and iOS. Tether’s simple layout lets you quickly access all of your Wi-Fi settings on your phone or tablet.
HomeCare for Protection, Safety and Fast Wi-Fi
You don’t need to buy a separate security box device like Cujo or Circle to add security to your network. TP-Link HomeCareTM is powered by Trend MicroTM* and comes with antivirus, parental controls and QoS.
Every device that uses Wi-Fi is protected by HomeCareTM. That includes things that don’t normally have protection from cyber threats, like Wi-Fi cameras, smart locks and game consoles. It even protects devices that your friends use at your home.
Whether you want to block websites, set time limits, see which sites your kids are using or pause the internet, you can with HomeCareTM. And you can do it all from the Tether app.
Prioritize What Matters
Choose which devices or activities you want to prioritize with Quality of Service (QoS). In just a few taps, you can make sure your laptop or streaming movie is first in line for Wi-Fi or Ethernet.
Ready for Today and Tomorrow's Smart Home
With the growing number of devices in today's home, everyone deserves a smarter and easier way to bring all your products together. Utilize Amazon Alexa to control everything via voice commands to enjoy truly intelligent life.
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
*Use of MU-MIMO and 1024-QAM requires clients to also support those functions.
*A basic TP-Link HomeCareTM, powered by Trend MicroTM, package is included for 3 years from date of activation at no additional cost. It includes Parental controls, Quality of Service, and Antivirus. Deactivation of HomeCareTM will disable certain controls and protections. For a complete list of HomeCareTM functions, go to www.tp-link.com.
|Standards||Wi-Fi 5IEEE 802.11ac/n/a 5 GHzIEEE 802.11n/b/g 2.4 GHz|
|WiFi Speeds||AC23005 GHz: 1625 Mbps (802.11ac)2.4 GHz: 600 Mbps (802.11n)|
|WiFi Range||3 Bedroom Houses
3× Detachable High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi range
Dual-BandAllocate devices to different bands for optimal performance3×3 MU-MIMOSimultaneously communicates with multiple MU-MIMO clientsAirtime FairnessImproves network efficiency by limiting excessive occupation
|Working Modes||Router ModeAccess Point Mode|
|Processor||1.8 GHz 64 Bit Dual-Core CPU|
|Ethernet Ports||1× Gigabit WAN Port4× Gigabit LAN PortsLink Aggregation (802.3ad) available with 2× LAN ports|
|USB Support||1× USB 3.0 Port1× USB 2.0 PortSupported Partition Formats:NTFS, exFAT, HFS+, FAT32Supported Functions:Apple Time MachineFTP ServerMedia Server|
|Buttons||Wi-Fi On/Off ButtonPower On/Off ButtonLED On/Off ButtonWPS ButtonReset Button|
|Power||12 V ⎓ 2 A|
|WiFi Encryption||WEPWPAWPA2WPA/WPA2-Enterprise (802.1x)|
|Network Security||SPI FirewallAccess ControlIP & MAC BindingApplication Layer GatewayHomeCare™ Antivirus
Malicious Site CheckerPort Intrusion PreventionInfected Device IsolationNotification and Log
|Guest Network||1× 5 GHz Guest Network1× 2.4 GHz Guest Network|
|Service Kits||HomeCare™Learn More>|
|Parental Controls||HomeCare™ Parental Controls
Custom ProfilesContent FilteringApp BlockURL FilteringTime Limit Time Schedule (Bedtime)Log InsightMonthly Report
|WAN Types||Dynamic IPStatic IPPPPoEPPTPL2TP|
|Quality of Service||QoS by DeviceHomeCare™ QoS
QoS by Application
|Cloud Service||OTA Firmware UpgradeTP-Link IDDDNS|
|NAT Forwarding||Virtual ServersPort ForwardingPort TriggeringDMZUPnP|
|IPTV||IGMP ProxyIGMP SnoopingBridgeTag VLAN|
|DHCP||Address ReservationDHCP Client ListServer|
|Management||Tether AppWebpageCheck Web Emulator>|
|Dimensions (W×D×H)||8.5 × 6.5 × 1.4 in(216 × 164 × 36.8 mm)|
|Package Contents||Wi-Fi Router Archer C2300Power AdapterRJ45 Ethernet CableQuick Installation Guide|
|Certifications||FCC, CE, RoHS|
|Environment||Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing|
|WiFi Transmission Power||CE: <20dBm(2.4GHz)<23dBm(5GHz)FCC: <30dBm|
|WiFi Reception Sensitivity||5GHz: 11a 6Mbps: -91dBm11a 54Mbps: -72dBm11n HT20: -70dBm11n HT40: -69dBm11ac HT20: -60dBm11ac HT40: -61dBm11ac HT80: -56dBm2.4GHz: 11g 54Mbps: -73dBm11n HT20: -72dBm11n HT40: -69dBm|
