RE715X

AX3000 Mesh WiFi 6 Extender

  • Up to 3.0 Gbps Dual Band Wi-Fi: Separates 5 GHz (2402 Mbps) and 2.4 GHz (574 Mbps) WiFi bands for faster speeds and greater capacity with the WiFi 6 technology.
  • Smart Roaming: Walk from room to room and stay connected with the fastest possible speeds.§
  • EasyMesh-Compatible: Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage.
  • AP Mode: Create a new WiFi access point through the Gigabit Ethernet port to enhance your wired network with WiFi capability.
  • Adaptive Path Selection: Automatically choosing the fastest connection path to the router.
  • Easy Setup: Plug in and then easily set up via a press of the WPS button or via the Tether App.
  • Ultimate Compatibility: Extends the range of any Wi-Fi router or wireless access point.*
  • What is Wi-Fi 6?

Cover Every Corner with
Blazing Fast WiFi 6

AX3000 WiFi 6 Range Extender

RE715X

1000 M
Ethernet Port

AX3000
Extremely-Fast WiFi



Works with any WiFi router*

160 MHz Bandwidth
Streaming Network for
Multi-Devices

Dual Band

MU-MIMO

EasyMesh

Life in the fast lane with advanced WiFi6

WiFi 6 comes with it all: faster speeds, lower latency, and more connections. It also features 25% faster data throughput compared with last-gen WiFi thanks to 1024-QAM. With this speed boost, experience high-speed and stable WiFi throughout your rooms.

WiFi6 1024-QAM 25 % faster
WiFi 5 256-QAM

Double Channel Speed with HE160

Higher Efficiency, Lower Latency

Supports 2x2 160MHz on the 5G band, enjoys wider bandwidth and faster speed than the traditional 80MHz.

RE715X
2×2
160MHz
Others
2×2
80MHz

4 high-performance amplifiers, we got you covered

Enjoy 4K streaming and gaming in whatever room you’re in thanks to RE715X’s 4 high-performance amplifiers. Whether you’re sharing a pad with friends or living in your forever home, RE715X sends out strong signals to those hard-to-cover areas.

OFDMA

More efficient data.

Orthogonal Frequency Division Multiple Access helps integrate the data of different end devices for higher efficiency.

WiFi 6
OFDMA

Data Transmitted

WiFi 5
OFDM

Data Transmitted

Beamforming

Strong, targeted WiFi.

Find the direction of your phone or laptop, and accelerate your signal strength.

Beamforming

None

Adaptive Path Selection

Keeps your network running at top speed by automatically choosing the fastest connection path to the router.

2.4GHz
5GHz

Without Adaptive Path Selection

2.4GHz
5GHz

Flexibly Create Whole Home Mesh WiFi

If you have any dead zones at home, just add another Easymesh-Compatible router/WiFi extender to further form your whole home mesh WiFi. No more searching for a stable connection.

  • EasyMesh Devices
    (Router + Range Extender)

  • Traditional Router
    with Extender Wi-Fi

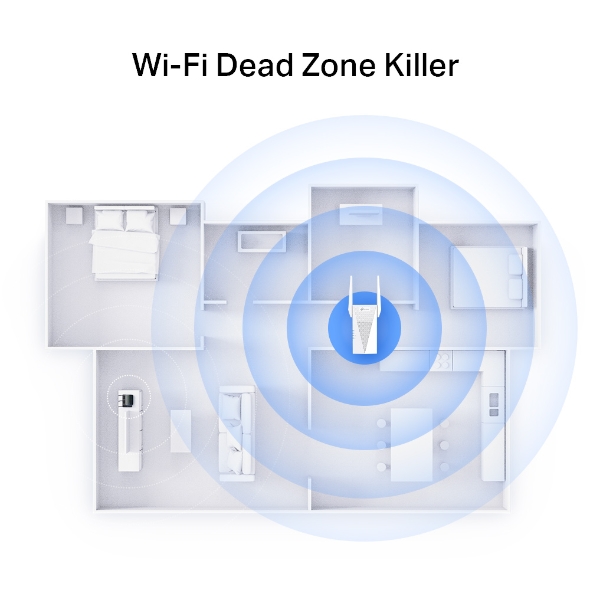

  • WiFi Dead Zone Killer

    WiFi Dead Zone Killer

    Eliminate weak signal areas with WiFi coverage for the whole house

  • Smart Roaming

    Smart Roaming

    Uninterrupted streaming when moving around your home§

  • One WiFi Name

    One WiFi Name

    No more switching WiFi network names

Wide.
Wider.
Widest.

Keep your internet focused on a single room or blanket an entire floor with WiFi by picking between 3 strength levels on the Tether app.

Built-In Access Point Mode

RE715X is more than a wireless range extender. Simply plug an Ethernet cable into its Ethernet port, and easily turn your wired internet connection into a 2×2 MU-MIMO dual band wireless access point.

Control at Your Fingertips

Set up and manage your WiFi through the TP-Link Tether app from your phone (Android, iOS), including TP-Link routers and range extenders.

Tether QRcode
Tether App
Apple Store Google Store
  • 1Power Indicator
  • 2Signal indicator
  • 32.4 GHz Indicator
  • 45 GHz Indicator
  • 5Reset
  • 6WPS Button
  • 7Gigabit Port
HARDWARE FEATURES
Ports 1 Gigabit Ethernet Port
Button • WPS Button
• Reset Button
Input Power 100-240V~50/60Hz
Power Consumption 15.2W
Dimensions ( W x D x H ) 107×40×160 mm
Antenna 2 External Antennas
WIRELESS FEATURES
Wireless Standards • IEEE 802.11a/n/ac/ax 5GHz
• IEEE 802.11b/g/n/ax 2.4GHz
Frequency 2.4GHz and 5GHz
Signal Rate • 574 Mbps at 2.4GHz
• 2402 Mbps at 5GHz
Working Modes Range Extender / Access Point
Reception Sensitivity 5GHz:
11a 6Mbps:-97dBm
11a 54Mbps:-78dBm
11ax HE20 MCS0: -97dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -94dBm
11ax HE40 MCS11: -62dBm
11ax HE80 MCS0: -92dBm
11ax HE80 MCS11: -61.5dBm
11ax HE160 MCS11: -59dBm

2.4GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11ax HE20 MCS0: -95dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -93.5dBm
11ax HE40 MCS11: -62dBm
Wireless Functions • Enable/Disable Wireless Radio
• DFS (the latest firmware and hardware version is required)
• Access Control
• LED Control
• Power Schedule
• Wi-Fi Coverage Adjustment
Wireless Security • WEP
• WPA
• WPA2
• WPA3
Transmission Power • 2.4 GHz ≤ 16 dBm
• 5 GHz ≤ 21 dBm
Mesh Technology EasyMesh-Compatible
OTHERS
Certification RoHS
Package Contents • Wi-Fi Range Extender RE715X
• Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Environment • Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

Use of Wi-Fi 6 (802.11ax), and features including OFDMA, 1024-QAM, MU-MIMO and HE160 requires clients to also support the corresponding features.

§Smart Roaming is designed for devices that support the 802.11k/v standard.

TP-Link EasyMesh-compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The EasyMesh-compatible function is still being developed on some models and will be supported in subsequent software updates.

The maximum capacity is the maximum number of signals that can be connected under ideal conditions, and the specific situation varies with the location of the RE, the type of connected equipment, etc.

*The product may not be compatible with routers or gateways with firmware that has been altered, based on open source programs, or is non-standard or outdated.



Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
