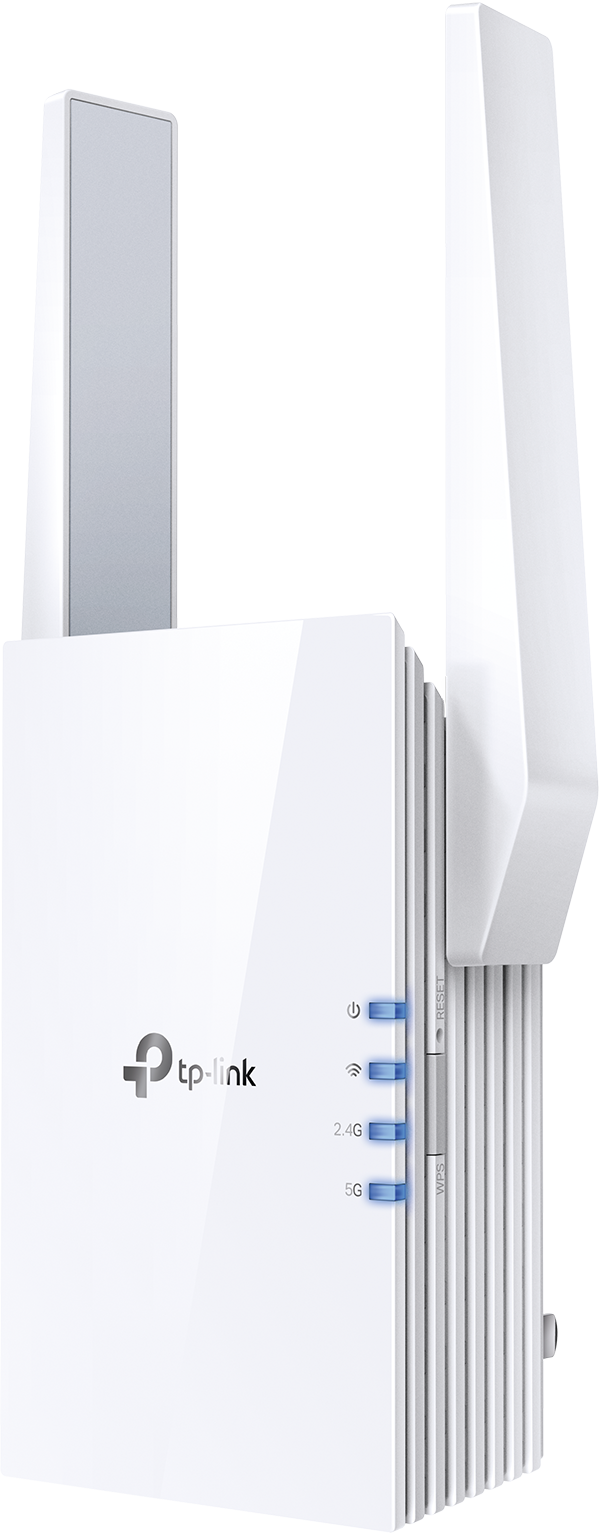

RE515X
AX1500 Wi-Fi Range Extender
- Up to 1.5 Gbps Dual Band Wi-Fi: Separates 5 GHz (1200Mbps) and 2.4 GHz (300 Mbps) WiFi bands for faster speeds and greater capacity with the WiFi 6 technology.†
- Smart Roaming: Walk from room to room and stay connected with the fastest possible speeds.§
- EasyMesh-Compatible: Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage.◇
- Gigabit Ethernet Port: Provides faster wired connections to smart TVs, computers and gaming consoles.
- AP Mode: Create a new WiFi access point through the Gigabit Ethernet port to enhance your wired network with WiFi capability.
- Easy Setup: Plug in and then easily set up via a press of the WPS button or via the Tether App.
- Ultimate Compatibility: Extends the range of any Wi-Fi router or wireless access point.*
Whole Home Coverage
1000 M
Ethernet Port
Work with any WIFI router*
Uninterrupted Streaming
Dual Band
MU-MIMO2
Larger Capacity
Life in the fast lane with advanced Wi-Fi 6
The latest Wi-Fi technology eliminates annoying lag, endless loading, and dead spots. Enjoy the future of faster network loads and more connections.
Fill Every Inch of Your Home with Wi-Fi 6
The RE515X wirelessly connects to your router, boosting your Wi-Fi 6 signal throughout your home so you can binge watch your favorite show anywhere.
Dual Band, More Benefits
-
Adaptive Path Selection
Keeps your network running at top-speed by automatically choosing the fastest connection path to the router.
-
High Speed Mode
Use both Wi-Fi bands to enjoy super-fast connections —ideal for HD streaming and gaming.
Built-In Access Point Mode
RE515X is more than just a wireless range extender. Simply plug an Ethernet cable into its port to easily turn that wired connection into a high-speed dual band wireless signal.
Flexibly Create Whole Home Mesh WiFi
RE515X is EasyMesh-compatible. If you have any WiFi dead zones at home, simply add another EasyMesh router to further form your whole home mesh WiFi. No more searching for a stable connection. For a better network experience, we recommend combining with RE515X.
-
WiFi Dead Zone Killer
Eliminate weak signal areas with WiFi coverage for the whole house
-
Smart Roaming
Uninterrupted streaming when moving around your home
-
One WiFi Name
No more switching WiFi network names
-

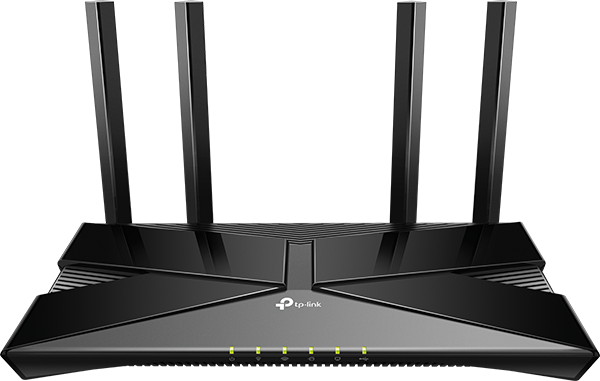

EasyMesh Devices (Router+Range Extender)
-
Traditional Router
with Extender Wi-Fi
Control at Your Fingertips
Set up and manage your WiFi through the TP-Link Tether app from your phone (Android, iOS), including TP-Link routers and range extenders.
| Interface | 1 Gigabit Ethernet Port |
|---|---|
| Button | WPS Button, Reset Button |
| Input Power | 100-240V~50/60Hz |
| Max. Power Consumption | 10W |
| Dimensions ( W x D x H ) | 2.9×1.8×4.9 in. (74.0×46×124.8 mm) |
| Antenna | 2 External Antennas |
| Wireless Standards | IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n 2.4GHz |
|---|---|
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 300 Mbps at 2.4GHz, 1200 Mbps at 5GHz |
| Working Modes | Range Extender/Access Point |
| Reception Sensitivity | 5GHz: 11a 6Mbps: -93dBm, 11a 54Mbps: -75dBm 11ac HT20 MCS0: -92dBm, 11ac HT20 MCS8: -70dBm 11ac HT40 MCS0: -90dBm, 11ac HT40 MCS9: -66dBm 11ac HT80 MCS0: -87dBm, 11ac HT80 MCS9: -62dBm 2.4GHz: 11g 54Mbps: -77dBm, 11n HT20 MCS7: -75dBm 11n HT40 MCS7: -72dBm |
| Wireless Functions | Enable/Disable Wireless RadioDFS (the latest firmware and hardware version is required)Access ControlLED ControlPower ScheduleWi-Fi Coverage |
| Wireless Security | 64/128-bit WEP, WPA/WPA2-PSK encryptions |
| Transmission Power | CE (EU): 2.4G＜20dBm, 5G＜30dBm |
| Mesh Technology | EasyMesh-Compatible |
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP App management Manage and configure device through app • Port: 20001 Protocol: TCP • Port: 20002 Protocol: UDP |
|---|---|
| Certification | FCC, RoHS |
|---|---|
| Package Content | Wi-Fi Range Extender RE505X Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 6 (802.11ax), and features including OFDMA, 1024-QAM, MU-MIMO and HE160 requires clients to also support the corresponding features.
§Smart Roaming is designed for devices that support the 802.11k/v standard.
*The product may not be compatible with routers or gateways with firmware that has been altered, based on open source programs, or is non-standard or outdated.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
