AV1300 Gigabit Passthrough Powerline ac Wi-Fi Kit
- HomePlug AV2 Standard - Provides ultra-fast powerline transfer speeds of up to 1300 Mbps*
- AC1200 Dual-Band Wi-Fi - Extends ultra-fast dual-band Wi-Fi with speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz*
- OneMeshTM - Works with your OneMeshTM router to form a unified mesh network for seamless streaming while moving around your home
- 2 × 2 MIMO - Establishes multiple simultaneous connections for you to enjoy higher powerline speeds and greater stability
- One-Touch Wi-Fi Configuration - One press of the Wi-Fi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire Powerline network
- Wi-Fi Auto-Sync - Add additional extenders to your powerline network by pair button, uniformly sync settings such as SSID, password, Wi-Fi Schedule and LED Schedule for all network devices
- Plug and Play - Set up your powerline network and start enjoying fast, seamless wired/wireless connections in minutes
- Extra Power Socket - Get power from the outlet for your other devices with the integrated power socket
- 3 × Gigabit Ports - Provide secure wired networks for desktops, smart TVs or games consoles
Wall-Piercing Wi-Fi Extended to Every Outlet
AV1300 Gigabit Passthrough Powerline ac Wi-Fi Kit
Stable, Ultra-Fast Network in Every Room
- No need for drilling or wire installation.
- Network passes through walls and floors
2.4 GHz 300 Mbps 5 GHz 867 Mbps
The passthrough powerline kit extends AC1200 Wi-Fi to any area in your home.
The latest HomePlug AV2 technology delivers speeds of up to 1300 Mbps
over Powerline, preventing lost speed during transfers.
Enjoy Stable, Seamless OneMesh™ Wi-Fi
Bothered by dropped connections while moving around your home?
With the newest OneMeshTM technology, the kit works with your existing OneMeshTM router to form a unified Mesh network. No more switching Wi-Fi network names, enjoy uninterrupted streaming and truly seamless AC1200 Wi-Fi.
OneMesh™ Router + Range Extender
Traditional Router with Extender
2×2 MIMO Technology for Efficient Transmissions
More Stable Connections
2×2 MIMO is like adding extra lanes to a highway. It establishes multiple simultaneous connections for you to enjoy higher speeds and greater stability.

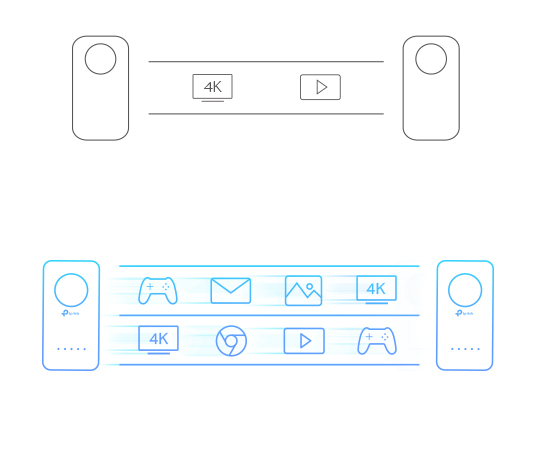

Traditional SISO Transmission
SISO - Single-input Single-output
Advanced MIMO Transmission
MIMO - Multi-input Multi-output

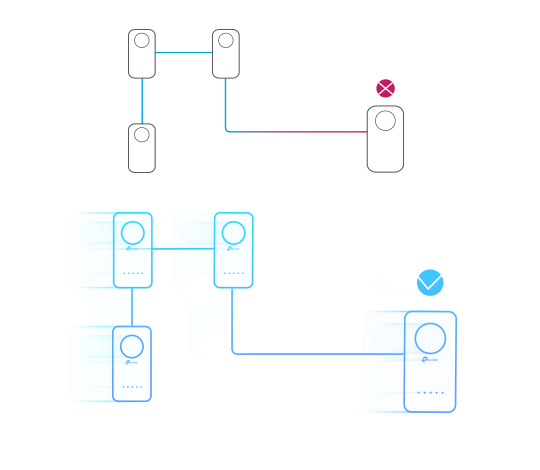

Enhanced Long-Distance Performance
2×2 MIMO with Beamforming technology also offers the benefit of improved coverage throughout the home, particularly for previously hard-to-reach outlets.SISO Long Distance MIMO Long Distance
2×2 MIMO greatly shortens data transmission times, especially during peak hours.
One Tap for a Unified Network
One-Touch Wi-Fi Configuration
Instantly copies your network name and password from your router for easy setup.
Automatically applies any setting changes across the network. Your existing Wi-Fi settings will synchronize to the new extender instantly.
Plug and Play in Seconds!
Plug TL-PA8010P in the wall and connect it to the router. Then plug TL-WPA8631P into any desired power socket.
That’s it. You’re done!
Tip: Press ‘Pair’ for more security.
Don’t Lose an Outlet
The passthrough powerline kit can be used like a traditional electrical socket, ensuring no power socket goes to waste. The built-in noise filter helps prevent electrical signal noise from affecting powerline performance.
More Gigabit Ethernet Ports, More Devices
Equipped with 3× gigabit Ethernet ports, the kit provides wired connections for 4K video, IPTV streaming, lag-free gaming, and more.
|Standards and Protocols||HomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b/g/n (2.4 GHz), IEEE 802.11a/n/ac (5 GHz)|
|Interface||3 Gigabit Ethernet Ports|
|Button||Pair, LED On/Oﬀ, Wi-Fi, Reset|
|Power Consumption||TL-WPA8631P: Maximum: 13.7W, Typical: 11WTL-PA8010P: Maximum: 4.9W, Typical: 4.6W|
|LED Indicator||Power, Powerline, Ethernet, Wi-Fi (2.4 GHz), Wi-Fi (5 GHz)|
|Dimensions ( W x D x H )||TL-WPA8631P: 3.0 × 1.7 × 6.0 in. (75 × 42 × 152 mm)TL-PA8010P: 2.8 × 1.7 × 5.2 in. (72 × 42 × 131 mm)|
|Range||Up to 300 meters/1000 feet over existing electrical wiring*|
|Compatibility||Compatible with all HomePlug AV & HomePlug AV2 standardpowerline adapters*|
|Transmission Speeds||Powerline: up to 1300 MbpsEthernet: 10/100/1000 Mbps|
|Security||Wireless: WPA-PSK/WPA2-PSK, WEP Encryptions,Powerline: 128-bit AES Encryption|
|Management||TP-Link tpPLC App, or download new tpPLC Utility on PCs: www.tp-link.com/support/download|
|Package Contents||AV1300 Gigabit Passthrough Powerline ac Wi-Fi KIT: 1× TL-WPA8631P, 1× TL-PA8010P;2× Ethernet Cables;1× Quick Installation Guide|
|System Requirements||System Requirements:Windows 10/8.1/8/7/Vista/XP, Mac OS, LinuxSystem Requirements for tpPLC Utility:Windows 10/8.1/8/7/Vista/XP and Mac OS X (10.7 or later)|
|Environment||Operating Temperature: 0°C~40°C (32°F~104°F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing|
*1. Compatible with all HomePlug AV and AV2 Standard Powerline adapters. This product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or are non-standard or outdated.
*2. Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
*3. Maximum Powerline signal rates are the physical rates derived from HomeplugAV/AV2 specifications. Actual Powerline data throughput and Powerline range are not guaranteed and will vary as a result of network conditions and environmental factors, including electrical interference, volume of traffic and network overhead, AFCI circuit breaker, and Powerline being located in a separate circuit.
