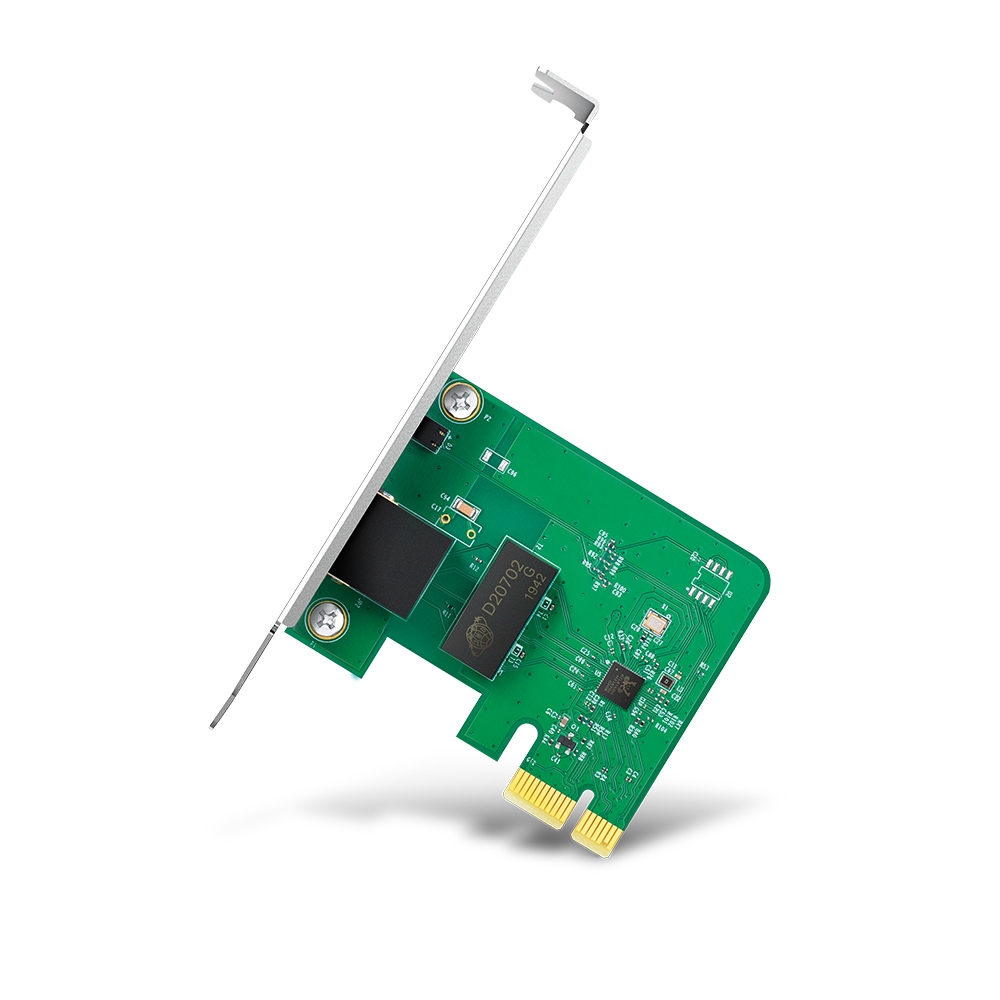

Gigabit PCI Express Network Adapter

  • 10/100/1000Mbps PCIe Adapter
  • 32-bit PCIe interface, saving the finite chassis space
  • Wake-on-LAN, convenient to manage over LAN

Gigabit PCI Express
Network Adapter

TG-3468

  •

    Operating System

    Supports operating systems include Windows 10/8.1/8/7/Vista/XP

  •

    Low-Profile Bracket

    In addition to standard bracket, low-profile bracket is also provided for mini tower computer case

  •

    Wake On LAN

    Remotely power on/off your computer with WOL, good for centralized management

†Maximum wired data throughput rates are the physical rates derived from IEEE Standard 802.3 specifications. Actual wired data throughput is not guaranteed and will vary as a result of environmental factors, Ethernet cable class, and computer performance.
‡Use of Wake on LAN requires your mainboard to also support the corresponding feature
§Use of Flow Control requires devices to also support the corresponding feature
△To ensure compatibility, you may need to update the adapter’s drivers after an OS update. You can check the full list of the supported OS in the download center at tp-link.com/download-center

HARDWARE FEATURES
Interface PCI Express, 1 × 10/100/1000 Mbps RJ45 Port, Auto-Negotiation, Auto MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Status
Wireless Standards IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Data Rates 10/100/1000Mbps for Half-Duplex mode,
20/200/2000Mbps for Full-Duplex mode
Dimensions 3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm)
Flow Control IEEE 802.3x Flow Control (Full-Duplex)
OTHERS
Certification FCC, CE, RoHS, BSMI, VCCI

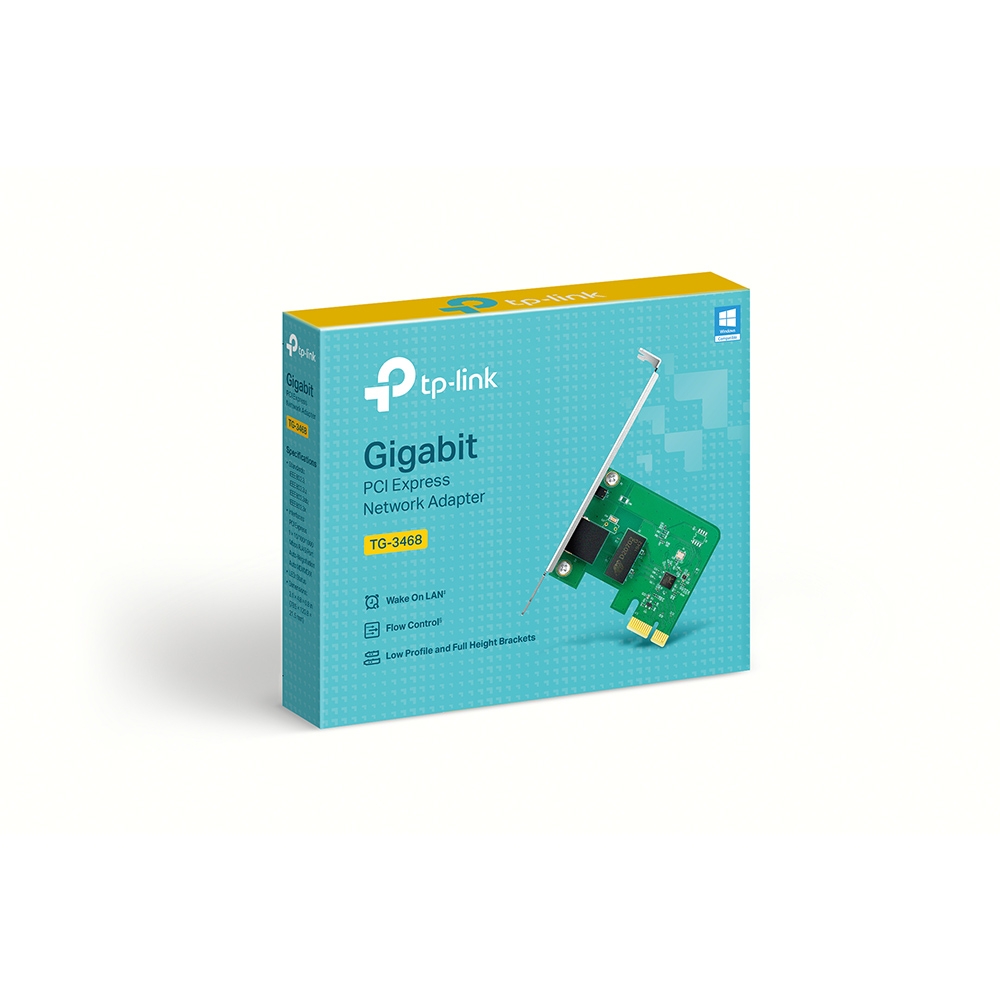

Package Contents Gigabit PCI Express Network Adapter TG-3468
Quick Installation Guide
Resource CD
Low-profile Bracket
System Requirements Windows 10/8.1/8/7
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
