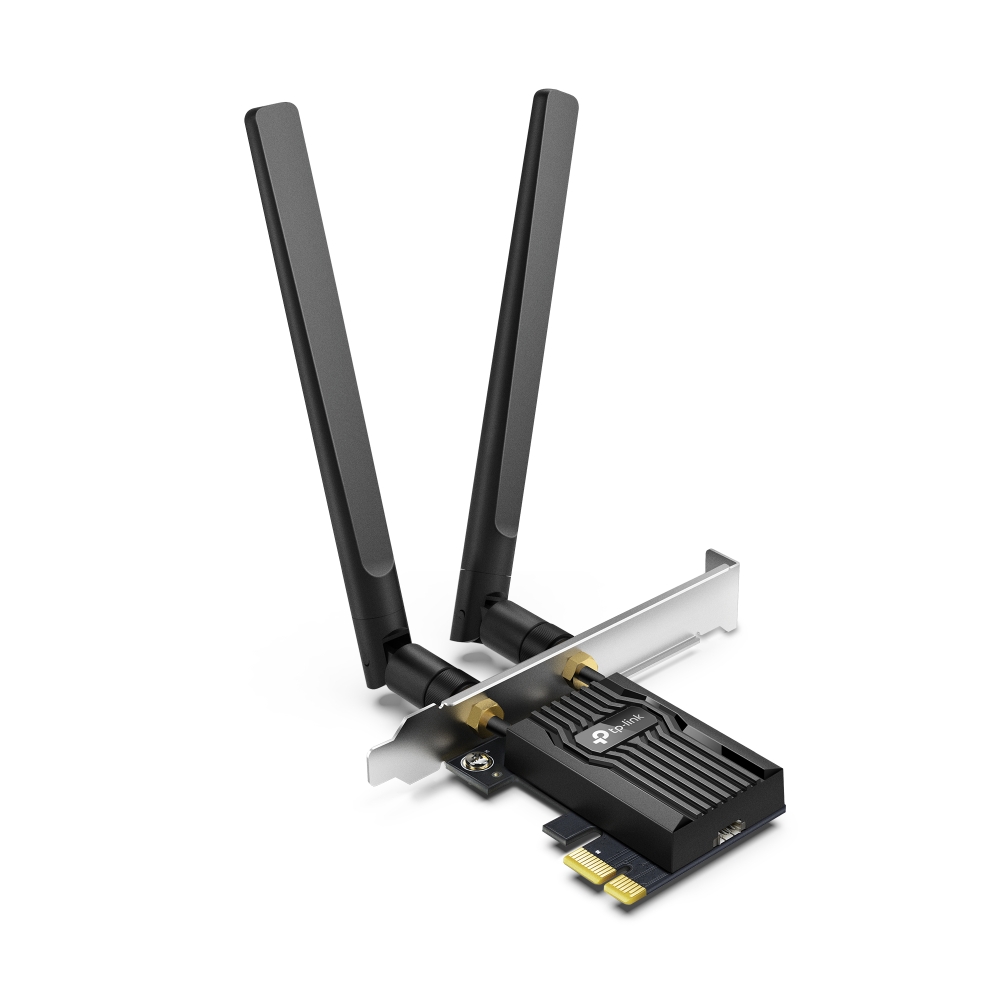

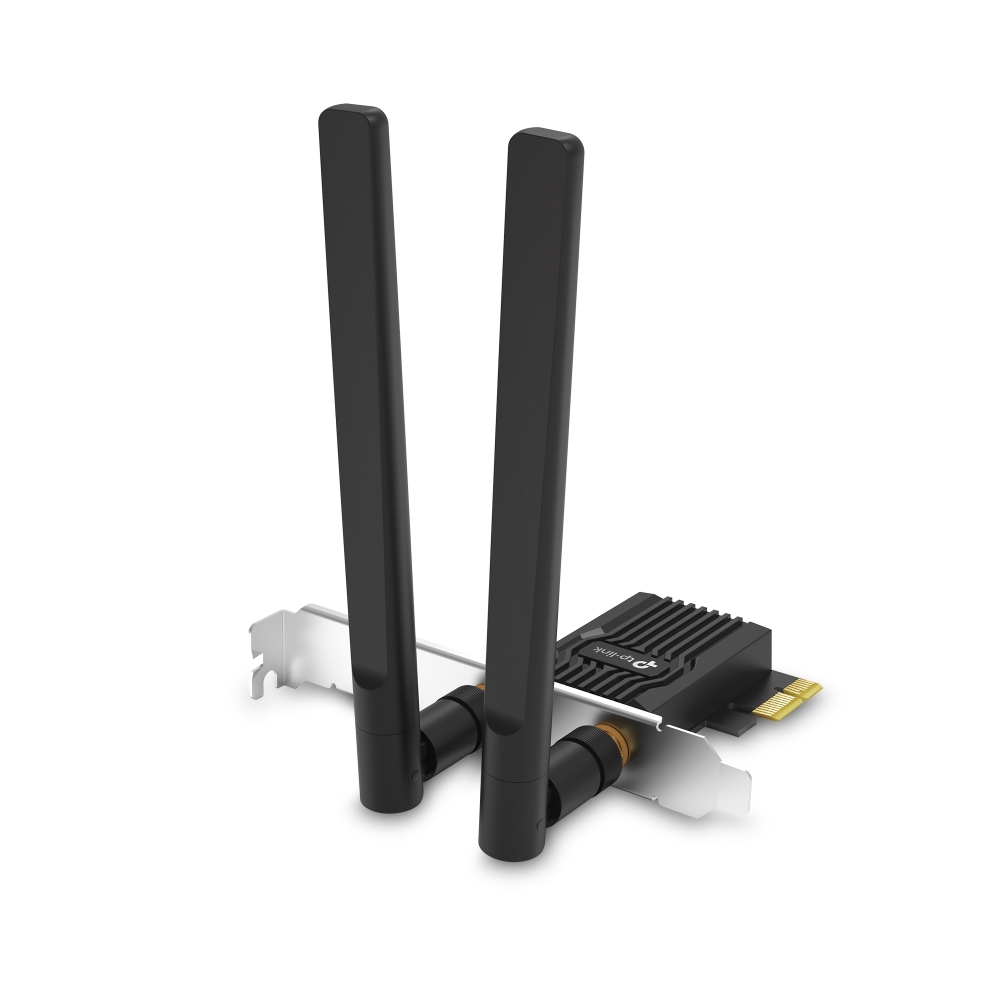

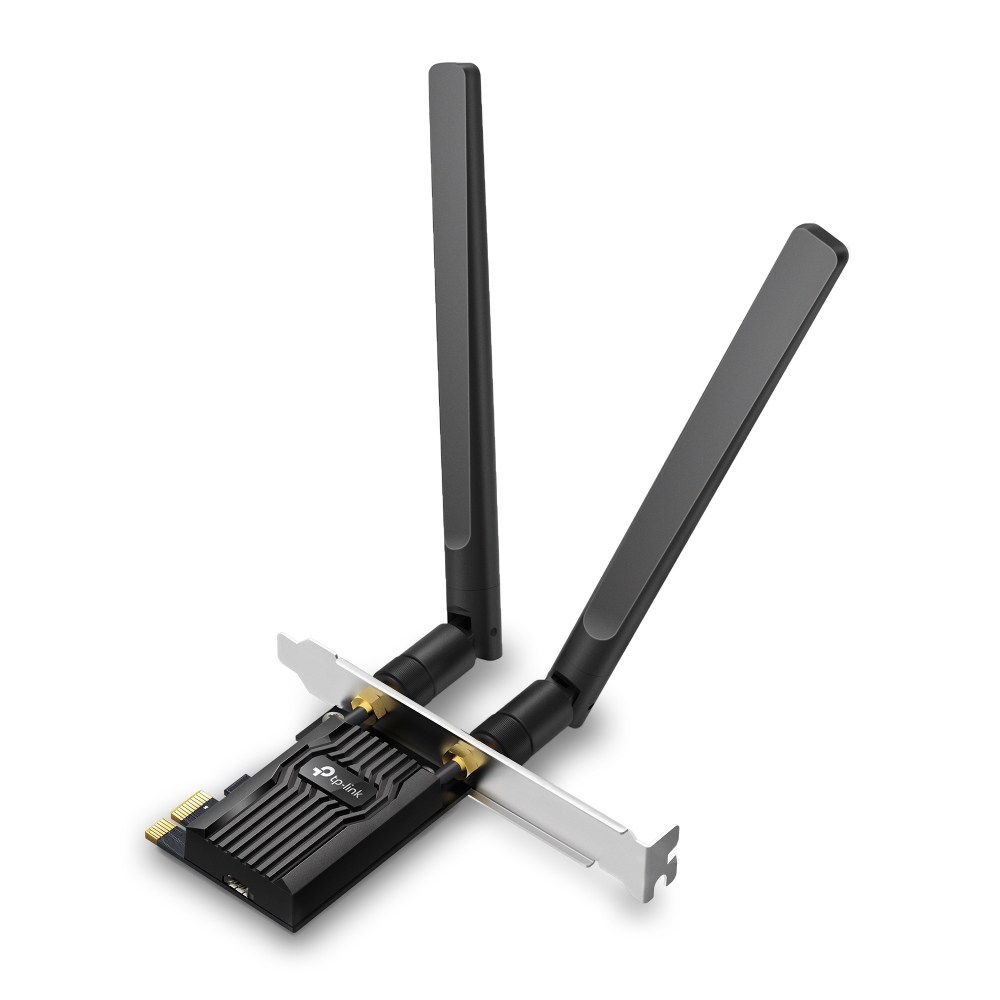

Archer TX10E
Coming SoonAX900 Wi-Fi 6 Bluetooth PCIe Adapter
-
Super-Fast Dual-Band Wi-Fi 6: Wi-Fi 6 and dual bands (600 Mbps on 5 GHz + 287 Mbps on 2.4 GHz) for up to 887 Mbps, ensuring a silky-smooth experience.
-
Reliable Bluetooth 5.3：Improves connection stability, data transfer efficiency, and provides a high-quality connection experience in complex environments.
-
MU-MIMO and OFDMA： Experience ultra-low latency and congestion MU-MIMO and OFDMA technology for unparalleled network efficiency.
-
Two High-performance External Antennas: Provide extensive network coverage and strong, reliable signals.
-
Advanced WPA3: WPA3 protocol provides safer network connections and protects personal privacy.

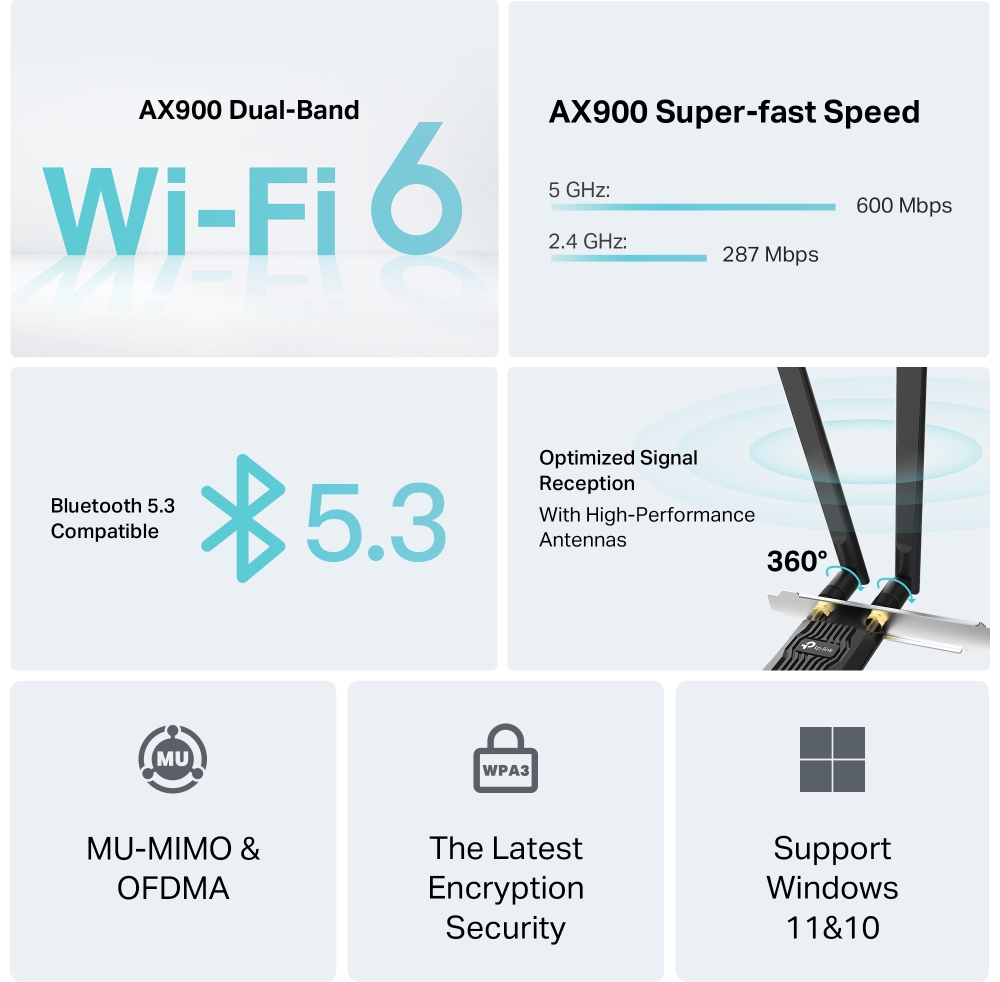

AX900 Dual-Band
Bluetooth 5.3 Compatible
AX900 Super-fast Speed
5GHz
600 Mbps
2.4GHz
287 Mbps
Optimized Signal Reception With High-Performance Antennas
MU-MIMO & OFDMA
The Latest Encryption Security
Support Windows 11&10

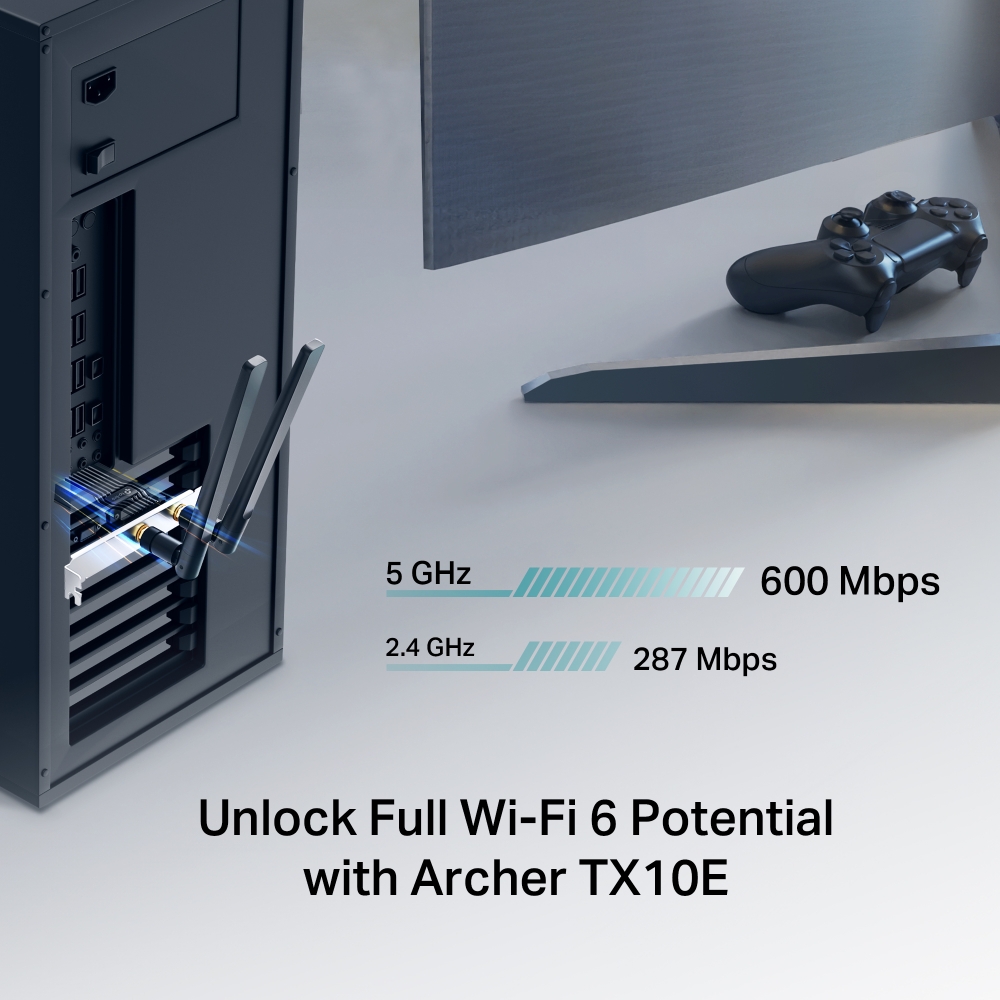

Unlock Full Wi-Fi 6 Potential with Archer TX10E
The Wi-Fi 6 standard provides high speeds, ultra-low latency, and stable connections. The Archer TX10E equips your PC with Wi-Fi 6 to ensure powerful, continuous signal reception, fully unlocking your Wi-Fi 6 router’s potential.
5 GHz
600 Mbps
2.4 GHz
287 Mbps
Reliable Bluetooth 5.3
Building on the high speed and wide coverage of the previous generation, Bluetooth 5.3 has improved in reliability and security. This enhancement ensures stronger compatibility with devices such as game controllers, headphones, and keyboards.
Lower Latency, Higher Efficiency, and Less Congestion
The innovative combination of OFDMA and MU-MIMO ensures an optimally efficient Wi-Fi connection for your PC, reducing latency and boosting speeds.
-
MU-MIMO
Boosts the throughput and efficiency of the entire network, providing multiple data streams simultaneously.
MU-MIMO Router
Regular Adapter
MU-MIMO Router
Archer TX10E
-
OFDMA
Experience seamless connectivity, delivering optimized bandwidth and reduced latency for superior multi-device performance.
Without OFDMA
Data Transmitted
Client 1
Client 2
Client 3
With OFDMA
Data Transmitted
Archer TX10E
Client 2
Client 3

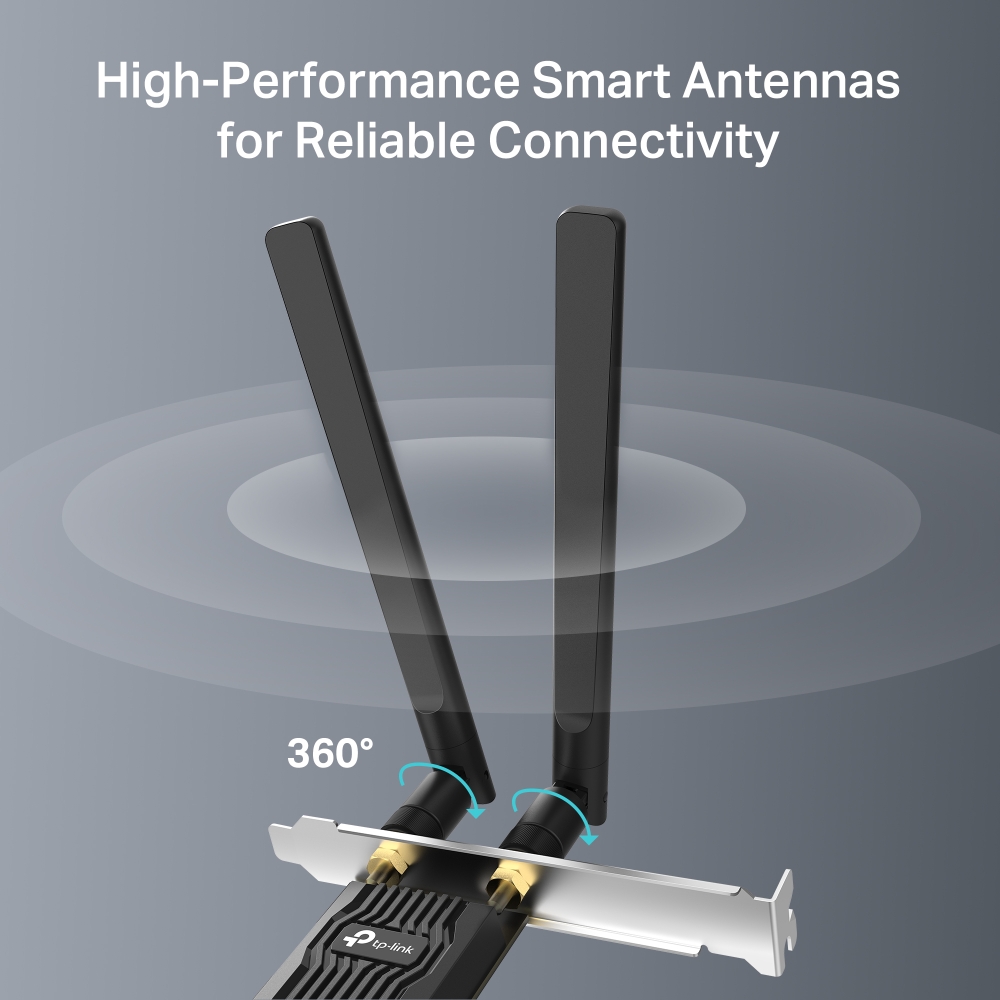

High-Performance Smart Antennas for Reliable Connectivity
The Archer TX10E has adjustable smart antennas that can be manually tuned for better signal and automatically select which antenna to work during external interference to ensure peak performance.
-
Security
WPA3 encryption protects your PC from brute-force attacks, keeping your data safe.
-
Low-Profile Bracket
In addition to the standard bracket, a low-profile bracket is also provided for mini-tower computer cases.
-
Operating System
Supports Windows 11/10.
| Interface | PCI Express x1/x4/x8/x16 |
|---|---|
| Dimensions ( W x D x H ) | 120.8 × 78.5 × 20.9 mm(4.76 × 3.09 × 0.82 in) |
| Antenna | Two High Gain Dual-Band Antennas |
| Standards and Protocols | Bluetooth 5.3/5.2/5.0/4.2/4.0 |
|---|---|
| Interface | F_USB 2.0 |
| Wireless Standards | IEEE 802.11a/n/ac/ax 5 GHzIEEE 802.11b/g/n/ax 2.4 GHz |
|---|---|
| Signal Rate | 5 GHz11ax: Up to 600 Mbps(dynamic)11ac: Up to 433 Mbps(dynamic)11n: Up to 150 Mbps(dynamic)11a: Up to 54 Mbps(dynamic)2.4 GHz11ax: Up to 287 Mbps(dynamic)11n: Up to 200 Mbps(dynamic)11g: Up to 54 Mbps(dynamic)11b: Up to 11 Mbps(dynamic) |
| Reception Sensitivity | 5 GHZ:11a6M: -94dBm11ax HE80 MCS11: -59dBm11ax HE80 MCS0: -87dBm2.4 GHZ:11g6M: -95dBm11ax HE40 MCS11: -65dBm11ax HE40 MCS0: -93dBm |
| Wireless Modes | Client mode, Hotspot mode |
| Wireless Security | WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 1024QAM |
| Transmission Power | 5 GHz: 28dBm(FCC) / 23dBm(CE) (EIRP),2.4 GHz : 24dBm(FCC) / 20dBm(CE) (EIRP) |
| Certification | FCC, CE, RoHS |
|---|---|
| Package Content | AX900 Wi-Fi 6 Bluetooth 5.3 PCIe Adapter Archer TX10ETwo High Gain Dual-Band AntennasLow-Profile BracketBluetooth Header CableQuick Installation GuideResource CD |
| System Requirements | Windows 10/11(64-bit) |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
