Archer MX700
New4G+ AX1500 Dual Band Wi-Fi LTE Router
-
Enjoy 4G+ internet everywhere: supports 4G+ Cat6 up to 300 Mbps download speed.
-
Dual band Wi-Fi 6 Speed : 1201 Mbps on 5 GHz + 300 Mbps on 2.4 GHz**
-
Plug and Play: Internet setup made simple. Just plug in an activated SIM card and ready to browse. *
-
Up to 128 Concurrent Devices: Ensures robust, reliable connectivity for households or offices.
-
EasyMesh-Compatible - Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.†
-
Full Gigabit Ports for Internet access: provides outstanding speed, ensuring an enhanced networking experience.
-
Simplified Setup: Easily set up and manage your network with the Tether app.
SIM-Powered 4G+ Internet in Minutes: Ditch Landlines, Move Anywhere
Escape rigid broadband contracts and endless installation waits. The Archer MX700 transforms a SIM card into powerful 4G+ internet—set up in minutes and move seamlessly between home offices, pop-up shops, travel vans, or holiday home.△ No need for complicated cables, just internet freedom wherever life takes you.*
Travel Vans
Pop-up Shops
Holiday Home
Flea Market
△ This device requires an activated SIM card without a PIN lock. If the SIM is locked, please consult the quick installation guide for unlocking instructions.

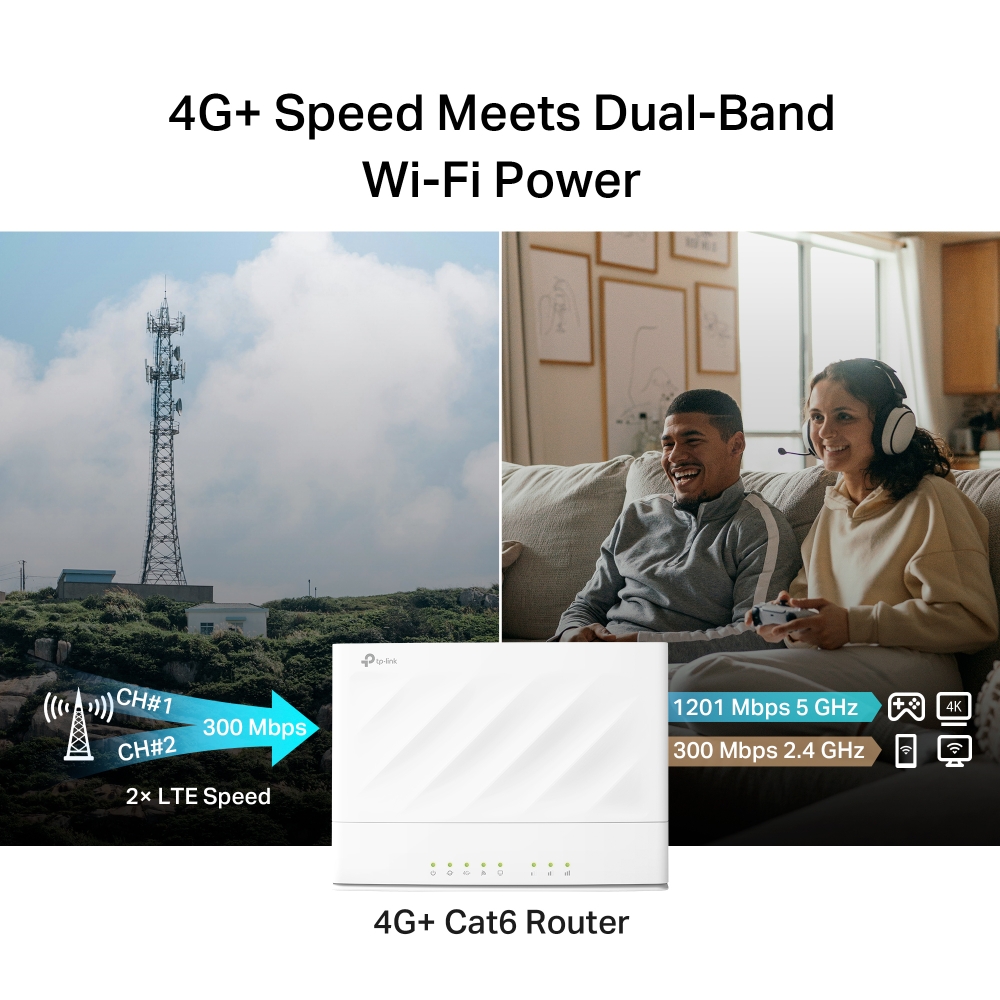

4G+ Speed Meets Dual-Band Wi-Fi Power
The Archer MX700 delivers 300Mbps 4G+ speeds via Carrier Aggregation technology, with dual-band Wi-Fi supporting 1201Mbps on 5 GHz for lag-free 4K streaming and 300Mbps on 2.4 GHz for web browsing. All your connections, one powerful router that fits on your windowsill.**
CH#1
CH#2
300 Mbps
2× LTE Speed
1201 Mbps 5 GHz
300 Mbps 2.4 GHz
4G+ Cat6 Router
Ideal for High-Density Small Businesses: 128 Devices Supported
Archer MX700 delivers reliable 4G+ speeds, supporting 128 concurrent connections with MU-MIMO and Beamforming technology. LAN ports stand ready to provide internet for wired devices like desktop computers.
-
Powerful CPU
for Stable Data Processing
-
MU-MIMO
Serves Multiple Devices at once
-
Beamforming
Concentrate Signal Strength
Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another Easymesh-Compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
WiFi Dead Zone Killer
Eliminate weak signal areas with WiFi coverage for the whole house
Smart Roaming
Uninterrupted streaming when moving around your home
One WiFi Name
No more switching WiFi network names
-
EasyMesh Devices (Router+Range Extender) -
Available WAN Connection Backup
With the gigabit WAN/LAN port, the Archer MX700 can work as router with any modem (cable/fiber/DSL) for super-fast 4G+ backup., or provide gigabit speeds for wired devices. ‡
Modem
Ethernet WAN
Ethernet WAN
Easy Setup and Use
Set up the Archer MX700 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.
| 5G/4G/3G | |
|---|---|
| Network Mode | 4G：FDD:B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz )TDD:B38/B40/B41 (2600/2300/2500 MHz)3G：B1/B5/B8 (2100/850/900 MHz) |
| Speed | 4G+ Cat 6：300 Mbps Download Speed50 Mbps Upload Speed |
| SIM Type | Nano SIM Card |
| HARDWARE FEATURES | |
|---|---|

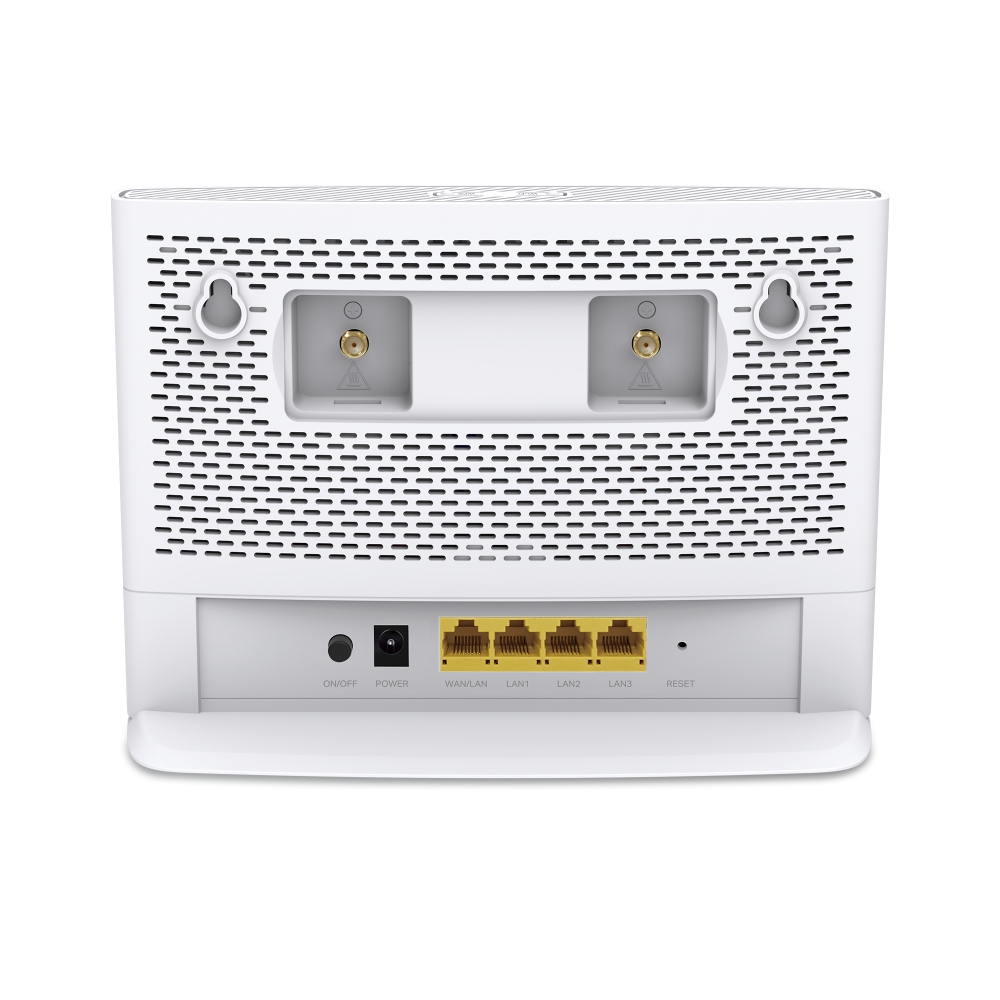

| Interface | 1× Gigabit LAN/WAN Port + 3× Gigabit LAN Ports |
| Dimensions ( W x D x H ) | 7.86×5.85×2.66 in (199.7×148.6×67.5 mm) |
| Antenna | 2× Internal 4G/3G Antennas + 2× Internal Wi-Fi Antennas + 2× External Antenna Ports |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 300 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz |
| Reception Sensitivity | 5 GHz: 11a 54M: -77 dBm11ax HE20:-64 dBm11ax HE40: -61 dBm11ax HE80:-59 dBm11ac VHT20: -69 dBm11ac VHT40: -66 dBm11ac VHT80 : -63 dBm11n HT20: -74 dBm11n HT40: -71 dBm2.4 GHz: 11g 54M: -78 dBm11n HT20: -75 dBm11n HT40: -72 dBm |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM |
| Wireless Security | 64/128-bit WEP, WPA/WPA2 Personal, WPA/WPA2 Enterprise, WPA/WPA3 Personal |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | Bandwidth Control |
| Security | IPv4 SPI Firewall, ALG, IP and MAC Address Binding, Access Control |
| Operating Modes | 3G/4G Router, Wireless Router |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management Features | TP-Link Cloud, Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | TP-Link, DynDns, NO-IP |
| Protocols | IPv4, IPv6 |
| Guest Network | 2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1 |
| Administration | Upgrade Firmware, Factory Default, System Log, Diagnostic Tools |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Content | 4G+ Cat6 300 Mbps LTE AX1500 Wireless Dual Band Gigabit Router Archer MX700Power AdapterRJ45 Ethernet CableQuick Installation Guide |
| System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or LinuxEdge, Firefox, Chrome, Safari, or other JavaScript-enabled browser*You are recommended to use the latest version |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
*This device requires an activated SIM card without a PIN lock. If the SIM is locked, please consult the quick installation guidance for unlocking instructions.
**Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
†TP-Link EasyMesh-Compatible products can network with other devices that use EasyMesh. Failed connections may be due to firmware conflicts of different vendors. The MLO is still being developed on some models and will be supported in subsequent software updates.
‡Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
