Archer TX50U 1.0_Datasheet
Overview

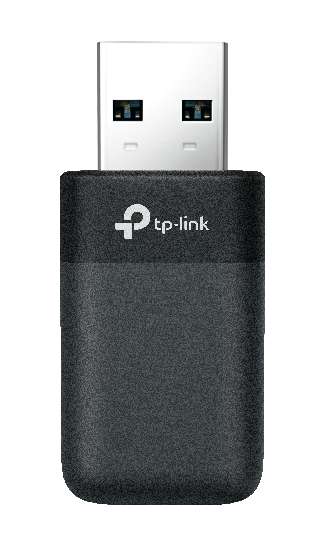

AX3000 Dual Band Wi-Fi 6 Wireless USB Adapter
Highlights
 |

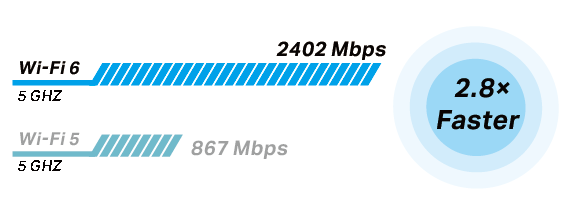

Ultra-Fast Wi-Fi 6 Speed 2402 Mbps + 574 Mbps† |
 |
CD-Free Installation Pre-Loaded Internal Driver |
|---|---|---|---|
 |
Low-Latency Gaming OFDMA and MU-MIMO Supported‡ |
 |
Superspeed USB 3.0 Blazing-fast data transfers |

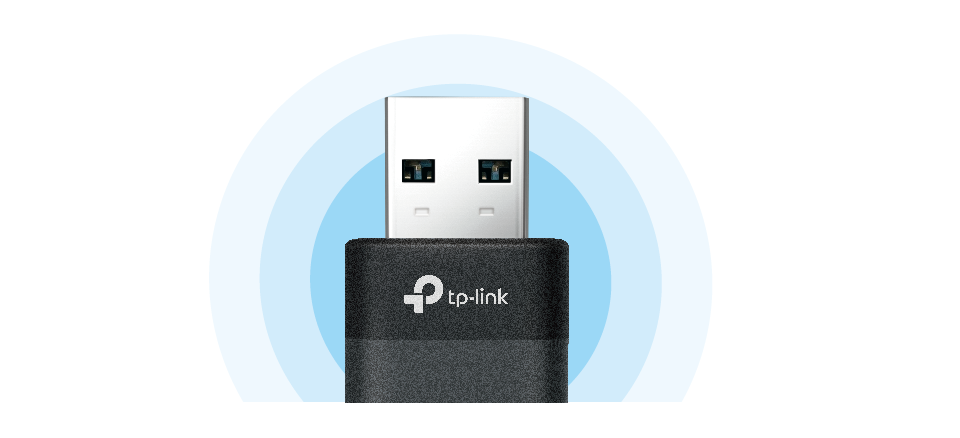

Mini Size, Big Performance
|
Arm Your PC with Wi-Fi 6 Technology Archer TX50U arms your PC with Wi-Fi 6 to ensure powerful, continuous signal reception, unlocking your Wi-Fi 6 router's full potential.† |
|
|---|---|
 |
|
|

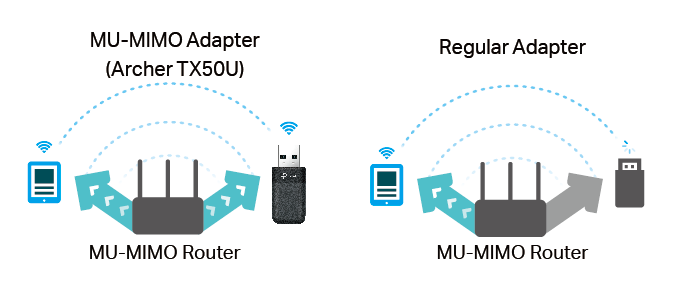

Boosted Throughput with MU-MIMO Works with MU-MIMO routers, which provide simultaneous data streams, boosting throughput and efficiency.‡ |
|
|
|
|
|

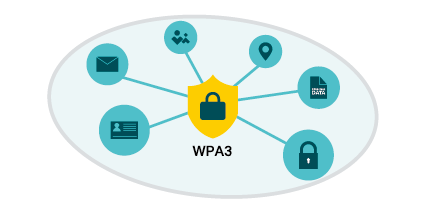

Improved Security with WPA3 The latest Wi-Fi security protocol provides enhanced protection in personal password safety.§ |
|
 |
|
|
Superspeed USB 3.0 Experience blazing-fast data transfers with USB 3.0—the latest USB standard which is 10× faster than USB 2.0.☆ |
|
 |
Specification
| WLAN Features | |
|---|---|
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax |
| Signal Rate | 5 GHz: 11ax: Up to 2402 Mbps(dynamic) 11ac: Up to 1732 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11ax: Up to 574 Mbps(dynamic) 11n: Up to 400 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
| Reception Sensitivity |
5 GHz: 11ax HE160 MCS0: -86 dBm11ax HE160 MCS11: -58 dBm 11ax HE20 MCS0: -91 dBm 11ax HE20 MCS11: -63 dBm 2.4 GHz: 11ax HE40 MCS0: -92 dBm11ax HE40 MCS11: -63 dBm 11ax HE20 MCS0: -95 dBm 11ax HE20 MCS11: -65 dBm |
| Transmit Power |
2.4 GHz: 13.5 dBm |
| Wireless Modes | Infrastructure mode |
| Wireless Security | WEP, WPA/WPA2/WPA3, WPA-PSK/ WPA2-PSK |
| Hardware | |
| Antennas | 2× Internal Antennas |
|
Dimensions |
19.4 × 7.9 × 43.9 mm (0.76 × 0.3 × 1.73 in ) |
| Others | |
| Package Contents | AX3000 Dual Band Wi-Fi 6 Wireless USB Adapter Archer TX50U Quick Installation Guide |
| Certification | FCC/CE/IC/NCC/JRF/VCCI/BSMI |
| System Requirements | • Supported operating system: Windows 10, 11 (64-bit) |
| Environment | |
| Operating Temperature | 0℃~40℃ (32℉~104℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
Disclaimers
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage and number of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 6 and other features, including OFDMA and MU-MIMO, require your APs to also support the corresponding features.
§Use of WPA3 requires APs to also support the corresponding feature.
△To ensure compatibility, you may need to update the adapter’s drivers after an OS update. You can check full list of supported OS in the download center at tp-link.com/download-center.
☆The speed of USB 3.0 is based on testing conducted by the USB-IF.
