Installation and User Guide

About This Guide

This guide provides a brief introduction to the Solar-Powered Pan/Tilt Security Camera Kit and the Tapo app, as well as regulatory information. Please note that features available in Tapo may vary by model and software version. Tapo availability may also vary by region. All images, steps, and descriptions in this guide are only examples and may not reflect your actual Tapo Camera experience.

Conventions

In this guide, the following convention is used:

More Info

Specifications can be found on the product page at https://www.tapo.com.
Our Technical Support and troubleshooting information can be found at https://www.tapo.com/support/.
The setup video can be found at https://www.tp-link.com/support/setup-video/#cloud-cameras.

Introduction

Experience upgraded security with the Solar-Powered Pan/Tilt Security Camera Kit. Featuring 4K Ultra HD resolution and starlight color night vision, this camera ensures crystal-clear details day and night. Its solar-powered, wire-free design offers flexibility, while AI detection and customizable alerts provide precise monitoring.

• 360° AI Tracking - The camera provides 360° horizontal coverage and 90° vertical coverage. Accurately identifies and tracks people, pets, and vehicles, ensuring it focuses on what truly matters.
• Premium Features. Total Control. All in One App. - Secure and control your home anywhere, anytime with the Tapo app. View live footage, speak to visitors, share clips, and easily tailor advanced settings.
• 4K Crystal-Clear Surveillance - Capture every detail with precision. The camera features 4K resolution and 18× digital zoom for superior clarity.
• Starlight Color Night Vision - Enhances your security by revealing brighter, full-color images and vivid details even in low-light conditions with built-in spotlights and the starlight sensor.
• High-Efficiency Solar Charging - Just 45 minutes of direct sunlight daily* powers the camera for full-day use.

         *45 min of sunlight is based on standard environmental conditions (1000W/m2, 25℃, AM1.5) and specified working scenes (up to 100 events triggered per day). Actual required time of sunlight may vary.

• Smart Playback - Swiftly find and download moments of interest by choosing the event type or sliding the timeline.
• Two-Way Audio - Talk and listen through the device with its integrated microphone and speaker.
• Save recorded video on a microSD card (up to 512 GB)*, no subscription required. Cloud storage** is also supported for flexibility.

         *microSD card needs to be purchased separately. Actual storage capacity depends on the size of the microSD card used.
         *Subscribe for cloud storage at https://www.tapo.com/tapocare/

• Customizable Sound and Audio Alarm - Customize your alarm by recording your own audio and adjusting the brightness of the dual spotlights to suit your preferences.
• Flexible Dual Band Connection - Experience seamless, lag-free 4K streaming with lightning-fast 5GHz or enhanced stability on 2.4GHz.
• Patrol Mode - Assign points for the camera to patrol for dynamic monitoring.

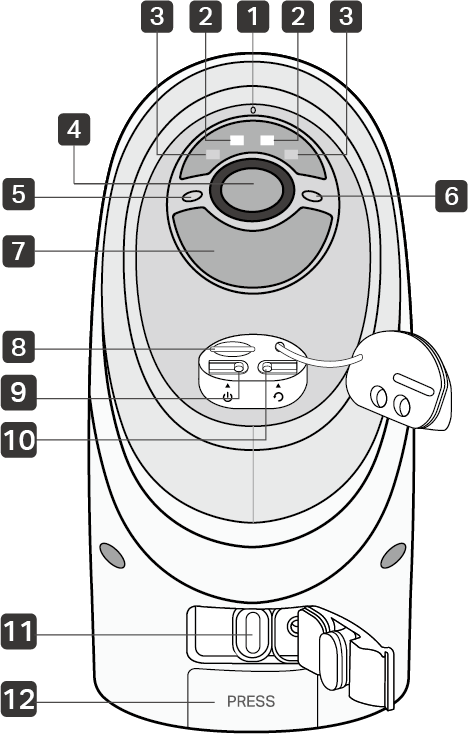

Appearance

1 Microphone: For capturing your voice.

2 IR LEDs

3 White Light LEDs

4 Lens: For capturing things within its view.

5 Light Sensor

6 Status LED: It shows your camera status.

7 Motion Sensor

8 microSD card slot: Open the cover to find the microSD card slot. Insert a microSD card (not included) and initialize it on the Tapo app for local recording.

9 On/Off Power Button: Open the cover to find the On/Off button.  Press and hold the button for about 3s to turn on/off the camera.

10 Reset Button: Open the cover to find the Reset Button. While the camera is powered on, press and hold the RESET button to reset the camera.

• Press and hold for 5 seconds: Reset Wi-Fi while preserving the other.
• Press and hold for 10 seconds: Reset to factory settings.

11 USB Type-C Charging Port: Open the cover for USB charging.

12 PRESS Button: Press the button to loosen the camera bracket.

Status LED Indication

Set Up Your Camera

Follow the steps below to get started with your new camera.

Step 1. Download Tapo App
Get the Tapo app from the App Store or Google Play, or by scanning the QR code below.

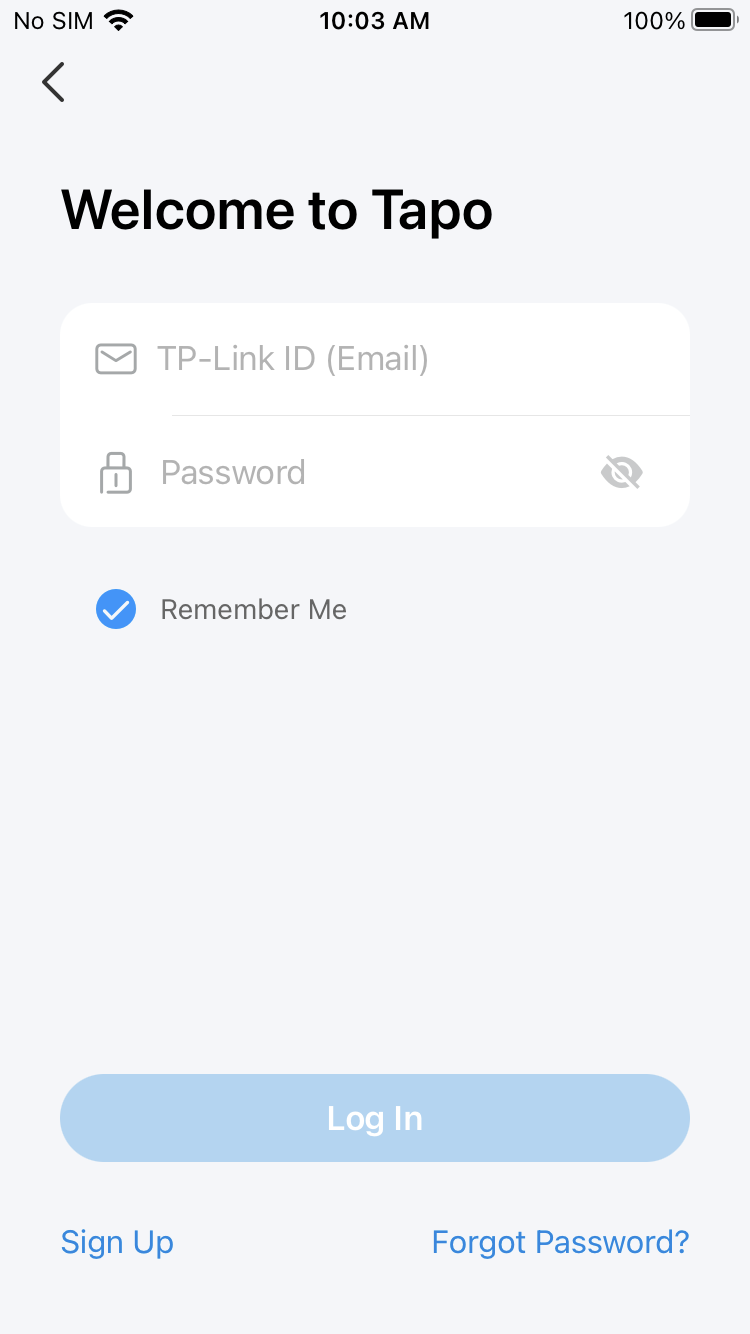

Step 2. Log In
Open the app, and log in with your TP-Link ID. If you don't have an account, create one first.

Step 3. Add Your Camera
Tap the ＋ button > Add Device in the app and search for your model. Follow the app instructions to complete the setup.

Set Up Using Amazon Frustration-Free Setup

What is Amazon Frustration-Free Setup?

Note: Only Tapo C660 KIT supports Amazon frustration-free setup.

Amazon Frustration-Free Setup can help connect and set up Tapo smart devices in fewer steps, without having to remember and re-enter your Wi-Fi password on each device.
To use this feature, confirm the following:
● The new Tapo device supports Amazon FFS.
● The new Tapo device is purchased from Amazon.
● You have an Amazon FFS enabled Alexa device or router.
● You have saved your Wi-Fi information to Amazon by using Alexa echo.
● Your Tapo device and router are on the same network as your Alexa echo.

LED Indications during Amazon Frustration-Free Setup

If the LED does not turn solid blue after a long time, you can try to add the Tapo device manually. (Press the Reset button on your Tapo device once. Then open the Tapo app, tap the + button on the page, select your device model, and follow the app instructions. )

How to use Amazon Frustration-Free Setup with Tapo devices

1. Open the Amazon Alexa app. Then tap More and select Skills & Games.

2. Enter Tapo in the search bar and choose Tapo.

3. Tap the ENABLE TO USE button.

4. Log in with your TP-Link ID that has bound to your Tapo device, and tap Authorize. After authorized successfully, the message Tapo has been successfully linked will come up.

5. Plug in your Tapo device and the setup will complete automatically in two minutes.
For setting up more Tapo devices, just plug in and enjoy!
Done!
If this device displays on the Home page in the Tapo app, it indicates this device has been successfully associated with your Amazon account and joined your Wi-Fi network automatically.
If this device does not display on the Home page in the Tapo app, try setting it up manually. (Tap the + button on the page, select your device model, and then follow the app instructions.)

Mounting Tips

Solar Panel Mounting Tips

The position and tilt angle of the solar panel greatly affect the solar efficiency.
1. Choose a location where the solar panel gets the most sunlight throughout the year.
2. Position the panel south-facing in the Northern Hemisphere or north-facing in the Southern Hemisphere. The recommended tilt angle between the panel and the horizontal ground is 35° ~ 45°.
3. Regularly wipe the panel to remove dust and debris.

Camera Mounting Tips

1. Avoid placing behind glass. Glass will obstruct the motion sensor of your camera.
2. Choose a proper location to mount your camera, or it will be triggered too often by false alarms.

• Avoid pointing the camera directly at swaying trees.
• Avoid pointing the camera directly at vehicles and pedestrians on the road.
• Avoid pointing the camera directly at street lamps and sunlight.

3. Do not place the camera upside down.

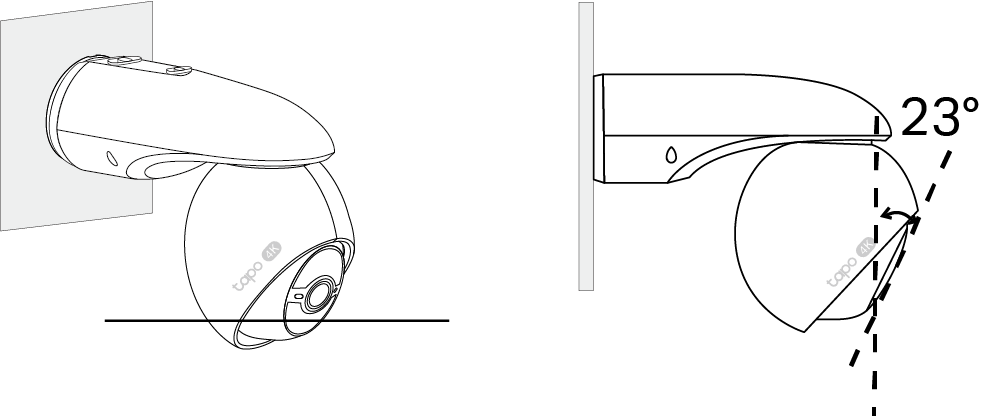

4. For optimal results, keep the motion sensor level and tilt the camera lens upwards at a ~23° angle (with the microphone nearly covered).

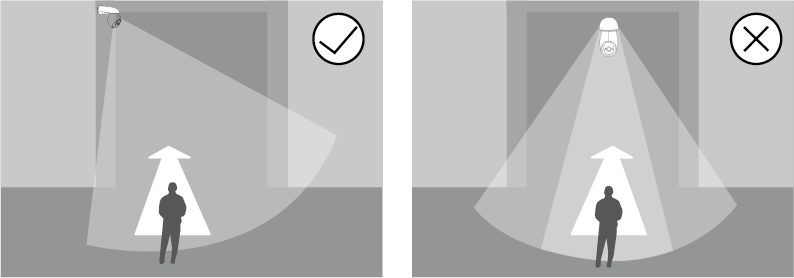

5. Mount your camera to the side so that movement goes across the lens’ field of view to better trigger motion detection and AI detection.

*Do not mount facing the direction of movement.

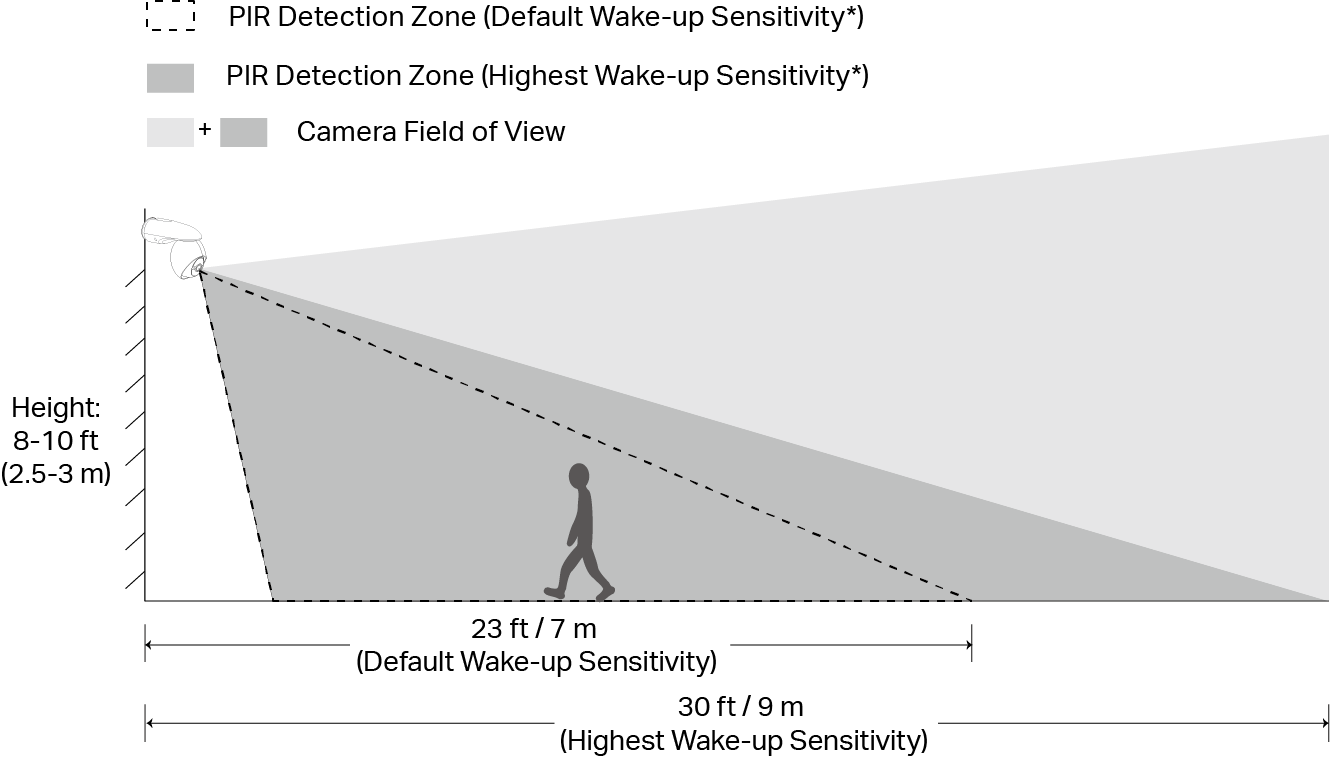

6. For optimal detection performance, we recommend mounting the camera 7-10 ft (2-3 m) above the ground.

*You can adjust the sensitivity in Camera Settings > Detection > Wake-up Sensitivity.

*The FOV and PIR detection zone shown is based on a camera mounted at 8 ft/2.5 m.

Mount Your Solar Panel & Camera

Option 1: Mount Solar Panel & Camera Together

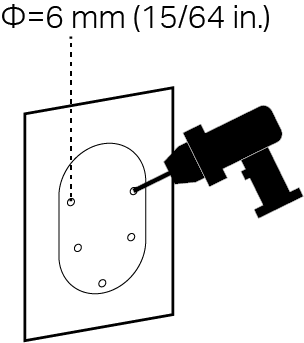

1. Drill Holes
Stick the mounting template to a solid and level wall surface. Drill five screw holes according to the template.

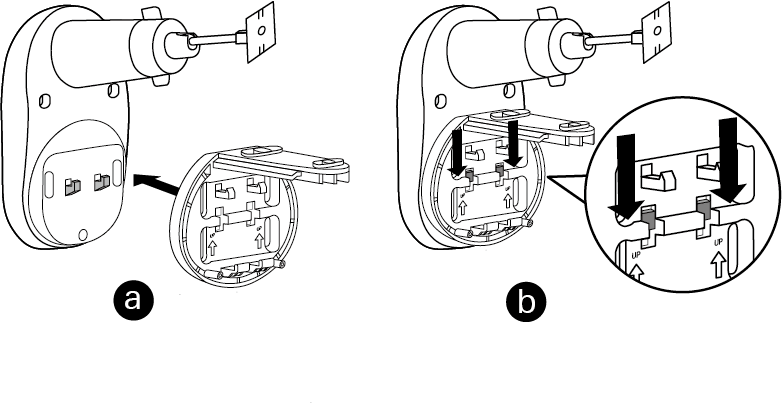

2. Attach Camera Bracket to Solar Panel Bracket
Stick the mounting template to a solid and level wall surface. Drill five screw holes according to the template.

a. Align the camera bracket to the hooks on solar panel bracket and put into place.
b. Slide down to secure the camera bracket.

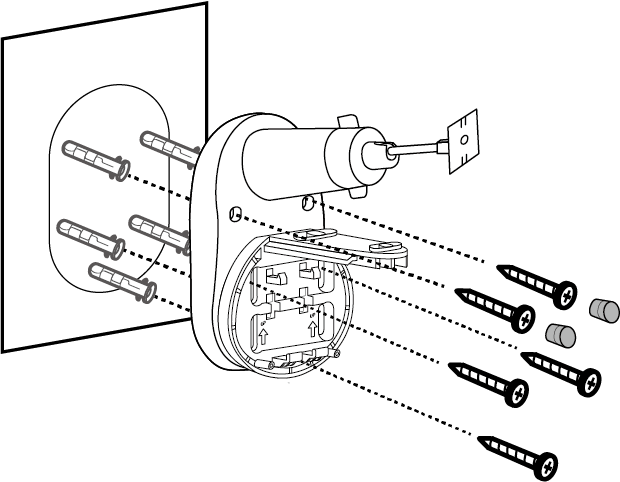

3. Secure Solar Panel Bracket
a. Insert five wall anchors into the holes and use the mounting screws to affix the solar panel bracket with camera bracket over the anchors.
b. Insert two screw caps into the upper screw holes.

Screw Cap Orientation:

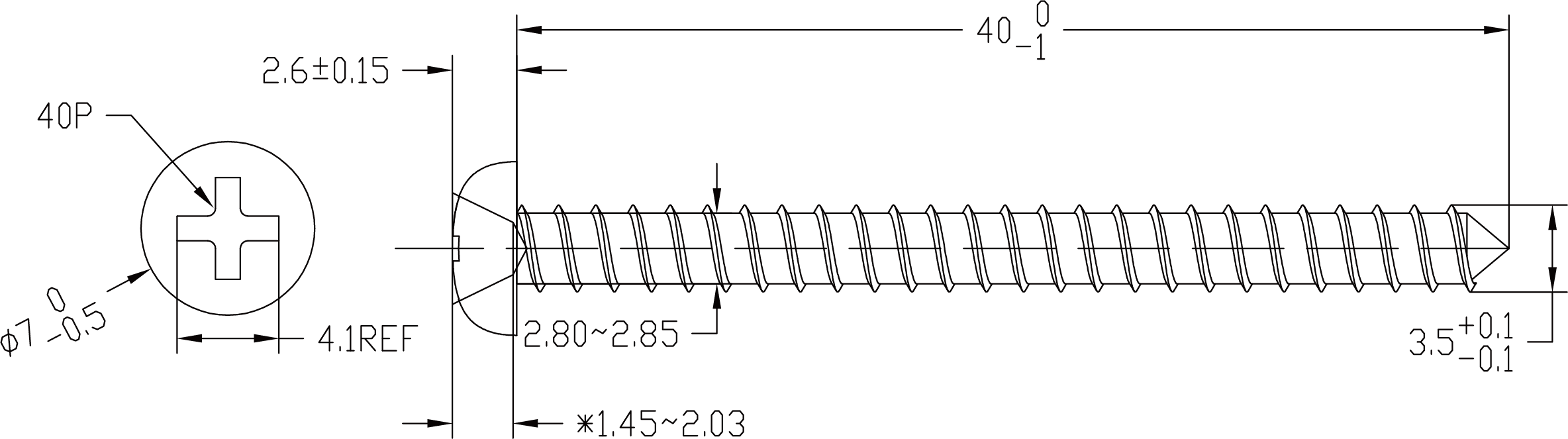

Mounting Screw Size:

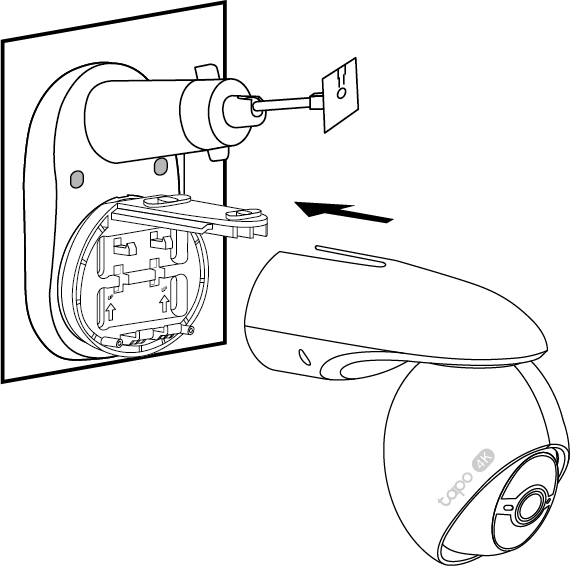

4. Attach Camera to Bracket
Slide the camera onto the camera bracket until it clicks into place.

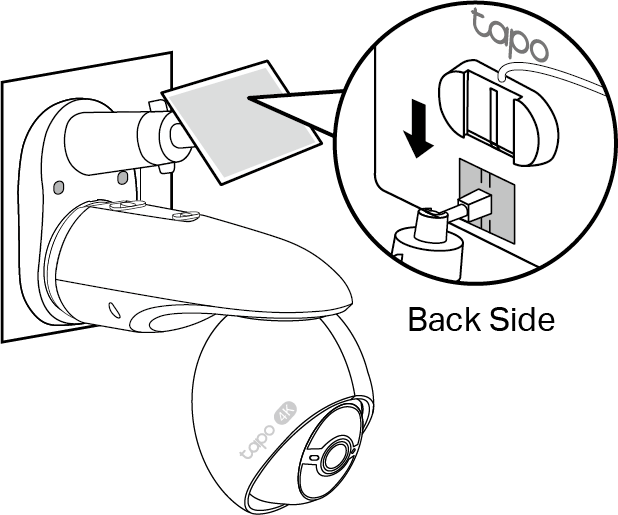

5. Install Solar Panel
Slide the solar panel onto the solar panel mounting bracket until it clicks into place.

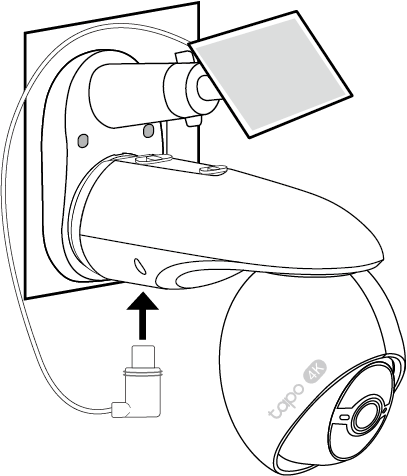

6. Connect Camera to Solar Panel
Connect the connector into the camera charging port until snug to charge the camera.

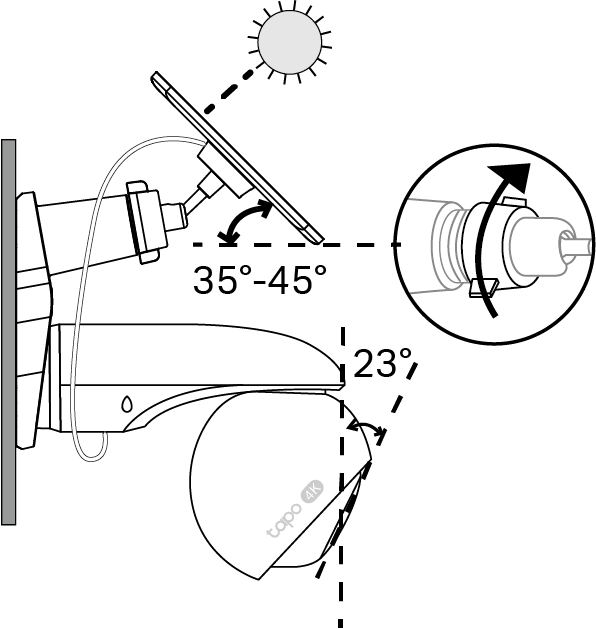

7. Adjust Camera & Solar Panel Angle
a. Loosen the adjustable screw, tilt the solar panel to adjust the angle, and then tighten the adjustable screw. The recommended tilt angle between the panel and the horizontal ground is 35° ~ 45°.
b. Tilt the camera lens upwards at a ~23° angle (with the microphone nearly covered).

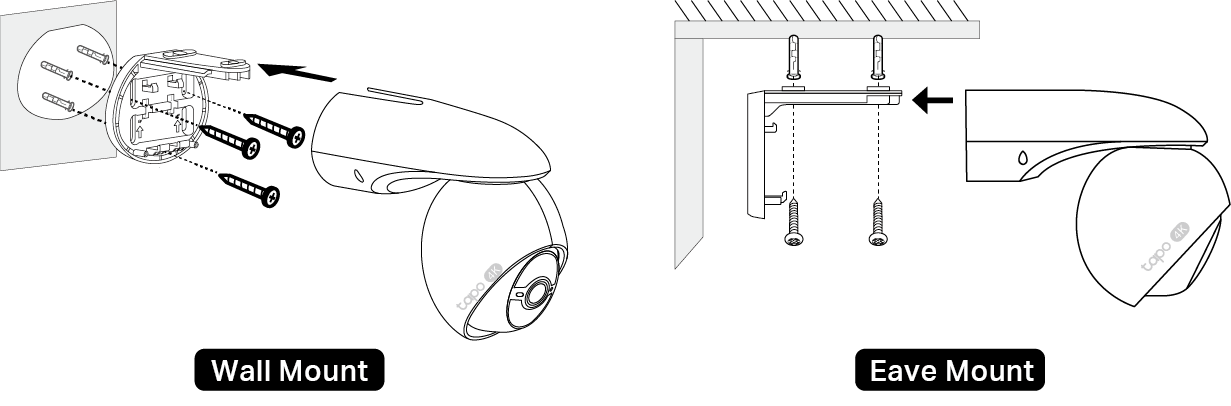

Option 2: Mount the Camera Individually

You can use the camera bracket to mount the camera on a wall or under an eave.

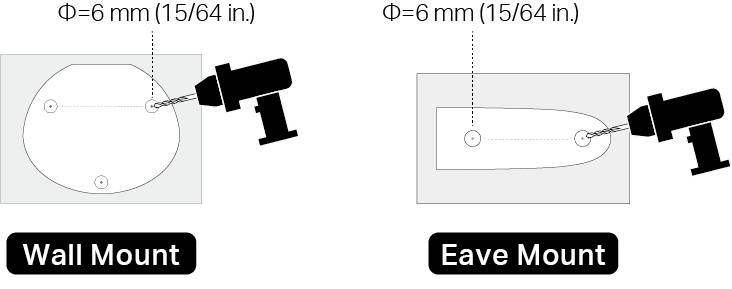

1. Drill HolesStick the mounting template to the desired location.
Drill 3 holes (Wall Mount) or 2 holes (Eave Mount) according to the template.

2. Secure Bracket & Install Camera
Insert 3 anchors (Wall Mount) or 2 anchors (Eave Mount) into the holes and use the screws to affix the camera bracket over the anchors. Then slide the camera onto the camera bracket until it clicks into place.

Mounting Screw Size:

If the power cable is too short...
Extend the power cable using the provided extension cable. Insert the connector into the extension until snug and use the appropriate gasket when connecting the solar panel to your camera.

If the power cable is too long...
Use the cable zip tie provided to bundle up the excess cable. Once tightened, the zip tie cannot be easily adjusted. To release the tie, you will need to cut the zip tie.

Support

For technical support, the setup videos, FAQs, warranty and more, please visit https://www.tapo.com/support/

Authentication

FCC compliance information statement

Product Name: Solar-Powered Pan/Tilt Security Camera Kit
Model Number: Tapo C660 KIT, TC92 KIT

Responsible Party:
TP-Link Systems Inc.
Address: 10 Mauchly, Irvine, CA 92618
Website: http://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: sales.usa@tp-link.com
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
"To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter."
We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.

Issue Date: 2025-07-23

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
OPERATING FREQUENCY (the maximum transmitted power)
2402-2480MHz（20dBm）

5250 MHz -5350 MHz (23dBm)

5470 MHz -5725 MHz (23dBm)

Frequency band: 5150 - 5250 MHz:

Indoor use: Inside buildings only. Installations and use inside road vehicles and train carriages are not permitted. Limited outdoor use: If used outdoors, equipment shall not be attached to a fixed installation or to the external body of road vehicles, a fixed infrastructure or a fixed outdoor antenna. Use by unmanned aircraft systems (UAS) is limited to within the 5170 - 5250 MHz band.

Frequency band: 5250 - 5350 MHz:

Indoor use: Inside buildings only. Installations and use in road vehicles, trains and aircraft are not permitted. Outdoor use is not permitted.

Frequency band: 5470 - 5725 MHz:

Installations and use in road vehicles, trains and aircraft and use for unmanned aircraft systems (UAS) are not permitted.

EU Declaration of Conformity
TP-Link hereby declares that the battery camera is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.
The original EU Declaration of Conformity may be found at https://www.tapo.com/en/support/ce/
TP-Link hereby declares that the solar panel is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2011/65/EU and (EU)2015/863.
The original EU declaration of conformity may be found at https://www.tapo.com/en/support/ce/
RF Exposure Information
This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection.
The device complies with RF specifications when the device used at 20 cm from your body.

UKCA Mark

UK Declaration of Conformity
TP-Link hereby declares that the battery camera is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017.
The original UK Declaration of Conformity may be found at https://www.tapo.com/support/ukca/.

TP-Link hereby declares that the solar panel is in compliance with the essential requirements and other relevant provisions of the Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016.
The original UK declaration of conformity may be found at https://www.tapo.com/support/ukca/.

Attention: In Great Britain, the operation in the frequency range 5150MHz - 5350MHz is only permitted indoors.

Canadian Compliance Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.

(2) This device must accept any interference, including interference that may cause undesired operation of the device.

L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :

1) L’appareil ne doit pas produire de brouillage;

2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Caution:

The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;

Avertissement:

Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;

DFS (Dynamic Frequency Selection) products that operate in the bands 5250- 5350 MHz, 5470-5600MHz, and 5650-5725MHz.

Les produits utilisant la technique d'atténuation DFS (sélection dynamique des fréquences) sur les bandes 5250- 5350 MHz, 5470-5600MHz et 5650-5725MHz.

Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.

CAN ICES-003 (B)/NMB-003(B)

Korea Warning Statements:
당해 무선설비는 운용중 전파혼신 가능성이 있음.

NCC Notice & BSMI Notice
注意！
取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。
前述合法通信，指依電信管理法規定作業之無線電通信。
低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
應避免影響附近雷達系統之操作。
高增益指向性天線只得應用於固定式點對點系統。
為避免本器材影像畫面遭偷窺或擷取，本器材使用者應先修改預設密碼，並定期更新密碼。
安全諮詢及注意事項
請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。
請勿將本產品浸入水或者其他液體中。
安裝高度不得超過 2 公尺。
請使用符合BSMI認證的電源供應器並其輸出需符合LPS/PS2。
電源供應器应使用在环境温度低於或等於40℃的室內。

限用物質含有情況標示聲明書

Продукт сертифицировано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних>Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів та вимогам, що передбачені чинними законодавчими актами України.

Safety Information

For Solar Panel:
•  Keep the device away from fire or hot environments. DO NOT immerse in water or any other liquid.
•  Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.

For Battery Camera:
• This equipment can be powered only by equipments that comply with Power Source Class 2 (PS2) or Limited Power Source (LPS) defined in the standard of  IEC 62368-1.
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended.
• Do not use the device where wireless devices are not allowed.
• Adapter shall be easily accessible.
• Use only power supplies which are provided by manufacturer and in the original packing of this product. If you have any questions, please don't hesitate to contact us.
• Keep the device away from fire or hot environments. DO NOT immerse in water or any other liquid.
• Do not disassemble, repair or modify the product.
• Do not place near automatically controlled devices such as fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident.
• Observe restrictions on using wireless products in fuel depots, chemical plants or when blasting operations are in progress.
• Do not use liquid to clean the product. Only use a dry cloth.
• Never put metal objects inside the product. If a metal object enters the product turn off the circuit breaker and contact an authorised electrician.
• This product is not intended to be used when providing medical care. Consult the manufacturer of any personal medical devices, such as pacemakers or hearing aids to determine if they are adequality shielded from external RF (radio frequency) energy.
• Do not use this product in health care facilities. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.
• Do not place heavy objects on top of the product.
• When you  leave the product unused for a long time unplug the product from the power outlet.
• This product may interfere with other electronic products such as TV, radios, personal computers, phones or other wireless devices.
• This equipment shall be installed at a height of less than 2 meters (6.5 feet).
• Adapter should be used indoors where the ambient temperature is lower than or equal to 40°C.

• Operating Temperature: -20°C ~ 45°C (-4°F ~ 113°F)

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

Explanation of the symbols on the product label
Note: The product label is on the bottom of the product and its power supply. Symbols may vary from products.

Symbol         符號解釋	Explanation 解釋
	Class II equipment Class II 設備
	Class II equipment with functional earthing 具有功能接地的Class II 設備
	Alternating current 交流電
	DC voltage 直流電壓
	Polarity of output terminals 輸出端子極性
	Indoor use only 僅限室內使用
	Dangerous voltage 危險電壓
	Caution, risk of electric shock 注意，有觸電危險
	Energy efficiency Marking 能源效率標示
	Protective earth 保護地線
	Earth 地線
	Frame or chassis 機架接地
	Functional earthing 功能地線
	Caution, hot surface 警告，表面高溫
	Caution 警告
	Operator’s manual 操作手冊
	Stand-by 待機
	“ON”/”OFF” (push-push) 「開」/「關」 ( 按壓式)
	Fuse 保險絲
	Fuse is used in neutral N 保險絲用於中性線N
	RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment. 回收利用 本產品標示有「廢棄電氣電子設備（WEEE）」的分類回收標誌。這表示本產品必須依據歐盟指令 2012/19/EU 進行妥善回收或拆 解，以減少對環境的影響。 使用者可選擇將本產品交給合格的回收機構，或在購買新電器或電子設備時，交回給零售商進行回收處理。
	Caution, avoid listening at high volume levels for long periods 注意，避免長時間以高音量收聽
	Disconnection, all power plugs 斷開所有電源插頭
