Setup Guide
Tapo C113 Indoor/Outdoor Home Security Wi-Fi Camera
Welcome to the setup guide.
To ensure equal access for all users, we offer this accessible setup guide. This guide is designed to meet accessibility needs, enabling a successful setup. It will introduce the appearance of your camera, including its ports, buttons, and labels, and then guide you through the setup process.
Step 1. Know about your camera
In this section, we will describe the camera's appearance, including its ports, buttons, and labels.
1. You can find your camera and power adapter in the package.
Power Adapter: The power adapter is usually a rectangular or square block with a cord on one end that plugs into the power port to power it on.
2. Next, place your camera on a level surface, such as a shelf or desk. The base is the half‑sphere with closely spaced grooves running from top to bottom. Set the camera so this base sits flat on the surface.
To ensure the camera is placed correctly, you should position it with the camera lens facing forward. The side that has a power port should face backward.

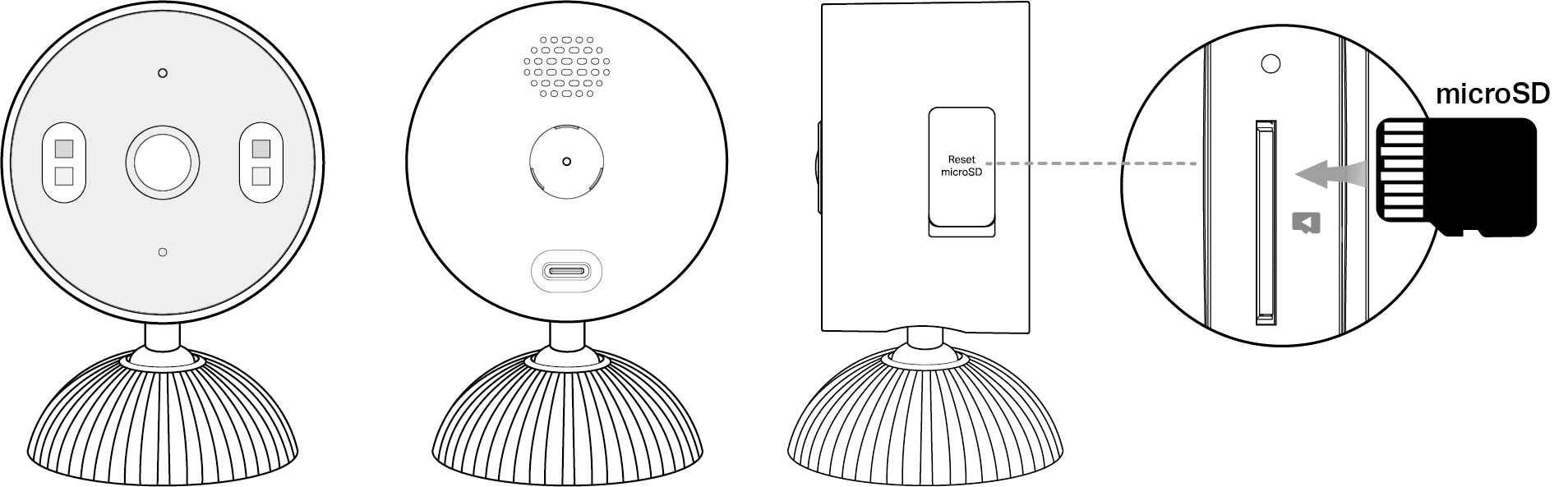

3. After positioning your camera correctly, we will introduce the ports, buttons, and labels on your device in a certain order.
Lens: For capturing things within its view.
System LED: It shows your camera status. You can check the camera status on the app. It is just above the lens.
White Light LEDs: For creating colorful images at night. The two LEDs flank the lens.
IR LEDs: For creating black-and-white images at night. These two also flank the lens, just below the white light LEDs.
Microphone: For capturing your voice. It is just below the lens.
Turn to the camera's back side and you can find the speaker and the lower USB Type-C Power Port.
Speaker: For producing sound, allowing you to hear the audio.
USB Type-C Power Port: For connecting the camera to the power source using the power adapter.
Turn to the camera's right side and locate the silicone cover. Open the cover, and you can find the reset button and the lower microSD card slot.
Reset Button: While the camera is on, press and hold the Reset button for at least 5 seconds to reset the camera's Wi-Fi settings, and press and hold the Reset button for at least 10 seconds to factory reset the camera.
microSD card slot: While facing the right side of the camera, insert a microSD card with the notch facing down.
On the back of the camera, you can find the product label.
Product label: The product label is on the back of the camera through laser engraving.
Step 2. Set Up
1. Get the Tapo app from the App Store or Google Play, then log in.
2. Plug in the power adapter. Wait 30 seconds for the camera to start up. You can hear a clicking sound.
3. Tap the + button in the app and select your camera model. Follow the app instructions to complete setup.
If you need help, please visit https://www.tapo.com/support/ for technical support, the user guide, FAQs, warranty & more.
For details on Tapo app accessibility, please check Accessibility Support.
English: Safety Information
Do not use damaged charger or USB cable to charge the device.
Do not use any other chargers than those recommended.
Do not use the device where wireless devices are not allowed.
Adapter shall be easily accessible.
Use only power supplies which are provided by manufacturer and in the original packing of this product.
If you have any questions, please don't hesitate to contact us.
Keep the device away from fire or hot environments.
DO NOT immerse in water or any other liquid.
Do not disassemble, repair or modify the product.
Do not use the product if the casing has been broken.
Danger of electric shock.
Never touch the product with wet hands.
Do not place near automatically controlled devices such as fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident.
Observe restrictions on using wireless products in fuel depots, chemical plants or when blasting operations are in progress.
Do not use liquid to clean the product. Only use a dry cloth.
Never put metal objects inside the product. If a metal object enters the product, turn off the circuit breaker and contact an authorised electrician.
This product is not intended to be used when providing medical care. Consult the manufacturer of any personal medical devices, such as pacemakers or hearing aids to determine if they are adequately shielded from external RF (radio frequency) energy.
Do not use this product in health care facilities. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.
Do not place heavy objects on top of the product.
When you leave the product unused for a long time unplug the product from the power outlet.
This product may interfere with other electronic products such as TV, radios, personal computers, phones or other wireless devices.
Adapter should be used indoors where the ambient temperature is lower than or equal to 40 ºC.
Operating Temperature: -20 ºC ~ 45 ºC (-4 °F ~ 113 °F)
The camera shall be installed no higher than 2 meters.
Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.
