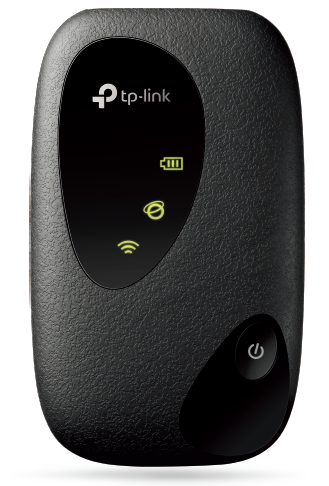

4G LTE Mobile Wi-Fi Datasheet
|
4G LTE Mobile Wi-Fi |
|
|---|---|
|
Go Anywhere Connect Everywhere |
 |
|
|
|
|
Highlights |
|
|---|---|
|
Share 4G LTE Connection on the Go The Mobile Wi-Fi, with a compact, elegant design, is very suitable for travel, business trips, outdoor activities or wherever you may be. You can enjoy a Wi-Fi hotspot without draining your phone’s battery. |
Easy Management with the Tether App With the Tether App, you can easily access and manage the M7000 from your connected iOS/Android devices. The Tether app allows you to set data limits, control which devices can access your Wi-Fi, and send messages. |
|
|
 |
|
Features |
||
|
|
|
|
|
4G LTE 4G LTE - Supports 4G LTE network, compatible with 3G network The Faster Connections – Reaches up to 150 Mbps download speed and 50 Mbps upload speed, to enjoy HD movies without interruption, download files in seconds, and hold a video chat without dropouts
* Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors |
Convenient Hotspot Plug and Play - Just insert a SIM card to create your reliable personal Wi-Fi hotspot on the move 10 Wi-Fi devices - Instantly share 4G LTE connectivity with up to 10 Wi-Fi enabled devices – Tablets, mobile phones, laptops, game consoles and more |
10 Hours Usage 2100mAh - 2100mAh battery 10 hours - 10 hours of 4G sharing 480 hours - 480 hours of standby
*Service duration may vary due to different user environments |
|
Specifications |
||
|
Hardware
Interface: 1 USB Type-C port, 1 Nano SIM card slot Button: Power Button, Reset Button LED: Wi-Fi LED, Internet LED, Battery LED External Power Supply: 5V/1A Dimensions (W x D x H): 3.7 × 2.2 × 0.8 in. (94 × 56.7 × 19.8 mm) Antenna: Internal Antennas |
Wireless
Network Type: 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 TDD-LTE: B38/B40/B41 (2600/2300/2500MHz) 3G: HSPA+/HSPA/WCDMA: B1/B5/B8(2100/850/900MHz) Wireless Standards: IEEE 802.11b/g/n/ax 2.4GHz Frequency: 2.4GHz Wireless Speed: Up to 287 Mbps Transmit Power: <20dBm ReceptionSensitivity: 11b 11Mbps -89dB Wireless Security: Support WPA-PSK/WPA2-PSK/WPA3-SAE, Wireless MAC Fitering, Enable/Disable SSID Broadcast DHCP: Server, Client, DHCP Client List
|
Others
Certification: CE, RoHS System Requirements: Windows 11/10/8/7/vista/XP, Mac OS, Android, iOS, Windows Phone Environment: Operating Temperature: 0℃~35℃ (32℉ ~95℉) Package Contents: Mobile Wi-Fi USB-C Cable 2100mAh Battery Quick Installation Guide |
©2026 TP-Link
Specifications are subject to change without notice.
†Actual wireless data throughput will vary as a result of network conditions, client limitations, and environmental factors
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles,
volume and density of traffic, and client location.
*Battery life estimates obtained through testing in a laboratory setting.
