Datasheet

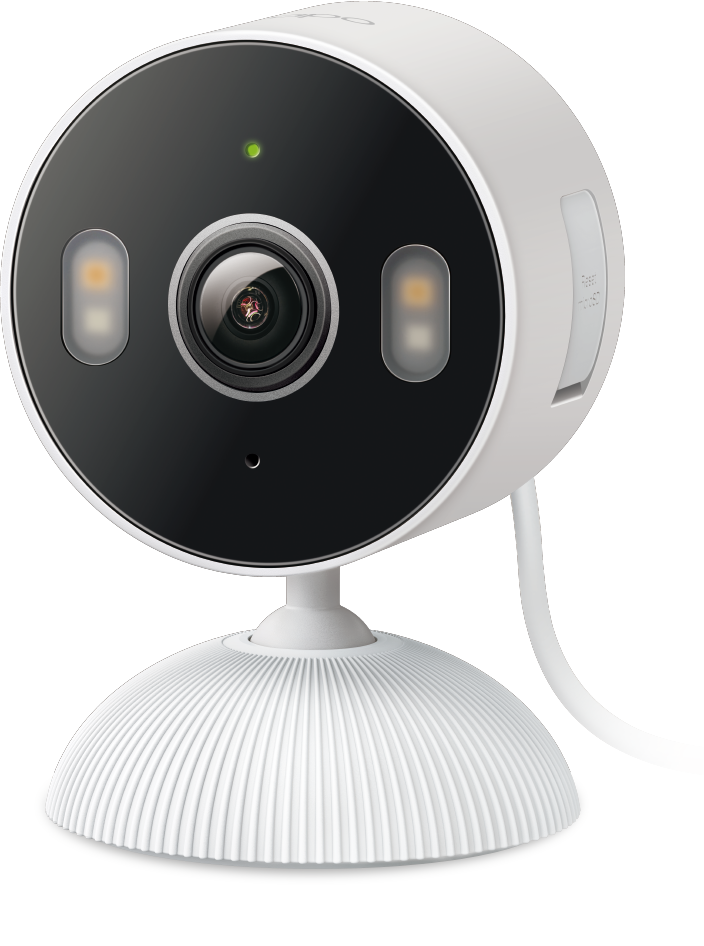

Indoor/Outdoor Plug-In Security Camera
Overview
· Sharper Than Standard HD: With 2K video resolution, you'll see more detail than 1080p video. Identify important moments with greater clarity.
· Smarter Alerts, Fewer Distractions: AI-powered detection identifies people that come into frame, reducing unnecessary notifications from irrelevant activity.
· Use Indoors or Outdoors: Check on your baby, keep tabs on pets, and stay connected to outdoor activity with flexible indoor and outdoor placement.
· Color Night Vision: Built-in spotlights help provide colorful nighttime footage, making it easier to see important details after dark.
· Keep Private Moments Private: Pause recording anytime and set up custom privacy zones in the Tapo app to keep sensitive areas out of view and blocked from monitoring.
Features
 |
FREE Person Detection & Real-Time Alerts
|
 |
Easy App Setup Set up via the Tapo app and start recording instantly with the included microSD card. |
 |
Color Night Vision View scenes in vibrant color anytime with enhanced night vision and spotlights. |
 |
Local† and Cloud‡ Storage Save recorded videos to a microSD card† (1x 32GB card included) (supports up to 512 GB) or by using Tapo Care‡ cloud storage services. |
|
|
No Monthly Fees Required Person and baby crying detection, plus customizable privacy and activity zones are all included at no extra cost. |
 |
Alarm System
|
 |
24/7 Wired Monitoring: No Missed Moments Keeps a continuous, reliable view day and night—so you never miss a single moment of what matters most. |
 |
Custom Privacy Zones
|
Get instant alerts when a person is detected, reducing false alerts and unnecessary notifications.
Triggers spotlights and sounds when motion is detected.
Keep personal spaces private by blocking recording in specific areas.Specifications
| Camera | |
| Image Sensor | 1/3'' CMOS Sensor |
| Lens |
Focal Length: 3.16 mm |
| Night Vision | 2× 850 nm IR LEDs (40 ft / 12 m) Full-Color Night Vision |
| Night Mode | Infrared Mode/ Full-Color Mode/ Smart Mode |
| Day/Night Switch | Yes |
| Lighting | 2× 850nm IR LED 2× Spotlights |
| Interface & Button | 1× USB Type-C Power Port 1× RESET Button 1× microSD Card Slot (Up to 512 GB) |
| Video & Audio | |
| Maximum Resolution | 2K (2304 × 1296 px) |
| Frame Rate | Up to 30 fps |
| Digital Zoom | 10.8× |
| Live View | Yes |
| Image Enhancement |
WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 88 dB (Level measured at 4-inch/10-cm distance) |
| Storage | |
| Local Storage | microSD Card Slot on Camera (Up to 512 GB) (A 32 GB microSD Card Included) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| Detection & Notification | |
| Sensor | / |
| AI Detection | Motion Detection Person Detection Baby Crying Detection |
| Activity Zones |
Yes* |
| Output Notification | System Notification System Notification with Snapshot (Tapo Care Services) |
| Network | |
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi§ |
| Transmission Rate | 11b: 11 Mbps 11g: 54 Mbps 11n: 72.2 Mbps |
| Protocol | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
| Security | |
| Security | 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK |
| Power | |
| Power Source | 5 V USB Power Adapter (100-240 VAC) |
| Adapter Input Voltage | 100-240 V~, 50/60 Hz, 0.2 A |
| Adapter Output Voltage | 5.0 V, 1.0 A (Type-C Power) |
| Power Connector Size | Standard Type-C connector |
| Power Cord Length | 2 m (6.5 ft) |
| Typical Power Consumption | 2.5 W |
| Maximum Power Consumption | 3.2 W |
| General | |
| Certifications | FCC, IC, IP65, RoHS |
| Smart Integration | Google Assistant, Amazon Alexa, Samsung SmartThings∆ |
| Weather Resistance | IP65 |
| Mounting Options |
Ceiling-Mounted |
| Operating Temperature | -20 ℃~45 ℃ (-4 ℉~113 ℉) |
| Storage Temperature | -20 ºC ~ 70 ºC (-4 °F ~ 158 °F) |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 5%~90% RH, Non-condensing |
| Charging Temperature | / |
| Weight | 3.12 oz (88.5 g) |
| Dimensions | 2.41 × 3.63 × 2.38 in (61.1 × 92.1 × 60.5 mm) |
| Package Contents | TCH62 Camera× 1 Camera Bracket× 1 Power Adapter× 1 32GB microSD Card× 1 6.5' USB Type A to USB Type-C Cable Mounting Screws× 4 Mounting Anchors× 4 Cable Organizers× 2 Mounting Template Sticker× 1 Quick Start Guide |

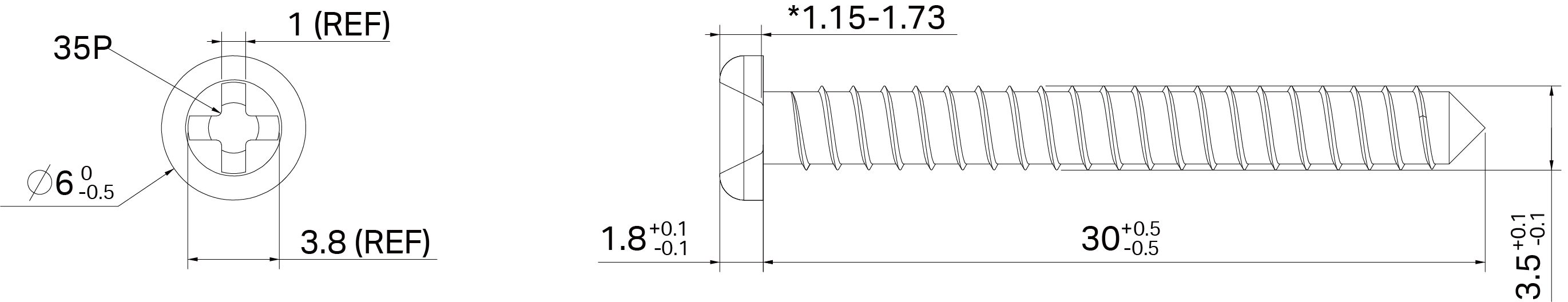

| Mounting Screw Size |  |
†A 32GB microSD card is included in the packaging.
‡Subscribe for cloud storage at https://www.tapo.com/tapocare/
§TCH62 does not have an Ethernet port and can only be connected via Wi-Fi.
∆Compatible with Alexa, SmartThings and Google Assistant supported displays. User experience is dependent on the connected device's specifications.
