UH5010C_Datasheet

USB Type-C 5-in-1 Hub

Highlights

Bridge Devices, Expand Connections

Specifications

Hardware

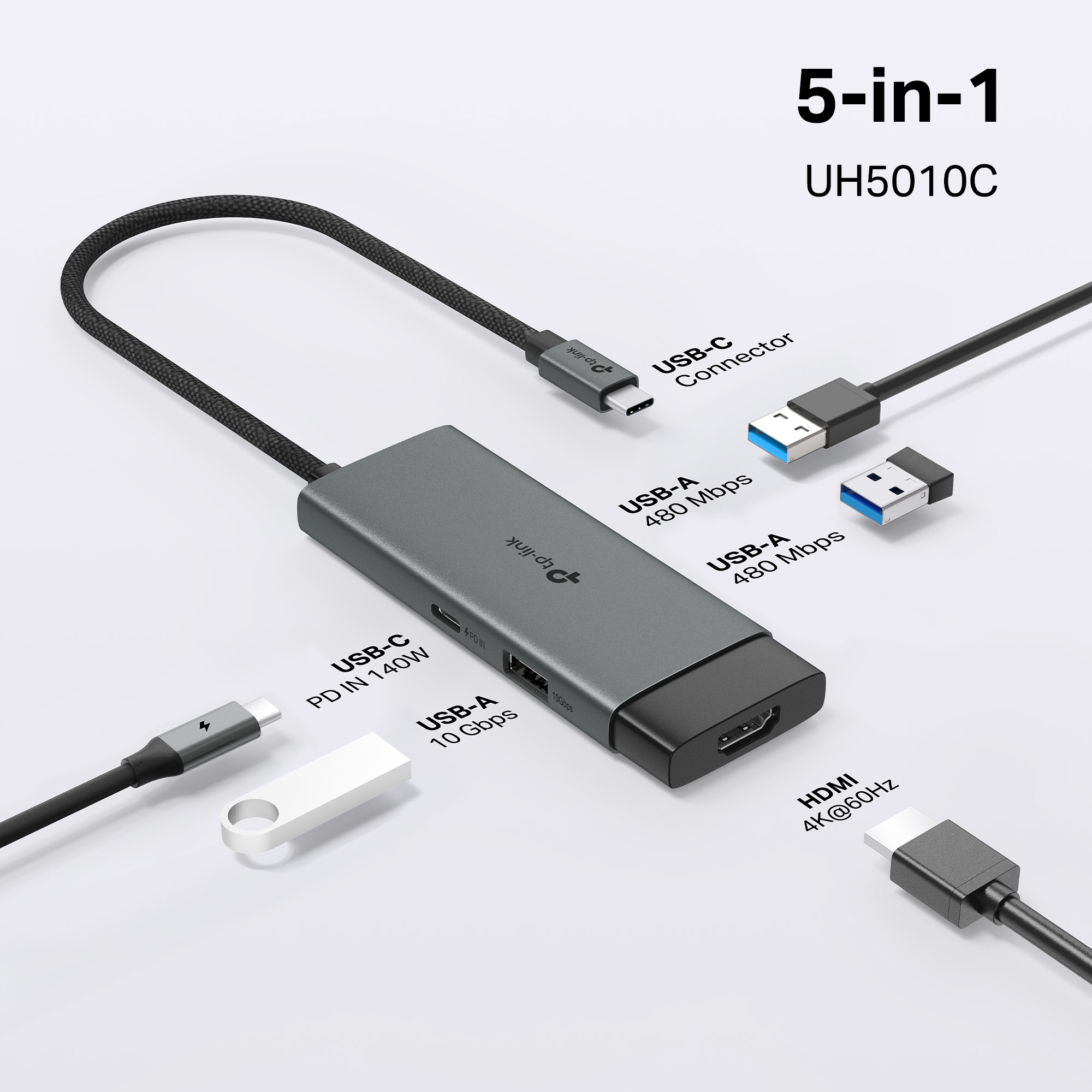

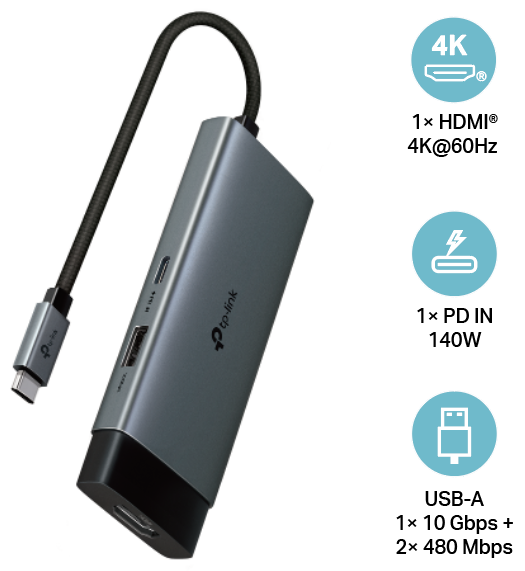

· Interface:
1× HDMI 4K@60Hz
1× USB Type-C PD3.1 140W Charging
1× USB Type-A 10Gbps
2× USB Type-A 480Mbps
· Connector: 1× USB Type-C
· PD Input: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A
· USB-C Connector Input: 5V/3A

Physical

· Dimension (W×D×H): 4.26 × 1.57 × 0.48 in (108.2 × 40 × 12.2 mm)
· Case: Aluminum Alloy Case
· Cable: 180mm Braided Cable
· Package Contents:
1× UH5010C
1× Quick Installation Guide

Others

· Supported Systems: macOS, Windows, Linux, iPadOS, iOS, Android, and ChromeOS
· Certification: CE, FCC, RoHS, HDMI, BSMI
· Environment:
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

For more information, please visit https://www.tp-link.com/products/details/?model=UH5010C_V1 or scan the QR code left
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Specifications are subject to change without notice. All the brands and product names are trademarks or registered trademarks of their respective holders.
^†Port transmission specifications are the testing results conducted by TP-Link laboratory. Actual transfer rate is not guaranteed and will vary as a result of device conditions and environmental factors.
