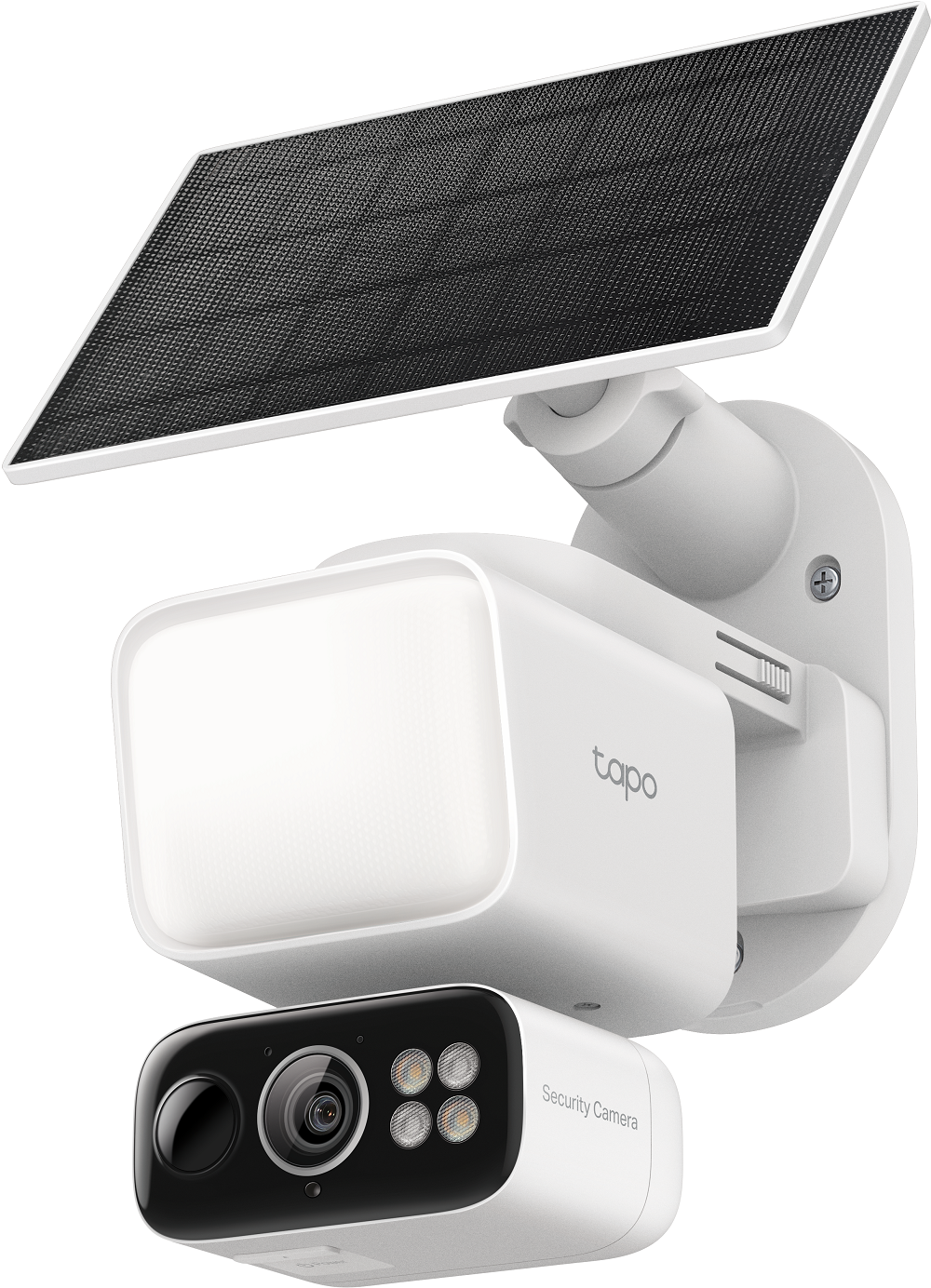

Solar-Powered Floodlight Pan/Tilt Security Camera Kit
1.0_package_20260608071950o.png)
Overview
Position It Anywhere to Get a Bright, Complete View of Your Property
Place exactly where coverage matters and maintain reliable visibility day and night.
Features
 |
Free AI Person/Pet/Vehicle Detection
|
 |
Patrol Mode Schedule 360° scans or patrol key points with motion-based recording.* |
 |
High-Efficiency Solar Charging Just 45 minutes** of sunlight enables all day use. The built-in battery lasts up to 140 days.*** |
 |
360° AI Tracking
|
 |
24/7 Capture: Always On, Always Monitoring With automatic capture intervals, all significant events are fully documented and nothing goes unnoticed.**** |
 |
Two-Way Audio
|
 |
Smart Playback Find and download important clips by simply choosing the event type or sliding the timeline. |
 |
Privacy Lock Enhance your privacy protection by securing your microSD card with a password using the Tapo app. |
 |
Unbox, Set Up & Record Included a 32 GB microSD card for immediate, out-of-the-box recording.***** |
Only get the alerts you need with no subscription fees.
360° coverage accurately tracks people, pets, and vehicles.
Communicate in real-time through a built-in microphone and speaker.
*The number of automatic scans and recordings is limited per day.
**45 min of sunlight is based on standard environmental conditions (1000W/m2, 25℃, AM1.5) and specified working scenes (up to 100 events triggered per day). Actual required time of sunlight may vary.
***140-day battery life is based on Tapo laboratory tests with 300 seconds of use per day. Increased usage per day reduces battery life. Actual battery life may vary due to device settings, usage, router specifications, and environmental factors.
****24/7 Continuous Capture enables battery-powered cameras to take images at customizable intervals (such as every 1s, 5s, 10s, or up to 60s) even when no objects are detected, ensuring round-the-clock surveillance while conserving power. When an object is detected, the camera automatically switches to a standard recording mode, delivering faster alerts and reducing missed events.
*****Package includes 1 complimentary 32 GB microSD card. Supports microSD card up to 512 GB (Sold Separately). Actual storage capacity depends on the size of the microSD card used.
Specifications
| Camera | |
| Image Sensor | 1/2.7" CMOS Sensor |
| Lens |
Focal Length: 4 mm |
| Pan-Tilt Range |
Pan Mechanical Range: 338° ( 360° Pan Coverage) |
| Night Vision | Infrared Night Vision: 52 ft/16 m Color Night Vision: 52 ft/16 m |
| Night Mode | IR-Mode/Full-Color Mode |
| Day/Night Switch | Yes |
| Lighting |
2× 850 nm IR LED |
| Interface & Button | 1× Power Button 1× Reset Button 1× microSD Card Slot |
| Solar Panel | |
| Connection Capacity |
A solar panel can only connect to one camera |
| Output Port | Type-C |
| Video & Audio | |
| Maximum Resolution | 2K (2304 × 1296 px) |
| Frame Rate | Up to 20 fps |
| Digital Zoom | 10.8× |
| Live View | Yes |
| Image Enhancement | WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 97 dB (Level measured at 4-inch/10-cm distance) |
| Storage | |
| Local Storage | microSD Card Slot on Camera (Up to 512 GB) (SD Card Purchased Separately) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| Detection & Notification | |
| Sensor | Single Motion Sensor (FOV: 100° horizontal) Single Ambient Light Sensor Sound Sensor |
| AI Detection |
Motion Detection |
| Activity Zones | Yes* *Only works with Motion/Person/Pet/Vehicle Detection |
| Alarm Type | Sound Alarm Light Alarm |
| Output Notification | App Notifications of Camera Event App Notification of AI Detection Event with Snapshot/Clips (Subscription Required) |
| Network | |
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11 b/g/n, 2.4 GHz Wi-Fi |
| Wireless Communication Technology | Bluetooth (for setup only) Wi-Fi |
| Transmission Rate | 11b: 11 Mbps 11g: 54 Mbps 11n: 72.2 Mbps |
| Protocol | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
| Security | |
| Security |
Local AI Detection |
| Power | |
| Power Source | Built-in Rechargeable Lithium-ion Battery Tapo A201 Solar Panel (Included) |
| Input Voltage | Camera: 5V, 2A, Type-C Power (Adapter Not Included) |
| Solar Panel Max Charging Voltage | 5.2 V |
| Solar Panel Max Charging Power | 2.5 W |
| Power Cord Length | Charging Cable Length: 0.5 m (1.64 ft) Solar Panel Charging Cable Length: 0.25 m (0.82 ft) Solar Panel Extension Charging Cable Length: 3.8 m (12.46 ft) |
| Camera Typical Power Consumption | 1 W |
| Camera Maximum Power Consumption | 11.28 W |
| General | |
| Smart Integration |
Google Assistant, Amazon Alexa, Samsung SmartThings |
| Weather Resistance | IP65 |
| Mounting Options | Eave-Mounted Wall-Mounted Pole-Mounted (Mounting loops required but not included) |
| Operating Temperature | -20 ℃~45 ℃ (-4 °F~113 °F) |
| Storage Temperature | -40 ℃~60 ℃(-40 °F~140 °F) |
| Operating Humidity | 10~90% RH, Non-condensing |
| Storage Humidity | 10~90% RH, Non-condensing |
| Charging Temperature | 0 ℃~45 ℃(32 °F~113 °F) |
| Weight |
Camera: 24.06 oz / 682 g |
| Dimensions | Camera: 5.23 × 3.22 × 6.34 in. (132.86 × 82 × 161.1 mm) Solar Panel: 6.82 × 4.74 × 0.61 in. (173.42× 120.42 × 15.7 mm) |
| Package Contents |
Tapo TCH50 Camera ×1 |
| Mounting Screw Size |  |
