Tapo A201 V2.20_Datasheet

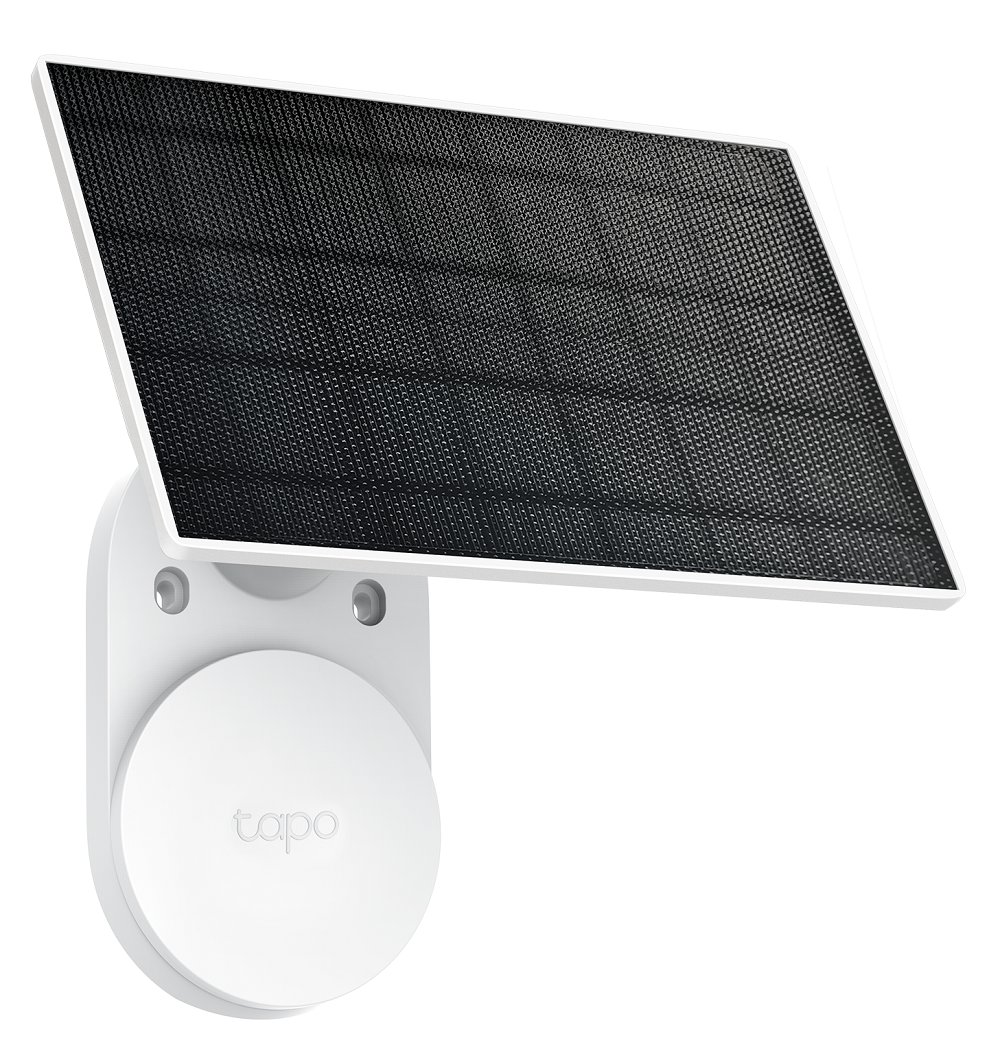

Solar Panel

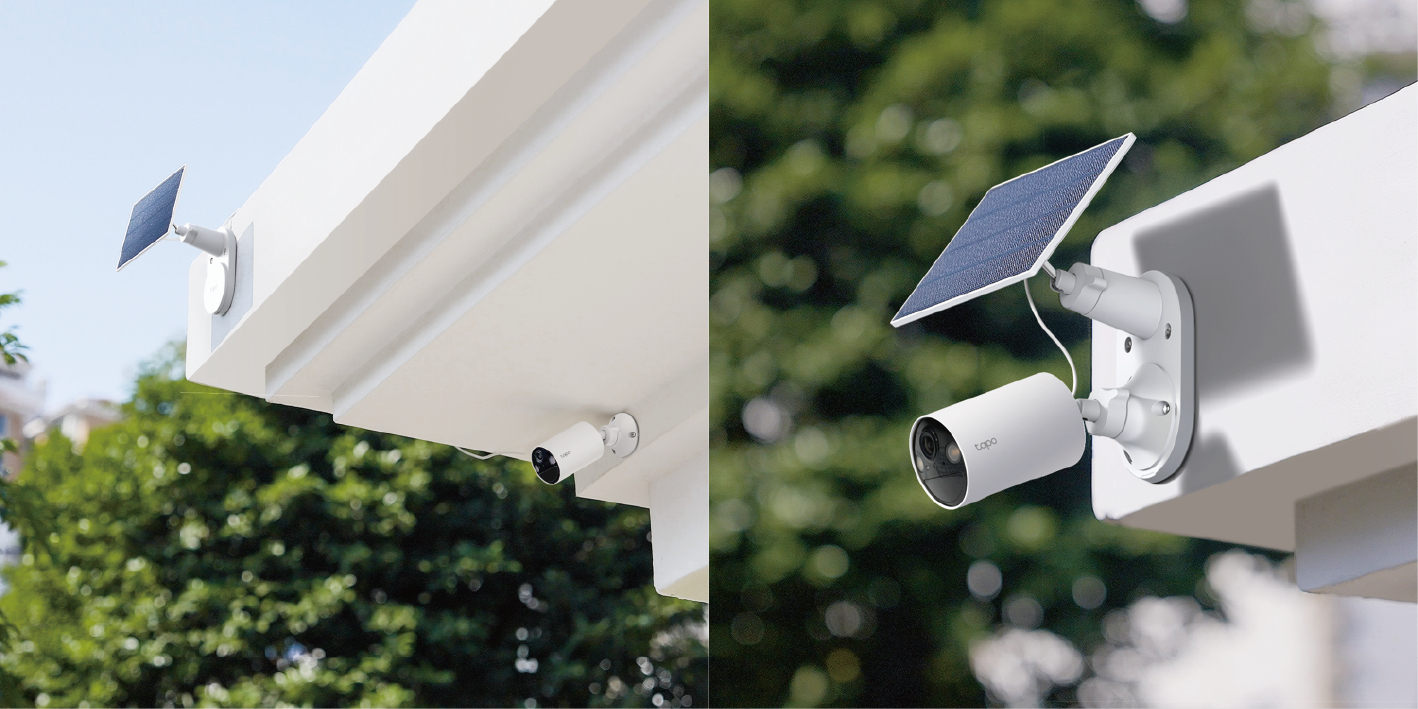

Flexibly Installed Solar, Endless Power
Tapo A201 seamlessly pairs with all Tapo Battery Cameras*, offering a sleek, unified look and flexible positioning with a 4m charging cable for maximum sunlight exposure. Enjoy green, endless power.
|

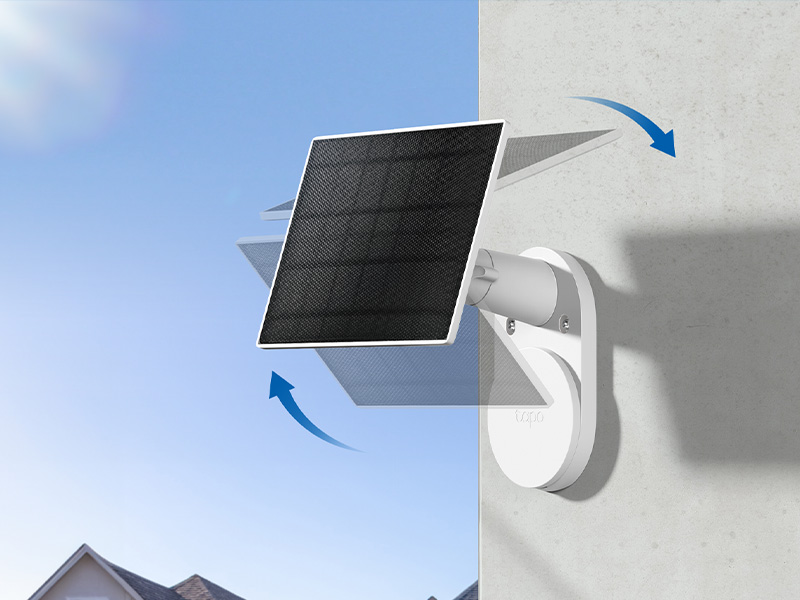

Flexible Angle Adjustment Mount your solar panel on the wall or roof and adjust its angle flexibly to capture enough sunlight with an angle-adjustable bracket. |

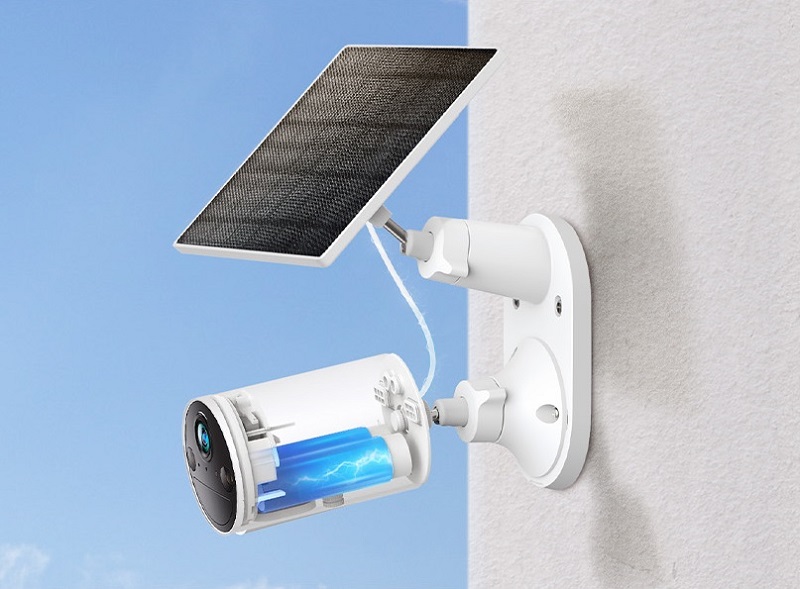

High-Efficiency Solar Charging Daily 45 minutes** of direct sunlight charges any Tapo Battery Camera for all-day use, thanks to its 2.5W*** maximum charging power. |
|
|
 |
|

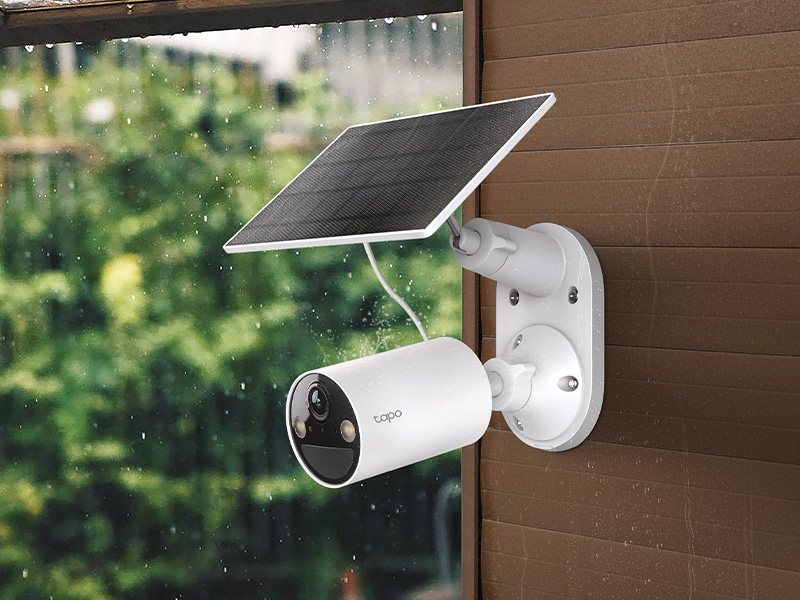

IP65 Weatherproof Delivers reliable performance and keeps your battery camera charged even in harsh environments with IP65 weatherproof. |

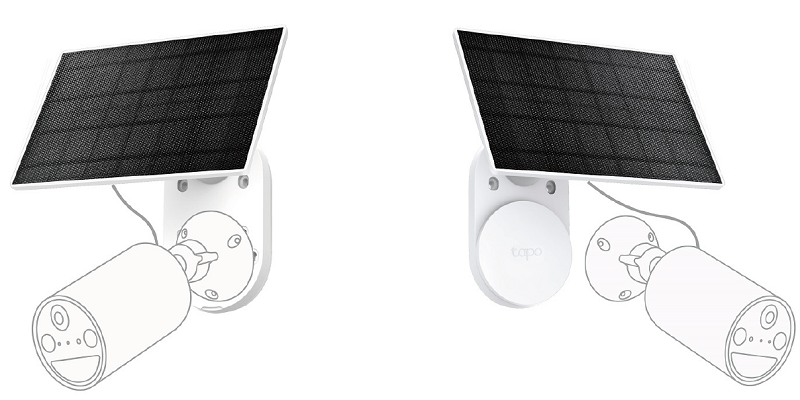

Flexible Installation Options The Tapo Battery Camera and solar panel can be integrated into a single unit or installed separately with a charging cable for optimal sunlight exposure. |
|
|
 |
*A solar panel can only connect to one camera at a time. The Tapo Solar Panel is compatible with all Tapo Battery Security Cameras. Due to Tapo C425's unique magnetic base, it exclusively supports detached installation. Visit tapo-a201/product-list/ to find more about the supported products.
**45 min of sunlight time is based on standard environmental conditions (1000W/m2, 25℃, AM1.5) and specified working scenes (100 events triggered per day). The actual required time of sunlight may vary.
***Actual charging power may vary based on installation location, weather conditions, temperature, and other environmental factors.
Specifications
| Max Charging Voltage | 5.2 V |
| Max Charging Power | 2.5 W *Actual charging power may vary based on installation location, weather conditions, temperature, and other environmental factors. |
| Output Port | Type-C, compatible with Micro USB charging port |
| Connection Capacity | A solar panel can only connect to one camera |
| Dimensions | Bracket Not Included: 173.42 × 120.42 × 15.7 mm (6.83 × 4.74 × 0.62 in) Bracket Included: 156 × 173.42 × 192.5mm (6.14 × 6.83 × 7.57 in) |
| Power Cord Length | Solar Panel Charging Cable Length: 0.25 m (9.84 in) Solar Panel Extension Charging Cable Length: 3.8 m (149.6 in) |
| Weather Resistance | IP65 |
| Mounting Options | Wall-Mounted |
| Operating Temperature | -20℃~ 45℃ (-4 ℉~ 113℉ ) *The suitable temperature for Tapo A201 is -20℃~45℃. The working temperature range for battery charging should be maintained at 0℃~45℃ (32 ℉~ 113℉ ). |
| Storage Temperature | -40℃~ 60℃ (-40 ℉~ 140℉ ) |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 5%~90% RH, Non-condensing |
| Package Contents |
Tapo A201 Solar Panel × 1 |
