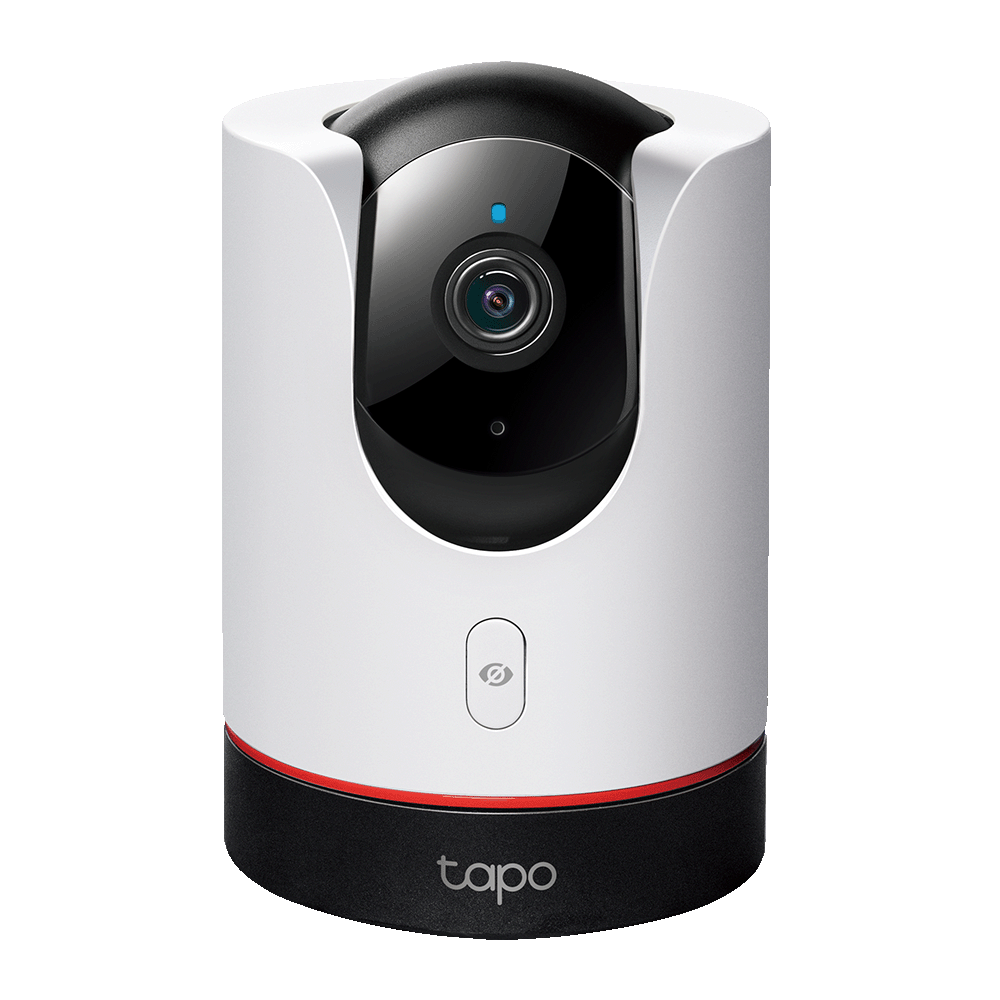

Tapo C225 V2.20 Datasheet

Pan/Tilt AI Home Security Wi-Fi Camera

Overview

See the moment, Secure the privacy.

· Seamless Privacy Control: Use the button on the product shell or Tapo app to easily open or close the privacy shield, giving you complete control over your private moments.

· 2K QHD: When it comes to home security, details matter. With 2K QHD resolution, the Tapo C225 transcends beyond traditional Full HD 1080p quality to display finer details and incredibly clear videos.

· Apple Homekit Supported: Along with Amazon Alexa and Google Assistant compatibility,Tapo C225 can also fully integrate into your Apple Home ecosystem for convenient hands-free operation.

· Smart Motion Tracking: With pan/tilt functionality and smart motion tracking technology with up to 120°/s rotating speed, precisely track and follow subjects, continuously keeping them within the camera’s field of view.

· Night Vision: The highly sensitive starlight sensor captures higher-quality images even in low-light conditions up to 30 ft.

· Invisible Infrared Mode: If the red IR LEDs prove to be a distraction while monitoring at night, switch to invisible IR mode to continue monitoring in low-light conditions without the disrupting red light, making it ideal for sleeping children and pets.

· Local and Cloud Storage: Save recorded videos on a microSD Card (up to 512 GB, purchased separately) or use Tapo Care cloud storage services (subscribe separately).

· Sharing Capabilities: Seamlessly forward videos you want to share to your social platforms.

Highlights

Smart AI Detection and Notification
Smart AI identifies people, pets, and vehicles while also recognizing abnormal sounds, notifying you as needed.

Features

	Physical Privacy Mode Maintains privacy with the lens blocked by the housing when physical privacy mode is enabled.		Customizable Smart Tracking Tracks and follows the subjects you set, keeping it within the camera’s field of view.
	2K QHD + HDR  Capture sharper, more revealing images with HDR technology and 1.7× more pixels than 1080p.		Discreet Night Vision with 940nm IR LED Enjoy unobtrusive night-time monitoring of your baby or pet with the barely-noticeable, low-intensity 940nm IR LED.
	Superior Starlight Vision with Ultra Large Aperture Reveals high-fidelity details in low-light environments with an f1.6 ultra-large aperture.		Local† and Cloud‡ Storage Save recorded videos to a microSD card (up to 512 GB)† or by using Tapo Care‡ cloud storage services.
	Customizable Privacy Zones Set customizable privacy zones to keep private areas from being monitored.		Crisp Two-Way Audio Communicate in real time through a built-in microphone and speaker.
	Customizable Activity Zones  Set up specific detection zones to be alerted for areas that matter most.

Specifications

Camera
Image Sensor	1/2.9” CMOS Starlight Sensor
Lens	Focal Length: 4.3 mm Aperture: F1.6 Field of View: 100.2° (Diagonal), 83.7° (Horizontal), 43° (Vertical)
Pan-Tilt Range	Pan Mechanical Range: 340° (360° Pan Coverage) Tilt Mechanical Range: 101° (144° Tilt Coverage)
Night Vision	Infrared Night Vision  1 × 850 nm IR LED (30 ft / 9 m) 2 × 940 nm IR LED (30 ft / 9 m)
Night Mode	Infrared Mode
Day/Night Switch	YES
Lighting	1 × 850 nm IR LED  2 × 940 nm IR LED
Interface & Button	1× DC Port 1× RESET Button 1× Privacy Button 1× microSD Card Slot (Up to 512 GB)
Video & Audio
Maximum Resolution	2K 4MP (2688 × 1520 px)
Frame Rate	Up to 30 fps
Digital Zoom	12×
Live View	Yes
Video Compression	H.264
Image Enhancement	WDR HDR
Audio Input & Output	Built-in Microphone and Speaker
Audio Communication	Two-Way Audio with Noise Cancellation
Siren Volume	98dB (Level measured at 4-inch/10-cm distance)
Storage
Local Storage	MicroSD Card Slot on Camera (Up to 512 GB) (SD Card Purchased Separately)
Cloud Storage	Tapo Care Cloud Storage Services (Subscription required)
Hub Storage	Compatible with Tapo Hub (sold separately)
Detection & Notification
Sensor	None
AI Detection	Motion Detection Person Detection Pet Detection Vehicle Detection Line-Crossing Detection Tampering Detection
Activity Zones	Yes  *Only works with Motion/Person/Pet/Vehicle Detection.
Alarm Type	Customizable Sound Alarm Light Alarm Sound Alarm
Output Notification	App Notifications of Camera Event App Notification of AI Detection Event with Snapshot (Tapo Care Services)
Network
Network Connectivity	Connect via Wi-Fi
Wireless Connectivity	IEEE 802.11b/g/n/ax, 2.4 GHz Wi-Fi§
Wireless Communication Technology	Bluetooth (for setup only) WiFi
Transmission Rate	11b: 11 Mbps 11g: 54 Mbps 11n: 72.2Mbps 11ax: 114.7Mbpa
Protocol	TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP
Security
Security	128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK/WPA3-PSK
Power
Power Source	12V DC Power Adapter
Input Voltage	12V, 1.0A, DC jack Power
Output Voltage	N/A
Power Connector Size	DC Jack Inside Ø: 2.1 mm Outside Ø: 5.5 mm
Power Cord Length	Adapter Power Cord Length: 3m
Typical Power Consumption	5.0 W
Maximum Power Consumption	10 W
General
Certifications	CE,BSMI,NCC,NTRA,RCM
Smart Integration	Google Assistant, Amazon Alexa, Apple HomeKit, IFTTT, Samsung SmartThings
Weather Resistance	NA
Mounting Options	Ceiling-Mounted
Operating Temperature	0℃~40℃ (32℉~104℉)
Storage Temperature	-20℃~60℃ (-4℉~140℉)
Operating Humidity	10%~90% RH, Non-condensing
Storage Humidity	5%~90% RH, Non-condensing
Charging Temperature	N/A
Weight	Camera Weight:11.05 oz /313.2 g Gross weight of a single product (including power supply/power cable): 17.73 oz /502. 76g
Dimensions	3.15 × 3.15 × 4.41 in (80 × 80 ×112 mm)
Package Contents	Tapo C225 Camera × 1 Power Adapter × 1 Mounting Screws × 2 Mounting Anchors × 2 Mounting Template × 1 Camera Base × 1 Quick Start Guide
Mounting Screw Size

^§Tapo C225 does not have an Ethernet port and can only be connected via Wi-Fi.
^†microSD card purchased separately. Actual storage capacity depends on the size of the microSD card used.
^‡Subscribe for cloud storage service at https://www.tapo.com/tapocare
^△Compatible with Alexa and Google Assistant supported displays. User experience is dependent on the connected services.
