TL-MR100P_V1_Datasheet

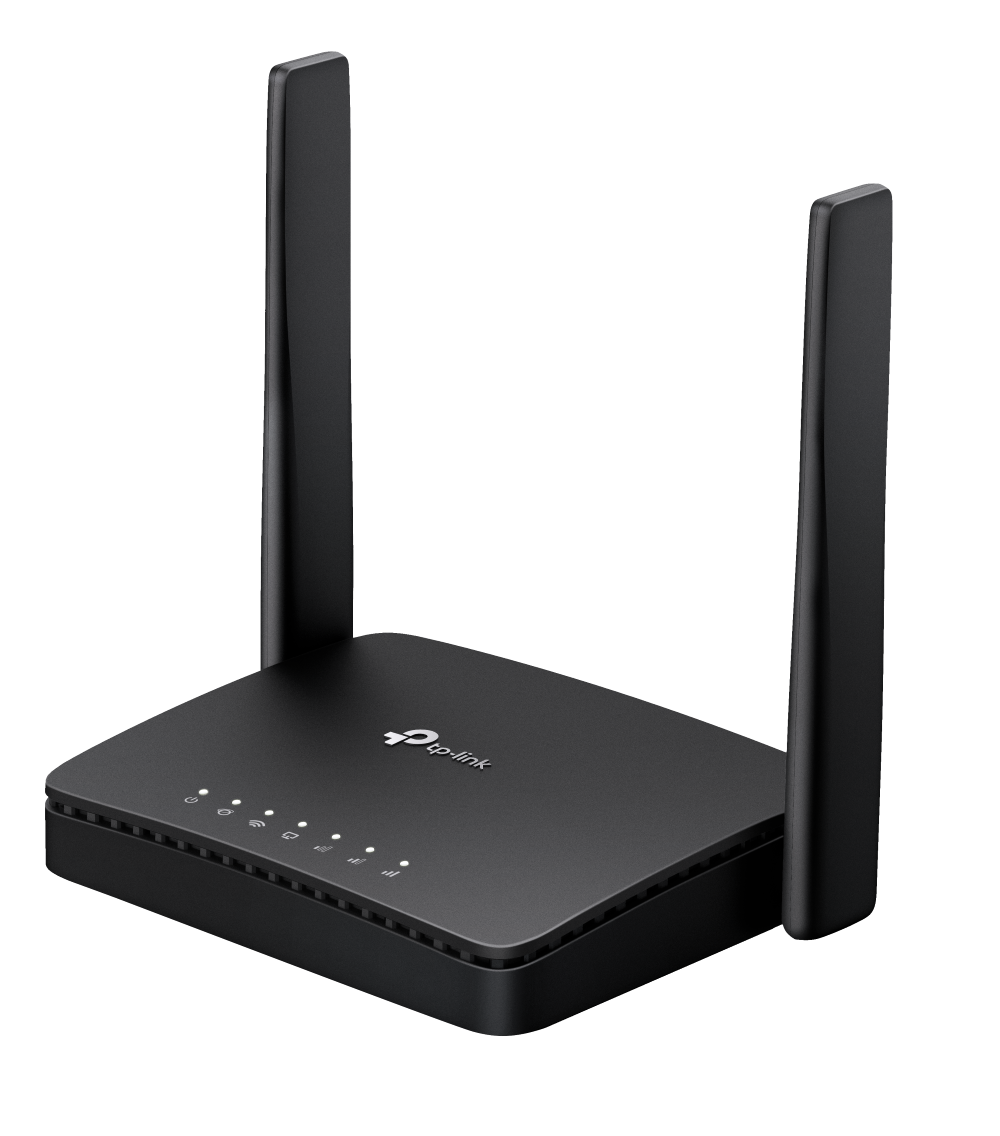

300Mbps Wireless N 4G LTE Portable Router

300Mbps Wireless N 4G LTE Portable Router

4G (TDD&FDD)/3G

Compatible

300 Mbps

Wi-Fi Speed^†

Power Bank Compatible

Highlights

Powerful WiFi, Pocket-sized

Get online fast with a Nano SIM card and stay powered everywhere with the USB-C port.^‡

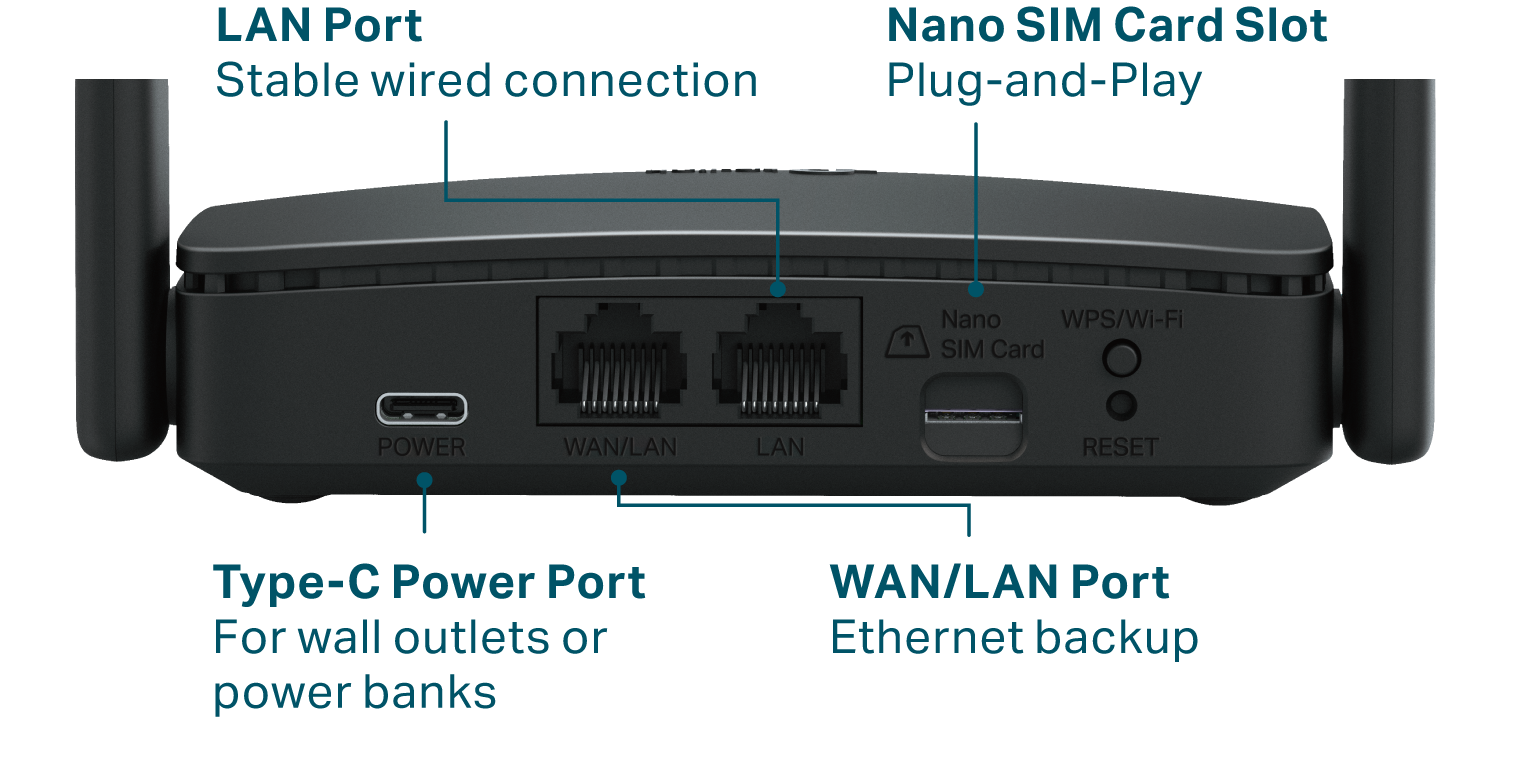

Close-up of a wireless router's ports, labeled: LAN port for wired connection, Nano SIM card slot, Type-C power port, and WAN/LAN port for Ethernet backup.

Flexible Network Access Wherever You Go

Smaller than a typical router and built to deliver reliable Wi-Fi at home or on the go.

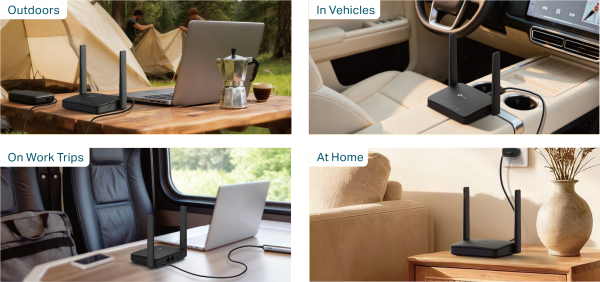

An image displaying a wireless router in four scenarios: outdoors, in a vehicle, on a work desk, and at home.

Features

	4G LTE · 4G LTE – Ideal for cutting-edge 4G LTE network · Faster Connections – Up to150 Mbps download speed and 50 Mbps upload speed · Backward Compatible – Compatible with 4G/3G network
	Speed · 300 Mbps Wireless Speed – 300 Mbps Wi-Fi allows stable speed for wireless activities, such as streaming, surfing, browsing and posting social media
	Wi-Fi Range · Better Coverage – Integrated antennas provide stable wireless connections and better coverage
	Reliability · Superior Stability – Powerful processor enables you to connect up to 32 wireless devices with ease
	Ease of Use · Intuitive Web UI – Ensures quick and simple installation without hassle · Fast Encryption – One-touch WPA wireless security encryption with the WPS button · Wi-Fi On/Off – Conveniently turn on or off wireless radio as required · Hassle-free Management with Tether App – Network management is made easy with the TP-Link Tether App, available on any Android and iOS device · Online Upgrade – Keeps you informed of the latest firmware and allows online upgrade on the web UI
	Security · Guest Network – Keeps your main network secure by creating a separate network for friends and visitors · Access Control – Establishes a whitelist or blacklist to allow or restrict certain devices to access the internet · Parental Controls – Restrict internet access time and contents for children devices · Encryptions for Secure Network – WPA-PSK/WPA2-PSK encryptions provide active protection against security threats

Specifications

Hardware
Interface	1 × 10/100 Mbps LAN/WAN Port 1 × 10/100 Mbps LAN Port 1 × Nano SIM Card Slot 1 × Type-C Power Port
Buttons	WPS/Wi-Fi Button, Reset Button
Antennas	2 × External LTE Antennas
External Power Supply	5V/1.5A
Dimensions (W x D x H)	4.53 × 3.70 × 1.18 in. (15 × 94 × 30 mm)
Wireless
Network Type	4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
Wireless Standards	IEEE 802.11b, 802.11g, 802.11n
Frequency	2.4 GHz
Signal Rate	300 Mbps at 2.4 GHz
EIRP (CE)	<20 dBm (2.4 GHz)
Reception Sensitivity	11g 54M: -74 dBm 11n HT20: -71 dBm 11n HT40: -67 dBm
Wireless Function	Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
Wireless Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Software
Operating Modes	3G/4G Router, Wireless Router
WAN Type	Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
DHCP	Server, Client, DHCP Client List, Address Reservation
Port Forwarding	Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS	TP-Link DDNS, DynDns, NO-IP
VPN Passthrough	PPTP, L2TP, IPSec
VPN Server	PPTP VPN, L2TP VPN, OpenVPN
VPN Client	OpenVPN, PPTP, L2TP VPN Client
Access Control	Parental Controls, Local Management Control, Host List, Access Control
Firewall Security	DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding
Protocols	IPv4, IPv6
Management	Access Control, Local Management, Remote Management
Guest Network	2.4 GHz guest network
Others
Certification	CE, RoHS
Requirements	• Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser *You are recommended to use the latest version • Nano SIM Card
Environment	• Operating Temperature: 0℃~40℃ (32℉ ~104℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
Package Contents	• 300 Mbps Wireless N 4G LTE Portable Router TL-MR100P • RJ45 Ethernet Cable • Power Adapter • USB Cable • Quick Installation Guide

Disclaimer

Specifications are subject to change without notice.

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.

^†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and number of connected devices are not guaranteed and will vary as a result of network conditions, AP limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and AP location.

^‡This device requires an activated SIM card without a PIN lock. If the SIM card is locked, please consult the quick installation guide for unlocking instructions.

Maximum 4G download and upload speeds depend on ecternal factors such as the local 4G network coverage, data plan, real-time network capacity, client limitations, and environmental factors. Actual supported frequency bands may vary slightly in different regions due to certification.
