Datasheet

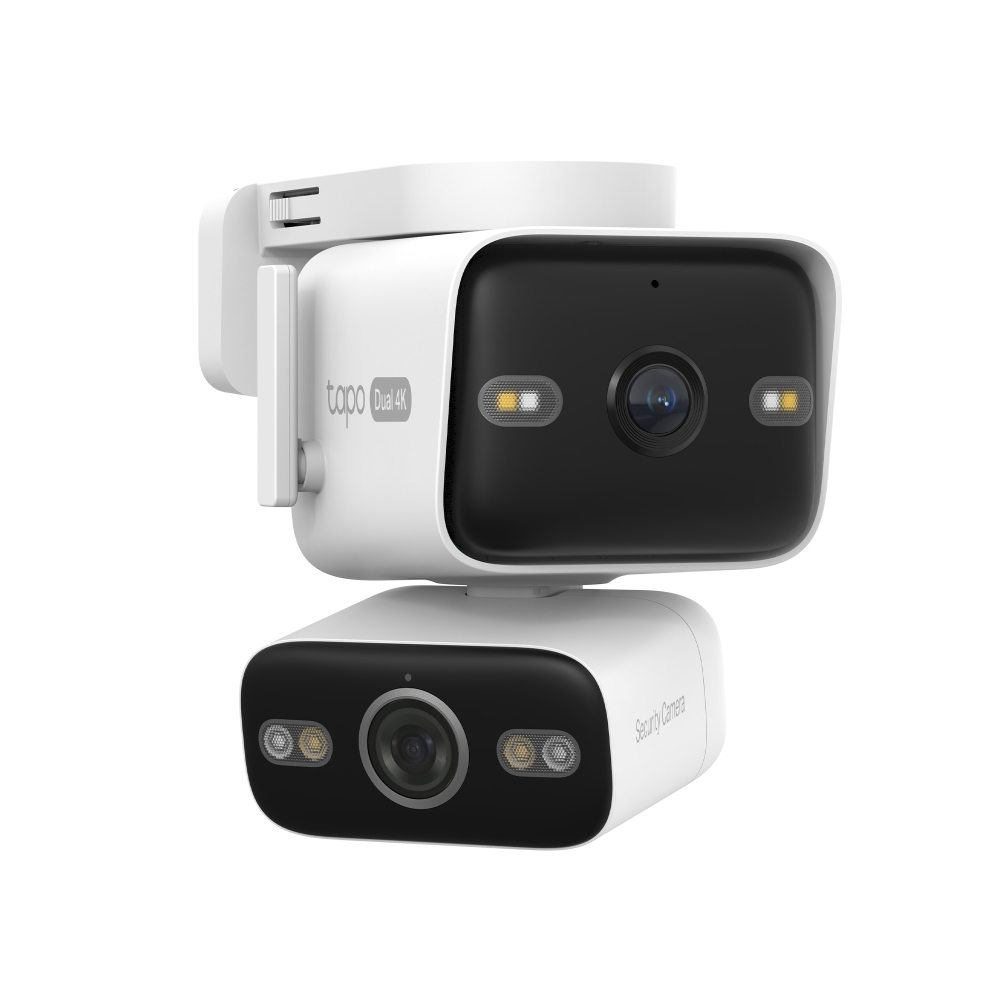

Outdoor Dual Lens Pan/Tilt Security Camera
Overview
· 4K 8MP Dual Lens - Capture the full picture with dual 4K ultra clear optics, monitoring two separate areas at the same time with just one device.
· 4K 170° Ultra-Wide View - Enjoy a sweeping 170° field of view in true 4K clarity for broader coverage with fewer blind spots.
· 4K Pan/Tilt Zoom-In Details - The 8mm telephoto lens delivers 9.4× clarity compared to standard lens and supports up to 18× digital zoom, ensuring every detail is clearly visible when you zoom in.
· Synchronized Smart Tracking - When the fixed lens detects events, the pan/tilt lens will automatically pivot to focus on and track the moving object.
· One-Tap Smart Focus - Select an area in the wide-angle view, and the pan/tilt camera will focus on it instantly.
· IP66 Weather Resistance - Delivers reliable surveillance through rain, snow, dust, and scorching heat. Monitor your property with confidence, no matter the weather.
· PoE/DC Power Supply - Power your camera with a DC adapter or Ethernet cable featuring PoE technology for safe power andstable internet.
· Free Dual AI Detection & Notification - Get instant push notifications when motion, person, pets and vehicles are detected, there is no additional fee to use it.
· Works with Alexa, Google Assistant & Samsung SmartThings - Fully compatible with Amazon Alexa, Google Assistant and Samsung SmartThings.
· Smart Night Vision - Choose from vibrant full-color with spotlights, discreet black-and-white infrared, or an automatic Smart Mode based on Al light detection for optimal clarity in any nighttime scenario.
· Secure Local or Cloud Storage - Save footage continuously on up to a 512 GB microSD card (not included) or subscribe to Tapo Care for cloud storage which saves 30-day video.
· 2-Way Audio - Engage in seamless, real-time conversations with our two-way audio feature, designed for minimal latency and exceptional sound clarity.
Highlights
Advanced Surveillance with Dual 4K Lenses
Tapo C575D combines a fixed lens and a pan/tilt lens-both with crisp 4K resolution-to monitor different areas at the same time.
Wide + Telephoto: See the Big Picture and Fine Details
The 170° wide-angle lens provides broad coverage. While the 8 mm telephoto lens features 9.4× more clarity than the wide-angle view for clear, faraway details.
Features
 |
Synchronized Smart Tracking
|
 |
Local† and Cloud‡ Storage Save recorded videos to a microSD card (up to 512 GB)† or by using Tapo Care‡ cloud storage services. |
 |
Two Views at Once One camera, two areas monitored simultaneously, ensuring minimal blind spots. |
 |
Color Night Vision with Spotlights
|
 |
One-Tap Smart Focus Simply select an area within the wide-angle view, and the pan/tilt camera will instantly focus on that point. |
 |
Customizable Activity Zones
|
 |
Free Smart AI Detection
|
 |
IP66 Weather Resistance Stays resilient even in extreme weather, delivering reliable surveillance through torrential rain, snowstorms, dust storms, and scorching heat. |
 |
Customizable Privacy Zones Set customizable privacy zones to keep private areas from being monitored. |
|
The pan/tilt camera seamlessly follows movements detected by the fixed camera, ensuring comprehensive and dynamic protection.
Reveals high-fidelity details and color at night with the embedded spotlights.
Set up specific detection zones to be alerted for areas that matter most.
Identifies people, pets and vehicles while only sending you alerts when truly needed.
Specifications
| Camera | |
| Image Sensor |
Fixed Lens (Wide-Angle Lens): 1/2.7" CMOS Sensor |
| Lens |
Fixed Lens (Wide-Angle Lens): PT Lens (Telephoto Lens): |
| Pan-Tilt Range |
Fixed Lens (Wide-Angle Lens): PT Lens (Telephoto Lens): |
| Night Vision | Infrared Night Vision (98 ft / 30 m) Color Night Vision (65 ft / 20 m) |
| Night Mode | Infrared Mode / Full-Color Mode / Smart Mode |
| Day/Night Switch | Yes |
| Lighting |
Fixed Lens (Wide-Angle Lens): PT Lens (Telephoto Lens): |
| Interface & Button |
1× Ethernet Port |
| Video & Audio | |
| Maximum Resolution |
Fixed Lens (Wide-Angle Lens): 4K 8MP (3840 × 2160 px) |
| Frame Rate | 15 fps |
| Digital Zoom | 18× |
| Live View | Yes |
| Image Enhancement | 3DNR WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume |
94 dB (Level measured at 4-inch/10-cm distance) |
| Storage | |
| Local Storage | microSD Card Slot on Camera (Up to 512 GB) (SD Card Purchased Separately) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| Detection & Notification | |
| Sensor | 3× PIR Motion Sensors (FOV: 270° horizontal) 1× Ambient Light Sensor |
| AI Detection |
Motion Detection |
| Activity Zones | Yes* *Only works with Motion/Person/Pet/Vehicle Detection |
| Alarm Type | Customizable Sound Alarm Sound Alarm Light Alarm |
| Output Notification | App Notifications of Camera Event App Notification of AI Detection Event with Snapshot (Subscription Required) |
| Network | |
| Network Connectivity | Connect via Wi-Fi or Ethernet |
| Wireless Connectivity | IEEE 802.11b/g/n/ac/ax, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi |
| Wireless Communication Technology | Bluetooth (for setup only) Wi-Fi |
| Transmission Rate | 11b: 11 Mbps 11g: 54 Mbps 11n: 72.2 Mbps 11ax: 143.4 Mbps |
| Protocol | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
| Ethernet Port | 1× 10/100 Mbps RJ45 Port on Camera |
| RTSP | Yes |
| ONVIF | Yes (Profile S) |
| Security | |
| Security |
128-bit AES Encryption with SSL/TLS |
| Power | |
| Power Source | 12 V DC Power Adapter PoE: 802.3 af/at |
| Adapter Input Voltage | 100-240 V, 50/60 Hz, 0.3 A |
| Adapter Output Voltage | 12 V, 1.0 A (DC Power) |
| DC Power Connector Size | Inside Ø: 2.1 mm Outside Ø: 5.5 mm |
| Power Cord Length | 3 m |
| Typical Power Consumption | 9.5 W |
| Maximum Power Consumption | 11.5 W |
| General | |
| Certifications | CE, RCM, NTRA, JRF, IC, NCC, BSMI, IP66, RoHS |
| Smart Integration | Google Assistant, Amazon Alexa, Samsung Smart Things, IFTTT |
| Weather Resistance | IP66 |
| Mounting Options | Ceiling-Mounted Wall-Mounted Pole-Mounted (Pole-Mounting loops required but not included) |
| Operating Temperature | -30 ℃~60 ℃ (-22 ℉~140 ℉) |
| Storage Temperature | -40 ℃~60 ℃ (-40 ℉~140 ℉) |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 0~90% RH, Non-condensing |
| Charging Temperature | N/A |
| Weight | 19.4 oz / 550g |
| Dimensions | 3.23 × 6.34 × 5.2 in (82 ×161 ×132 mm) |
| Package Contents | Tapo C575D Camera ×1 Mounting Bracket ×1 Mounting Template Sticker ×1 Mounting Screws ×4 Mounting Anchors ×4 Waterproof Seal ×1 Waterproof Cable Attachments ×1 Power Adapter ×1 Quick Start Guide |

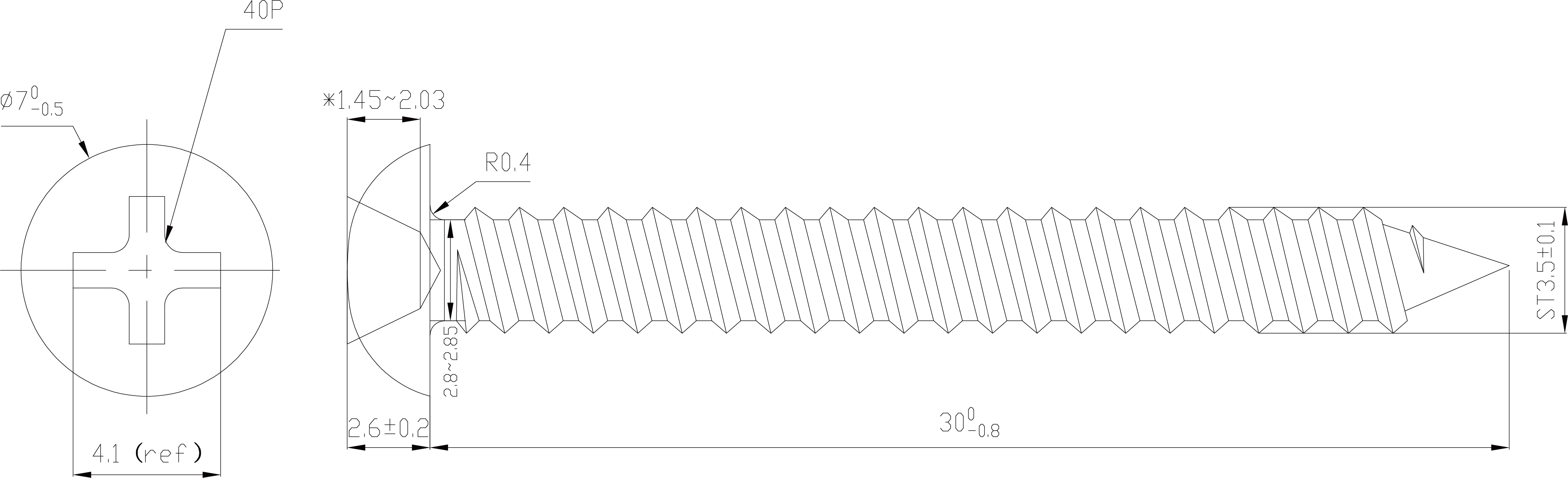

| Mounting Screw Size |  |
