Tapo L901-6_Datasheet

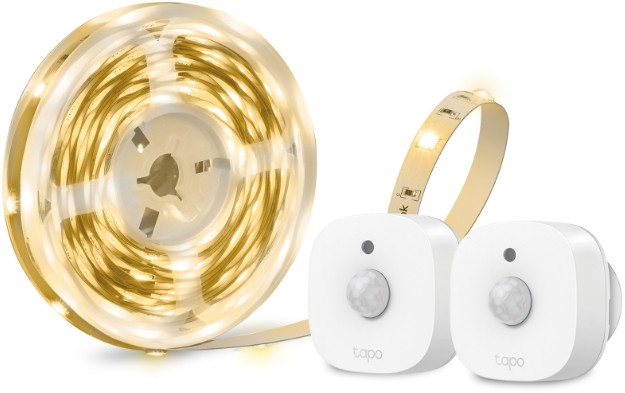

Dual Motion Sensor Smart Wi-Fi Light Strip

work with third-parties: Matter, Apple, Google Home, Alexa, Smartthings

· Three Light Control Modes - Tapo L901-6 features three light control modes that meet different life scenarios and needs.

· Dual Control Motion Sensor - Each sensor can control the light strip to turn on and off when it detects movement, ideal for installation on stairs, hallways, and double beds, etc.

· Ultra-dim 1% brightness - With an ultra-dim 1% brightness (<2 lm), ensuring soothing, non-intrusive illumination, ideal for sleeping at night.

· Fade On/Off - Adjust the light from bright to dimmed with smooth lighting transitions to prevent eye irritation and discomfort.

· Plug and Play - The light strip and sensors come pre-configured—just plug and play. No need for extra hubs or other devices.

· Adjustable Motion Sensor Sensitivity – Tailor your detection coverage with 3 levels. Captures motion up to 19.7 ft.(6m) away.

· Easy installation - Install the sensor easily and quickly anywhere in your home. The built-in magnet and provided adhesive offer great flexibility on furniture and walls.

· Tailor the Length Freely - The 6m LED light strip can be easily cut and connected to adjust the length, suitable for both king-size and single beds.

· Auto Biorhythm Lighting+ - Automatically adjusts daily brightness based on the natural sunlight pattern of your positioning area, ensuring the most suitable lighting every time you turn it on.

· Schedule & Timer - Create a regular schedule to turn on/off the light with your chosen light effects.

· Voice Control - Manage your smart lights with voice commands via Siri, Alexa, Google Assistant, or Samsung SmartThings.

· Remote Control and Away Mode - Instantly turn connected devices on/off wherever you are via the Tapo App. Turn on away mode to simulate someone being at home.

Advanced features of L901-6

Specifications

Technical Specifications
Sensor Smart Wi-Fi Light Strip (Tapo L901-6)
Nominal Luminous Flux	1200 Lumens（200 lm/m）
Colour Temperature	3000 K
Lifetime	25,000 Hrs
Warm-up Time up to 95%	≤1 s
Input Voltage	220-240 V, 50/60 Hz
Output Voltage	12 VDC, 1.0 A
Input Power (Actual power draw in Watts)	12 W
Dimmable	1%- 100% (via controller, app, and cloud only)
Max. Power Consumption	12 W
Smart Motion and Light Sensor (Tapo L901-Sensor)
Max Motion Detection Angle	120°
Max Motion Detection Distance	6 m
Battery	CR2450
Battery Life*	1.5 Years
Battery Rated Voltage	3V
Network
Wi-Fi Protocol	Smart Wi-Fi Light Strip: IEEE 802.11b/g/n, 2.4GHz Wi-Fi, Bluetooth Smart Motion and Light Sensor: Bluetooth
Wi-Fi Frequency	2.4 GHz
Wi-Fi Requirements	Secured home Wi-Fi connection
General
Certification	CE
Package Contents	LED Light Strip (6 m / 19.7 ft) Power Adapter Controller 3M Adhesive for Controller Smart Motion and Light Sensor x 2 Battery CR2450 x 2 3M Adhesive for Sensor × 2 Quick Start Guide
Weight	Smart Wi-Fi Light Strip: 56.5 g Light Strip Controller: 62 g Smart Motion and Light Sensor: 28 g each
Dimensions	Smart Wi-Fi Light Strip: 6000 × 10 × 1.2 mm Light Strip Controller: 78 × 40 × 19 mm Smart Motion and Light Sensor: 42.3 x 42.3 x 34 mm
Operating Temperature	0 ºC~ 40 ºC
Operating Humidity	10%~90%RH, Non-condensing

*Battery life of up to 1.5 years is based on TP-Link's laboratory results under normal conditions. Actual battery life may vary depending on operating conditions and environment.

Notes:

• Once you cut the Light Strip, the excess parts cannot be used.

•The Tapo L901 does not include LED Strip Connectors. If required, LED Strip Connectors must be purchased separately for proper use.

• The L901-Sensor does not support matter. NOT FOR EMERGENCY LIGHTING.
