Tapo L730-4 KIT(US)1.6_Datasheet
Smart Recessed Downlight KIT
· 4 Lighting Modes - Tapo Smart Recessed Downlight KIT features 4 lighting modes that meet different life scenes and needs.
· 16 Million Colors - Shape the amazing vibe by picking the lights from a wide array of colors, even dim to any brightness you desire for the perfect atmosphere.
· White Tunable - Adjust the color temperature from 2,700 K to 6,500 K based on your changing needs.
· Ultra-dim 1% brightness - With an ultra-dim 1% brightness (<6 lm), ensuring soothing, non-intrusive illumination, ideal for sleeping at night.
· Multiple Convenient Control Methods - Adjust lights with your smartphone, voice, or the Tapo Mate Switch, ensuring convenience for all ages.
· Dual-Protocol Connectivity for Stable Operation - Combines Wi-Fi and Bluetooth Mesh 1.1 technology to ensure smart lights remain responsive and connected even in areas with weak or no Wi-Fi signal.
· Ultra-Long 50,000-Hour Lifespan - The downlights boast a sophisticated pure white finish with gently curved edges. The luminaire features a high-quality aluminum alloy backplate for superior heat dissipation and a long service life of over 50,000 hours.
· Fancy Lighting Effects - Amuse yourself with well-designed animated lighting effects, available on the Tapo App.
· Sync-to-Sound - Use the Tapo App to sync the lights to your music and create a synchronized lighting experience.

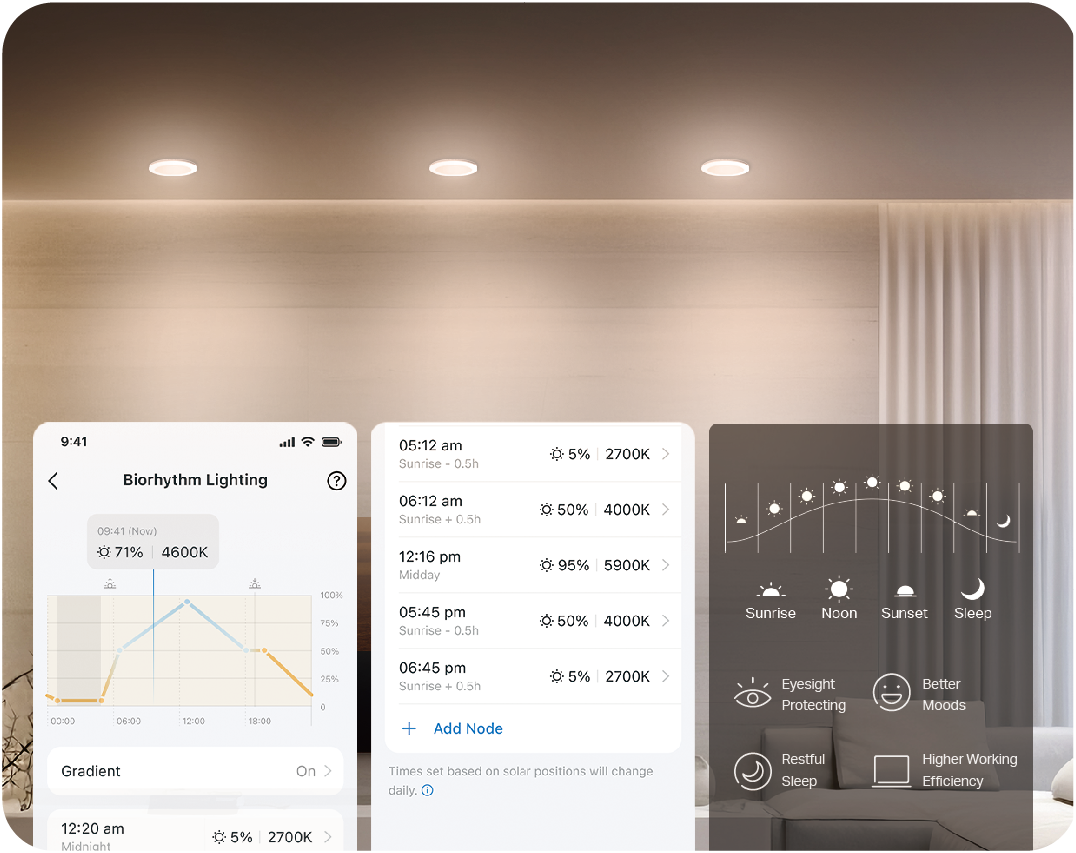

· Auto Biorhythm Lighting+ - Automatically adjusts daily brightness and color temperature based on the natural sunlight pattern of your positioning area, ensuring the most suitable lighting every time you turn it on.
· Schedule & Timer - Create a regular schedule to turn on/off the light with your chosen light effects.
· No Hub Required – Connect the Tapo L730 to your home Wi-Fi, then you are all set.
· Voice Control - Manage your smart lights with voice commands via Siri, Alexa, Google Assistant, or Samsung SmartThings.
· Remote Control and Away Mode - Instantly turn connected devices on/off wherever you are via the Tapo App. Turn on away mode to simulate someone being at home.
Features

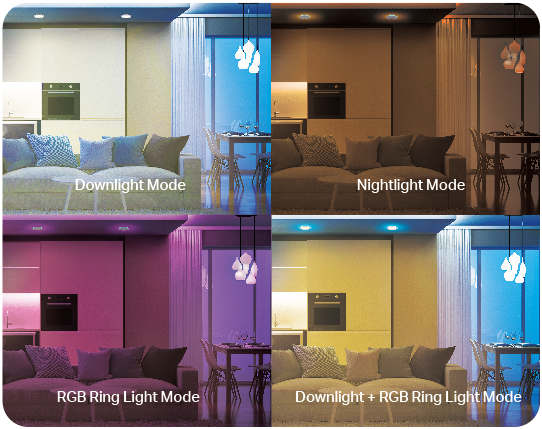

Four Lighting Modes
Tapo Smart Recessed Downlight KIT features four modes to meet various needs: Downlight for daily brightness; Nightlight for a cozy and soft nighttime glow; RGB Ring Light for vibrant, colorful moments, offering versatile light effect; Downlight + RGB Ring Light for a bright and colorful spatial atmosphere.
Color Night Vision
Enhances your nighttime security by revealing vivid colors with the built-in dual spotlights.

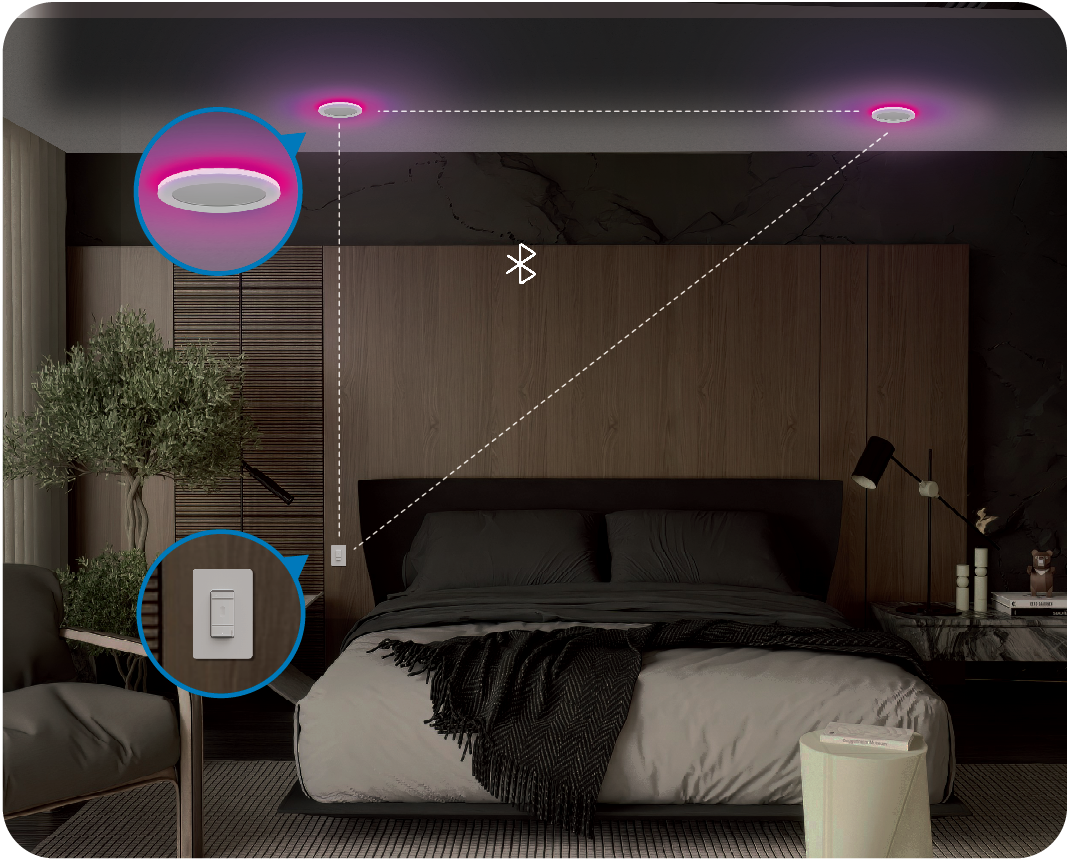

Convenient Control via the Mate Switch
Pair effortlessly with the Tapo Mate Switch for manual light control without worrying about smart lights going offline. With the touch of a button, your entire household can instantly dim/brighten the room, turn lights on/off, or set light scenes.
Specifications
Technical Specifications
| Smart Recessed Downlight (Tapo L730) | |
| Light Fixture Form | Recessed |
| Size | 4 Inches |
| Power | AC |
| Light Source Type | LED |
| Voltage | 120 V~ 60 Hz |
|
Input Power (Actual power draw in Watts) |
15 W Max |
| Lighting Method | Downlight, Ring light, Downlight + Ring Light |
| Light Color | RGBCW (Ring Light Only) |
| Brightness | 850 Lumens |
| Color Temperature Range | 2700-6500 K |
| Color Changing | Yes (Via app, cloud, and Mate Switch) |
| Dimmable |
Yes (via app, cloud, and Mate Switch) 1%-100% (via app, cloud, and Mate Switch) |
| Color Rendering Index | 90 |
| Warm-Up Time to 95% | ≤1 s |
| SDCM | 4 |
| Lifetime | 50,000 Hrs |
| Weighted Energy Consumption | 11 kWh/1000 h (only the downlight is on) 13 kWh/1000 h (both the downlight and ring light are on) |
| Max. Power Consumption | 11 kWh/1000 h (only the downlight is on) 13 kWh/1000 h (both the downlight and ring light are on) |
| Standby Power Consumption | 0.7 W |
| Equivalent Incandescent Lamp Power | 60 W |
| Scene Controller Mate Switch (Tapo S310D) | |
| Voltage | 120 V~ 60 Hz |
| Power | 300W |
| Compatibility |
General use Connect up to 20 Tapo L730 |
| Requirements |
Neutral wire required Standard lighting wall box(at least 2 inches deep) |
| Working Temperature | 0 ºC~ 40 ºC (32°F ~ 104°F) |
| Physical | |
| Package Contents | Tapo L730-4 x 4 Hardwire Boxes x 4 Wire Terminals x 12 Tapo S310D x 1 Mounting Template x 1 Quick Start Guide |

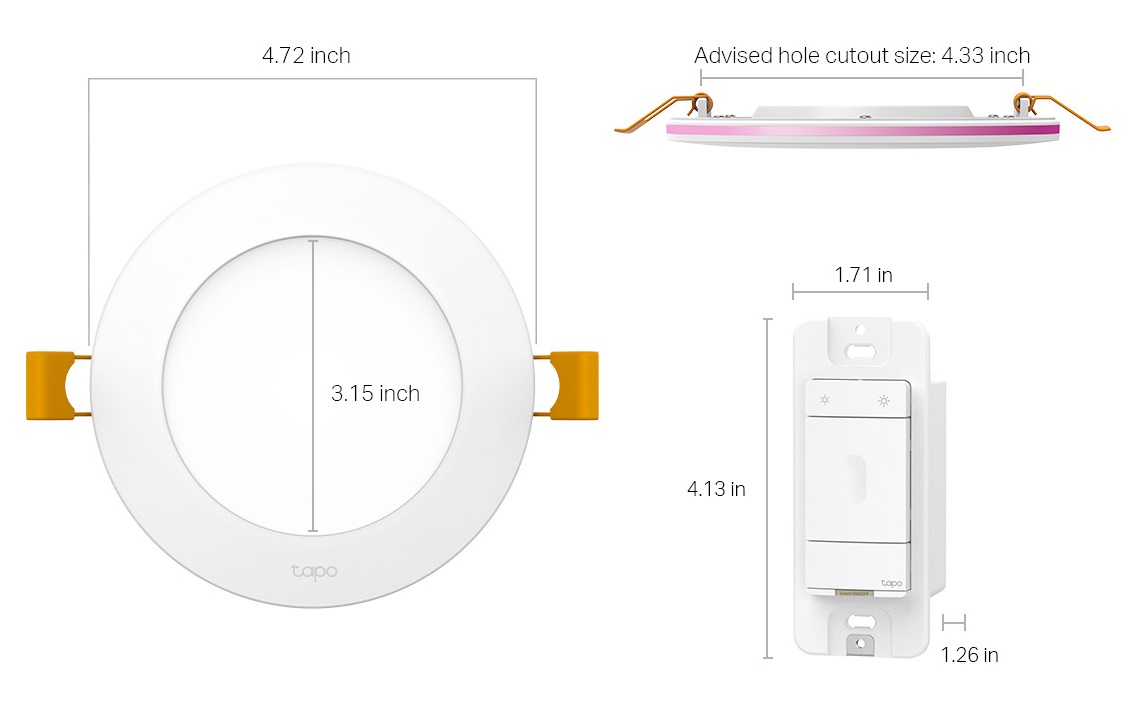

| Dimensions |
Smart Recessed Downlight: D4.72 × 0.71 in Mate Switch: 4.13 × 1.71 × 1.26 in
|
| Weight |
Smart Recessed Downlight: 7.34 oz Mate Switch: 2.73 oz Hardwire Box: 7.04 oz |
| Others | |
| Certifications | RoHS, UL |
| Works with Google Home | Yes |
| Works with Amazon Alexa | Yes |
| Works with SmartThings | Yes |
| Wireless Connectivity |
Smart Recessed Downlight: IEEE 802.11b/g/n, 2.4 GHz Wi-Fi, Bluetooth Mate Switch: IEEE 802.11b/g/n, 2.4 GHz Wi-Fi, Bluetooth |
| Operating Temperature | -15 ºC~ 40 ºC (5°F ~ 104°F ) |
| Operating Humidity | 10%~90%RH, Non-condensing |
*NOT FOR EMERGENCY LIGHTING. Specifications are subject to change without notice.

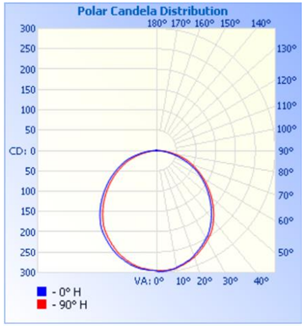

Photometric Data
| Tapo L730-4 (2700K) | ||
| Luminaire Lumens | 854.3 | |
| Input Watts | 11.14 | |
| LER(LPW) | 76.7 | |
| Beam angle(degrees) | 112 | |
| Field angle(degrees) | 163 | |
| Zonal lumen | Lumens | %Lumens |
| 0-30 | 229.5 | 26.9 |
| 0-40 | 377 | 44.1 |
| 0-60 | 664.1 | 77.7 |
| 0-90 | 851.8 | 99.7 |
