Archer MR402-Outdoor_V1_Datasheet
AC1200 Wireless Dual Band 4G LTE Outdoor Router
 |
4G (TDD&FDD)/3G Compatible |  |
 |
867 Mbps + 300 Mbps Dual Band Wi-Fi† | |
 |
Connects up to 64 Devices† | |
 |
Durable Outdoor Enclosure |
Highlights
|
Experience Reliable Connectivity Indoors and Outdoors |
||
|---|---|---|
|

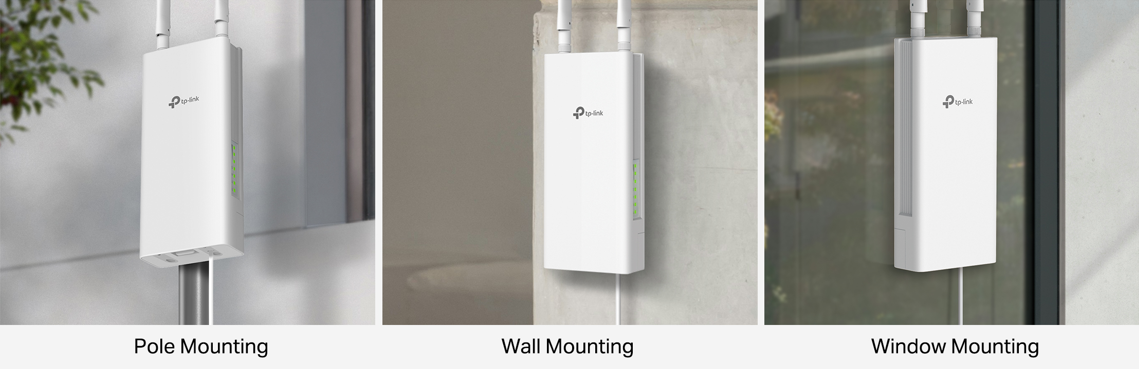

Versatile Mounting Solutions for Diverse Environments Our mounting kits are flexible to deploy with pole mount, wall mount and window mount options，whether inside or outside
|
||
|

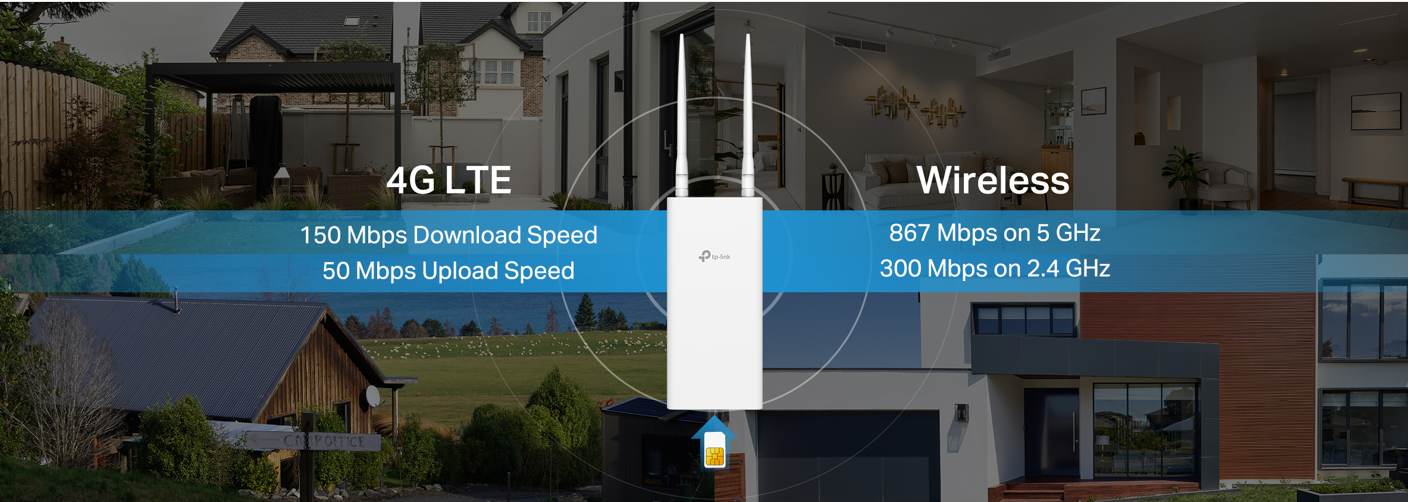

Dependable 4G Wi-Fi Internet Connectivity The Archer MR402-Outdoor supports 4G LTE for internet download speeds up to 150 Mbps, paired with dual-band Wi-Fi speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, enabling seamless networking experience. Simply insert your SIM card to enjoy reliable internet indoors and outdoors. |
||
 |
||
|

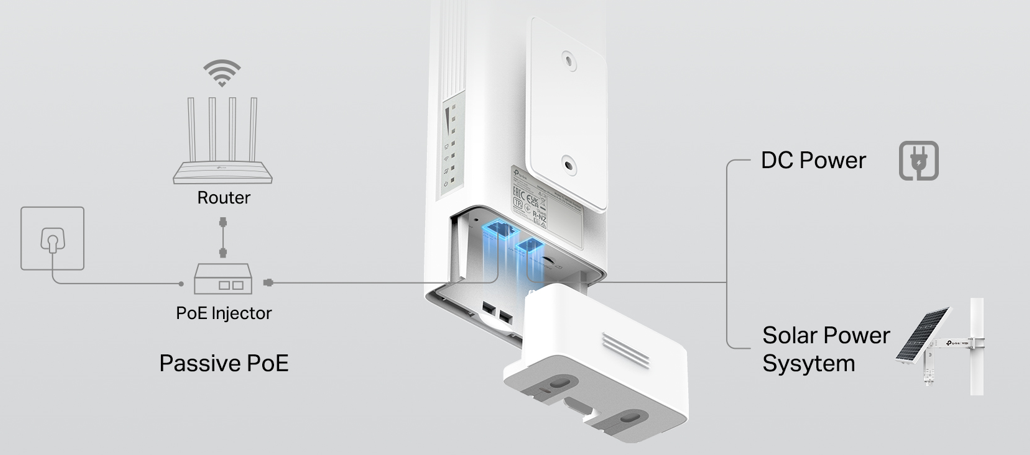

PoE/DC Power Support: Simplified Outdoor Setup The Archer MR402-Outdoor features PoE and DC power supply, simplifying outdoor setup with flexible power options and ensuring reliable connectivity in diverse outdoor environments. |
||
 |
||
|
Built to withstand outdoor environments The Archer MR402-Outdoor features IP65 waterproofing, operates from -30°C to 60°C, and 6kV lightning & 15kV ESD protection. Maintains uninterrupted connectivity in harsh weather conditions, delivering stable outdoor network performance. |
||
 |
|
|
OneMeshTM Seamless Roaming§ Co-work with TP-Link OneMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage. *OneMesh Range Extender or Powerline Adapter sold separately. |
||
|---|---|---|---|
|
|
Wired Connection Available The WAN/LAN port enables Archer MR402-Outdoor to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 3G/4G connection works as a backup to provide a sustained and reliable internet connection for you. |
||
|
|
Plug and Play Internet setup made simple. Just plug in an activated SIM card and you're ready to browse. ◇ |
Features
 |
4G LTE · 4G LTE – Ideal for cutting-edge 4G LTE network · Faster Connections – Up to150 Mbps download speed and 50 Mbps upload speed · Backward Compatible – Compatible with 4G/3G network |
|---|---|
 |
Speed · Superior Wireless Speed – Combined wireless speeds up to 300 Mbps over 2.4 GHz, and 867 Mbps over 5 GHz · 802.11 ac Standard – Provides a data transfer rate 3 times faster than 802.11n for each stream |
 |
Wi-Fi Range · Better Coverage – Integrated antennas provide stable wireless connections and better coverage |
 |
Reliability · Simultaneous Dual Band – Separate Wi-Fi bands enable more devices to connect to your network without a drop in performance · Easy Bandwidth Management – Advanced QoS makes it easier for you to manage the bandwidth of connected devices · Superior Stability – Powerful processor enables you to connect up to 64 wireless devices with ease |
 |
Ease of Use · Intuitive Web UI – Ensures quick and simple installation without hassle · Fast Encryption – One-touch WPA wireless security encryption with the WPS button · Wi-Fi On/Off – Conveniently turn on or off wireless radio as required · Hassle-free Management with Tether App – Network management is made easy with the TP-Link Tether App, available on any Android and iOS device · Online Upgrade – Keeps you informed of the latest firmware and allows online upgrade on the web UI |
 |
Security · Guest Network – Keeps your main network secure by creating a separate network for friends and visitors · Access Control – Establishes a whitelist or blacklist to allow or restrict certain devices to access the internet · Parental Controls – Restrict internet access time and contents for children devices · Encryptions for Secure Network – WPA-PSK/WPA2-PSK encryptions provide active protection against security threats |
Specifications
|
Hardware |
|
|---|---|
|
Interface |
1 × 100 Mbps WAN/LAN Port (PoE In) 1 × Nano SIM Card Slot 1 × DC Port |
|
Buttons |
Reset Button |
|
Antennas |
2× Detachable LTE Antennas |
|
Waterproof |
IP65 |
|
External Power Supply |
12V/1A 24V/0.5A Passive PoE 44-57V/0.35A 802.3af/at |
|
Dimensions (W x D x H) |
8.92 × 3.93 × 2.15 in. (226.6 × 100 × 54.7 mm) |
|
Wireless |
|
|
Network Type |
4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: HSPA+/HSPA/UMTS:B1/B5/B8 (2100/850/900 MHz) |
|
Wireless Standards |
IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
|
Frequency |
2.4 GHz and 5 GHz |
|
Signal Rate |
300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz |
|
EIRP (CE) |
< 20 dBm (2.4 GHz), < 23 dBm (5 GHz) |
|
Reception Sensitivity |
5 GHz: 11a 54M: -77 dBm 11ac VHT20 MCS0: -95.5 dBm 11ac VHT20 MCS8: -73 dBm 11ac VHT40 MCS0: -93 dBm 11ac VHT20 MCS9: -68 dBm 11ac VHT80 MCS0: -90 dBm 11ac VHT20 MCS9: -65 dBm 2.4 GHz: 11g 54M: -74.5 dBm 11n HT20 MCS0: -92 dBm 11n HT20 MCS7: -73 dBm 11n HT40 MCS0: -89 dBm 11n HT40 MCS7: -70 dBm |
|
Wireless Function |
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
|
Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
|
Software |
|
|
Operating Modes |
3G/4G Router, Wireless Router |
|
WAN Type |
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
|
DHCP |
Server, Client, DHCP Client List, Address Reservation |
|
Quality of Service |
WMM, QoS |
|
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
|
Dynamic DNS |
TP-Link DDNS, DynDns, NO-IP |
|
VPN Passthrough |
PPTP, L2TP, IPSec |
|
VPN Server |
PPTP VPN, IPSec VPN, OpenVPN |
|
Access Control |
Parental Controls, Local Management Control, Host List, Access Control |
|
Firewall Security |
DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding |
|
Protocols |
IPv4, IPv6 |
|
Management |
Access Control, Local Management, Remote Management, Reboot Schedule |
|
Guest Network |
2.4 GHz guest network x 1, 5 GHz guest network x 1 |
|
Others |
|
|
Certification |
CE, RoHS |
|
Requirements |
• Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser *You are recommended to use the latest version • Nano SIM Card |
|
Environment |
• Operating Temperature: -30°C~60°C (-22°F~140°F) • Storage Temperature: -40°C~70°C (-40 °F~158 °F) • Operating Humidity: 10%~90% RH • Storage Humidity: 5%~90% RH |
|
Package Contents |
• AC1200 Wireless Dual Band 4G LTE Outdoor Router Archer MR402-Outdoor • 10-meter RJ45 Ethernet Cable • PoE Adapter • AC Power Cord • Quick Installation Guide • Window/Pole/Wall Mounting Kits ◇ DC power adapter sold separately |
Disclaimer
Attention: In EU member states, EFTA countries and Northern Ireland, the operation in the frequency range 5150MHz - 5350MHz is only permitted indoors.
Attention: In Great Britain, the operation in the frequency range 5150MHz - 5350MHz is only permitted indoors.
Specifications are subject to change without notice.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and number of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡This product has an IP65 dustproof and waterproof rating; however, it is not designed for prolonged immersion or exposure to high-pressure water jets. Please install and use it according to the quick installation guide to ensure the protective features function properly.
*Tested under controlled laboratory conditions. Per CE certification, protection levels are: Lightning/Surge Protection at 2kV for Differential Mode (DM) and 4kV for Common Mode (CM), and ESD Protection at 4kV for Contact Protection and 8kV for Air Protection. For optimal protection, please follow the setup instructions in the quick installation guide.
**Actual network speed may be limited by the rate of the product’s Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environment conditions.
△This device requires an activated SIM card without a PIN lock. If the SIM is locked, please consult the quick installation guide for unlocking instructions.
§Smart Roaming is designed for devices that support the 802.11k/v standard.
