Table of Contents
Datasheet

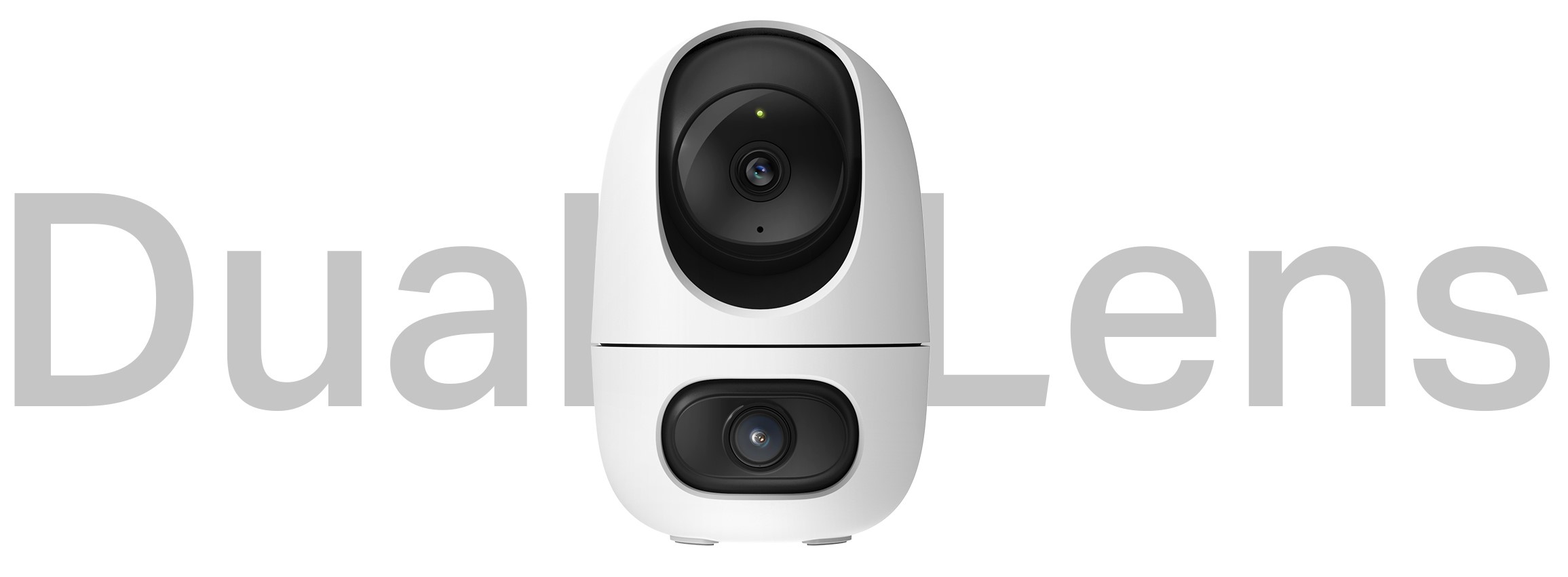

Dual Lens Pan/Tilt Security Camera
Overview
See Wide, Zoom Sharp, Secure Everything.
· Flexible Dual Coverage: Monitor two separate areas at the same time with just one powerful camera. Reduce blind spots and get a more thorough, comprehensive overview of your home.
· Synchronized Smart Tracking: Seamlessly follows movement
· Minimize Blind Spots with Wide-Angle Lens
· Magnify Details with Telephoto Lens: The 6mm telephoto lens delivers 3x more clarity compared to standard lens and supports up to 10.8x digital zoom, ensuring every detail is clearly visible when you zoom in.
· Smarter, More Accurate Notifications Powered by Al: Stay informed with smart Al detection that recognizes and notifies you of people, pets, vehicles, and even baby cries - all without any subscription fees. Tailor your alerts by selecting which types of detection will trigger notifications.
· 360° Patrol, Preset Views & Custom Schedules: Activate Patrol Mode for continuous 360° surveillance, define up to 8 specific preset viewing points, and set personalized schedules to monitor specific areas at certain times.
Highlights
Superior Clarity and Coverage. Seamless Monitoring.
Two 2K 3MP lenses work together to capture a broader perspective, minimizing blind spots and delivering all-round protection for your home.
Features
 |
Synchronized Smart Tracking
|
 |
Free Smart AI Detection Identifies people, pets, vehicles and baby cry while only sending you alerts when truly needed. |
 |
Two Views at Once
|
 |
Customizable Privacy Zones Set customizable privacy zones to keep private areas from being monitored. |
 |
One-Tap Smart Focus Simply select an area within the wide-angle view, and the pan/tilt camera will instantly focus on that point. |
 |
Local† and Cloud‡ Storage Save recorded videos to a microSD card (up to 512 GB)† or by using Tapo Care‡ cloud storage services. |
 |
Night Vision up to 40 ft Provides a visual distance of up to 40 ft in total darkness. |
 |
Customizable Activity Zones Set up specific detection zones to be alerted for areas that matter most. |
 |
Compact Design for Multiple Installation Methods It can be placed on a desk, hung on a wall or mounted on the ceiling. |
The pan/tilt camera seamlessly follows movements detected by the fixed camera, ensuring comprehensive and dynamic protection.
One camera, two areas monitored simultaneously, ensuring minimal blind spots.Specifications
| Camera | |
| Image Sensor | 1/2.8‘’Progressive Scan CMOS Starlight Sensor |
| Lens |
Wide-angle Lens Telephoto Lens |
| Pan-Tilt Range | Pan Mechanical Range: 340° (360° Pan Coverage) Tilt Mechanical Range:70° (100° Tilt Coverage) |
| Night Vision | Infrared Night Vision (40 ft / 12 m) |
| Night Mode | Infrared Mode |
| Day/Night Switch | YES |
| Lighting | 6× 850nm IR LED |
| Interface & Button | 1× RESET Button 1× MicroSD Card Slot |
| Video & Audio | |
| Maximum Resolution | Wide-angle Lens: 2K 3MP (2304 × 1296px) Telephoto Lens: 2K 3MP (2304 × 1296px) |
| Frame Rate | Up to 15 fps |
| Digital Zoom | Wide-angle Lens: 10.8x Telephoto Lens: 10.8x |
| Live View | Yes |
| Image Enhancement | WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 69 dB (Level measured at 40-inch/100-cm distance) |
| Storage | |
| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB) (SD Card Purchased Separately) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| Detection & Notification | |
| Sensor | None |
| AI Detection | Motion Detection Person Detection Pet Detection Vehicle Detection Line-Crossing Detection Camera Tampering Glass Break Detection Dog Bark Detection Baby Cry Detection Cat Meow Detection |
| Activity Zones | Yes *Only works with Motion/Person/Pet/Vehicle Detection. |
| Alarm Type | Customizable Sound Alarm Sound Alarm Light Alarm |
| Output Notification | App Notifications of Camera Event App Notification of AI Detection Event with Snapshot (Subscription Required) |
| Network | |
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
| Wireless Communication Technology | Wi-Fi |
| Transmission Rate | 11b: 11 Mbps 11g: 54 Mbps 11n: 72.2 Mbps |
| Protocol | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
| Security | |
| Security | 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK/WPA3-PSK |
| Power | |
| Power Source | 9V DC Power Adapter |
| Input Voltage | 9.0 V, 0.85A, DC jack Power |
| Output Voltage | N/A |
| Power Connector Size | Adapter: Inside Ø: 2.1 mm Outside Ø: 5.5 mm |
| Power Cord Length | Charging Cable Length: 3 m |
| Typical Power Consumption | 3.2 W |
| Maximum Power Consumption | 7.65 W |
| General | |
| Certifications |
CE, JRF, RCM,VCCI, NCC, BSMI,KC, RoHS |
| Smart Integration | Google Assistant, Amazon Alexa,Samsung Smartthings |
| Weather Resistance | NA |
| Mounting Options | Ceiling-Mounted Wall-Mounted |
| Operating Temperature | 0℃~40℃ (32℉~104℉) |
| Storage Temperature | -20℃~60℃ (-4℉~140℉) |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 0~90% RH, Non-condensing |
| Charging Temperature | N/A |
| Weight | Camera Weight: 7.83 oz / 222 g Bracket: 2.53 oz / 71.8 g |
| Dimensions | 82.2 × 82.2 × 126.2 mm (3.24 × 3.24 × 4.97 in.) |
| Package Contents | Camera× 1 DC Power Adapter × 1 Mounting Templates × 1 Mounting Brackets × 1 Screws and Anchors × 4 Quick Start Guide |

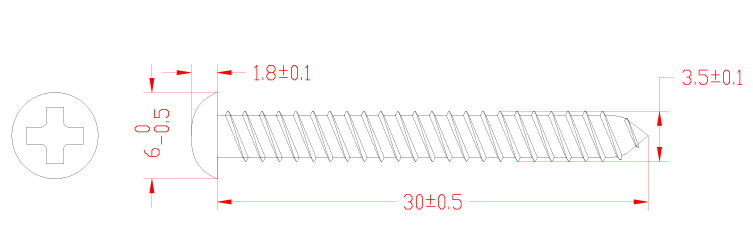

| Mounting Screw Size |  |
†microSD card needs to be purchased separately. Actual storage capacity depends on the size of the microSD card used.
‡Subscribe for cloud storage at https://www.tapo.com/tapocare/
§Tapo C245D does not have an Ethernet port and can only be connected via Wi-Fi.
△Compatible with Alexa, SmartThings and Google Assistant supported displays. User experience is dependent on the connected device's specifications.
