Deco PX10_Datasheet

Whole Home Powerline Mesh Dual Band Wi-Fi 6 System

Highlights

Superior Mesh Wi-Fi , Everywhere

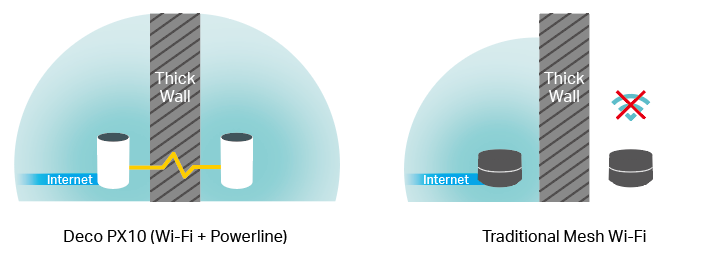

	Wi-Fi + Powerline Hybrid Bandwidth Deco PX10 combines dual-band Wi-Fi and Powerline to transmit data between Deco units.

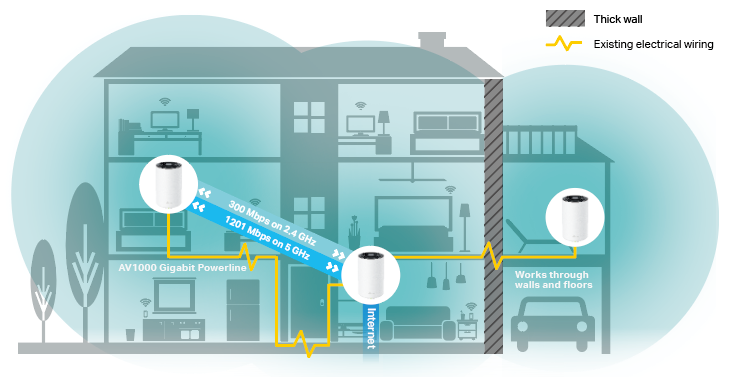

	Works Through Walls and Floors Powerline technology uses your home’s electrical wiring to create a stronger connection between Deco units, reducing the impact of walls, floors, and other obstacles on signals.
	Plug and Play within One Set Set up one Deco, and the other Deco in the same set can automatically join the mesh network after powered on.
	Seamless AI-Driven Mesh Deco Mesh system forms a unified network with a single network name. With built-in AI-Roaming technology, it creates the ideal Mesh Wi-Fi solution with its advanced algorithms and self-learning. Walk through your home and enjoy seamless streaming at the fastest possible speeds.‡

Enhanced Security – HomeShield

TP-Link’s premium security services keep your home network safe with cutting-edge features for network and IoT protection.*

	Network Protection Detects cyber threats to keep your privacy and connected devices well protected.
	Parental Controls  Manage online time and block inappropriate content to maintain healthy online habits.
	Quality of Service (QoS) Prioritize your bandwidth needs to get a faster networking experience.
	Comprehensive Reports Gain full statistics and insights to help you understand your home network better.

Features

Wi-Fi Speed
Faster Wi-Fi speed with stronger whole home Wi-Fi generated from Wi-Fi 6

· Superior Wireless Speed – Combines wireless speeds up to 1201 Mbps over 5 GHz, and 300Mbps over 2.4 GHz
· More Devices – Connects up to 120 Devices^†

TP-Link HomeShield
TP-Link’s premium security services keep your home network safe with cutting-edge features for network and IoT protection.^§

· Network Protection – Detects cyber threats to keep your privacy and connected devices well protected
· Parental Controls – Manages online time and block inappropriate content to keep families healthy online
· Quality of Service (QoS) – Prioritizes your bandwidth needs to get a faster networking experience
· Comprehensive Reports– Gains full statistics and insights to help you know your home network better
Note: HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan.
Visit tp-link.com/homeshield for more information.

Easy Setup by Deco App
Easily set up Decos and find the ideal spot to place each unit

· Auto Connection Test – Tests the internet connection of your Decos and helps to identify a suitable location for them
· Remote Management – Manages your Deco network from a smartphone or tablet via the app, no matter where you find yourself
· Online Upgrade – Keeps informed of the latest firmware updates

Security
Safeguard your home network with a firewall and wireless encryption

· Encryption for Secure Network – WPA/WPA2/WPA3 encryptions provide active protection against security threats
· Firewall – Protects your network devices from malicious attacks
· Blocklist – Add specific devices to blocklist to protect your network from unauthorized users

Two Modes in One
Choose the Wi-Fi Router mode or Access Point mode for your network needs

· Wi-Fi Router Mode – Creates an instant private wireless network
· Access Point Mode – Creates Wi-Fi access for any existing wired network

Work with All Deco Models
Form a Mesh network with your desired Deco models

· Compatible with All Deco Models – All Deco models can work together. Just expand Mesh Wi-Fi coverage anytime by adding more Decos
· Deco Mesh Technology – Eliminates dead zones and provides uninterrupted WiFi throughout your home

Specifications

Hardware

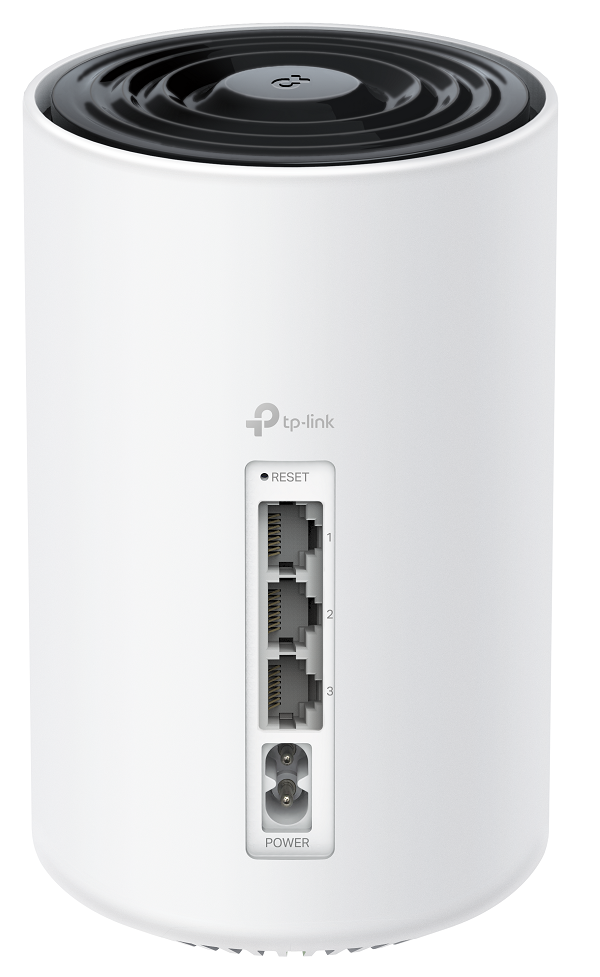

· Ethernet Port: 3 × Gigabit ports per Deco unit (WAN/LAN auto-sensing)
· Button: 1 RESET button above the ports
· Antenna: 2 × dual-band antennas
· Powerline : HomePlug AV2 1000 Mbps^§
· Power Consumption : 14.5 W max
· Dimensions (W × D × H): 4.1 × 4.1 × 6.7 in (105 × 105 × 169 mm)
· Power: 100-240V~50/60Hz 0.5A

Wireless

· Wireless Standards: IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n 2.4 GHz
· Mesh protocol: 802.11k/v/r^‡
· Frequency: 2.4 GHz and 5 GHz
· Signal Rate: 1201 Mbps on 5 GHz + 300 Mbps on 2.4 GHz^†
· Transmit Power: CE: <20 dBm (2.4 GHz), <30 dBm (5 GHz)
· Wireless Security: WPA/WPA2/WPA3^△

Software

· Working Mode: Router, Access Point
· WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP
· DHCP: Server
· Protocols: Supports IPv4 and IPv6
· Guest Network: 2.4 GHz Guest Network×1, 5 GHz Guest Network×1
· Features: TP-Link HomeShield, AI-Driven Mesh, BSS Color^△, OFDMA^△, 1024-QAM^△, MU-MIMO^△, Optional Ethernet Backhaul, Assisted Setup, Address Reservation, Port Forwarding, TP-Link DDNS, IPTV, IPv6, Firewall Rules, LED Control
· Management: Local Management; Remote Management; Multi-Managers

Others

· Certification: CE, RoHS
· Environment:
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40 °F~140 °F)
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH

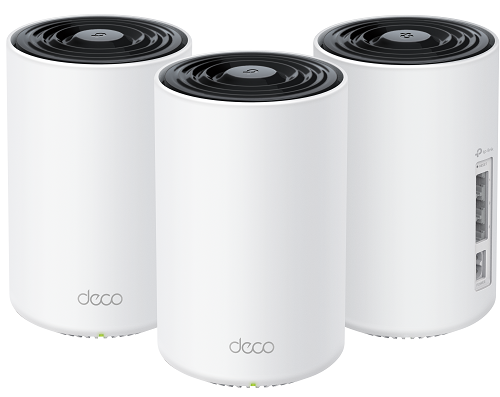

· Package Contents for Deco PX10(2-pack):
2 × Deco PX10 units (routers with powerline)
1 × RJ45 Ethernet cable
2 × Power Cords
Quick Installation Guide
· Package Contents for Deco PX10(3-pack):
3 × Deco PX10 units (routers with powerline)
1 × RJ45 Ethernet cable
3 × Power Cords
Quick Installation Guide

Specifications are subject to change without notice. Google, Google Home, and Google Play are trademarks of Google LLC. Other brands and product names are trademarks or registered trademarks of their respective holders.
^†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
^‡Clients need to support 802.11k/v/r and may require additional setup. Performance may vary depending on the client device.
^△Use of Wi-Fi 6, and other features including OFDMA, MU-MIMO, 1024-QAM, BSS Color, and WPA3 require clients to also support the corresponding features.
^§Compatible with all Deco models via wireless but only supports powerline connections via the HomePlug Standard. Maximum Powerline signal rates are the physical rates derived from HomePlug AV/AV2 specifications. Actual Powerline data throughput and Powerline range are not guaranteed and will vary as a result of network conditions and environmental factors, including electrical interference, volume of traffic and network overhead, AFCI circuit breaker, and Powerline being located in a separate circuit.
^*HomeShield includes both basic and advanced features. Advanced features require a paid subscription. For details, visit tp-link.com/homeshield
^**Wi-Fi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/ax.
Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
This Deco may not support all the mandatory features as ratified in the IEEE 802.11ax specification.
Further software upgrades for feature availability may be required.
