Omada NVR116P-2T

Coming Soon

Omada 16 Channel PoE+ Network Video Recorder

  • 16-Channel Live View and 4K HDMI Video Output
  • 16-Channel Synchronous Playback**
  • Quick Target Search with People & Vehicle Attributes Analysis
  • Preinstalled 2TB HDD (Expandable up to 1× 16 TB)
  • 8× 10/100 Mbps PoE+ Ports
  • Remote Monitoring

Omada 16 Channel Network
Video Recorder with 8 PoE+ Ports

Omada NVR116P-2T NDAA

  •

    16-Channel
    Live View

  •

    4k 8MP
    Video Output

  •

    2TB Surveillance-Grade
    HDD Preinstalled

  •

    Full Compatibility
    with ONVIF

  •

    Effortless Installation
    with PoE+

  •

    24/7 Continuous
    Recording

  •

    People & Vehicle
    Attributes Analytics

  •

    Secure Remote
    Control via App

4K HDMI Video Output – See Every Detail Clearly

The NVR delivers up to 4K 8MP video from connected cameras, capturing every detail with stunning clarity.

Versatile Warnings, Proactive Security



16-Channel Live View: Eyes on Every Corner

Display each surveilled zone in real time on a single interface for comprehensive control.



Two-Way Talk via Audio In/Out Ports

With the built-in audio in/out ports, you can easily talk to visitors or warn intruders using a microphone and speaker connected to the NVR, enhancing both security and convenience.



Quick Target Search with People & Vehicle Attributes Analysis

Easily filter and locate targets by searching for attributes of people or vehicles. Perfect for busy retail stores, cafés, and other small high-traffic locations. Speed up your investigation, save time, and minimize losses.



Effortless Installation
with PoE+

One network cable delivers both power and
data (up to 886 ft/270 m) without any
complex wiring. Easy for DIY beginners.

Omada Camera
Omada Camera
Omada Camera
Omada Camera
Omada NVR

Ideal for Your Home and Small Business

Add cameras to create a complete 16-channel security system

  • Residential Residential

    Residential

  • Retail Retail

    Retail

  • cafés cafés

    Cafés

  • Warehouses Warehouses

    Warehouses

24/7 Continuous Recording

The NVR comes with a built-in 2TB HDD (expandable up to 16TB) — enabling 24/7 continuous local recording.

Pre-installed

2TB

up-to

16TB

Total Recording Channels
Days of Continuous Storage with 2TB HDD
Four
Eight
Twelve
Sixteen
6
3
2
1.5

Note: Calculations are based on the camera's maximum bit rate of 8 Mbps. Actual data usage may vary depending on settings and conditions.

Smart Storage Optimizes Space Without Compromising Details

Omada Smart Storage Mode

Continuously stores low-res video with extra HD footage saved when events are detected.

No Monthly Fees –
Local Storage

Save your recordings locally either on the camera’s
microSD card or NVR’s hard drive. No monthly fees, no
hidden costs.

Full Compatibility with ONVIF Support

Works seamlessly with Omada cameras and third-party cameras that support ONVIF for simple expansion and integration with existing systems.

Enterprise-Grade Data Security

  • Network Security

    Network Security

    Encrypted data transmission and advanced identity verification.

  • Privacy Protection

    Privacy Protection

    Sensitive data such as accounts and passwords is double-encrypted.

  • Secure Firmware Updates

    Secure Firmware Updates

    Firmware updates are verified and delivered through secure channels to block tampering.

Secure Remote Control via App and Client

Keep an eye on your home or business anytime, anywhere with real-time access and smart alerts right from your app or desktop client.

Video and Audio
IP Video Input 16-Channel
Incoming Bandwidth 160 Mbps
Outgoing Bandwidth 160 Mbps
HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz, 2560x1440/60Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode HDMI and VGA Simultaneous Output
Multi-View Display 1/4/6/8/9/16
DECODING
Audio Compression G.711A/G.711U/G.726
Video Compression H.265+/H.265/ H.264+/H.264
Record Resolution 16MP/8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback 16-Channel**
Capability • 25fps:
10-ch @ 1080P

• 30fps:
1-ch @ 16MP, 2-ch @ 8MP, 4-ch @ 5MP, 5-ch @ 4MP, 6-ch @ 3MP
Record Management
Record Mode • Manual Recording
• Scheduling Recording
• Event Recording
Playback Mode • Instant Playback
• Regular Playback
• Event Playback
Backup Mode • Regular Backup
• Video Clip Backup
Playback Function • Play
• Pause
• Stop
• Fast Forward
• Play By Frame
• Video Clip
• Export Clip
• Audio On/Off
NETWORK
Protocol • UPnP (Plug and Play)
• NTP (Network Timing)
• SMTP
• DNS
• TCP/IP
• UDP
• ICMP
• HTTP
• HTTPS
• DHCP
• RTSP
• SSL/TLS
• RTP
• IPv4
• ARP
Mobile Phone Access Android, iOS
Web Browser Chrome (57+), Firefox (52+), Edge (91+)
Interoperability ONVIF Profile S/T/G

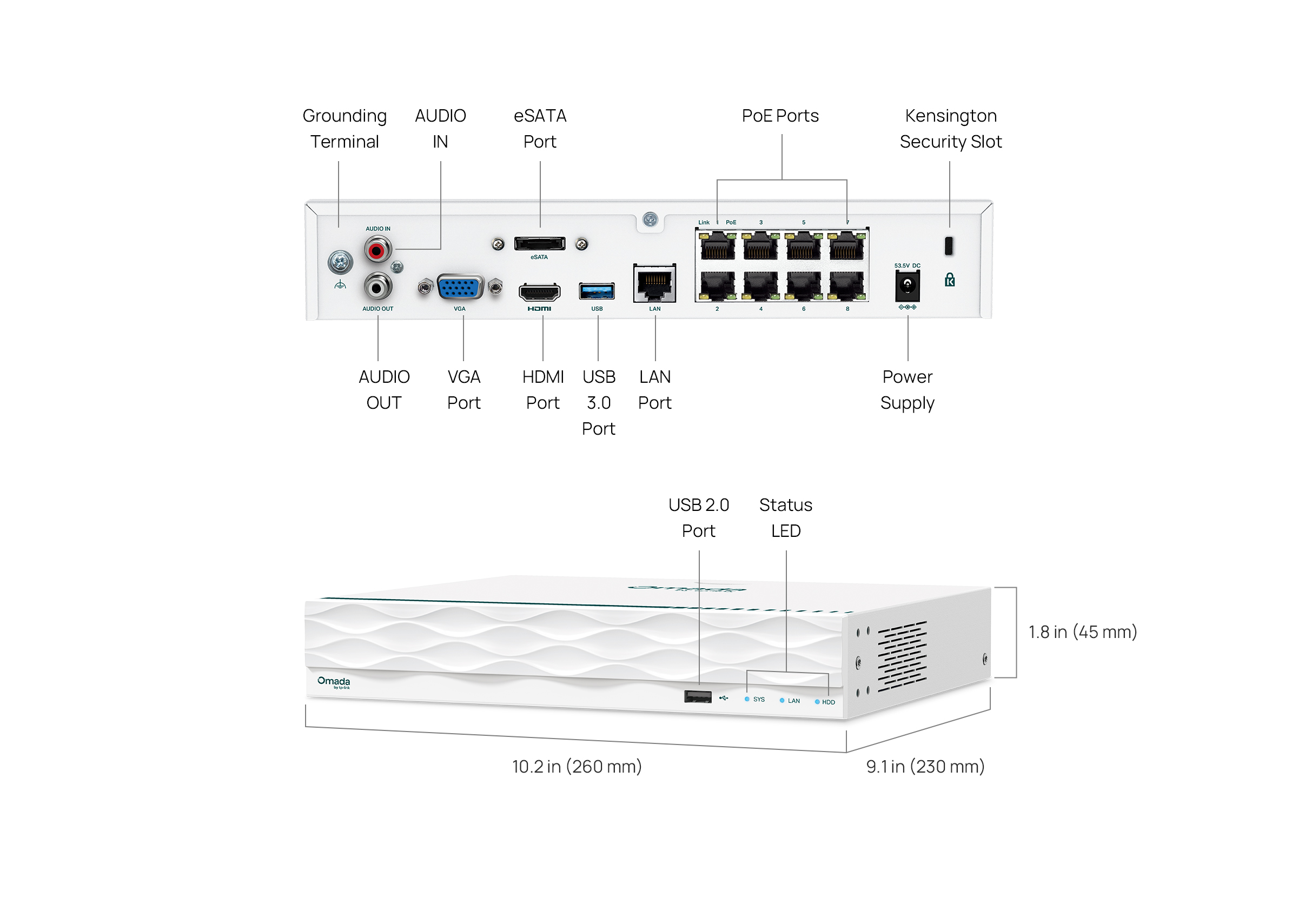

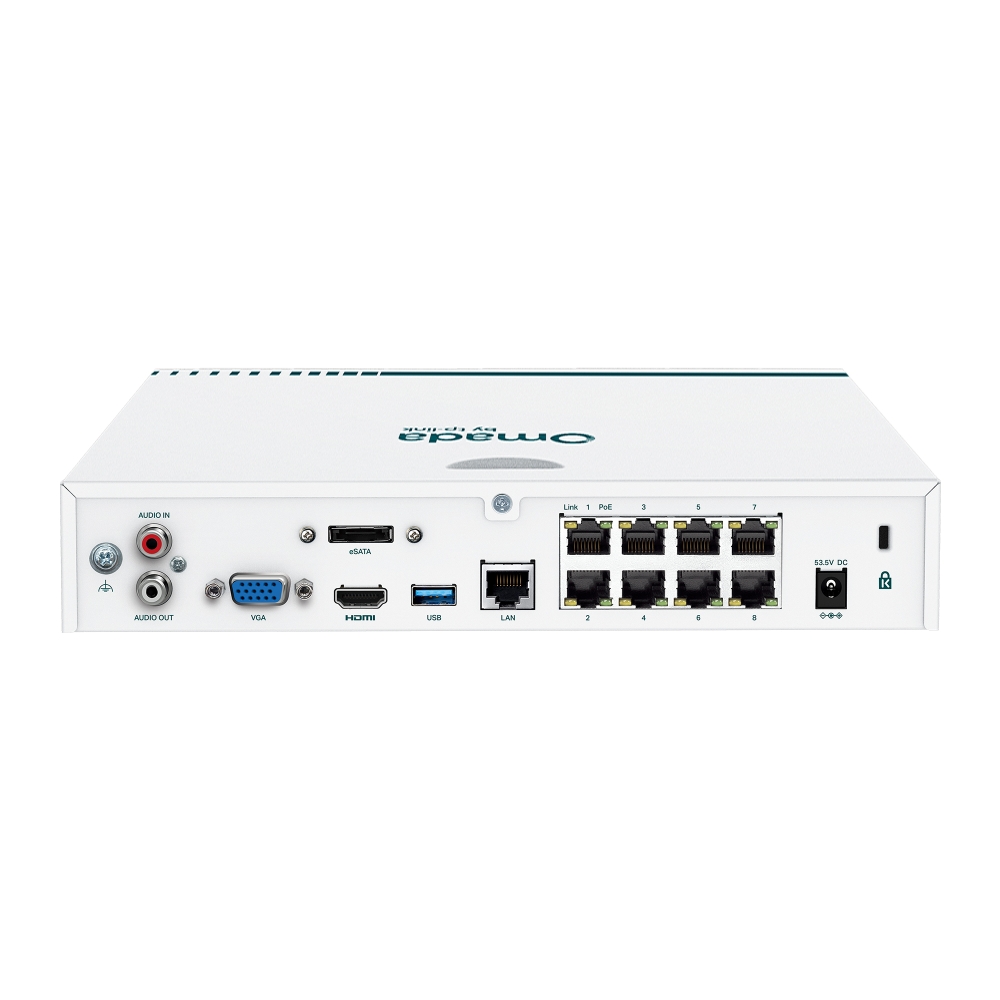

External Interface
Network Interface 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface 1 Front USB 2.0 Port, 1 Rear USB 3.0 Port
Audio Interface • 1-ch RCA Input (1.4 Vp-p, 10KΩ)
• 1-ch RCA Output (2.8 Vp-p, 1KΩ)
Alarm In/Out N/A
Serial Interface N/A
Power 1× DC Jack
Reset Button 1
Speaker N/A
eSATA 1
HDMI 1
VGA 1
HARD DISK
SATA 1 SATA Interfaces
Capacity • 1× SATA Interface, Up to 16 TB Capacity
• 1× 2TB HDD Preinstalled
PoE
Standard 802.3at/af Compliant
Interface 1-8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget 115 W Available for All PoE+ Ports, 30 W Max per Port
Alarm
General Alarm • Motion Detection
• Video Tampering
• Line-Crossing Detection
• Intrusion Detection
• Vehicle Detection
• Human Detection
• Pet Detection
Note: The alarm function requires the use of a camera.
Anomaly Alarm • IPC IP Conflict
• Video signal loss
Note: The alarm function requires the use of a camera.

• No disk
• Hard drive exception
• Hard drive reallocated section count error
• No enough space of hard drive
• Hard drive password error
• NVR offline
• NVR IP Conflict
• Single Port Short Circuit
• Single port power exceeded
• Pse chip temperature is too high
• Total power exceeded
• FTP Directory Storage Space Insufficient
• The IP address obtained from DHCP conflicts with the internal IP
• Login Exception
Alarm Linkage Basic Event/Smart Event:
• Buzzer
• Pop-up Alarm Screen
• Push Notification
• Send Email
• Highlight Window
• Recording Linkage
• Light Alarm
• Audible Alarm
• Channel Alarm Output
Note: The alarm function requires the use of a camera.

Anormaly Alarm:
• Buzzer
• Send Email
GENERAL
Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)
Storage Humidity 10%~90% RH Non-Condensing
Package Content • Omada Network Video Recorder
• Power Adapter
• AC Power Cord
• HDMI Cable
• Network Cable (3 ft/1 m)
• Mounting Accessories
• USB Mouse
• Installation Guide
• Surveillance Sticker
Working Temperature • NVR: -10 °C to 55 °C (14 °F to 131 °F)
• Power Adapter: 0°C to 40°C (32 °F to 104 °F)
Working Humidity 10%~90% RH Non-Condensing
Dimensions( W X D X H ) 10 × 9.1 × 1.8 in (260 × 230 × 45 mm)
Net Weight 1.86 Kg (4.1 lbs)
Gross Weight 3.25 Kg (7.17 lbs)
Power Supply 53.5V DC/2.43A
Max. Power Consumption • 4.17 W (Without Disk)
• 7.81 W (With Disk)
Certifications CE, NTRA, HDMI, FCC, VCCI, BSMI, ONVIF, UL 4200A

*The AC power cord's specifications vary by country/region

**The number of simultaneously playable channels may be fewer than 16, or none, if the total resolution exceeds 20MP.

This feature is in development and requires Omada cameras supporting People & Vehicle Attributes Analytics and Omada NVRs.

The speed of the ports in long distance mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Some features may operate suboptimally due to compatibility issues. For best performance, we recommend using Omada NVRs with Omada cameras.

The Calculations are based on laboratory testing. Actual data is not guaranteed and will vary as a result of client limitations and environmental factors.
