Tapo P116M_Datasheet

Mini Smart Wi-Fi Plug, Energy Monitoring

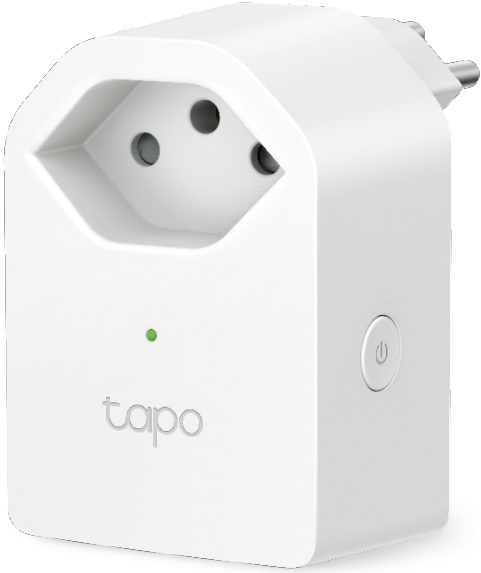

Appearance of your plug

Highlights

Energy Monitoring

Offers more comprehensive insights into home appliances' power consumption with more intuitive and straightforward data visualisations. Set your electricity rate to estimate your energy bills.

Energy monitoring

Anti-Overcharging

When devices are fully charged, the outlet will automatically switch off, preventing overcharging and extending the device’s battery life.

Voice Control

Use simple voice commands with Siri^®, Alexa, and Google Assistant without leaving your spot.

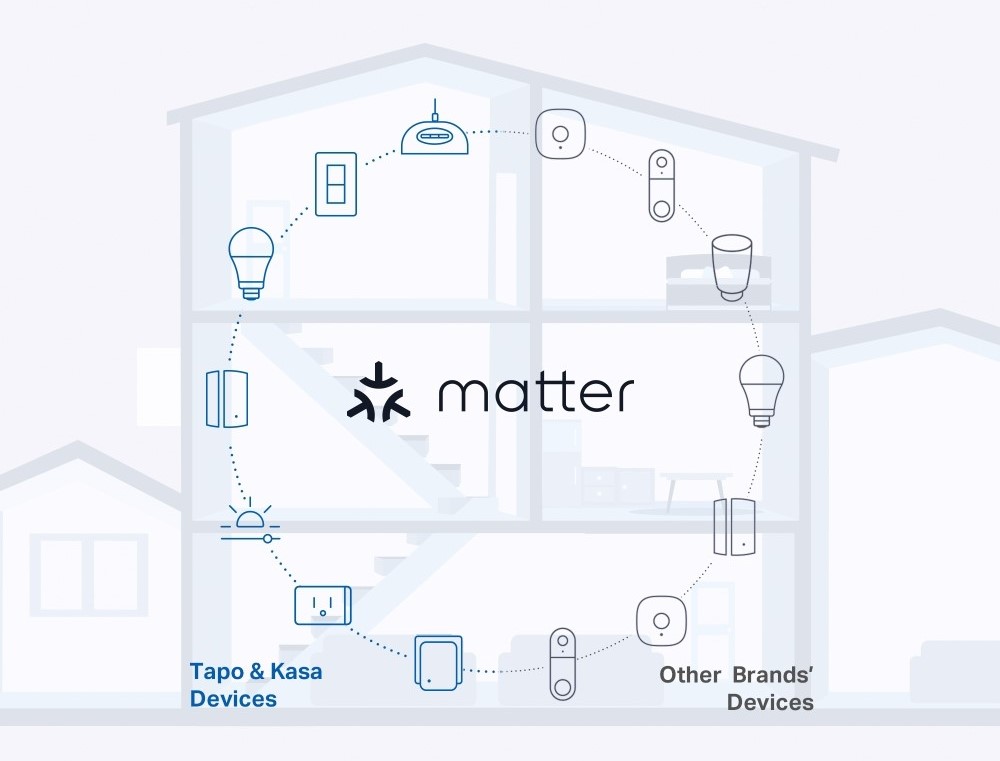

Matter Compatible

With Matter support, using one-app to control all smart devices is no longer a fantasy. Integrate P116M into your favorite ecosystems to create a unified smart home.

Features

Remote Control: Manage your connected devices from anywhere with the Tapo app. It’s designed to support your lifestyle and keep your family safe.

Schedule: Preset a schedule to automatically manage devices.

Timer: Create a countdown timer for connected appliances.

Away Mode: Automatically turns devices on and off at different times to give the appearance that someone is home.

Auto-Off: Automatically turns off a connected device after the device is left on for a set time.

Device Sharing: Easily share management permissions with each member of your family.

Flame-Retardant: PC flame-retardant materials help minimize burning hazards.

*Made with V-0 (UL94) flame-retardant materials.

Specifications

General
LED&Button	Status LED, Power Button
Material	V-0(UL-94 ) Flame retardant PC
Protocol	IEEE 802.11b/g/n, 2.4 GHz Wi-Fi, Bluetooth
Setup	Bluetooth
Voltage	200-240V~ 50Hz
Max Load^‡	10 A Max (General Use/Resistive Load)
Others
Package Contents	1. Tapo P116M × 1 2. Quick Start Guide
Certifications	CE, RoHS
Operating Temperature	0 ºC– 40 ºC (32°F–104°F )
Operating Humidity	10%–90%RH, Non-condensing
Dimensions	73 × 52 × 36 mm

^‡Damage to the plug and surrounding area may be caused by connected devices with erratic currents-even if power ratings are below the plug's max load.

Supported Load Types

Load Type	Max Current	Max Power (at 230V~)
Steam Iron	10 A	2300 W
Kettle	10 A	2300 W
Heater	10 A	2300 W
Toaster	10 A	2000 W
Coffee Maker	10 A	2000 W
Desk Lamp	0.6 A	70 W
TV	2 A	300 W
PC	3.5 A	600 W
Fan	0.5 A	70 W
Water Pump	0.5 A	70 W
Power Adapter / USB Charger	1.2 A	200 W

Note:
1. Avoid plugging your appliances with a motor/compressor higher than 1HP, such as an air conditioner. Frequent on/off switching may damage the compressor. You can check the motor/compressor value listed on your appliances or consult their Support.
2. EV charging is not supported as it demands higher power and a charging current that surpasses the plug's rated capacity.

CAUTION!

To fully de-energize the appliance before servicing, unplug it from the receptacle.
