DS-P7001-08

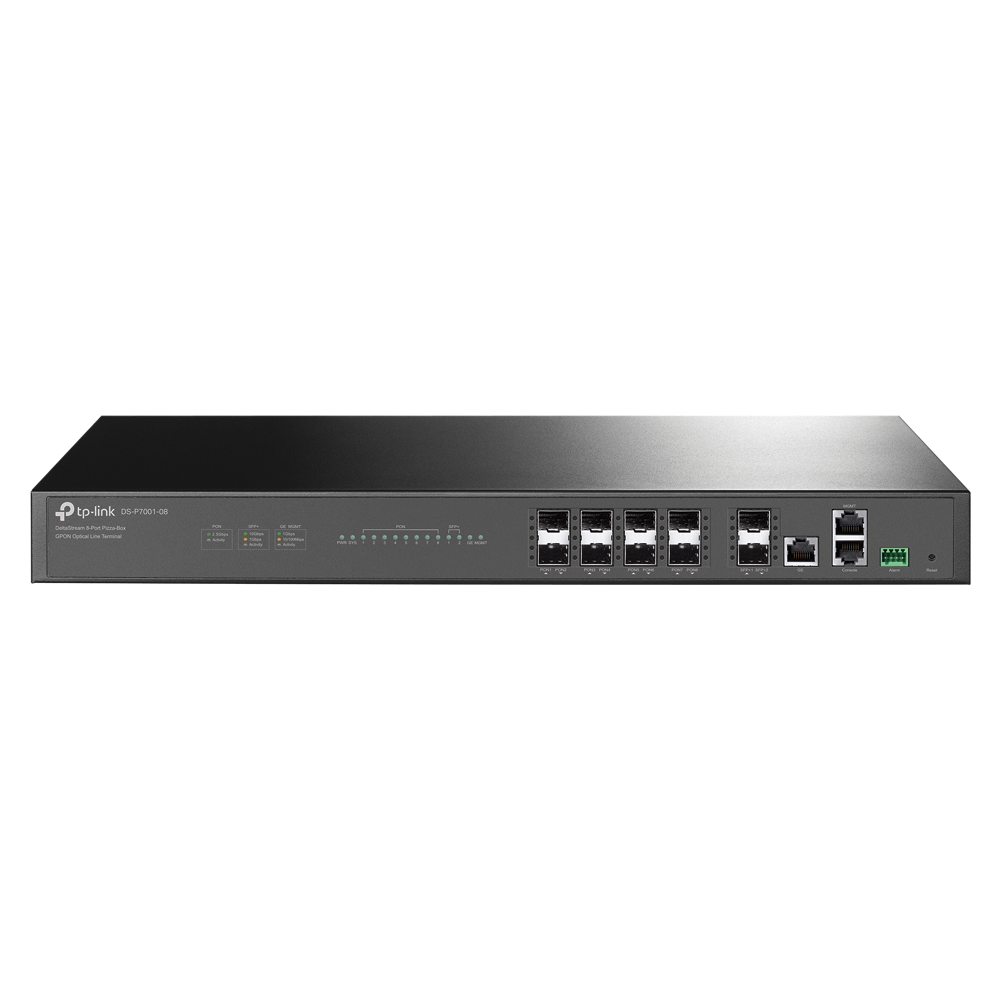

NuevoDeltaStream 8-port Pizza-box GPON Optical Line Terminal
- 8 GPON Ports: Supports 1:128 splitting ratio for every port—up to 1024 ONTs by one device.
- High-Speed Uplink Ports: Provides 2× 10GE SFP+ ports and 1× gigabit uplink port.
- Redundant Dual Power Supplies: Carrier-class reliability with dual hot-swapping AC+DC power supplies.
- Complete L2 & Advanced L3 Functions: Satisfies the need for numerous commercial requirements.
- Centralized Management: Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI.
- Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirement for different applications.
8-Port GPON Optical Line Terminal
DS-P7001-08
8 GPON Ports,
Supports 1024 ONUs
Supports 1:128 splitting ratio for every port—up to 1024 ONTs by one device.
8× 2.5G PON Ports
1× 1GE RJ45 Uplink Port
1× Alarm Port (Reserved)
2× 10GE SFP+ Uplink Ports
1× 1GE RJ45 Management Port, 1× RJ45 Console Port
1:128 Split Ratio
Free Centralized Management
Via DeltaStream PON Management System (DPMS)
Easy maintenance and centralized management makes your life a breeze. Configure and update all your devices at once via DeltaStream PON Management System (DPMS), SNMP, CLI and Web UI.
No Additional Expense
Improve Management Efficiency And Reduce Maintenance Costs
The Easy-to-Use Dashboard Ensures Hassle-Free Configuration
Compact Size, Flexible Deployment
Mount in a rack for flexible deployment with all your other products.
Constant Reliability Through Dual Redundant Power Supplies
Dual redundant power supplies ensures carrier-class reliability. AC, DC and mixed power input supported.
- AC input: 100V~240V 50/60Hz
- DC input: 38.4V~72V
- Hot Swapping
| CARACTERÍSTICAS DE HARDWARE | |
|---|---|
| Interface | • 8× 2.5G PON Ports• 2× 10 Gbps SFP+ Uplink Ports• 1× 10/100/1000 Mbps RJ45 Uplink Port• 1× RJ45 Console Port• 1× RJ45 MGMT Port• 1× Alarm Port (Reserved) |
| Botón | Reset Button |
| Fuente de alimentación | • Dual Power Supplies: 2 AC, 2 DC or AC+DC, • AC: 100V~240V, 50/60Hz• DC: -38.4V~-72V |
| Consumo de Poder | Max. 70W |
| Dimensiones (An x Pr x Al) | 17.3 × 10.2 × 1.7 in (440 × 260 × 44 mm) |
| FUNCIONES DE SOFTWARE | |
|---|---|
| Seguridad | • ACL• 802.1x Authentication• ARP Inspection• IP Source Guard |
| DHCP | • DHCP Server• DHCP Relay |
| OMCI | Standard OMCI Management Supported |
| ONU Authentication | ONU Auto Authentication |
| ONU Security | • Rouge ONU Detection and Isolation• Uplink and Downlink Data Encryption |
| Multi-Service | Multi-Service Traffic Identify and Rate Limit |
| QoS | • IEEE 802.1p/DSCP QoS• Voice VLAN• Auto VoIP |
| Routing | Static Routing |
| Mulitcast | • IGMP Snooping• MLD Snooping |
| Centralized Management | • Large-Scale Devices Management• OLT Batch Configure, Upgrade, Reboot• Multi-Site Management• Intelligent Network Monitoring• Real-time Network Overview |
| OTROS | |
|---|---|
| Certificación | CE,FCC |
| contenidos del paquete | • OLT Device • Power Cord and Console Cable• Installation Guide• Mouting Brackets, Screws and Rubber Feet |
| Ambiente | • Operating Temperature: 0°C~50°C (32°F~122°F)• Storage Temperature: -40℃~70℃(-40°F ~158°F) |
| Atributo de puerto GPON | |
|---|---|
| Max. Splitting Ratio | 1:128 |
| Distancia de transmisión | 20 km |
| Velocidad de datos | • Downstream: 2.5 Gbps• Upstream: 1.25 Gbps |
| Longitud de onda | • Tx: 1490 nm• Rx: 1310 nm |
| Tipo de interfaz | SC/UPC |
| Tipo de fibra | 9/125μm SMF (Single Mode Fiber) |
| Poder TX | Class C+ |
