TG-3468 V3 User Guide

Chapter 2 Connect to a Computer

This chapter introduces how to connect the adapter to your computer.

Before you begin using your adapter, insert the adapter into your computer by following these steps.

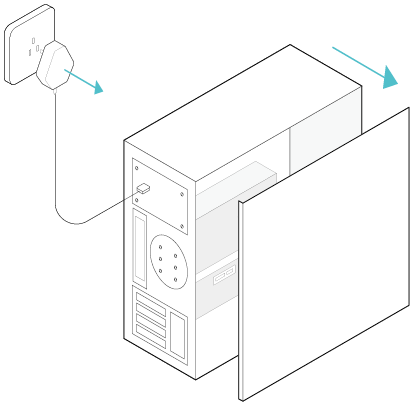

1. Turn off the computer, unplug the power cable and remove the case panel.

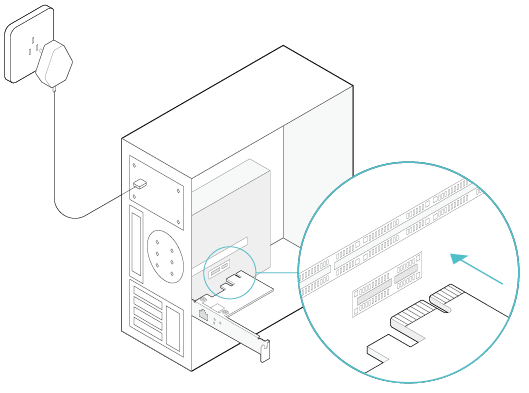

2. Locate an available PCI-E slot and carefully insert the adapter.

Note:

If the bracket is not suitable for your computer, detach it from the adapter’s board and replace it with the low-profile bracket provided.

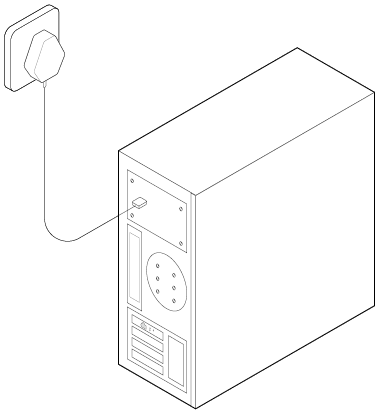

3. Replace the case panel, plug in the power cable and turn on your computer.

Note:

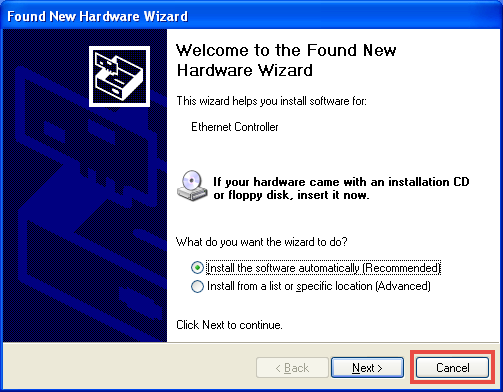

In Windows XP and Windows Vista, you may see the Found New Hardware Wizard window when the adapter is plugged. Please click Cancel.
