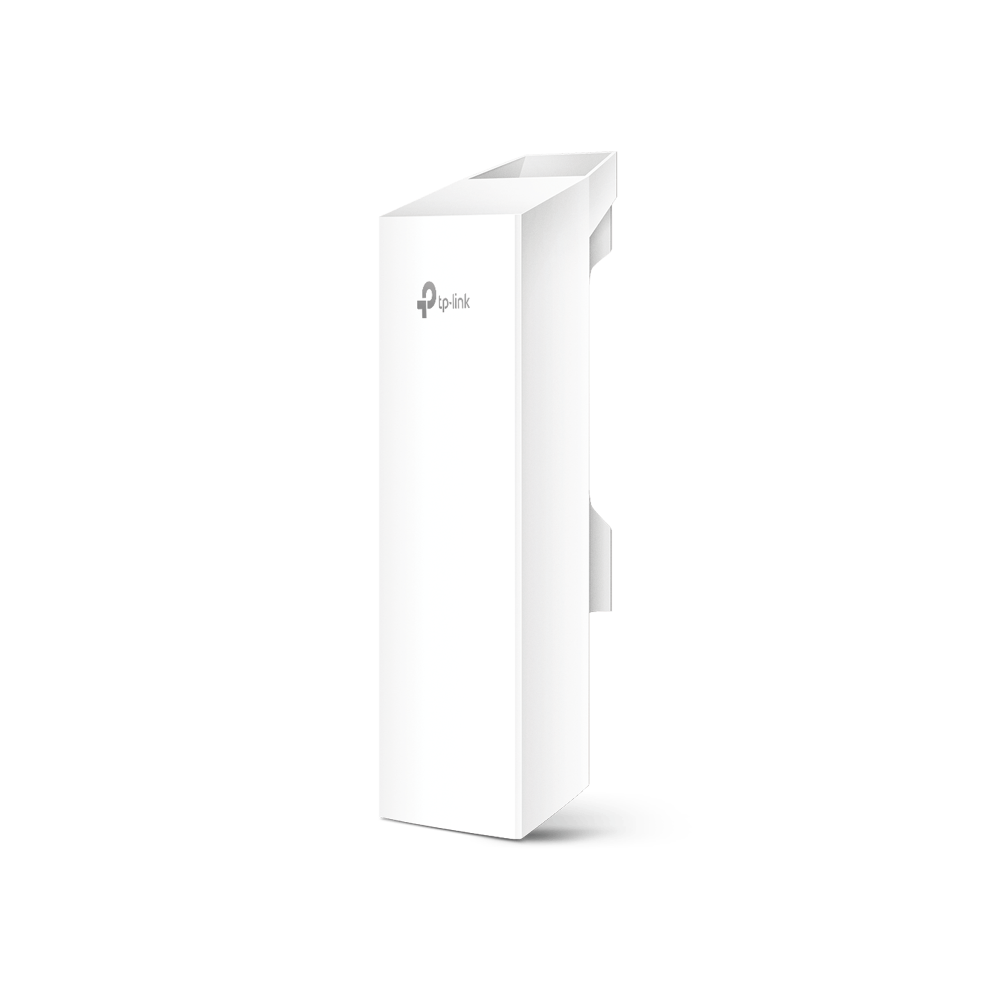

2.4GHz 300Mbps 9dBi Outdoor CPE CPE210
- Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 27dBm/500mw
- System-level optimizations for more than 5km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
2.4GHz 300Mbps 9dBi Outdoor CPE
TP-Link’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.
With Qualcomm Atheros level chipsets, high gain antennas and high
quality material, specially designed enclosure, and PoE power supply, CPE210 is
specially designed for outdoor use and can operate flawlessly in almost any climate,
with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉).
Qualcomm Atheros 650MHz CPU
High power Tx and high sensitivity Rx radio front-end design
Advanced Antenna System
- Built-in High Gain Dual-Polarized Antenna
- Dedicated metal reflector ensures higher gain
and lower noise interference
5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.
TP-Link MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be
so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user
experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.
MAXtream TDMA Mode
802.11 CSMA Mode
Real throughput depends on the actual application environment.
Quantity of Clients
Pharos Control – Centralized Management System
CPE210 also comes equipped with centralized management software that helps users easily
manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery,
status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
management system allows
professionals to do more specific
2.4GHz 300Mbps 9dBi Outdoor CPE CPE210
- AP / Client / Repeater / AP Router /
AP Client Router (WISP) operation modes
- Weather Proof Enclosure
- Passive PoE Adapter
- Built-in 9dBi Dual-polarized
- 6000V Lightning Protection
- 15KV ESD Protection
*Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications along with the number of connected devices were defined according to test results under normal usage conditions. Actual wireless transmission rate, wireless coverage, and number of connected devices are not guaranteed, and will vary as a result of 1) environmental factors, including building materials, physical objects and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and 3) client limitations, including rated performance, location, connection quality, and client condition.
*Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.
*Power supply distances are based on test results under normal usage conditions. Actual power supply distance will vary as a result of 1) AP status, including transmit power, connected devices and network traffic, 2) cable properties, including type and texture and 3) environmental factors, which include temperature and humidity.
|Processor||Qualcomm Atheros 560MHz CPU, MIPS 74Kc|
|Memory||64MB DDR2 RAM, 8MB Flash|
|Interface||1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)1 Grounding Terminal1 Reset Button|
Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
10.5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
|Dimensions ( W x D x H )||224 x 79 x 60 mm|
Built-in 9dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 65° (H-Plane) / 35° (E-Plane)
Note: For more details, please refer to datasheet
15KV ESD Protection
6KV Lightning Protection
Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
|Wireless Standards||IEEE 802.11b/g/n (with Pharos MAXtream disabled)|
|Proprietary Protocol||TDMA Mode (with Pharos MAXtream enabled)|
Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
27dBm/500mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
Pharos MAXtream TDMA Technology
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
Ping Watch Dog
Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog
|POE ADAPTER FEATURES|
|Dimensions(W x D x H)||110*57*33.5mm|
|Interfaces||1 AC Jack with Earth Ground1 10/100Mbps Shielded Ethernet Port (Power + Data)1 10/100Mbps Shielded Ethernet Port (Data)|
|Button||Remote Reset Button|
|Power Status LEDs||Green|
|Output||24VDC, 0.6A Max+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)|
|Certification||CE, FCC, RoHS, IPX5|
|Package Contents||Outdoor Wireless CPE24V 0.6A Passive PoE AdapterPole Mounting StrapsAC Power CordInstallation Guide|
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
|Environment||Operating Temperature: -40℃~70℃ (-40℉~158℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~95% non-condensing|
