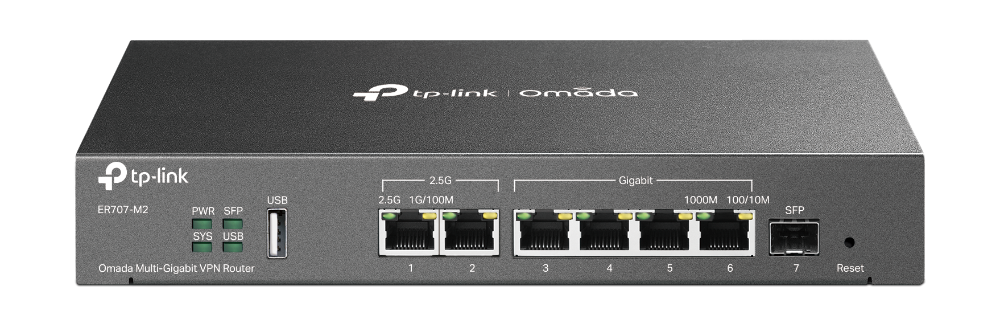

ER707-M2
Coming SoonOmada Multi-Gigabit VPN Router
- Two 2.5G Ports: 1× 2.5G WAN and 1× 2.5G WAN/LAN ports provide high-bandwidth aggregation connectivity.
- Up to 6 WAN Ports: 2.5G RJ45, gigabit Fiber, and gigabit RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband.
- Highly Secure VPN: Enterprise-standard SSL/IPSec/GER§/PPTP/L2TP VPN & OpenVPN are ideal for use across multiple branches and for WFH.
- Integrated into Omada SDN: Supports Zero-Touch Provisioning (ZTP),** Centralized Cloud Management, Intelligent Monitoring, and more.
- Centralized Management: Cloud access and Omada app provide the utmost in management convenience.
- Extensive Security Features: Protect your network and data with advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions.
Learn more about Omada Cloud SDN>
| SECURITY | |
|---|---|
| Access Control | Source/Destination IP Based Access Control |
| Filtering | WEB Group Filtering§URL FilteringWeb Security§ |
| ARP Inspection | • Sending GARP Packets§• ARP Scanning§• IP-MAC Binding§ |
| Attack Defense | • TCP/UDP/ICMP Flood Defense• Block TCP Scan (Stealth FIN/Xmas/Null)• Block Ping from WAN |
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
| Interface | • 1× 2.5G RJ45 WAN Port• 1× 2.5G RJ45 WAN/LAN Port• 1× Gigabit SFP WAN/LAN Port• 4× Gigabit RJ45 WAN/LAN Ports• 1× USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle) |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)• 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Fan Quantity | Fanless |
| Button | Reset Button |
| Power Supply | 12V/1.5A Adapter |
| PoE Budget | - |
| Flash | 128MB NAND |
| DRAM | 1 GB DDR4 |
| LED | PWR, SYS, SFP, USB, WAN (Speed, Link/Act), LAN (Speed, Link/Act) |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Desktop/Wall Mounting |
| Max Power Consumption | 14.2 W (with USB2.0 connected)7.1 W (without USB2.0 connected) |
| PERFORMANCE | |
|---|---|
| Concurrent Session | 500,000 |
| New Sessions /Second | 4,200 |
| NAT (Static IP) | 2364.45 Mbps / 2343.28 Mbps |
| NAT(DHCP) | 2364.24 Mbps / 2326.21 Mbps |
| NAT(PPPoE) | 2350.93 Mbps / 2125.83 Mbps |
| NAT (L2TP) | 1249.04 Mbps / 831.12 Mbps |
| NAT (PPTP) | 1169.23 Mbps / 1175.52 Mbps |
| IPsec VPN Throughput | ESP-MD5-AES256: 537.12 MbpsESP-SHA1-AES256: 754.65 Mbps |
| L2TP VPN Throughput | Unencrypted: 1442.65 MbpsEncrypted: 346.43 Mbps |
| SSL VPN Throughput | 142.99 Mbps |
| 66 Byte Packet forwarding rate | 1832.69 Mbps / 1741.84 Mbps |
| 1,518 Byte Packet forwarding rate | 2461.18 Mbps / 2457.32 Mbps |
| BASIC FUNCTIONS | |
|---|---|
| WAN Connection Type | • IPv4_Static IP• IPv4_Dynamic IP• IPv4_PPPOE• IPv4_L2TP• IPv4_PPTP• IPv6_PPP• IPv6_DHCPv6• IPv6_Static IP• IPv6_6in4• IPv6_Pass-Through• Mobile Broadband: 4G/3G modem for backup via USB port |
| MAC Clone | Modify WAN/LAN MAC Address† |
| DHCP | • DHCP Server/Client• DHCP Address Reservation• Multi-IP Interfaces*• Multi-Net DHCP* |
| IPv6 | WAN Connection |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| ADVANCED FUNCTIONS | |
|---|---|
| Advanced Routing | • Static Routing• Policy Routing |
| Bandwidth Control | • IP/Port-based Bandwidth Control• Guarantee & Limited Bandwidth |
| Load Balance | • Intelligent Load Balance• Application Optimized Routing• Link Backup (Timing§, Failover)• Online Detection |
| NAT | • One-to-One NAT§ • Multi-Net NAT • Port Forwarding • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Security | • Attack Defense:TCP/UDP/ICMP Flood DefenseBlock TCP Scan (Stealth FIN/Xmas/Null)Block Ping from WAN• FilteringWeb Group FilteringURL FilteringWeb Security• ARP Inspection:Sending GARP PacketsARP ScanningIP-MAC Binding• Access ControlSource/Destination IP Based Access Control |
| Session Limit | IP-based Session Limit |
| VPN | |
|---|---|
| IPsec VPN | • 100 IPSec VPN Tunnels• LAN-to-LAN, Client-to-LAN• Main, Aggressive Negotiation Mode• DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm• IKEv1/v2• MD5, SHA1 Authentication Algorithm• NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server• PPTP VPN Clients (12)• 60 Tunnels (Shared with L2TP)• PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server• L2TP VPN Clients (12)• 60 Tunnels (Shared with PPTP)• L2TP over IPSec |
| OpenVPN | • OpenVPN Server• OpenVPN Clients (6)• 66 OpenVPN Tunnels* |
| AUTHENTICATION | |
|---|---|
| Web Authentication | • No Authentication • Simple Password* • Hotspot (Local User/Voucher* /SMS*/Radius*) • External Radius Sever • External Portal Sever* |
| MANAGEMENT | |
|---|---|
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance | • Web Management Interface• Remote Management• Export & Import Configuration• SNMP v1/v2c/v3*• Diagnostics (Ping & Traceroute)§• NTP Synchronize§• Syslog Support |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery• Intelligent Network Monitoring• Abnormal Event Warnings• Unified Configuration• Reboot Schedule• Captive Portal Configuration• ZTP (Zero-Touch Provisioning) |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • ER707-M2• Power Adapter• Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% non-condensing |
*These functions require the use of an Omada Hardware Controller, Software Controller, or Cloud-Based Controller.
**Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Go to https://www.tp-link.com/en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.
† LAN MAC Address can be modified only in Standalone Mode.
§ These functions are supported only in Standalone Mode.
