150Mbps Wireless N Router and USB Adapter Kit (Discontinued Product)
TL-WR150KIT

Highlights:

  • 150Mbps wireless data rates ideal for video streaming, online gaming and internet calling
  • Wireless security encryption easily at a push of QSS button
  • WDS wireless bridge provides seamless bridging to expand your wireless network (TL-WR741ND)
  • Supports Windows 7 / Vista / XP / 2000 (TL-WN721N)

Overview

What This Product Does

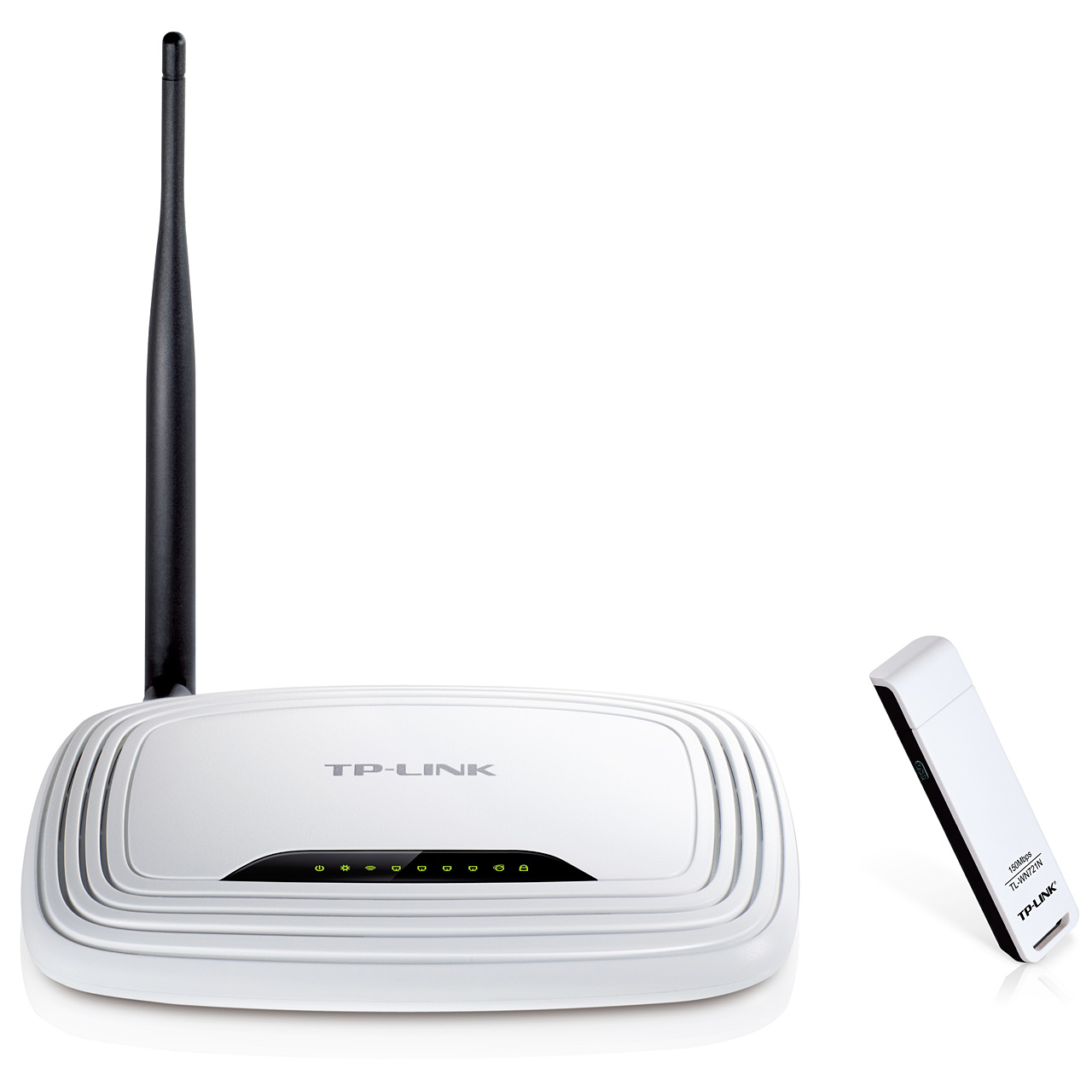

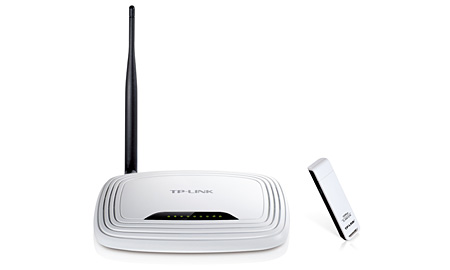

TP-Link presents Wireless N Router and USB Adapter Kit (TL-WR150KIT), which includes a 150Mbps wireless N router TL-WR741ND and a 150Mbps Wireless USB adapter TL-WN721N, bringing a more robust wireless services and performance at an even more affordable price. The advanced 802.11n technology can support more clients using high-bandwidth applications than previous wireless solutions.

Enhanced Wireless Speed And Range

TP-Link TL-WR150KIT wireless transmission rate up to 150Mbps and Intelligent Antenna technology enable you receive the signal even in the corner of your house. Actually, it provides 9X the speed and 4x the range of traditional 11g products.
Not only does the TP-Link Wireless N technology extend your wireless range, it is also perfectly compatible with your existing 802.11g/11b wireless devices. You can enjoy a high quality experience when video streaming, VoIP or online gaming.

Easy Installation

The TL-WR150KIT makes it easy to setup wireless network in your home or office without complex installation. In the CD we integrate both router and adapter setup guide, even novice users can setup it without any difficulty.

Reliable Security

For TL-WR150KIT, Quick Security Setup (QSS) is a handy feature that allows users to almost instantly setup their security simply by pressing the "QSS" button on the wireless router or entering the PIN Code in the net card, it automatically establishes a WPA2 secure connection, instantly protecting your network.
In addition, the Router (TL-WR741ND) utilizes active SPI firewall to prevent potential attacks from across the Internet.

IP QoS- Control Bandwidth Reasonably

TL-WR741ND supports IP QoS function, allowing optimum utilization of bandwidth and offers bandwidth control over congestion, preventing the bandwidth abuse. In this way, the users of a small network receive committed and specific bandwidth, preventing non-critical applications from degrading network performance.
We promise that applications will benefit most from the additional throughput, reliability, and predictable coverage of TP-Link wireless N Router and USB Adapter Kit (TL-WR150KIT).

Features

  • 150Mbps wireless transmission rate when the router and adapter connected
  • Wireless security encryption easily at a push of QSS button
  • Supports WPA/WPA2 encryptions
  • Perfectly compatible with 802.11n /b/g devices
  • WDS wireless bridge provides seamless bridging to expand your wireless network
  • Supports SPI firewall and access control management (TL-WR741ND)
  • Provides two methods of operation: Infrastructure and Ad-Hoc (TL-WN721N)

Specifications

HARDWARE FEATURES
Interface1 10/100Mbps WAN port,
4 10/100Mbps LAN ports (for TL-WR741ND)
USB 2.0 Interface (for TL-WN721N)
External Power Supply9VDC / 0.6A
Dimensions ( W x D x H )6.9 x 4.6 x 1.3 in. (174 x 118 x 33 mm)(for TL-WR741ND)
3.4 x 0.9 x 0.4 in (86.5 x 24 x 10 mm)(for TL-WN721N)
Antenna Type1 * 5dBi Detachable Antenna (RP-SMA) (for TL-WR741ND)
Internal Antenna (for TL-WN721N)
WIRELESS FEATURES
Wireless StandardsIEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency2.4-2.4835GHz
Signal Rate11n: Up to 150Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
EIRP<20dBm(EIRP)
Reception Sensitivity130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless Security64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
OTHERS
CertificationCE, FCC, RoHS
Package ContentsTL-WR741ND
TL-WN721N
1 Omni-directional antenna
Power supply unit
Resource CD
Quick Installation Guide
System RequirementsWindows 2000, XP, Vista™ or Windows 7(For TL-WN721N)
Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. (For TL-WR741ND)
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Download

Some official firmware of TP-LINK products can be replaced by the third party firmware such as DD-WRT. TP-LINK does not provide technical support and does not guarantee the performance and stability of third party firmware. Damage to the product as a result of using third party firmware will void the product's warranty.
