TL-MR6400 V4 User Guide

Chapter 5 QoS

This chapter introduces how to create a QoS (Quality of Service) rule to specify prioritization of traffic and minimize the impact caused when the connection is under heavy load.

I want to:

Specify priority levels for some devices or applications.

For example, I have several devices that are connected to my wireless network. I would like to set an intermediate speed on the internet for my phone.

How can I do that?

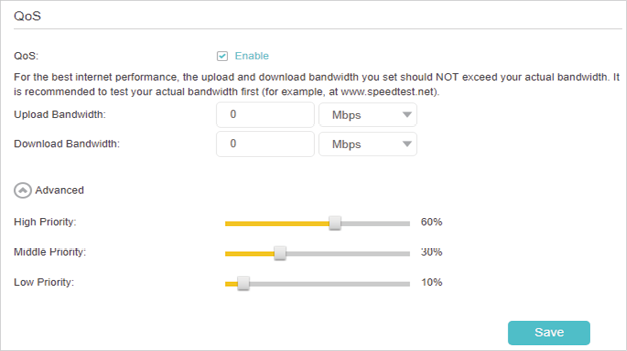

1.Enable QoS and set bandwidth allocation.

1 )Visit http://tplinkmodem.net, and log in with the password you set for the router.

2 )Go to Advanced > QoS > Settings.

3 )Select Enable QoS.

4 )Input the maximum upload and download bandwidth provided by your Internet service provider. 1Mbps equal s to 1000Kbps.

5 )Click Advanced and drag the scroll bar to set the bandwidth priority percentage.

6 )Click Save.

2.Add a middle priority QoS rule for the phone.

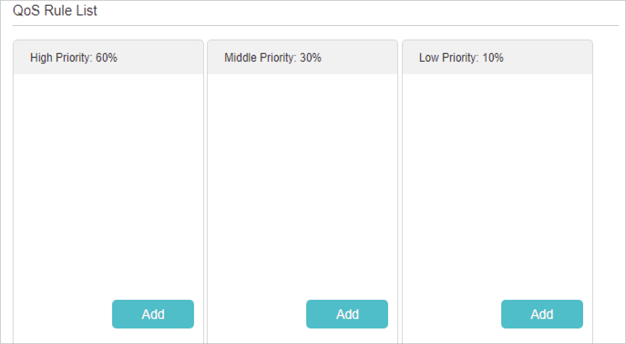

1 )Click Add in the Middle Priority: 30% column.

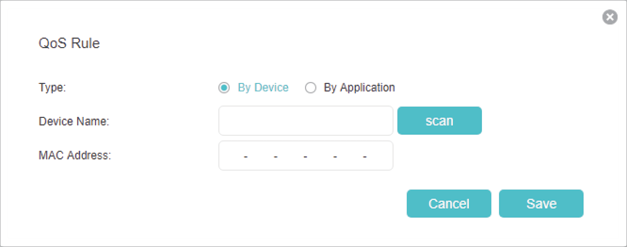

2 )Select By Device and then click Scan.

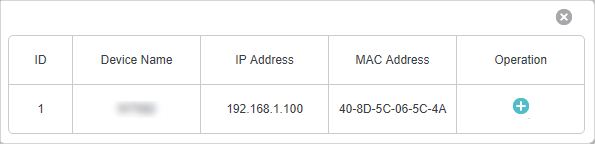

3 )Choose the respective device from the list.

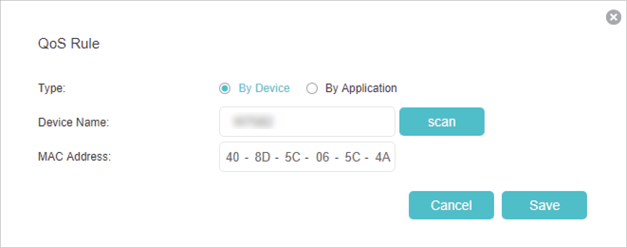

4 )Click Save.

Note:

If you want to delete a QoS rule, click to remove the responding rule from the list.

Done!

Now QoS is implemented to ssprioritize internet traffic.
