Archer MR200 V4 User Guide

Chapter 2 Connect the Hardware

This chapter contains the following sections:

Requirements for Operation

Position Your 4G LTE Router

Connect Your 4G LTE Router

1. Requirements for Operation

To connect and use the router for internet sharing, you must have the following:

Micro SIM card with internet access enabled.

PC with an active Ethernet Adapter and an Ethernet cable with RJ45 connectors.

Web browser, such as Microsoft Internet Explorer, Mozilla Firefox and Apple Safari.

2. Position Your 4G LTE Router

With the router, you can access your network from anywhere within the wireless network coverage. However, the wireless signal strength and coverage vary depending on the actual environment where your router is in. Many obstacles may limit the range of the wireless signal, for example, concrete structures, thickness and number of walls.

For your security and best Wi-Fi performance, please:

Do not locate the router in the place where it will be exposed to moisture or excessive heat.

Keep away from strong electromagnetic radiation source and electromagnetic-sensitive devices.

Place the router in a location where it can be connected to the various devices as well as to a power source.

Place the router in a location where it can receive a strong mobile internet signal.

Make sure the cables and power cord are safely placed out of the way so they do not create a tripping hazard.

Tips: The router can be placed on a shelf or desktop.

3. Connect Your 4G LTE Router

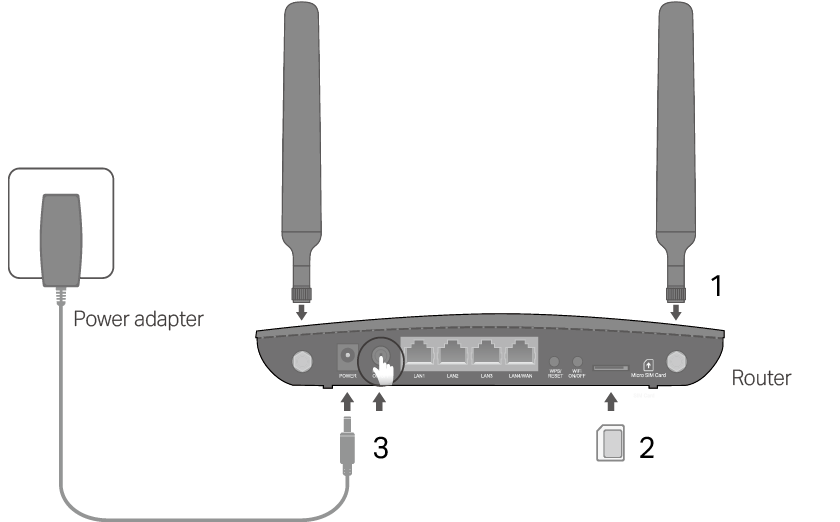

Follow the steps below to connect your router.

1.Install the antennas and position them upwards.

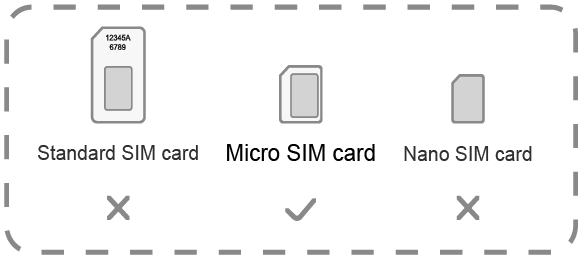

2.Insert the Micro SIM card into the slot until you hear a click.

3.Connect the power adapter and push in the POWER ON/OFF button to turn on the router. The power source shall be near the device and shall be easily accessible.

4.Connect your computer to the router.

Method 1: Wired

Connect your computer’s Ethernet port to one of the LAN ports on the router via an Ethernet cable.

Method 2: Wirelessly

Use the default SSID (Wireless Network Name) and Wireless Password printed on the product label of the router to connect wirelessly.

Method 3: Use the WPS button

Wireless devices that support WPS, including Android phones, tablets, most USB network cards, can be connected to your router through this method. (WPS is not supported by iOS devices.)

Note:

The WPS function cannot be configured if the wireless function of the router is disabled. Also, the WPS function will be disabled if your wireless encryption is WEP. Please make sure the wireless function is enabled and is configured with the appropriate encryption before configuring the WPS.

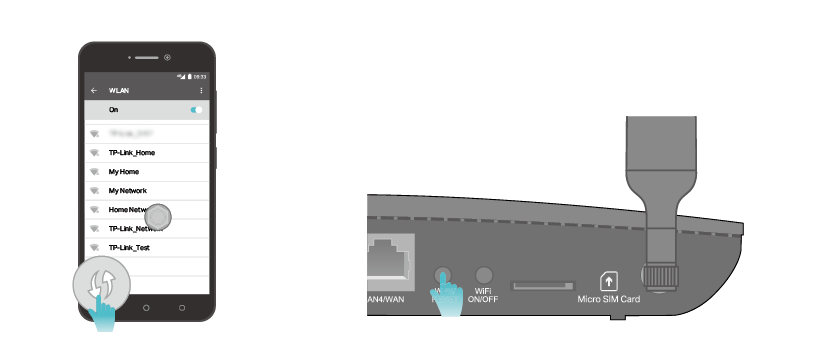

1 )Tab the WPS icon on the device’s screen.

2 )Immediately press the WPS button on your router.

3 )The Wi-Fi LED flashes for about 2 minutes during the WPS process.

4 )When the Wi-Fi LED is on, the client device has successfully connected to the router.
