How to Configure the Bridge With AP Mode on the TL-MR3020 and TL-MR3040
User Application Requirement
Güncellendi05-25-2016 05:52:46 AM98313
Bu Makalenin Geçerliliği:
TL-MR3020 , TL-MR3040
Recent updates may have expanded access to feature(s) discussed in this FAQ. Visit your product's support page, select the correct hardware version for your device, and check either the Datasheet or the firmware section for the latest improvements added to your product. Please note that product availability varies by region, and certain models may not be available in your region.
Definition:The TL-MR3020 borrows existing wireless Internet and broadcasts it using a different network name(SSID) and password. This application can create two individual networks for two groups of users sharing one Internet.
Application: Small restaurant,shop,bar,home,office and others where Internet service needs to be provided for guests without revealing the password of the existing network for hosts.
Access web interface
P Please refer to this FAQ to log into the web interface of TL-MR3020.
Please refer to this FAQ to log into the web interface of TL-MR3040.
Run Quick Setup
Go to Quick Setup-> Click Next
Select Bridge with AP-> Click Next

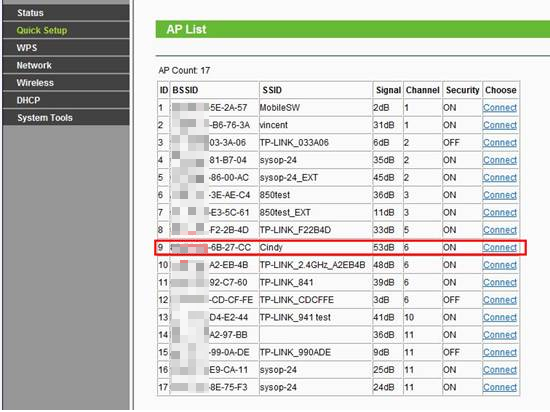

Select the Region,click Survey.
Locate your router network name under the SSID column, remember the Channel(The channel your wireless network is using)-> Click Connect

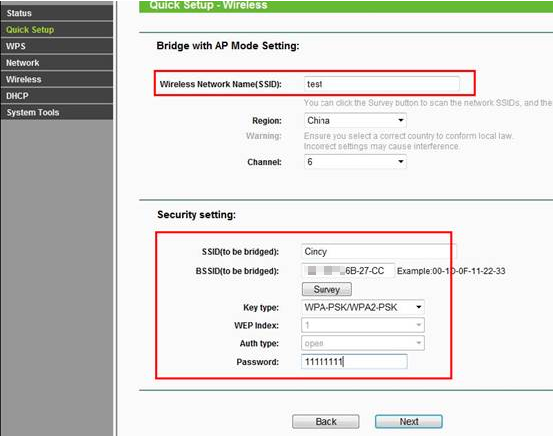

Create a Local Wireless Network Name(SSID)for the TL-MR3020 itself.Choose the same Channel as the main wireless network’s;
Security Settings: (Please match Security Settings with your existing router)
Please refer to Original Equipment Manufacturer for details
Password: (Please match Security Password with your existing router)
Click: Next
ClickReboot, and wait until it goes to 100% percent.
Relocate the TL-MR3020/MR3040
You may now relocate the TL-MR3020/MR3040 to a centralized location in order to broadcast a guest network.
Computer Setup Reversion
After the configuration, we need change the TCP/IP settings back on the computer.
Please refer to the last section of this FAQ for TL-MR3020.
Please refer to the last section of this FAQ for TL-MR3040.
