Tapo C630 KIT

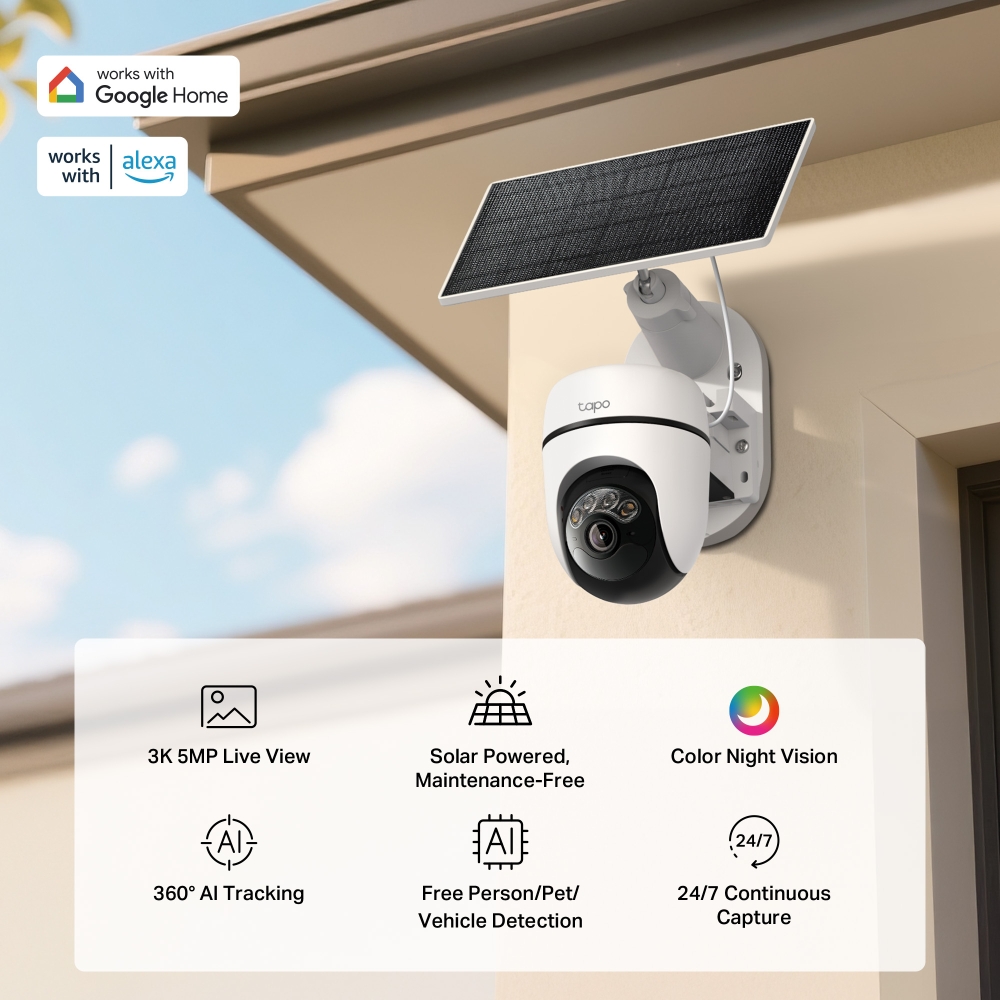

NewSolar-Powered Pan/Tilt Security Camera Kit
- Solar Charging, Maintenance-Free: Effortlessly monitor your space wirelessly from any location, liberating yourself from outlet limitations.
- Free Person/Pet/Vehicle Detection: The camera identifies people, pets, and vehicles, reducing false alerts and unnecessary notifications.
- 360° AI Tracking: The camera provides 360° coverage and accurately identifies and tracks people, pets, and vehicles.
- Superior 3K 5MP Visuals: Capture every detail in 3K resolution, with advanced algorithms ensuring perfect exposure day and night.
- 24/7 Continuous Capture: the camera enables 24/7 continuous capture without relying on DC power.
- Vivid Colors, Even at Night: Instead of black-and-white images, the camera offers full-color images at night with built-in spotlights, ensuring details in low-light conditions.

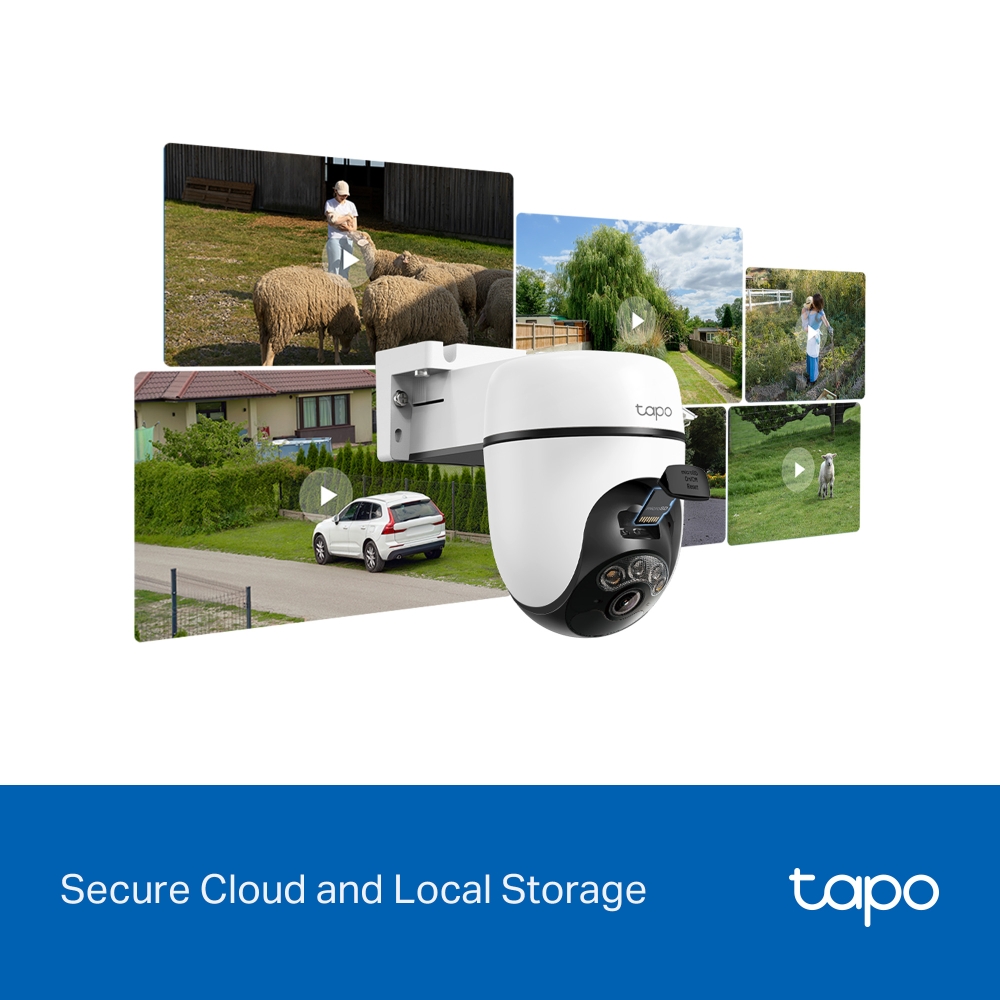

- Flexible Storage Options: Choose from local microSD storage up to 512GB or the secure Tapo Care cloud service for additional peace of mind.
- IP65 Weatherproof: Offers excellent waterproof and dustproof performance for outdoor scenarios.
Power Your Security
with Solar and 3K Clarity
Solar-Powered Pan/Tilt Security Camera Kit
Capture Every Detail in 3K Clarity
With 3K resolution, the camera offers enhanced video quality to capture finer details like license plates, facial features, and small objects.

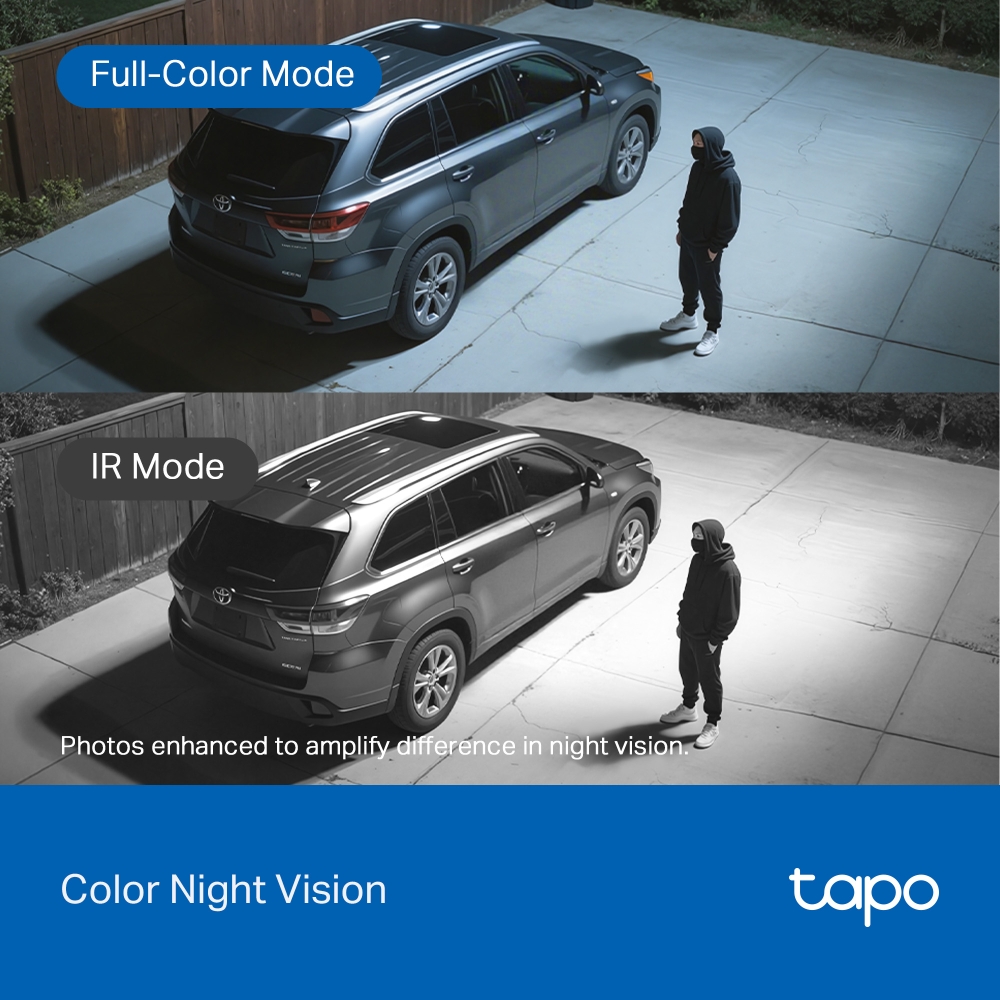

Color Night Vision
Choose between black-and-white IR or full-color mode using built-in spotlights.

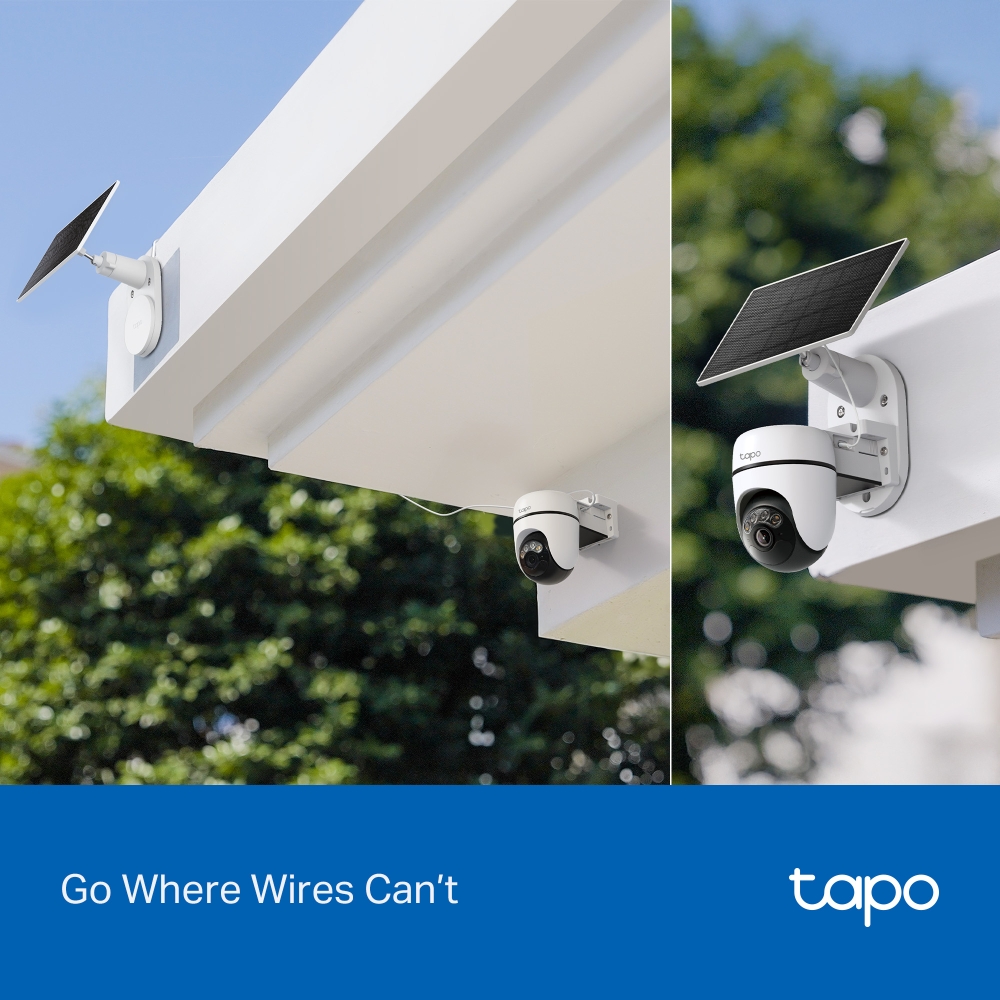

Go Where Wires Can’t
Capture the perfect shot while not being limited to power outlet placement. Install the solar panel with the included 13-ft (4-meter) cable for optimal sunlight exposure, or mount the camera on the kit base for easy setup.

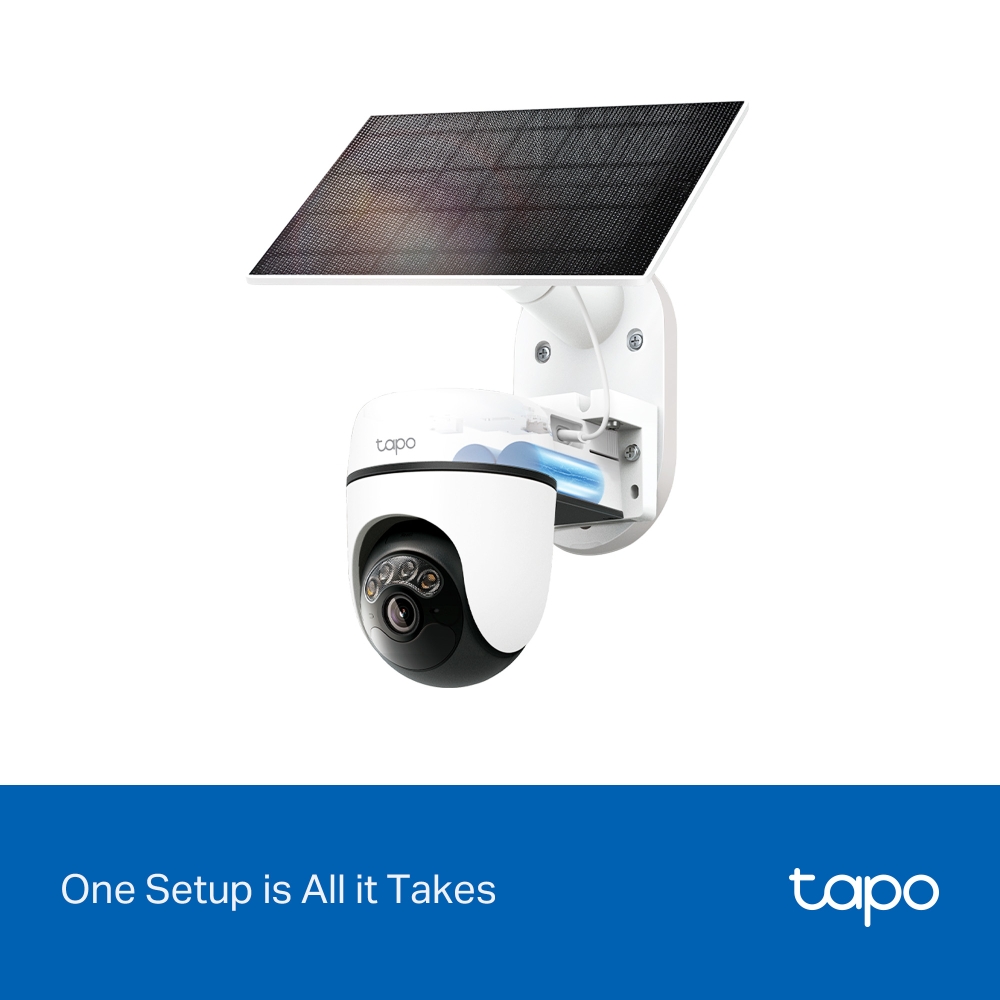

Solar Power: One Setup is All It Takes
-
45 Minutes of Direct Sunlight
powers the Tapo C630 camera for a full day,§ eliminating the hassle of frequently unmounting the camera to recharge. Stay green with ease.
-
6700mAh Rechargeable Battery
lasts long on a single charge, guaranteeing uninterrupted performance even without sunlight.
-
Intuitive Solar Charging Dashboard
Get personal reports on daily solar panel charging and battery usage. Customize the solar panel orientation or camera settings to meet your specific needs.
-
Flexible Angle Adjustment
Mount your solar panel on the wall or roof and adjust its angle flexibly to capture enough sunlight with an angle-adjustable bracket.
-
High-Efficiency Solar Cells
The premium solar panel constructed of monocrystalline silicon cells harnesses the sun's energy with more efficiency than traditional panels, keeping your devices charged and ready.

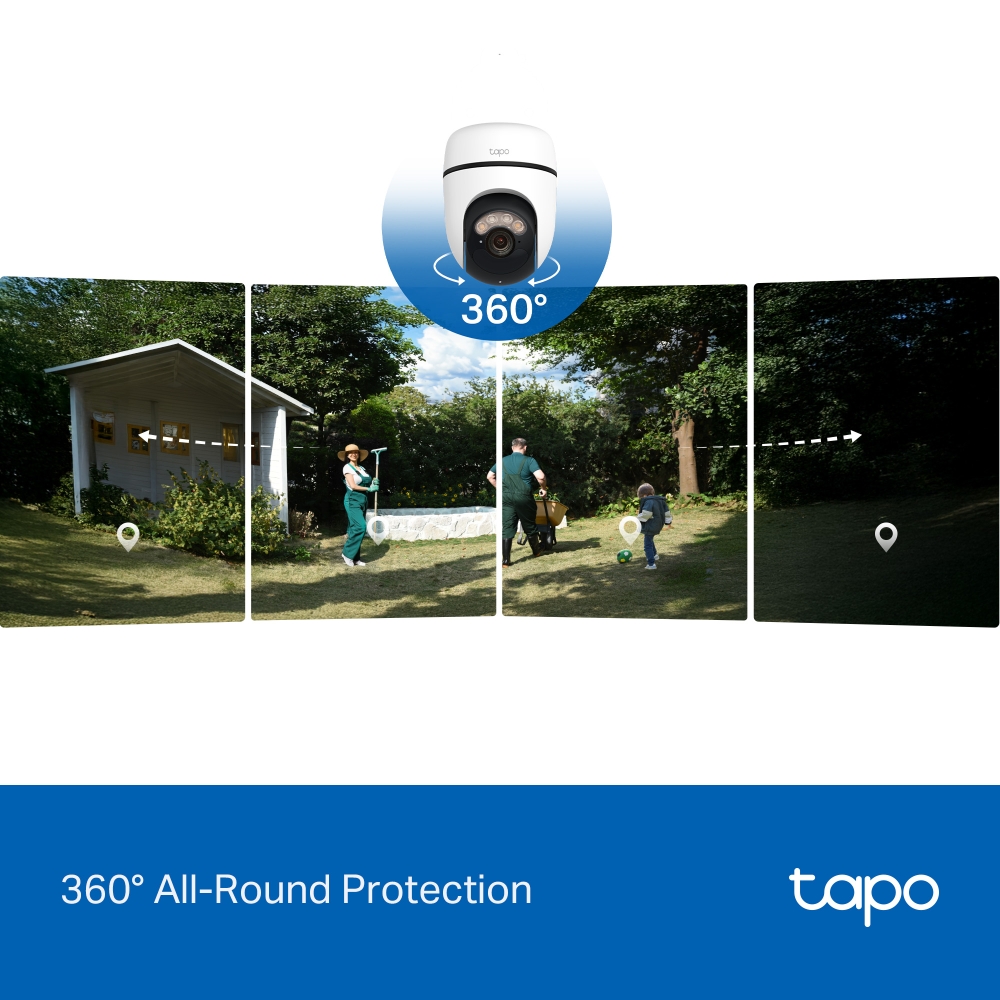

360° All-Round Protection
Enhance your security with 360° horizontal and 130° vertical viewing range. Set the camera to scan scheduled 360° rotations and capture panoramic videos*, or have it patrol key points at set times and record only when motion is detected.

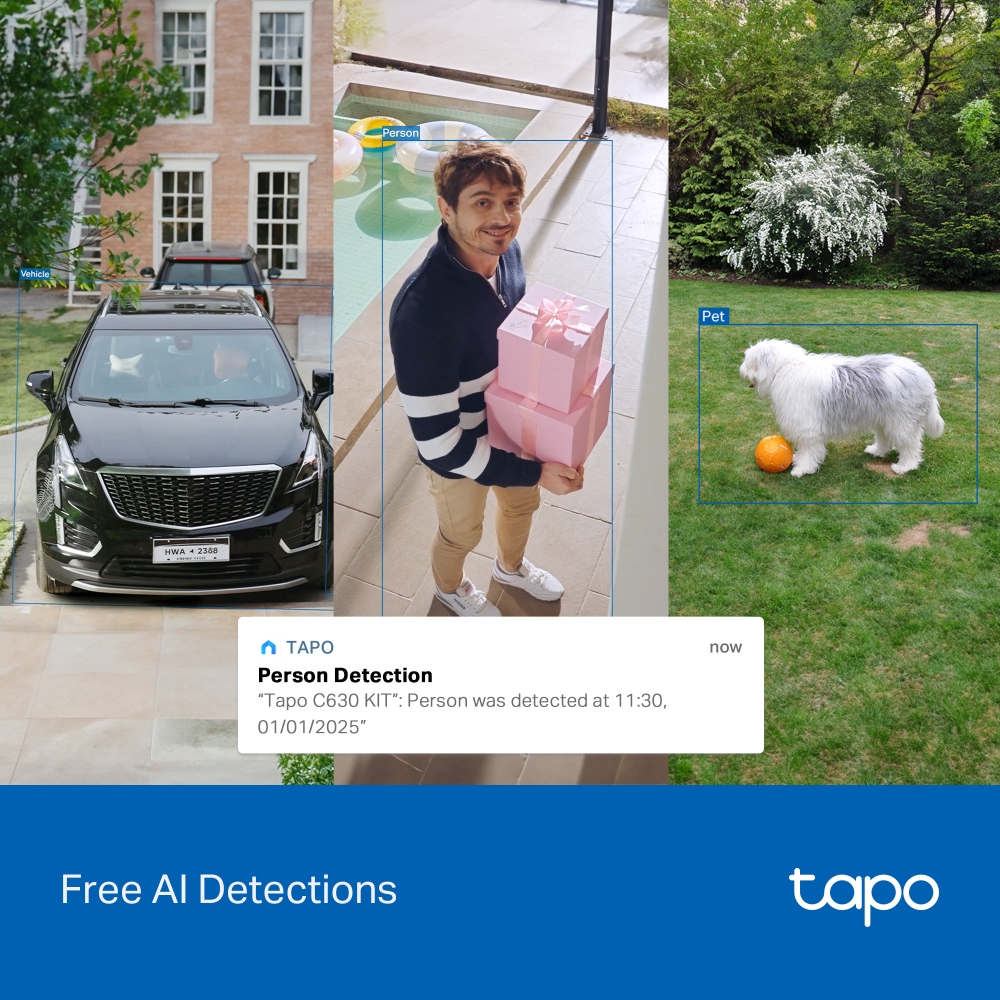

Free AI Detection and 360° Tracking

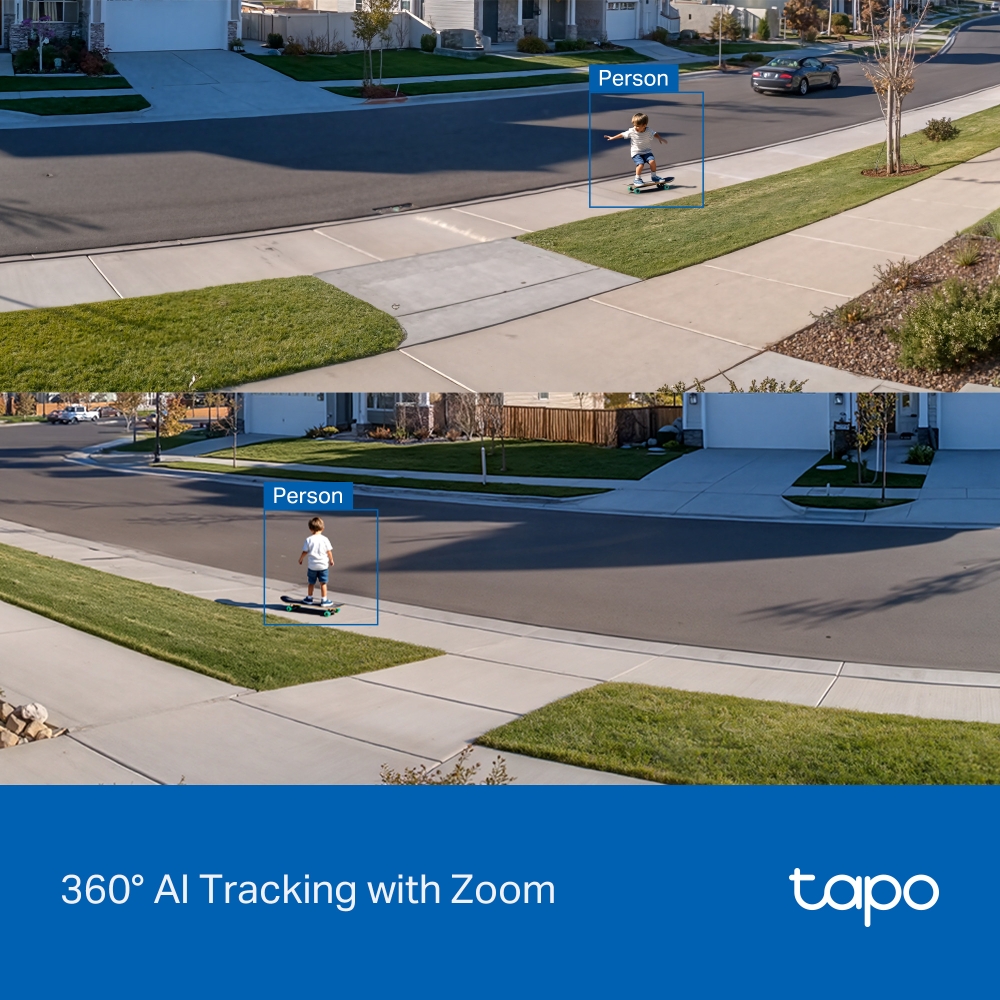

Smart AI accurately identifies people, pets, and vehicles, reducing unnecessary notifications. Automatically follows subjects as they move with 360° horizontal coverage.
TAPOPerson Detection
“Tapo C630 KIT”: Person was detected at 11:30, 01/01/2025.

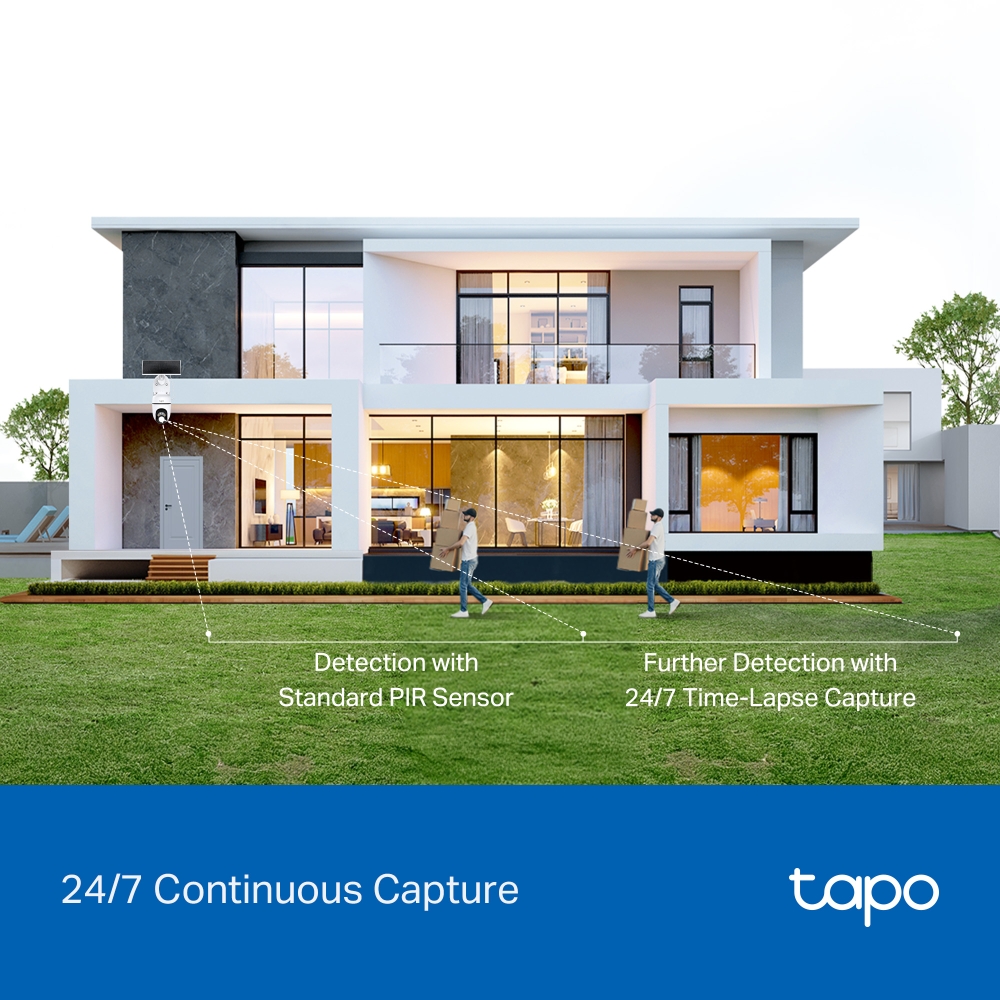

24/7 Continuous Capture, Detects with Larger Coverage
Breaking the boundaries of typical battery-powered cameras, the camera continuously captures images at regular intervals, detecting motion at the footage level so nothing in the frame goes unnoticed. The AI system monitors in real time and alerts you of detected motion while triggering video recording.△
PIR Sensor
24/7 Time-Lapse Capture
| Frame Interval (S) | Battery life on a full charge (without a Solar Panel)* |
Solar charging time to support one day of use* |
|---|---|---|
| 1 | 7 Days | 75 minutes |
| 5 | 22 Days | < 45 minutes |
| Default10 | 27 Days | < 45 minutes |
| 20 | 34 Days | < 45 minutes |
| 30 | 36 Days | < 45 minutes |
| 60 | 39 Days | < 45 minutes |
*Battery life and solar charging time are based on Tapo laboratory tests, assuming 23 daytime events and 12 nighttime events per day, each triggering a 13-second video recording, with the device in standby mode the rest of the time. Solar charging time is measured under standard test conditions (1000 W/m², 25 °C, AM1.5). Actual performance may vary depending on device settings, usage patterns, router specifications, and environmental conditions.

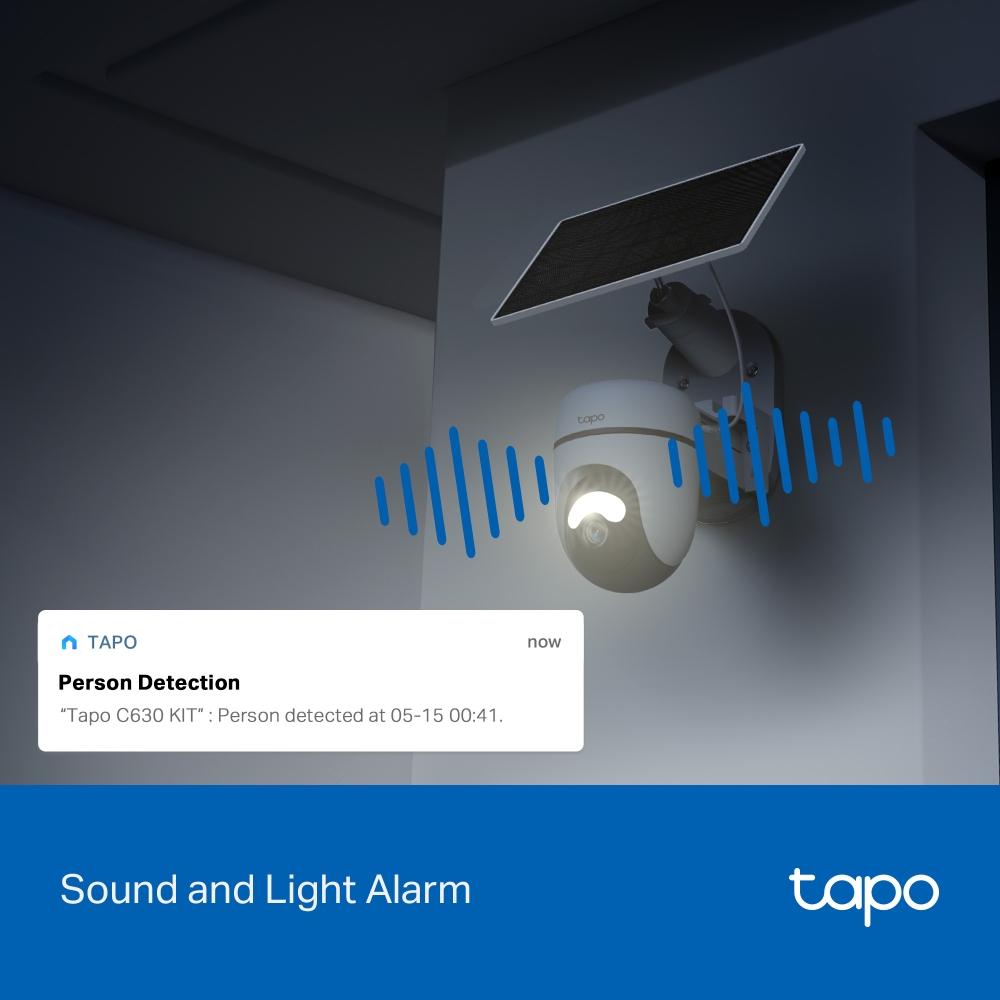

Powerful Defense with Sound and Light Alarm
Scare off intruders with sound and light alarm. You can customize the alarm to fit your needs.
TAPOPerson Detection
“Tapo C630 KIT”: Person detected at 05-15 00:41.
Total Control, One App
Total Control, One App
Customizable Activity Zone
Reduce unwanted recordings and notifications by creating custom activity zones. Get notifications only when motion/people/pets/vehicles are detected in those areas.
Total Control, One App
Smart Playback
Swiftly find and download the moments of interest by choosing the event type or sliding the timeline.
Total Control, One App
Tapo Sharing
Share memorable moments and distribute access of your security devices with those who matter the most.
Features for Added Security and Convenience
Built to Last, Rain or Shine
Built to withstand rain, dust, and snow with an IP65 weatherproof rating. Designed for durability in any environment, the camera also operates reliably in extreme temperatures ranging from 4°F to 113°F (-20°C to 45°C).
Never Miss a Delivery
Speak with guests or delivery couriers through clear
two-way audio, even when you're away from home.
Put it by the door, thank you.
Alexa, show me the backyard.Control With Your Voice
Seamlessly integrates with Amazon Alexa and
Google Assistant for hands-free control and
convenient check-ins.
No Power, No Problem
The C630 KIT continues to record even during disruptions such as power and Wi-Fi outages.
| Image Sensor | 1/2.7" Progressive Scan CMOS Sensor |
|---|---|
| Lens | Focal Length: 4.0 mmAperture: F1.6Field of View: 105.4° (Diagonal), 88.0°(Horizontal), 46.0°(Vertical) |
| Motion Range | Pan Mechanical Range: 340° (360° Pan Coverage)Tilt Mechanical Range: 90° (130° Tilt Coverage)??? |
| Night Vision | 850 nm IR LEDColor Night Vision |
| Lighting | 2× Built-in Spotlights |
| Interface & Button | 1× Power Button1× RESET Button1× MicroSD Card Slot (Up to 512GB) |
| Connection Capacity | A solar panel can only connect to one camera. |
|---|---|
| Output Port | Type-C |
| Maximum Resolution | 3K 5MP (2880 × 1620 px) |
|---|---|
| Frame Rate | 15 fps |
| Digital Zoom | 13.5 |
| Video Compression | H.264 |
| Live View | YES |
| Image Enhancement | 3DNRWDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 78.9 dBA (Level measured at 10 cm distance)60.4 dBA (Level measured at 300 cm distance) |
| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB, microSD card not included) |
|---|---|
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| Sensor | Single Motion Sensor ??? |
|---|---|
| AI Detection | Motion DetectionPerson DetectionVehicle DetectionPet Detection |
| Activity Zones | Yes |
| Output Notification | System NotificationSystem Notification with Snapshot (Tapo Care Services) |
| Network Connectivity | Connect via Wi-Fi |
|---|---|
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
| Security | 128-bit AES Encryption with SSL/TLSWPA/WPA2-PSK |
|---|---|
| Power Source | Built-in Rechargeable Lithium-ion BatterySolar Panel: Tapo A201(included) |
|---|---|
| Input Voltage | Adapter Input: 100-240 V, 50/60 Hz(Not include) |
| Output Voltage | Adapter Output: 5.0 V, 2.0 A (Not include)Solar Panel Max Charging Voltage: 5.2 VSolar Panel Max Charging Power: 2.5 W |
| Smart Integration | Google Assistant, Amazon Alexa |
|---|---|
| Weather Resistance | IP65 for both camera and solar panel |
| System Requirements | Tapo App: iOS 12.0 or higher, Android 7.0 or higher ??? |
| Mounting Options | Wall-MountedEave-MountedPole-Mounted (Pole-Mounting loops required but not included) |
| Operating Temperature | -20°C to 45°C (-4°F to 113°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 0%~90% RH, Non-condensing |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Dimensions ( W x D x H ) | Camera Dimensions: 141 x 128 x 84 mm (5.55 x 5.04 x 3.31 in)Solar Panel Dimensions: 173.4 x 120.4 x 15.7 mm (6.83 x 4.74 x 0.618 in) |
| Package Content | Tapo C630 Camera × 1Tapo A201 Solar Panel × 1Tapo A201 Solar Panel Bracket × 1Base Cover × 1 USB Adapter Cable × 1Extension Wire × 1Cable Zip Tie × 1Mounting Screws and AnchorsMounting Template StickersQuick Start Guide |
| Certifications | CB, CE, FCC, DOE, CEC, RCM, KC, JFR,VCCI,NCC, BSMI, NTRA, IP65 ???? |
§45 min of sunlight time is based on standard environmental conditions (1000W/m2, 25°C, AM1.5) and specified working scenes (up to 100 events triggered per day). Actual required time of sunlight may vary.
*The number of automatic 360° scans and recordings is limited per day.
△24/7 Capture must be enabled in the Tapo App and is only available when storing video locally. When no motion is detected, 24/7 Capture allows battery-powered cameras to capture images at customizable intervals—every 1s, 5s, 10s, or up to 60s—ensuring continuous monitoring while conserving battery life. Once motion is detected, the camera automatically switches to standard recording mode, helping reduce missed events and false alerts.
†microSD card purchased separately. Actual storage capacity depends on the size of the microSD card used.
‡Subscribe for cloud storage at https://www.tapo.com/tapocare/
