Archer A8
곧 출시AC1900 무선 MU-MIMO Wi-Fi 공유기
- 802.11ac Wave2 Wi-Fi – 5 GHz 대역에서 1300 Mbps, 2.4 GHz 대역에서 600 Mbps를 지원합니다.
- 3×3 MIMO 기술 – 3개의 스트림에서 데이터를 송수신하여 3×3 클라이언트오 완벽하게 페어링합니다.
- Wi-Fi 커버리지 개선 – 빔포밍 기술은 매우 효율적인 무선 연결을 제공합니다.
- MU-MIMO – 통신 효율성을 높여 장치가 최적의 성능을 발휘할 수 있도록 지원합니다.
- 사용자의 요구에 따른 맞춤 관리 – 자녀 보호, 게스트 네트워크, 액세스 제어와 같은 고급 기능은 네트워크 관리를 위한 맞춤 도구를 제공합니다.
- 지능형 연결 – Smart Connect는 클라이언트를 혼잡도가 낮은 대역으로 안내하며, Airtime Fairness는 공정한 대역폭을 할당하여 시간 활용을 최적화합니다.
Perfect Wi-Fi
Entertainment is Yours
Dual Band | Full Gigabit
AC1900 MU-MIMO Wi-Fi Router
Archer A8
Maximum Wi-Fi Performance with Three Streams
With 3×3 MIMO, Archer A8 is capable of transmitting and receiving data on three streams. 3×3 capable computers— like Macs—pair perfectly with A8 to perform at max with much higher efficiency than 2×2 MIMO routers.
3x3
MIMO
Incredible 802.11ac Wave2 Home Wi-Fi
Archer A8 delivers high-performance and affordable home Wi-Fi with total speeds up to 1900 Mbps. Handle simple tasks like sending e-mails or web browsing on the 2.4 GHz band and bandwidth-intensive tasks like online gaming or 4K/8K UHD streaming on the 5 GHz band—all lag-free.
- 5 GHz Band 1300 Mbps
- 2.4 GHz Band 600 Mbps
1300Mbps
5 GHz Band
600Mbps
2.4 GHz Band

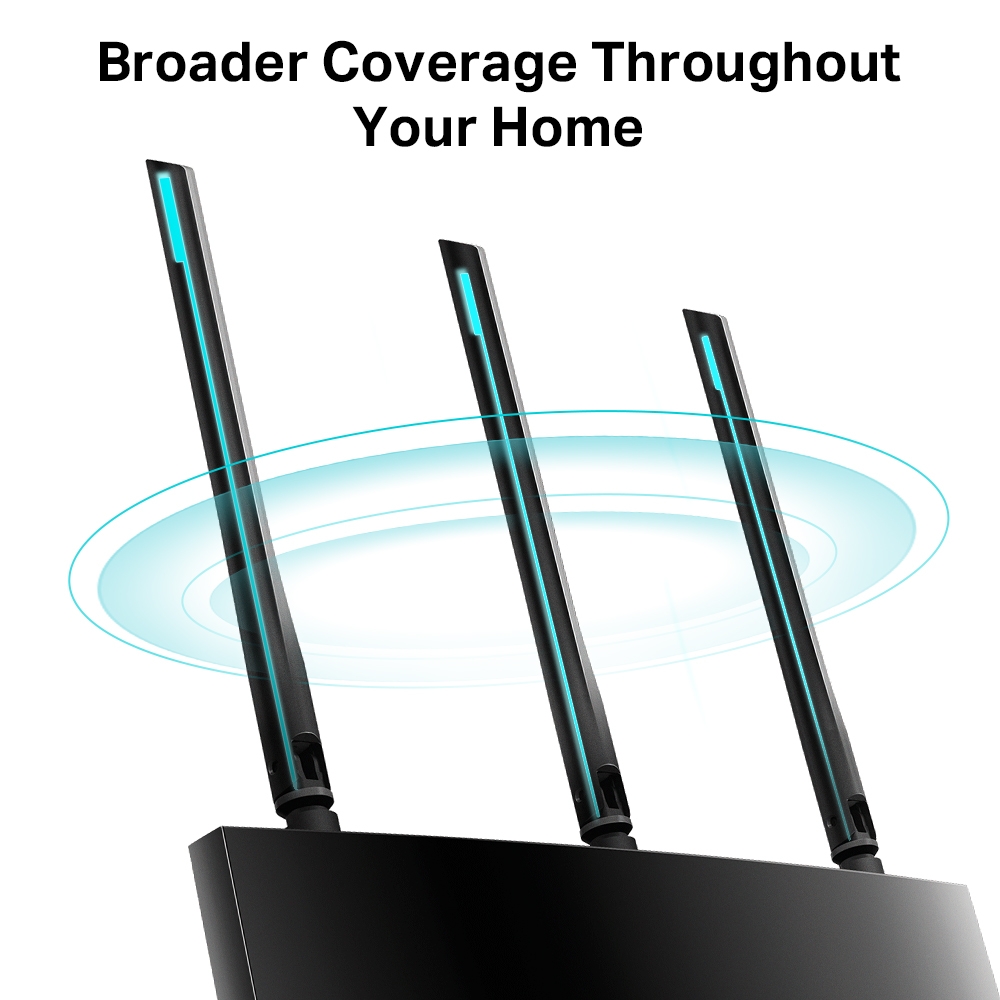

Broader Coverage throughout Your Home
Access your entertainment from every corner of your home with 3 external high-performance antennas. Beamforming technology detects devices and concentrates wireless signal strength towards them, even if they are far away or low-powered.
TP-Link OneMesh™ :
Flexibly Create a Whole-Home Wi-Fi
OneMesh™ is a simple way to form a Mesh network with a single Wi-Fi name for seamless whole-home coverage. Just connect a OneMeshTM range extender to a OneMesh™ router. No more searching around for a stable connection.
-
Wi-Fi Dead-Zone Killer
Eliminate weak signal areas with Wi-Fi coverage for the whole house
-
Smart Roaming
Uninterrupted streaming when moving around your home
-
One Wi-Fi Name
No more switching Wi-Fi network names
-
Unified Management
Manage the whole-home Wi-Fi by managing the central node via Tether app/Web UI
-
Traditional Router with Extender
-
OneMesh™ Router + Range Extender
Connect More Devices Simultaneously
Archer A8 helps your devices achieve optimal performance by making communication more efficient with MU-MIMO technology. Multiple devices are able to send and receive data on the best available band. Enjoy non-stop entertainment on all your devices—lag free.
Advanced Security with WPA3
The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.
Increased Efficiency in Wi-Fi Distribution
Smart Connect helps your router automatically switch each device's connection to the best available Wi-Fi band while Airtime Fairness prevents older devices from slowing down your network. With both, everyone can enjoy a smoother, lag-free W-Fi experience.
- Airtime Fairness
- Smart Connect
Full Gigabit Ports

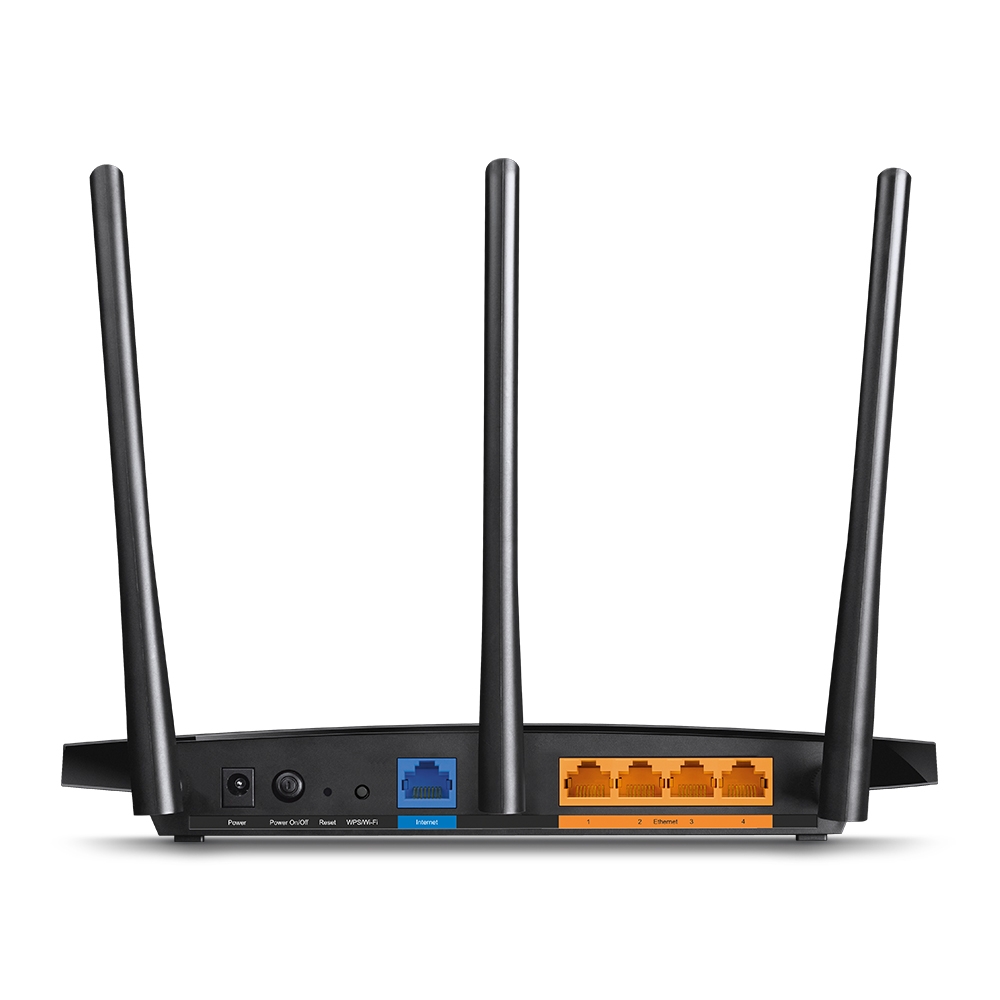

Gigabit Ethernet ports (1 WAN+ 4 LAN) deliver maximum wired speeds. Plug in your PCs, smart TVs, and game consoles for fast and reliable connections.
Desktop IPTV Computer NasPersonalize Your Home Network
Archer A8 provides a wealth of advanced tools for personalized management.
Parental Controls
Block inappropriate content and set daily limits for how much time your children spend online with Parental Controls.
Guest Network
Guest Network creates a separate Wi-Fi for guests, ensuring your privacy is secure.
Easy Setup at Your Fingertips
Set up Archer A8 in minutes via its intuitive web interface or the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device.
-
IPv6
SupportedCompatible with the most recent version of the Internet Protocol—IPv6
-
IPTV
Improve your IPTV streaming experience with IGMP Proxy/Snooping Bridge and Tag VLAN
-
Quality of
ServicePrioritizes devices to give a faster performance where you need it
-
Cloud
ServiceReceive software updates and control your router remotely through your cloud account
| 무선 | |
|---|---|
| 표준 | Wi-Fi 5IEEE 802.11ac/n/a 5 GHzIEEE 802.11n/b/g 2.4 GHz |
| WiFi 속도 | AC19005 GHz: 1300 Mbps (802.11ac)2.4 GHz: 600 Mbps (802.11n) |
| WiFi 범위 | 3 Bedroom Houses 3× Fixed High-Performance AntennasMultiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi range |
| WiFi 처리량 | Medium Dual-BandAllocate devices to different bands for optimal performance3×3 MU-MIMOSimultaneously communicates with multiple MU-MIMO clientsAirtime FairnessImproves network efficiency by limiting excessive occupation |
| 작동 모드 | Router ModeAccess Point Mode |
| 보안 | |
|---|---|
| 네트워크 보안 | SPI FirewallAccess ControlIP & MAC BindingApplication Layer Gateway |
| 게스트 네트워크 | 1× 5 GHz Guest Network1× 2.4 GHz Guest Network |
| 무선 암호화 | WEPWPAWPA2WPA/WPA2-Enterprise (802.1x)WPA3 |
| 하드웨어 | |
|---|---|
| 프로세서 | 1.2 GHz Single-Core CPU |
| 이더넷 포트 | 1× Gigabit WAN Port4× Gigabit LAN Ports |
| 버튼 | WPS/Wi-Fi ButtonPower On/Off ButtonReset Button |
| 전원 | US Version:12 V ⎓ 1.5 AEU Version:12 V ⎓ 1 A |
| 소프트웨어 | |
|---|---|
| 프로토콜 | IPv4IPv6 |
| OneMesh™ | OneMesh™ SupportedWithout replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More>All OneMesh Products> |
| 자녀 보호 | URL FilteringTime Controls |
| WAN 타입 | Dynamic IPStatic IPPPPoEPPTPL2TP |
| QoS(서비스 품질) | QoS by Device |
| 클라우드 서비스 | OTA Firmware UpgradeTP-Link IDDDNS |
| NAT 포워딩 | Port ForwardingPort TriggeringDMZUPnP |
| IPTV | IGMP ProxyIGMP SnoopingBridgeTag VLAN |
| DHCP | Address ReservationDHCP Client ListServer |
| DDNS | TP-LinkNO-IPDynDNS |
| 관리 | Tether AppWebpageCheck Web Emulator> |
| 기타 | |
|---|---|
| 시스템 요구사항 | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access) |
| 인증 | FCC, CE, RoHS |
| 작동환경 | Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
| 테스트 데이터 | |
|---|---|
| WiFi 전송 전력 | CE: <20dBm(2.4 GHz)<23dBm(5.15 GHz~5.25 GHz)FCC:<30dBm(2.4 GHz & 5 GHz) |
| WiFi 수신 감도 | 5 GHz:11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm2.4 GHz:11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm11n VHT20_MCS0:-97dBm, 11n VHT20_MCS8:-72dBm11n VHT40_MCS0:-92dBm, 11n VHT40_MCS9:-67dBm |
| 패키지 | |
|---|---|
| 크기 (가로 x 세로 x 높이) | 9.6 × 6.4 × 1.3 in(243 × 160.6 × 32.5 mm) |
| 구성품 | Wi-Fi Router Archer A8Power AdapterRJ45 Ethernet CableQuick Installation Guide |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
‡Use of MU-MIMO requires clients to also support MU-MIMO.
