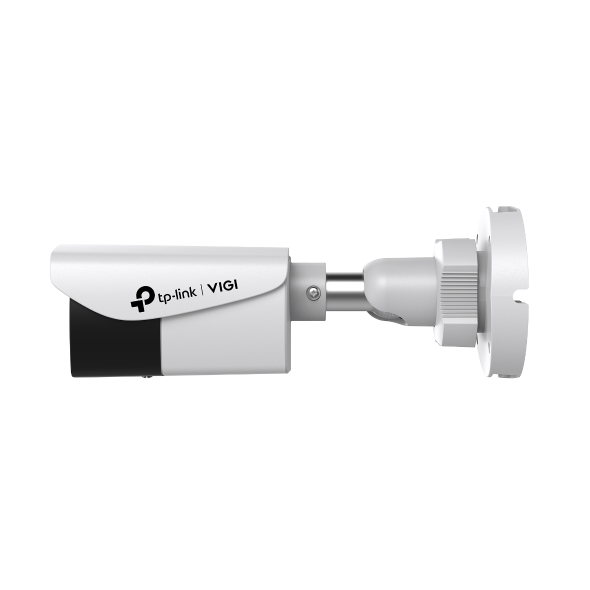

VIGI C340

VIGI 4MP Outdoor Full-Color Bullet Network Camera

4MP Super-High Definition and 24h Full-Color
Human & Vehicle Classification
Smart Detection
Smart Video Enhancement Technology
Active Defense and Two-Way Audio
IP67 Waterproof
H.265+ Compression Technology

All The Colors, All The Time.

4MP Outdoor Full-Color Bullet Network Camera

VIGI C340

High Definition
Full-Color
Human & Vehicle
Classification
Smart Detection
Two-Way Audio
Active Defense
Smart Video
Coding
IP67
Weatherproof

Human & Vehicle Classification

Distinguish humans and vehicles from other objects and receive more accurate event notifications.

Learn more about VIGI AI technology >>

Human & Vehicle Classification
Only Human Classification On
Only Vehicle Classification On

Alarm Triggered

Alarm Filtered

Alarm Triggered

Alarm Filtered

Alarm Triggered

Alarm Filtered

Smart Video Enhancement Technology

DWDR: Enhances video quality by improving dynamic range and detail presentation, making it perform excellently in diverse lighting conditions.
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures neutral whites in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology

H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.*

KAMERA
Bildsensor	1/3” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Mindestlichtstärke	0.005 Lux; 0 Lux with IR/white light
Tag/Nacht-Mechanismus	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto

LENS
Type	Fixed Focal Lens
Focal Length	2.8 mm/4 mm/6 mm
Aperture	2.8 mm: F1.6 4 mm: F1.6 6 mm: F1.6
FOV	• 2.8mm: Horizontal FOV: 96.1°, Vertical FOV: 52°, Diagonal FOV: 113.6° • 4mm: Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2° • 6mm: Horizontal FOV: 49.3°, Vertical FOV: 26.8°, Diagonal FOV: 57.4°
Lens Mount	M12
DORI Distance	• 2.8 mm Detect: 64 m (209 ft) Observe: 27 m (87 ft) Recognize: 13 m (42 ft) Identify: 6 m (21 ft) • 4 mm Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) • 6 mm Detect: 128 m (420 ft) Observe: 53 m (175 ft) Recognize: 26 m (84 ft) Identify: 13 m (42 ft)

Angle Adjustment (Manual)
Range	• Pan: 0° to 360° • Tilt: 0° to 90° • Rotation: 0° to 360°

ILLUMINATOR
IR LED	• Quantity: 2 • Range: 30m • Wavelength: 850nm
White LED	• Quantity: 2 • Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off

VIDEO
Max. Resolution	2560 X 1440
Main Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 640x480, 352x288, 320x240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	• Main Stream: 256 Kbps to 4 Mbps • Sub-Stream: 64 Kbps to 512 Kbps

Image Settings	• Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software • Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes

AUDIO
Audiokommunikation	Two-Way Audio
Audioeingang	Yes
Audioausgang	Yes
Audiokompression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)

NETZ
Protokoll	• TCP/IP • UDP • ICMP • HTTP • HTTPS • DHCP, DNS, RTSP • NTP • UPnP • SSL/TLS • FTP/SFTP • RTP • IPv4 • IPv6 • ARP
ONVIF	Yes
API	Open Network Video Interface (Profile S)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, Web UI
Web Browser	• Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above
Cloud	Yes
Sicherheit	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

ALARM- UND EREIGNISVERARBEITUNG
Smart Event	• Human & Vehicle Classification • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Abnormal Sound Detection • People Detection • Vehicle Detection
Basic Event	• Motion Detection • Video Tampering Detection • Exception ( Illegal Login)
Alarm Linkage	• Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing
Linkage Method	N/A
Output Notification	Message Push

SCHNITTSTELLEN
Ethernet-Schnittstelle	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB**
Built-in Microphone	Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker	Yes
Audio	N/A

ALLGEMEIN
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Verpackungsinhalt	• VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories
Material	Plastic
Net Weight	0.34 Kg
Gross Weight	0.50 Kg
Power Supply	• 12V DC ± 5%, Max. 7 W, 5.5mm Coaxial Power Plug • PoE: 802.3af/at, class 0, Max. 8 W
Protection	IP67 Waterproof
Product Dimensions (L x W x H)	78.5× 188.0 × 71.5 mm (3.09× 7.40× 2.81 in)
Certifications	CE, NTRA, VCCI, KC, BSMI, FCC, IC

Sie können die Informationen der weiteren Versionen in Support finden.

*Calculations based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables.

*Micro SD card is not included in the package.
