Festa FS308GP
8-Port Gigabit Smart Switch with 4-Port PoE+

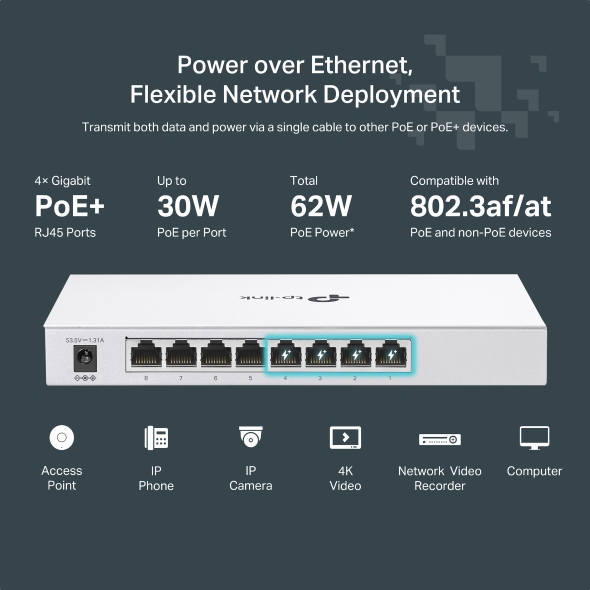

- 8× Gigabit ports (4× 802.3at/af-compliant PoE+ ports)
- 62W total PoE budget with up to 30W PoE output per port*
- Complete business-class Festa Ecosystem with consumer-inspired simplicity
- Free cloud centralized management via the Festa app or the web†
- Easy setup and management
- Zero-Touch Provisioning (ZTP) and Self-Organizing Networking (SON)
- Static Routing, VLAN, ACL, and IGMP Snooping
- Fanless design for silent operation

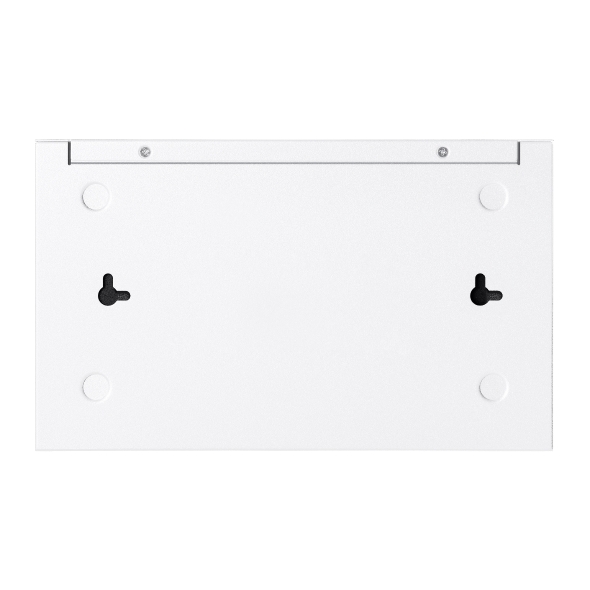

- Elegant metal casing and desktop/wall mounting design











HARDWARE FEATURES | |
---|---|
Interface | • 8× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at PoE+ and 802.3af PoE) • Auto-Negotiation/Auto MDI/MDIX |
Fan Quantity | Fanless |
Physical Security Lock | √ |
Power Supply | External Power Adapter (Output: 53.5 VDC/ 1.31 A) |
Max. Power Consumption | • Max Power Consumption: 77.3 W (110 V/60 Hz) (with 62 W PD connected) • Standby Power Consumption: 2.8 W (110V/60 Hz) |
PoE Ports (RJ45) | • Standard: 802.3af/at compliant • PoE Ports: 4 Ports • Power Supply: 62 W* |
Dimensions ( W x D x H ) | 8.2×4.9×1.0 in (209×126×26 mm) |
Mounting | Desktop / Wall-Mounting |
PERFORMANCE | |
---|---|
Switching Capacity | 16 Gbps |
Packet Forwarding Rate | 11.90 Mpps |
MAC Address Table | 8k |
Packet Buffer Memory | 4.1 Mbit |
Jumbo Frame | 9 KB |
SOFTWARE FEATURES | |
---|---|
L2 and L2+ Features | • 16 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay • DHCP L2 Relay • Spanning Tree • Loopback Detection • Flow Control • 802.1ab LLDP/ LLDP-MED |
Advanced Features | • IGMP Snooping • Rate Limit • Storm Control • Port Isolation |
VLAN | √ |
Access Control List | • Time-Range - Time Slice - Week Time-Range - Absolute Time-Range • Combined ACL - Source MAC(Subnet Mask) - Destination MAC(Subnet Mask) - VLAN ID - EtherType - Source IP(Subnet Mask) - Destination IP(Subnet Mask) - IP Protocol - TCP/UDP Source Port - TCP/UDP Destination Port • IPv6 ACL • Rule Operation - Permit/Deny • Binding - Port Binding - VLAN Binding |
IPv6 | √ |
Link Aggregation | √ |
Management Features | |
---|---|
Centralized Management | • Festa App • Festa Web Portal |
Cloud Access | Free Cloud Access |
Management Features | • Zero-Touch Provisioning (ZTP) • Self-Organizing Network (SON) • Auto Topology • Multi-site Management • Remote Maintenance • Batch Firmware Upgrading • Batch Configuration • Integrated Troubleshooting Tools • Monitor Network Status • Access Condition Logs and Alerts |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Content | • Festa FS308GP • Power Adapter • Installation Guide • Silicone Feet |
System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
†Festa currently offers free cloud access for centralized management and reserves the right to apply fees in the future.
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
