PSM200-AC
Coming Soon200 W AC Power Supply Module
- Up to 200 watts output power
- Output over-voltage/under-voltage/short circuit/over-current protection
- Hot swappable
- Suitable for OLT DS-P7500-16
What This Product Does

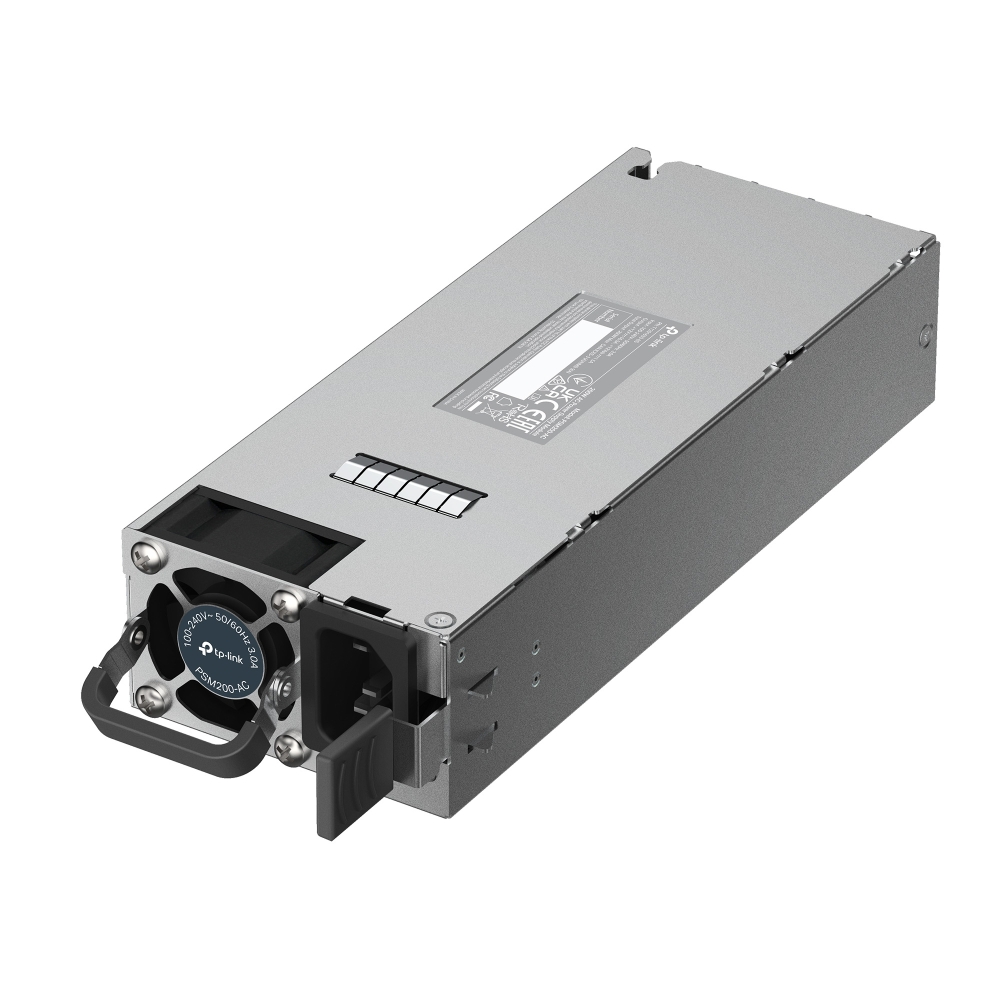

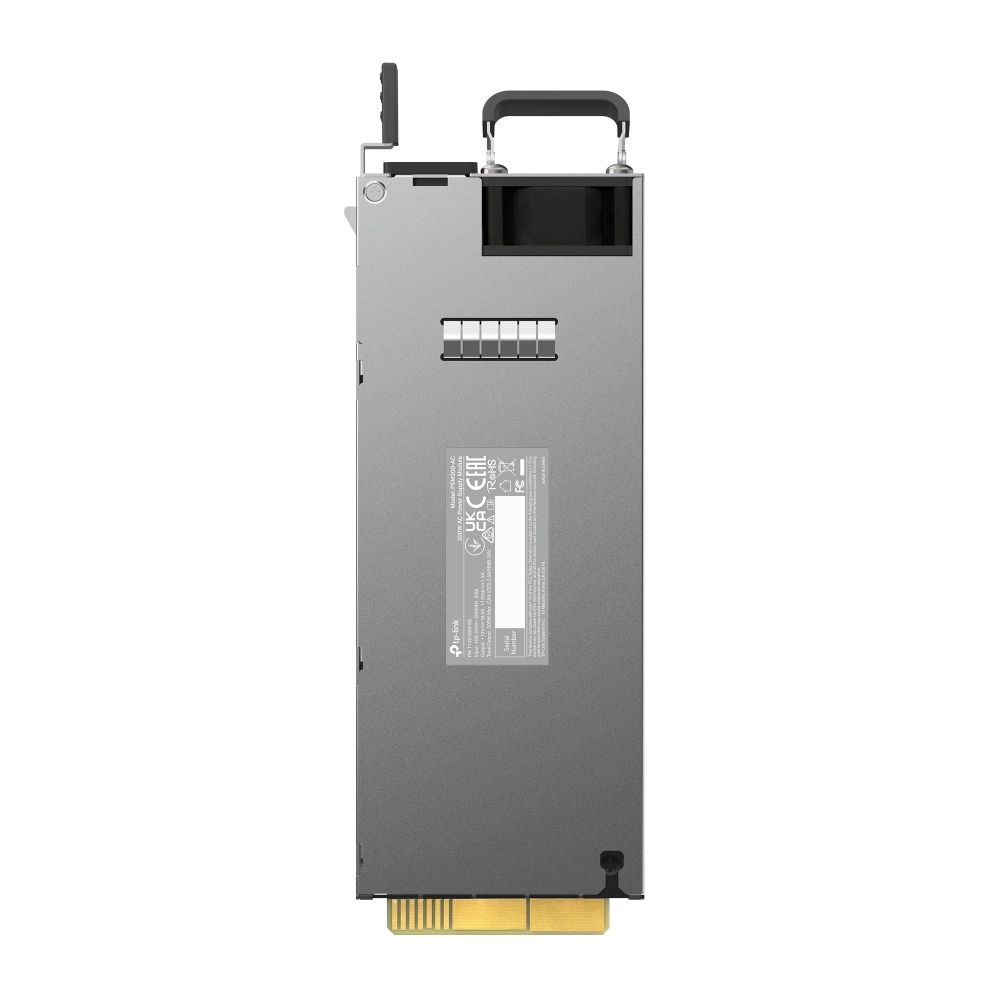

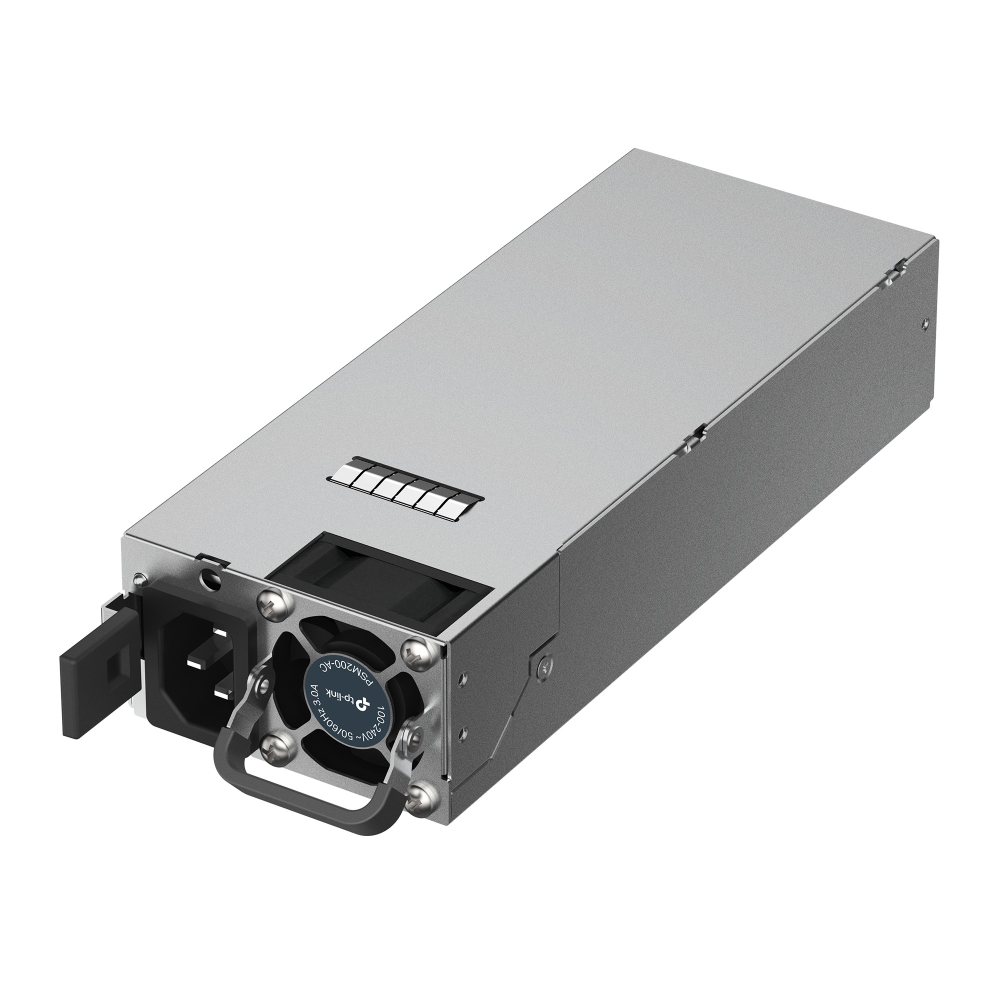

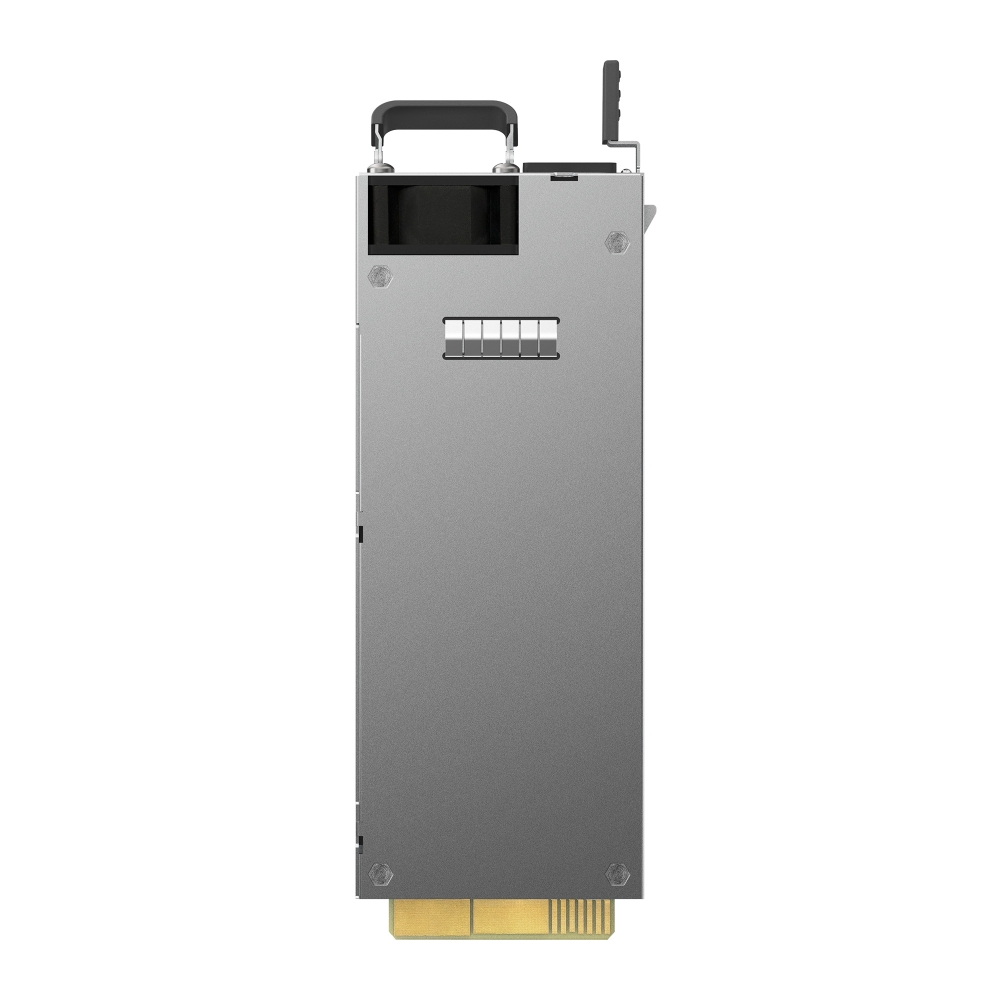

The TP-Link Power Supply Module PSM200-AC is an AC-input and DC-output power supply module. It can convert the input voltage to 12 Volts with the maximum output power of 200 Watts. The power supply module is fully hot swappable, ensuring no system interruption during installation or replacement. PSM200-AC is applicable to TP-Link OLT products, such as DS-P7500-16.
| AC Power Input | 100VAC–240VAC, 50Hz/60Hz |
|---|---|
| DC Power Output | 12V/16.5A12Vsb/1.5A |
| Surge Protection | ±6 kV |
| Dimensions ( W x D x H ) | 73.5 × 185 × 40 mm(2.9 × 7.3 × 1.6 in) |
| LED | 1× Multi-function indication LED |
| Max. Power Output | 200 W |
| Environment | Operating Temperature: 0℃–50℃ (32℉–122℉)Storage Temperature: -40℃–70℃ (-40℉–158℉)Operating Humidity: 10%–90% non-condensingStorage Humidity: 5%–90% non-condensing |
