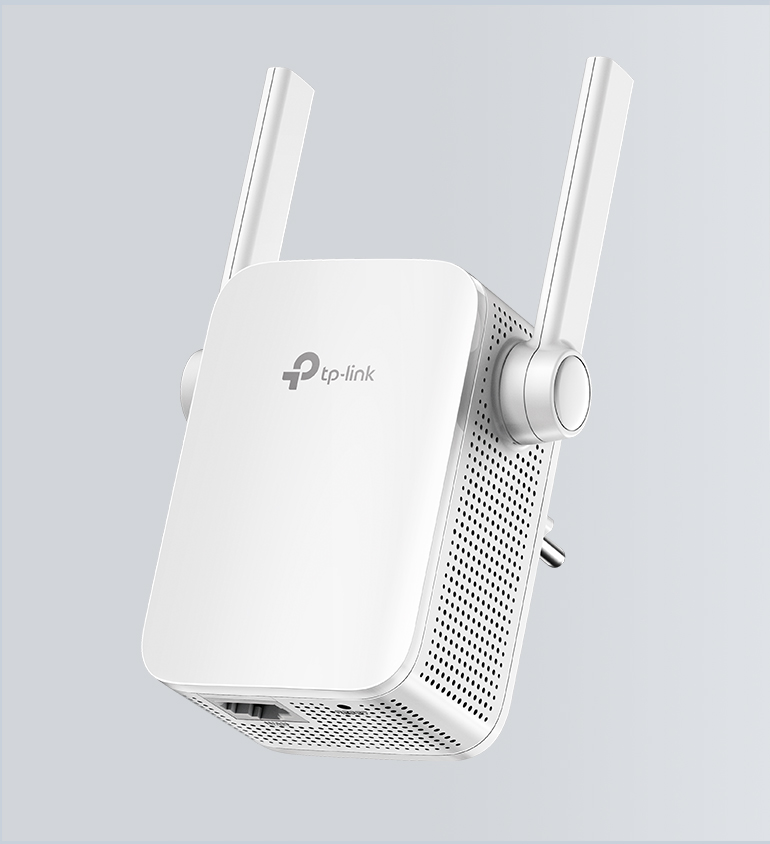

RE205

AC750 Wi-Fi Range Extender

  • Brings Wi-Fi dead zone to life with strong Wi-Fi expansion at combined speed of up to 750Mbps
  • Operates over both the 2.4GHz band(300Mbps) and 5GHz band(433Mbps) for more stable wireless experience
  • Intelligent signal light helps to fi­nd the best location for optimal Wi-Fi coverage by showing the signal strength
  • Works with any Wi-Fi router or wireless access point

Stable Dual Band Wi-Fi Extension
to Bring Dead Zones to Life

AC750 Wi-Fi Range Extender
RE205

Easily Expand Your Wi-Fi Coverage

Tired of Wi-Fi dead zones in your home? The RE205 Range Extender connects to your Wi-Fi router wirelessly, strengthening and expanding its signal into areas it can’t reach on its own, while reducing signal interference to ensure reliable Wi-Fi coverage throughout your home or office.

High-Speed Dual Band Wi-Fi for Better Connections

The RE205 lets you keep more devices connected at the same time with its 2.4GHz 300Mbps and 5GHz 433Mbps dual bands. Use the 2.4GHz band to send email and browse the web, and the 5GHz band for gaming and HD streaming.

300Mbps
2.4GHz Band
433Mbps
5GHz Band

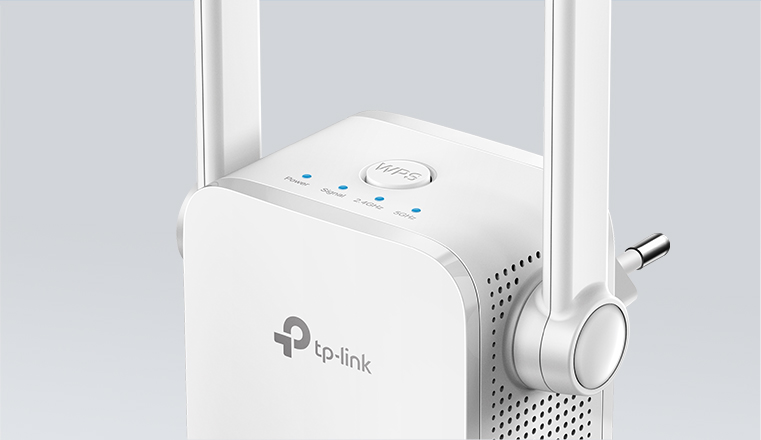

Perfect Location at a Glimpse

An Intelligent Signal light helps you quickly find the best location to install the RE205.

Blue
Good
connection
Red
Too far away
from the router

Built-in Access Point Mode

RE205 is more than a wireless range extender. Simply plug the Ethernet cable into its Ethernet port to easily turn your wired internet connection into a dual band wireless access point.

Easy Management and Remote Control

The RE205 works with all Wi-Fi routers. You can use TP-Link's free Tether app to set up the range extender from any Android or iOS device in minutes. This feature-rich phone app allows you to enjoy not only hassle-free installation, but also access to advanced network management, all at your fingertips.

WIRELESS
Working Modes Range Extender/Access Point
HARDWARE FEATURES
Standards and Protocols IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b
Plug Type EU, UK, US
Interface 1 x 10/100M Ethernet Port (RJ45)
Ports 1 x 10/100Mbps Ethernet Port (RJ45)
Button WPS Button, Reset Button
Input Power 100-240V~50/60Hz
Power Consumption 7.3W(max power consumption)
Dimensions ( W x D x H ) 3.1 x 3.0 x 3.0 in. (80 x 78 x 77mm)
Antenna 2 x external
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency 2.4GHz & 5GHz(11ac)
Signal Rate 5GHz:Up to 433Mbps
2.4GHz:Up to 300Mpbs
Working Modes Range Extender/Access Point
Reception Sensitivity 5GHz:
11a 6Mbps: -94dBm@10% PER
11a 54Mbps: -77dBm@10% PER
11ac HT20: -69dBm@10% PER
11ac HT40: -66dBm@10% PER
11ac HT80: -63dBm@10% PER

2.4GHz
11g 54Mbps: -79dBm@10% PER
11n HT20: -77dBm@10% PER
11n HT40: -74dBm@10% PER


Wireless Modes Range Extender/Access Point
Wireless Statistic
Concurrent Mode boost both 2.4G/5G Wi-Fi band
Wireless Functions Wireless Statistic
Concurrent Mode boost both 2.4G/5G Wi-Fi band
Access Control
LED Control
Domain Login Function
Wireless Security 64/128-bit WEP
WPA-PSK / WPA2-PSK
Transmission Power <19.5dBm(2.4GHz)
<19.5dBm(5GHz)

OTHERS
Certification CE, FCC, RoHS
Package Contents AC750 Wi-Fi Range Extender RE205
Quick Installation Guide
Box Dimensions (W X D X H) 6.15 x 4 x 3.7 in. (156.5 x 101.5 x 95mm)
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.

The product may not be compatible with routers or gateways with firmware that has been altered, is based on open source programs, or is non-standard or outdated.
