Archer TX3000E V1 User Guide

Chapter 2 Connect to a Computer

This chapter introduces how to connect the adapter to your computer.

Please note that images are for demonstration only.

1.Turn off your computer, unplug the power cable then remove the case panel.

2.Connect the provided Bluetooth USB cable to the adapter.

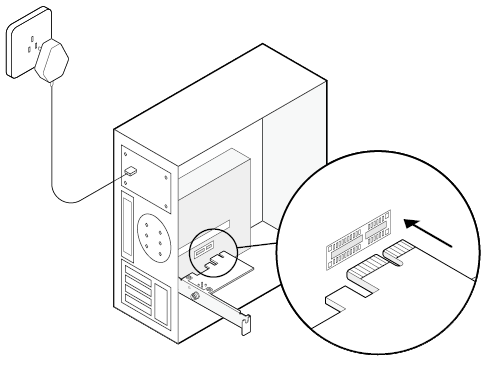

3.Locate an available PCIE X1 slot and carefully insert the adapter.

Tip:

If the bracket is not suitable for your computer, detach it from the adapter’s board and replace it with the low-profile bracket.

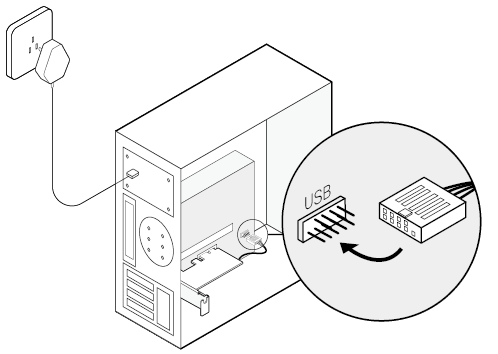

4.Locate an available F_USB connector and carefully plug the Bluetooth USB cable into it.

Note:

If the Bluetooth USB cable is not correctly connected to the motherboard, Bluetooth function won’t work even after driver installation.

5.Install the antennas on the magnetized antenna base, then connect the base to the adapter.

Tip:

To maximize performance, avoid physical obstructions in the path between your antennas and router.

6.Replace the case panel, plug in the power cable and turn on your computer.

After connecting your adapter to the computer, follow the instructions in the next chapter to install Wi-Fi and Bluetooth drivers.
