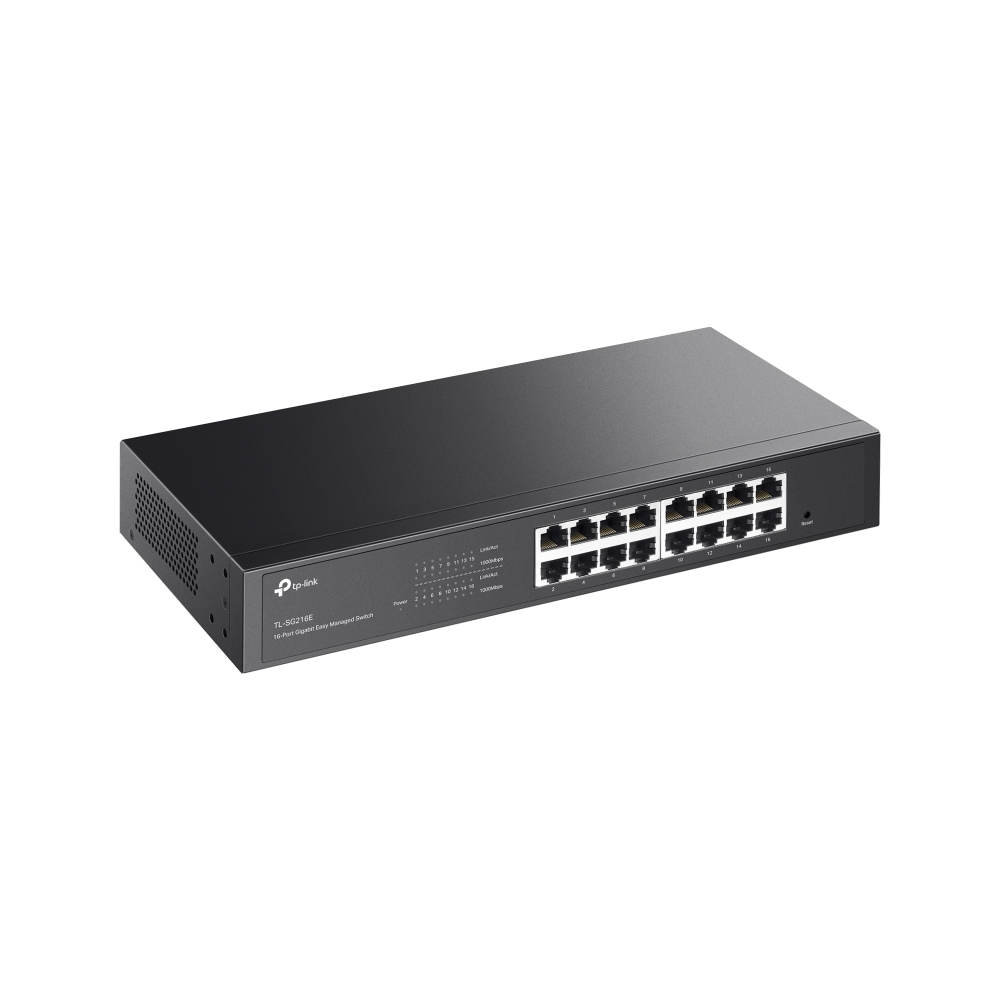

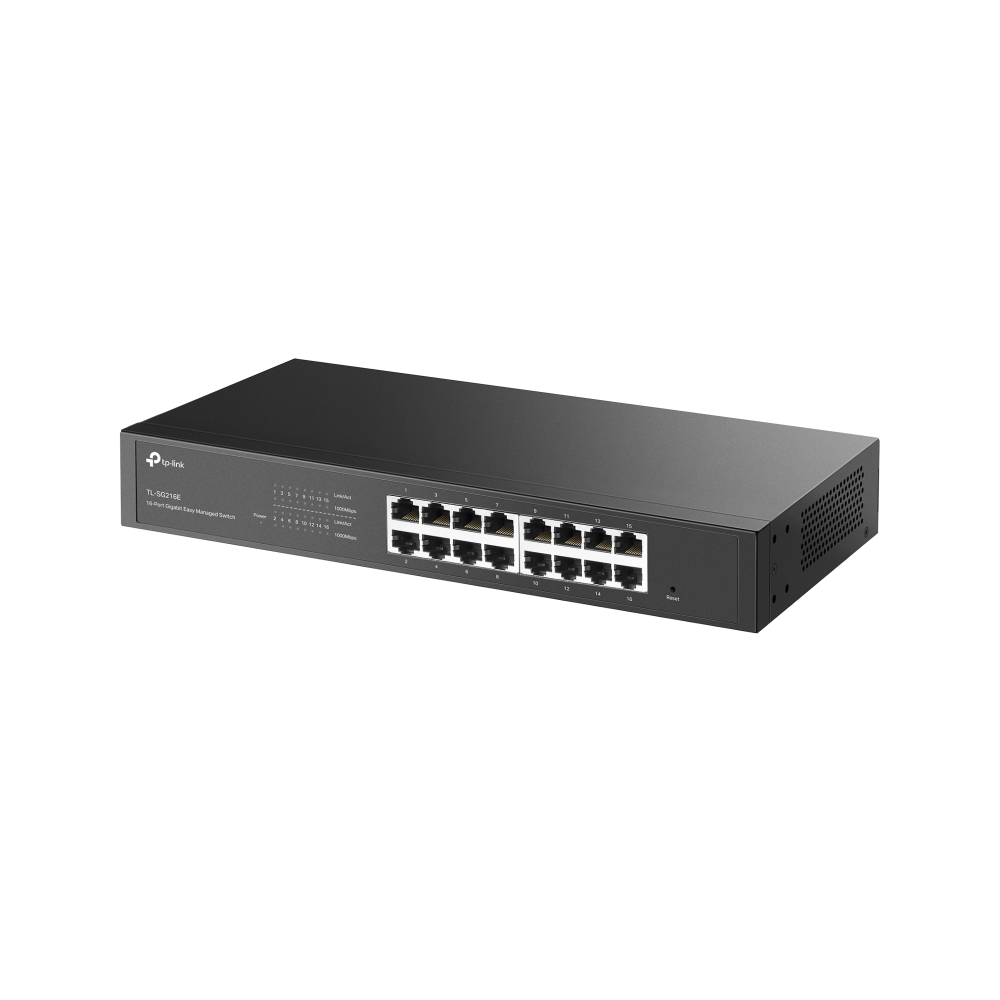

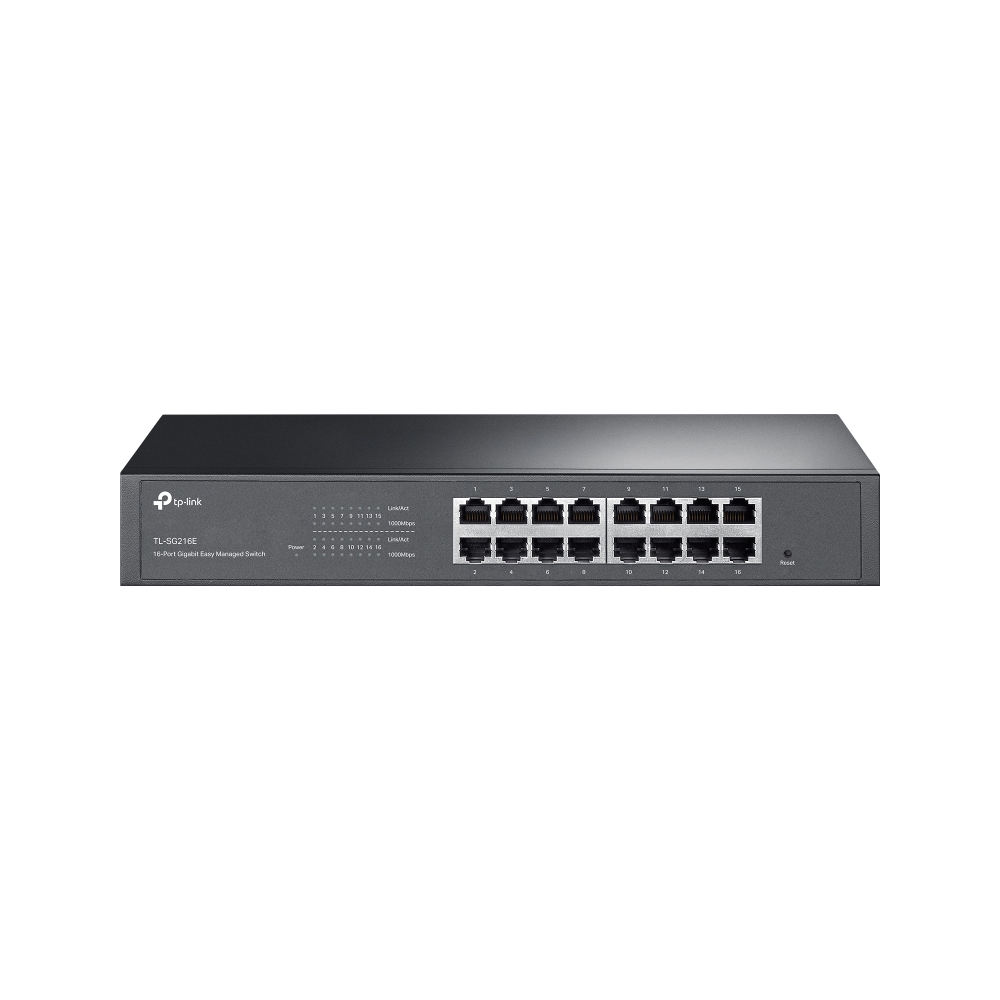

TL-SG216E
New16-Port Gigabit Easy Managed Switch
- 16× 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or app†
- VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
- Automatic Loop Prevention and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/rack mounting design
16-Port Gigabit Easy
Managed Switch
-
16× Gigabit
RJ45 Ports -
Fanless Design for
Silent Operation -
Compact
Metal Casing -
Easy Centralized
Management† -
Traffic
Separation -
Traffic
Prioritization -
Automatic Loop
Prevention -
Cable Test△

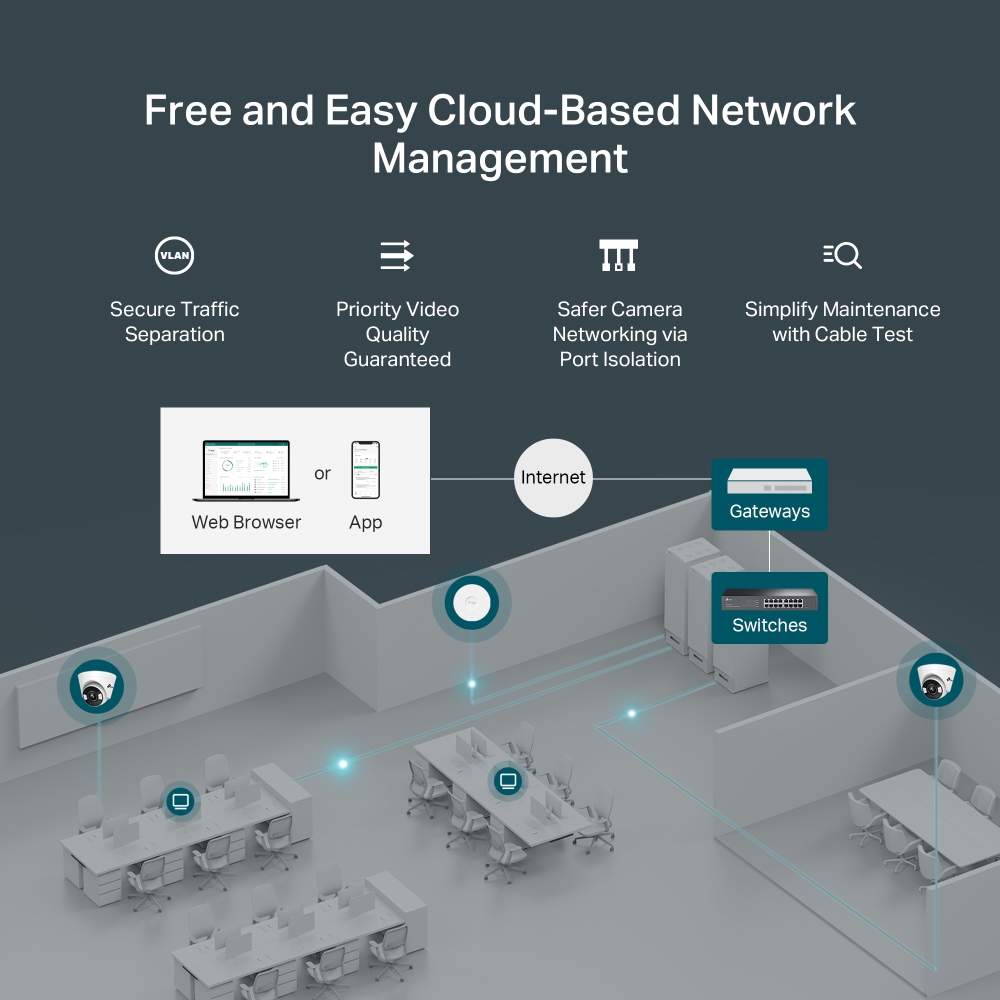

Enjoy Simple and Free Cloud Management—Effortless Deployment, Operation, and Troubleshooting
A free cloud-managed network offers smoother performance and easier control than an unmanaged network. Effortlessly manage and monitor your network anytime, anywhere via app or browser—ideal for small businesses.
Web Browser
Or
App
Cloud Access
Internet
Gateways
Access Points
Switches
-
Lifetime Free Cloud Without Additional Fees
-
Manage and Monitor Anytime via App or Web
-
Unlimited Management Scale for Multiple Sites
-
Comprehensive Managed Portfolio
-
Super-Easy Setup with Automatic Device Identification and ZTP
-
Easy-to-Use Networking, including Remote Device Reboot
-
Free Video Monitoring Including Third-Party Camera Management‡
-
Topology, Site Map, and Troubleshooting Tools for Efficient Maintenance
Abundant Functions for Reliable Networking
-
Secure Traffic Separation
-
Priority Video Quality Guaranteed
-
Safer Networking via Port Isolation
-
Simplify Maintenance with Cable Test△

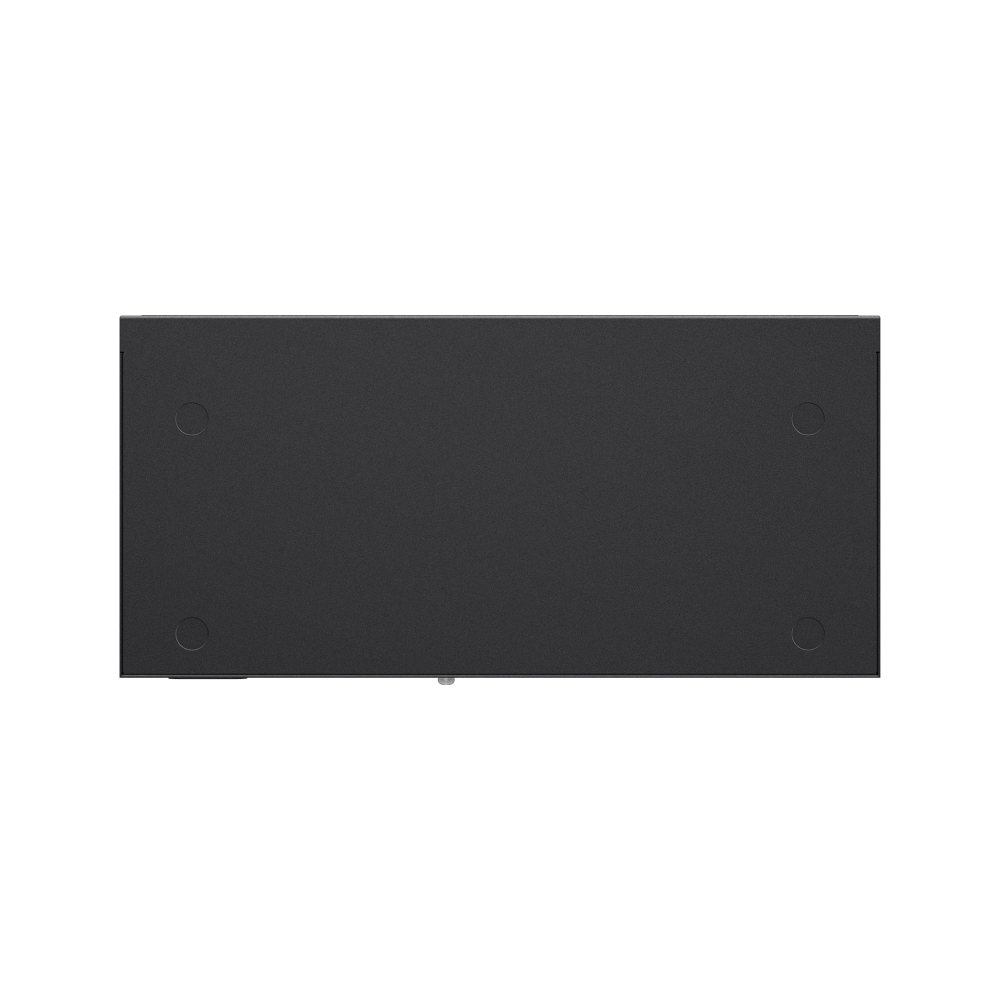

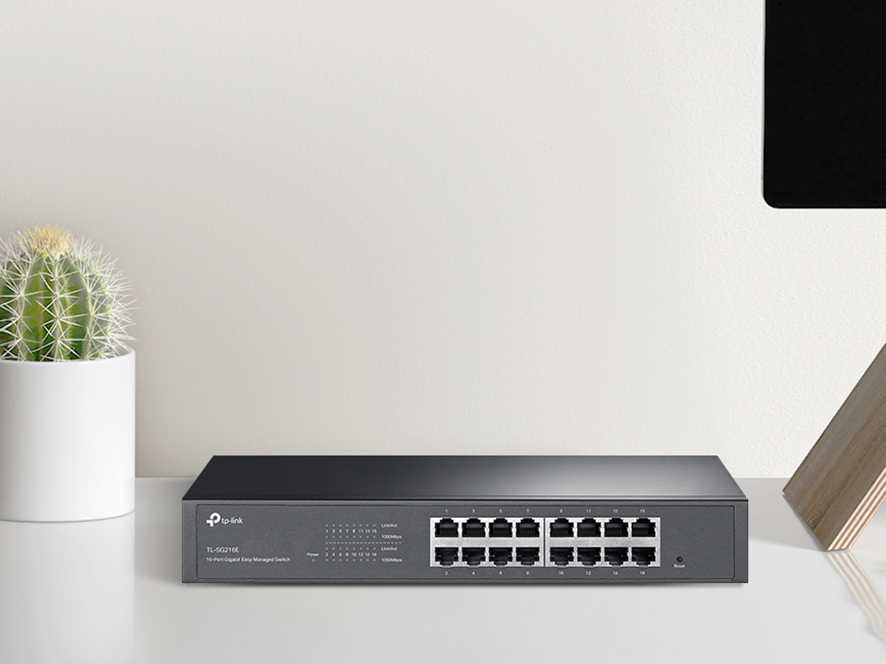

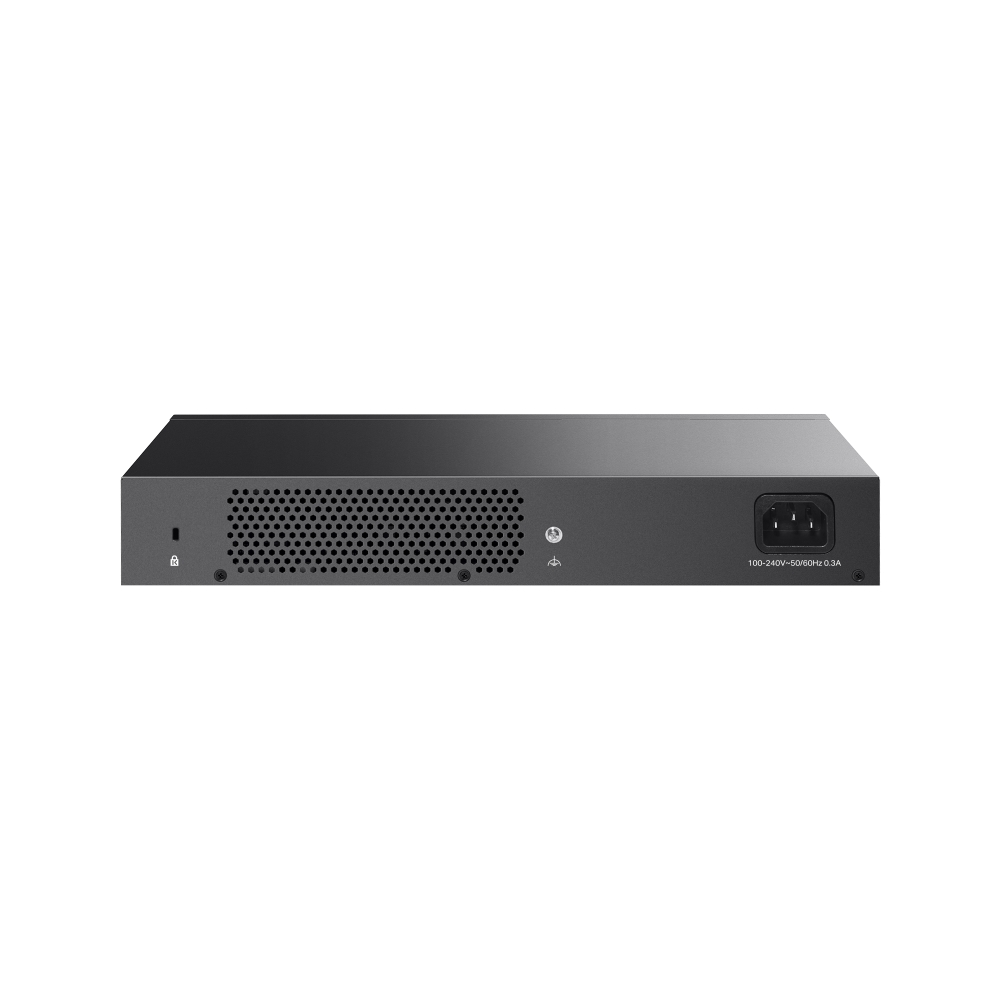

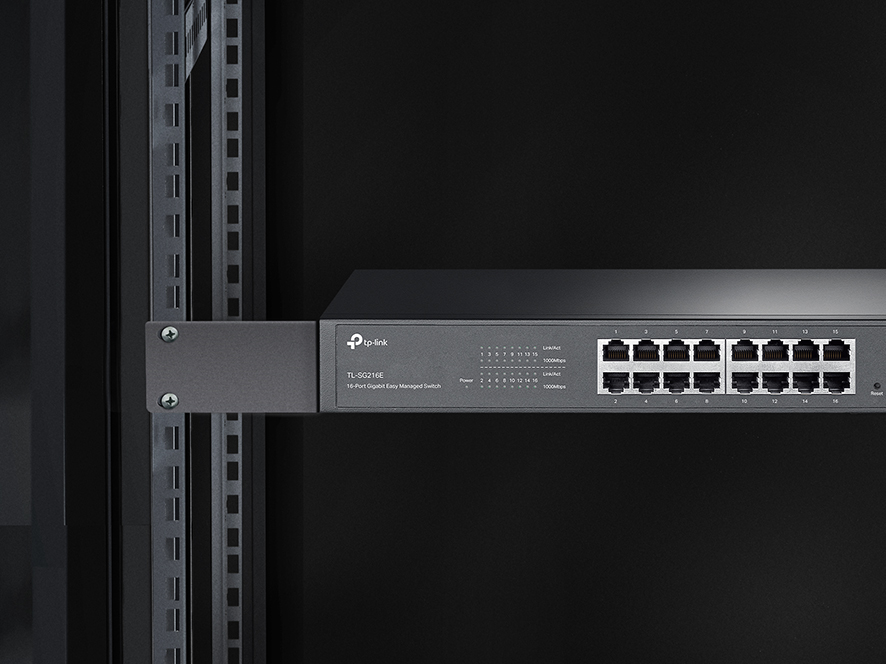

Compact and Durable Metal Casing, Featuring Desktop/Rack Mounting and a Fanless Design
Multiple Application Scenarios
-
Small Business
Work with PCs and Printers
-
Home Office
Work with PCs and NAS
-
Entertainment
Work with IPTVs and Game Consoles
| Interface | • 16× 10/100/1000 Mbps RJ45 Ports• Auto-Negotiation/Auto MDI/MDIX |
|---|---|
| Fan Quantity | Fanless |
| Installation | • Desktop• Rackmountable |
| Physical Security Lock | √ |
| Power Supply | 100-240 V~50/60 Hz |
| Dimensions ( W x D x H ) | 11.6 × 5.5 × 1.7 in (294× 140 × 44 mm) |
| Surge Protection | ±6kV |
| Switching Capacity | 32 Gbps |
|---|---|
| Packet Forwarding Rate | 23.8 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Quality of Service | • Port-based/802.1p/DSCP QoS• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control△ |
|---|---|
| L2 Features | • Static Link Aggregation• Loop Prevention / Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave |
| VLAN | • MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID |
| Transmission Method | Store-And-Forward |
| Omada App | Yes † |
|---|---|
| Centralized Management | Yes † |
| Cloud Access | Yes † |
| Zero-Touch Provisioning | Yes † |
| Management Features | • Web-based GUI• DHCP Client• Cable Diagnostics• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration† |
| Certification | FCC, CE, RoHS |
|---|---|
| Package Content | • TL-SG216E• Power Cord• Rubber Feet• Mounting Brackets• Screws• Installation Guide |
| Environment | • Operating Temperature: -5℃~50℃ (23℉~122℉)• Storage Temperature: -40℃~70℃ (-40℉~158℉)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing |
†These functions require the use of the Omada Controller.
△Cable Test and Port Qos are supported under Standalone Mode.
‡Omada Central can manage third-party cameras that support ONVIF Profile S, but they must be connected through a VIGI NVR.
