InSight LPR345Z

เร็ว ๆ นี้

VIGI 4MP Outdoor License Plate Recognition Bullet Network Camera

ระบบจดจำป้ายทะเบียน
ซูมออปติคอล 5 เท่าเพื่อการติดตั้งที่ง่ายดาย
ความคมชัดระดับ 4MP
การมองเห็นกลางคืนแบบสีเต็มรูปแบบ
มีอินเทอร์เฟซเสียงและสัญญาณเตือนให้เลือก
ไมโครโฟนในตัว
เทคโนโลยีการปรับปรุงวิดีโออัจฉริยะ
สามารถกันน้ำและฝุ่นละอองระดับ IP67 และมีคุณสมบัติทนต่อการกระแทกระดับ IK10
เทคโนโลยีการบีบอัดไฟล์วิดีโอแบบ H.265+

CAMERA
Image Sensor	1/2.9” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto

LENS
Type	Motorized Varifocal Lens
Focal Length	2.7-13.5 mm (5X Optical Zoom)
Aperture	F1.6
FOV	2.7-13.5 mm: • Horizontal FOV: 29.6°-102.0° • Vertical FOV: 16.8°-53.8° • Diagonal FOV: 34.1°-122.8°
Lens Mount	Φ14
DORI Distance	2.7-13.5 mm: • Detect: 66-207 m (217-579 ft) • Observe: 28-86 m (92-282 ft) • Recognize: 13-41 m (43-135 ft) • Identify: 7-21 m (23-69 ft)

Angle Adjustment (Manual)
Range	Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

ILLUMINATOR
Illuminator On/Off Control	Auto/Scheduled/Always off
Integrated Infrared-White LED	• Quantity: 4 • IR Range: xx ft (xx m) • White LED Range: xx ft (xx m) • Wavelength: 740 nm

VIDEO
Max. Resolution	2688 x 1520
Main Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps, 35fps • Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080
Sub-Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240
Bit Rate Control	CBR, VBR
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	• Main Stream: 256 Kbps to 6 Mbps • Sub-Stream: 64 Kbps to 1024 Kbps

Image Settings	• Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • White Balance
Image Enhancement	BLC/3D DNR
Wide Dynamic Range	120 dB
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes

AUDIO
Audio Input	Built-in Microphone Audio In Interface
Audio Output	Audio Out Interface
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)

NETWORK
Protocol	TCP/IP, UDP, ICMP, ARP, SNMP, SMTP, RTMP, HTTP, HTTPS, DHCP, DNS, RTSP, RTP, NTP, IPv4, IPv6, UPnP, SSL/TLS, FTP/SFTP
ONVIF	Yes
API	Open Network Video Interface (Profile S/T/G)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	Web UI
Web Browser	• Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X authentication

ALARM AND EVENT MANAGEMENT
Smart Event	N/A
Basic Event	• Motion Detection • Camera Tampering • Exception ( Illegal Login)
Alarm Linkage	• Push Notifications

Deep Learning Function
ANPR	• Support up to 100,000 blocklist and allowlist Supported Vehicle Attributes: • License plate

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	1 Alarm In, 1 Alarm Out
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*
Built-in Microphone	Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker	N/A
Audio	1 Audio In, 1 Audio Out

GENERAL
Operating Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Storage Temperature	-40 °C to 60 °C (-40 °F to 140 °F)
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)

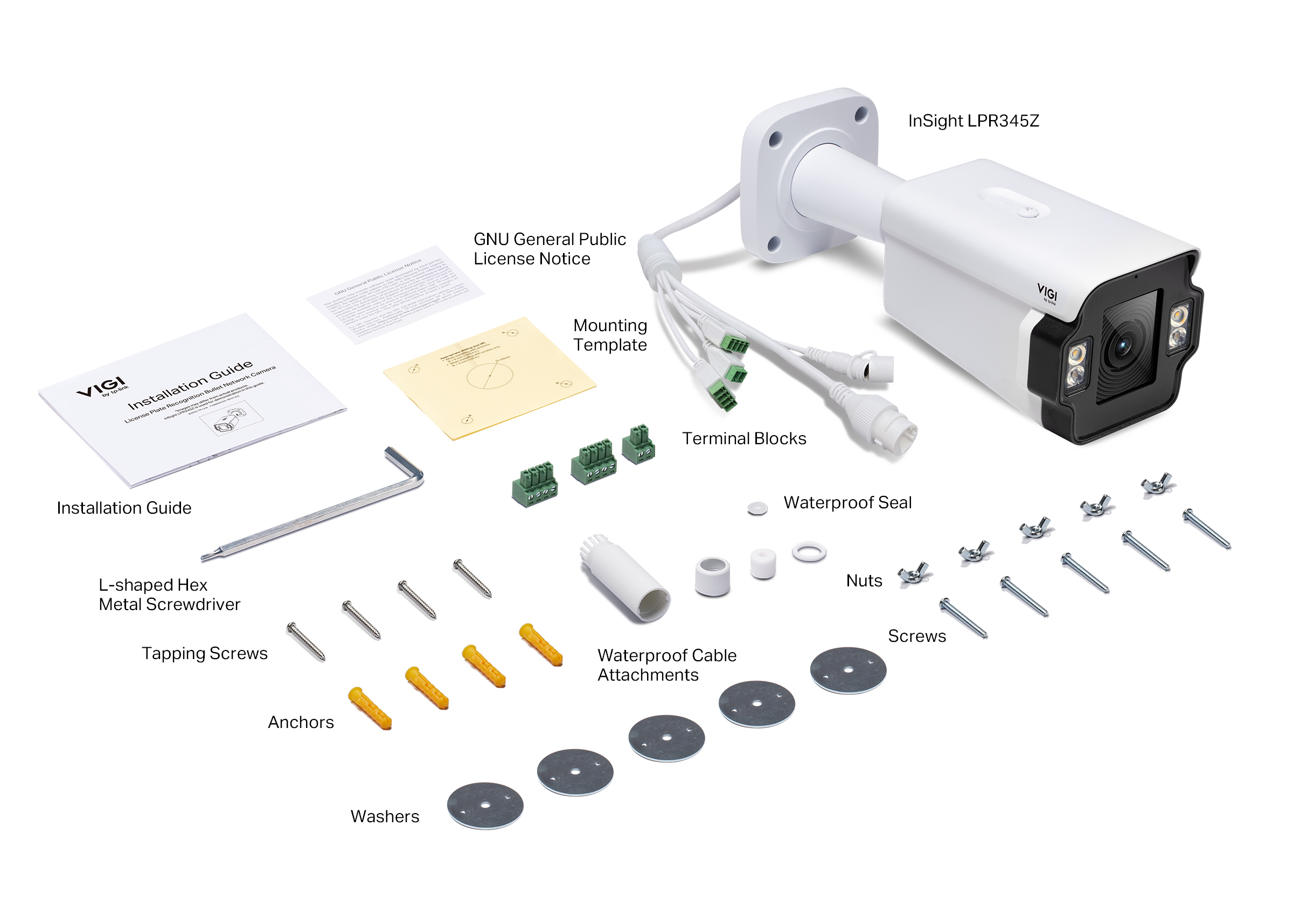

Package Content	• VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories
Material	Metal
Net Weight	1.07 Kg
Power Supply	• 12V DC ± 5%, Max.10.8 W, 5.5 mm Coaxial Power Plug • PoE: 802.3af, class 0, Max.xx W
Protection	IP67 Weatherproof, IK10 Vandal Proof
Product Dimensions (L x W x H)	10.1 × 3.9 × 4 in (256 × 100 × 101 mm)
Certifications	CE, NTRA, KC, FCC, IP67, IC, IK10, VCCI, BSMI, ONVIF

สำหรับข้อมูลเวอร์ชันเพิ่มเติม โปรดไปที่หน้าการสนับสนุน

*การ์ด micro SD และชุดติดตั้งเสาไม่รวมอยู่ในแพ็คเกจ
