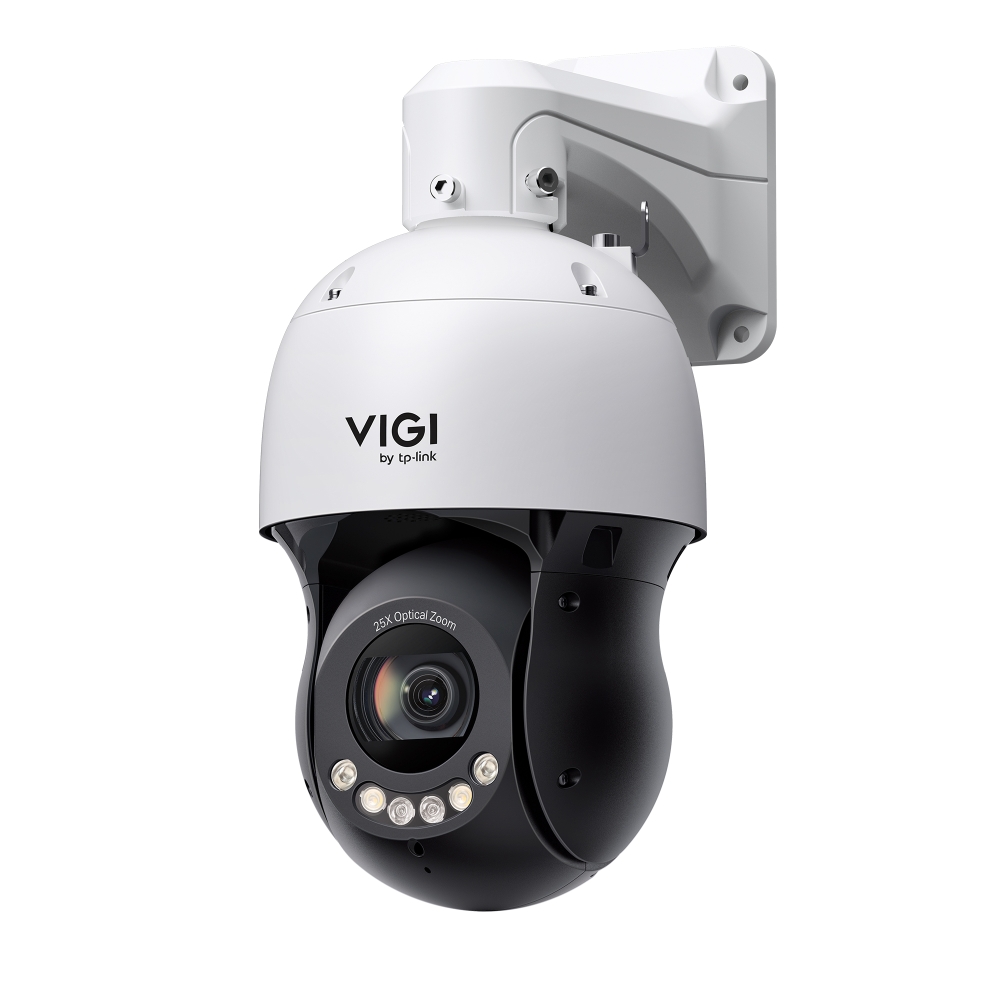

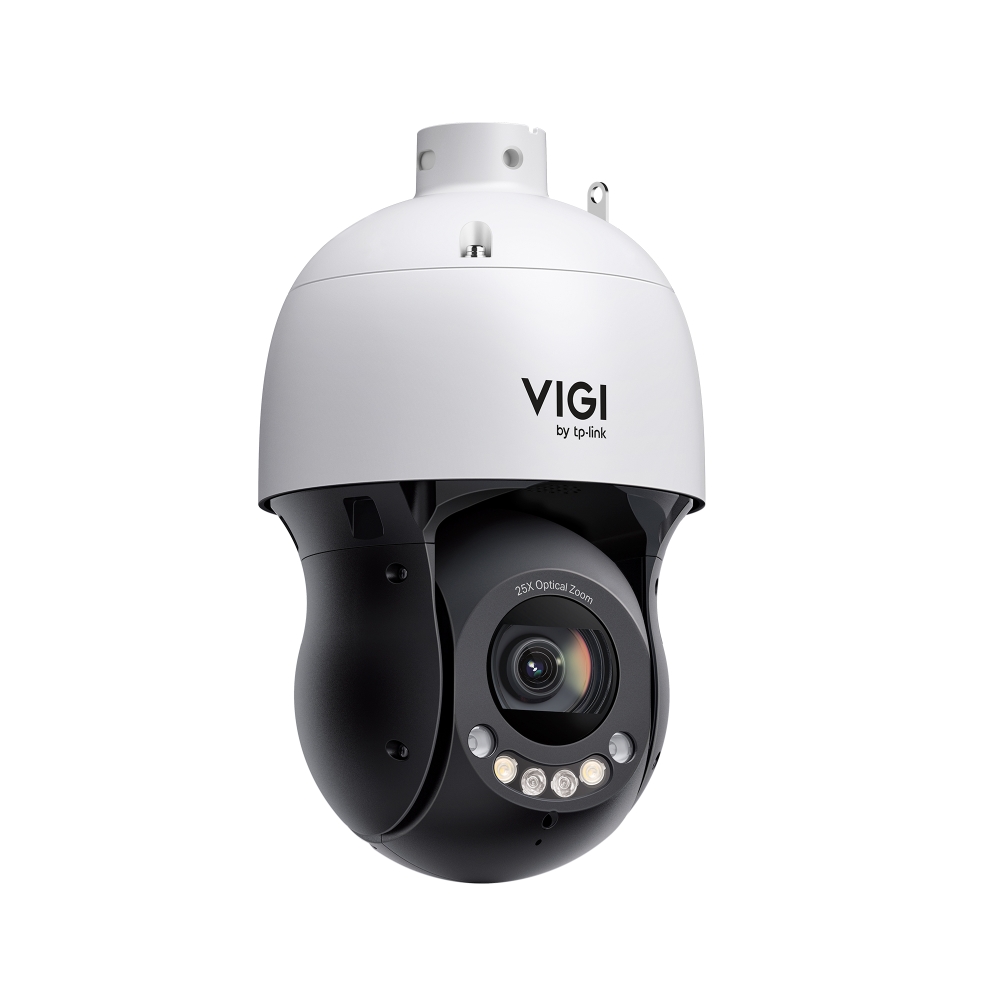

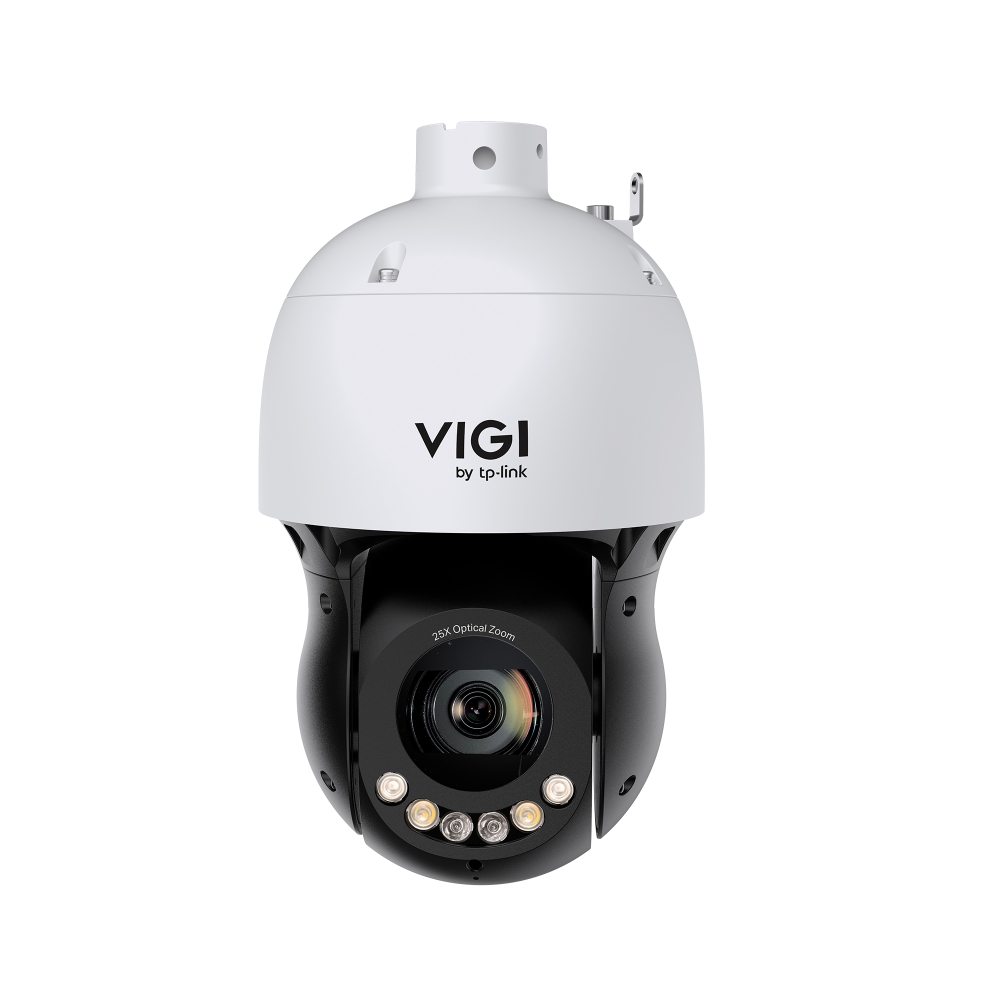

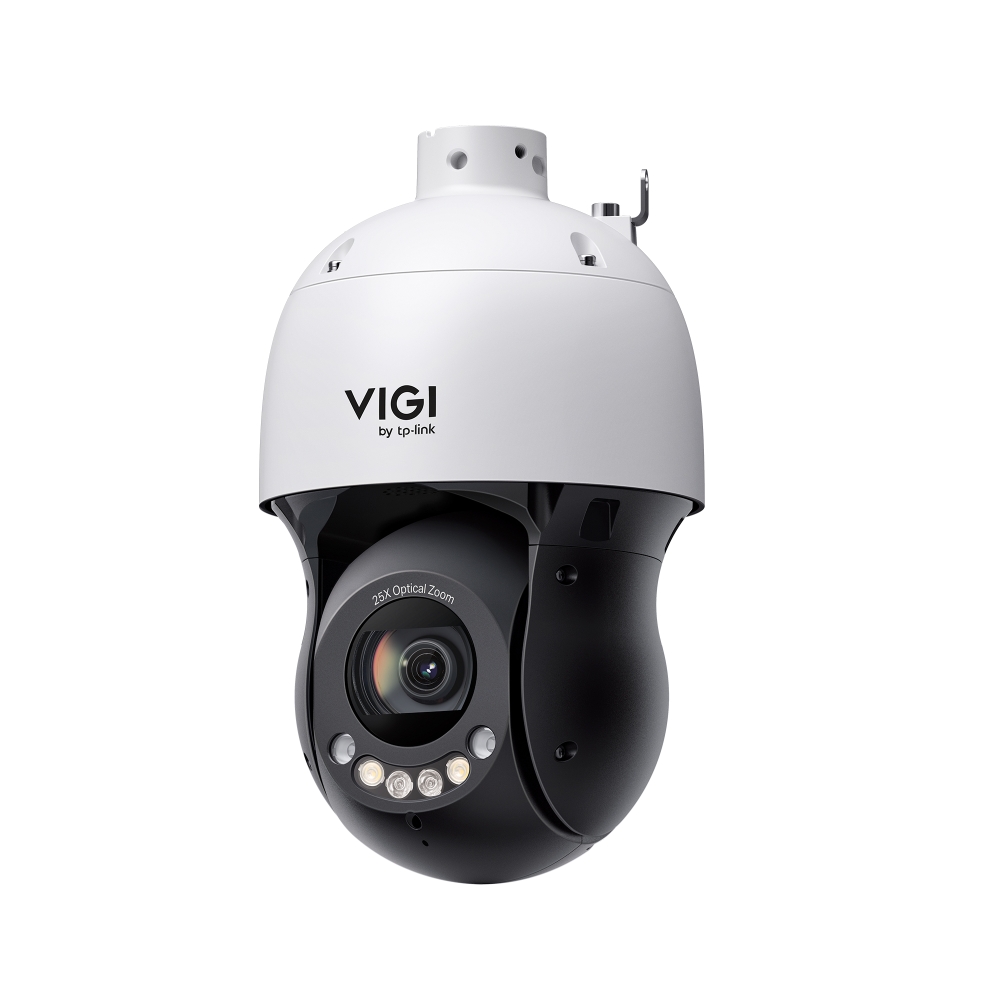

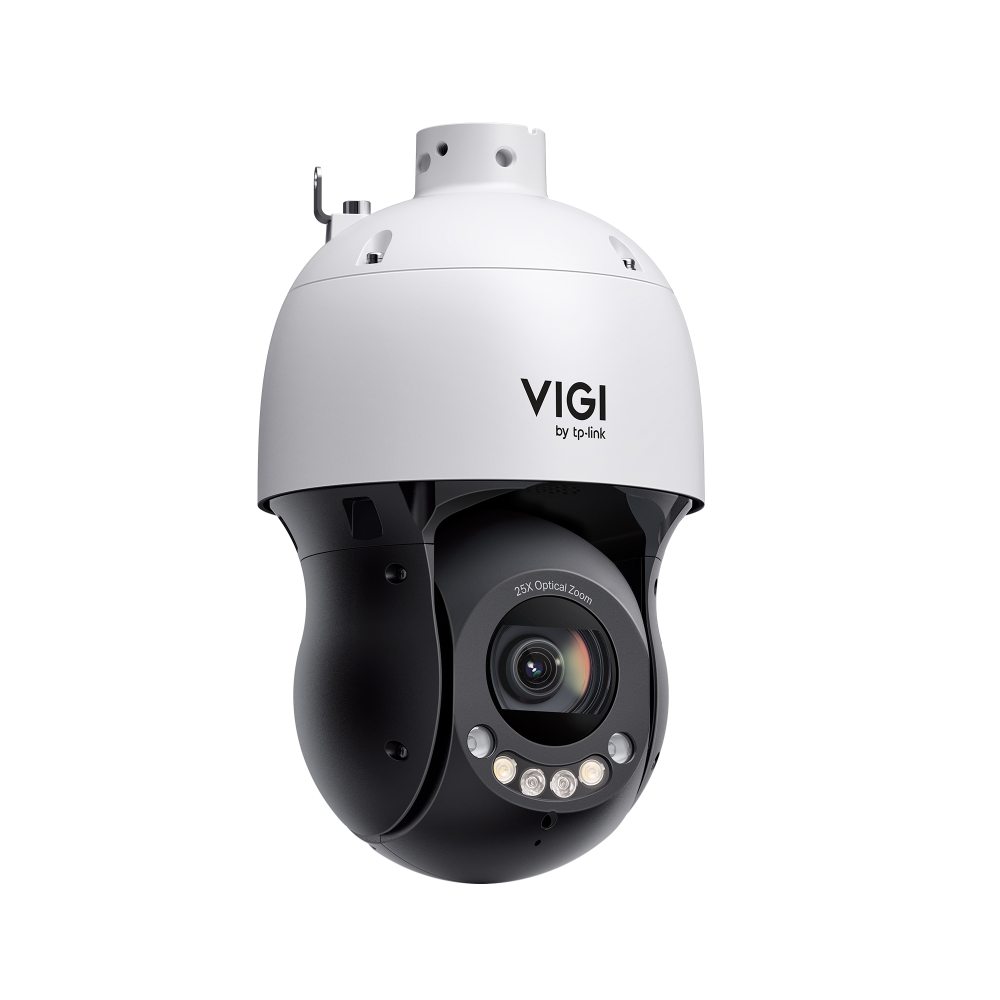

VIGI 5-inch 4MP 25X Full-Color Network Speed Dome

360° Wide-Area Coverage
25X Optical Zoom & 16X Digital Optical Zoom
Intelligent Auto Tracking
Up to 240°/S Pan Speed
Red & Blue Flashing Lights and Sirens
People & Vehicle Attributes Analytics^‡
Human & Vehicle Classification
Smart Detection
Smart Video Enhancement Technology
Audio and Alarm Interface Available
IP66 Weatherproof / K08 Vandal-Proof / 6kV Lightning Protecting
Digital Defog / Bulit-in Lens Heater
H.265+ Compression Technology

CAMERA
Image Sensor	1/2.9” Progressive Scan CMOS
Shutter Speed	1/3 to 1/30000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified / Scheduled / Auto

LENS
Type	Motorized Varifocal Lens
Focal Length	5.2-130 mm (25X Optical Zoom)
Aperture	Max. F1.6
FOV	• Horizontal FOV: 2.30°-57.06° • Vertical FOV: 1.31°-32.74° • Diagonal FOV: 2.63°-65.01
DORI Distance	Wide • D: 351 ft (107 m) • O: 144 ft (44 m) • R: 69 ft (21 m) • I: 36 ft (11 m) Tele • D: 8530 ft (2600 m) • O: 3553 ft (1083 m) • R: 1706 ft (520 m) • I: 853 ft (260 m)

PTZ
Pan/tilt Range	Pan: 0° to 360°, Tilt: -23.6° to 97.8°
Pan/tilt Speed	Pan Speed: • Configurable from 0° to 160°/s • Preset Speed: 240°/s Tilt Speed: • Configurable from 0° to 120°/s • Preset Speed: 200°/s
Proportional Pan	Yes
Presets	300
Patrol Scan	8 patrols, up to 8 presets for each patrol
Pattern Scan	32 path
Power-off Memory	Yes
Park Action	Yes Preset, Patrol Scan, Pattern Scan, Home
3D Positioning	Yes
PTZ Status Display	Yes
Preset Freezing	Yes
Scheduled Task	Yes
PTZ Protocol	Pelco-D, Pelco-P

Angle Adjustment (Manual)
Range	Pan: 0° to 360°, Tilt: -23.6° to 97.8°

ILLUMINATOR
IR LED	• Quantity: 2 • Range: 328 ft (100 m)^† • Wavelength: 850 nm
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
Integrated Infrared-White LED	• Quantity: 2 • White LED Range: 164 ft (50 m)^†

VIDEO
Max. Resolution	2688x1520
Main Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps, 30fps • Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280
Sub-Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps, 30fps • Resolution: 840x480, 704x576, 640x480, 640x360, 352x288, 320x240
Third Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps,15fps, 20fps, 25fps, 30fps • Resolution: 1920x1080, 1280x960, 1280x720, 848x480, 704x576
Bit Rate Control	CBR, VBR
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 • Third-stream: H.265/H.264/MJPEG
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	• Main Stream: 4096 Kbps to 16384 Kbps • Sub-Stream: 128 Kbps to 2048 Kbps • Third Stream: 768 Kbps to 16384 Kbps

Image Settings	• Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • IR Light Intensity • HLC Adjustable • Low Illuminator
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	120 dB
Defog	Digital Defog
Image Stabilization	EIS
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	8 Regions
OSD Setting	Yes

AUDIO
Audio Communication	Two-Way Audio
Audio Input	Built-in Microphone Audio In Interface
Audio Output	Built-in Speaker Audio Out Interface
Audio Compression	Yes
Audio Sampling Rate	8 KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)

NETWORK
Protocol	TCP/IP, UDP, ICMP, ARP, SNMP, SMTP, RTMP, HTTP, HTTPS, DHCP, DNS, RTSP, RTP, NTP, IPv4, IPv6, UPnP, SSL/TLS, FTP/SFTP
ONVIF	Yes
API	Open Network Video Interface (Profile G/S/T)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams & 3 Third-streams
Client	VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
Web Browser	• Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X Authentication

ALARM AND EVENT MANAGEMENT
Smart Event	• Intrusion Detection • Line Crossing Detection • Region Entering Detection • Region Exiting Detection • Loitering Detection • Human Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection
Basic Event	• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Camera Tampering • Exception (Illegal Login)
Alarm Linkage	• Memory Card Video Recording • Upload Capture • Alarm Output Device • Push Notifications • Send to Alarm Server • Active Defence-Sound Alarm • Active Defence-Light Alarm • Email Alarm • Smart Tracking
Smart Tracking	• Intelligent Auto Tracking (Human/Vehicle/Event-Triggered) • Manual Tracking (Joystick Support)

Deep Learning Function
People & Vehicle Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.^‡

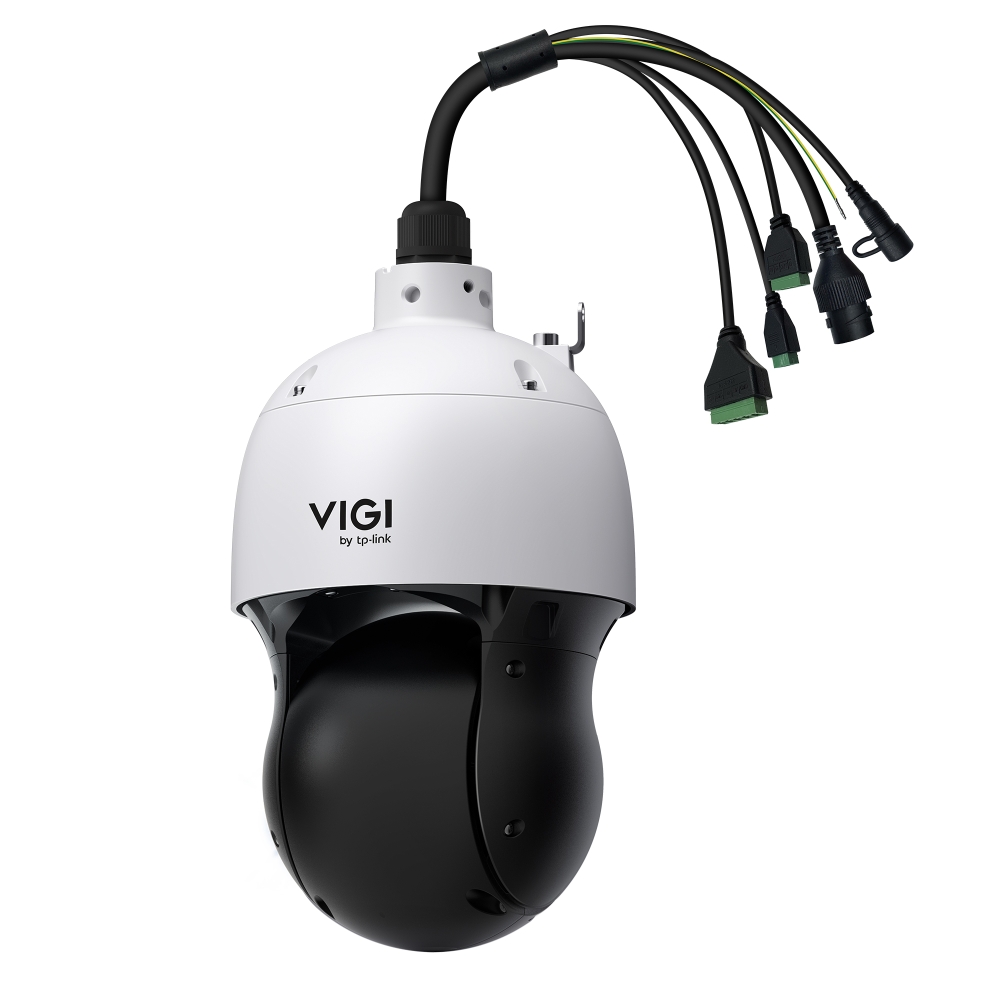

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	2 Alarm In, 1 Alarm Out Red/Blue Warning Lights
Reset Button	Yes
Power	DC Power Port
RS-485 Port	Yes
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*
Built-in Microphone	Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker	Yes
Audio	1 Audio In, 1 Audio Out

GENERAL
Operating Temperature	-30 °C to 65 °C (-22 °F to 149 °F)
Storage Temperature	-40 °C to 65 °C (-40 °F to 149 °F)
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)

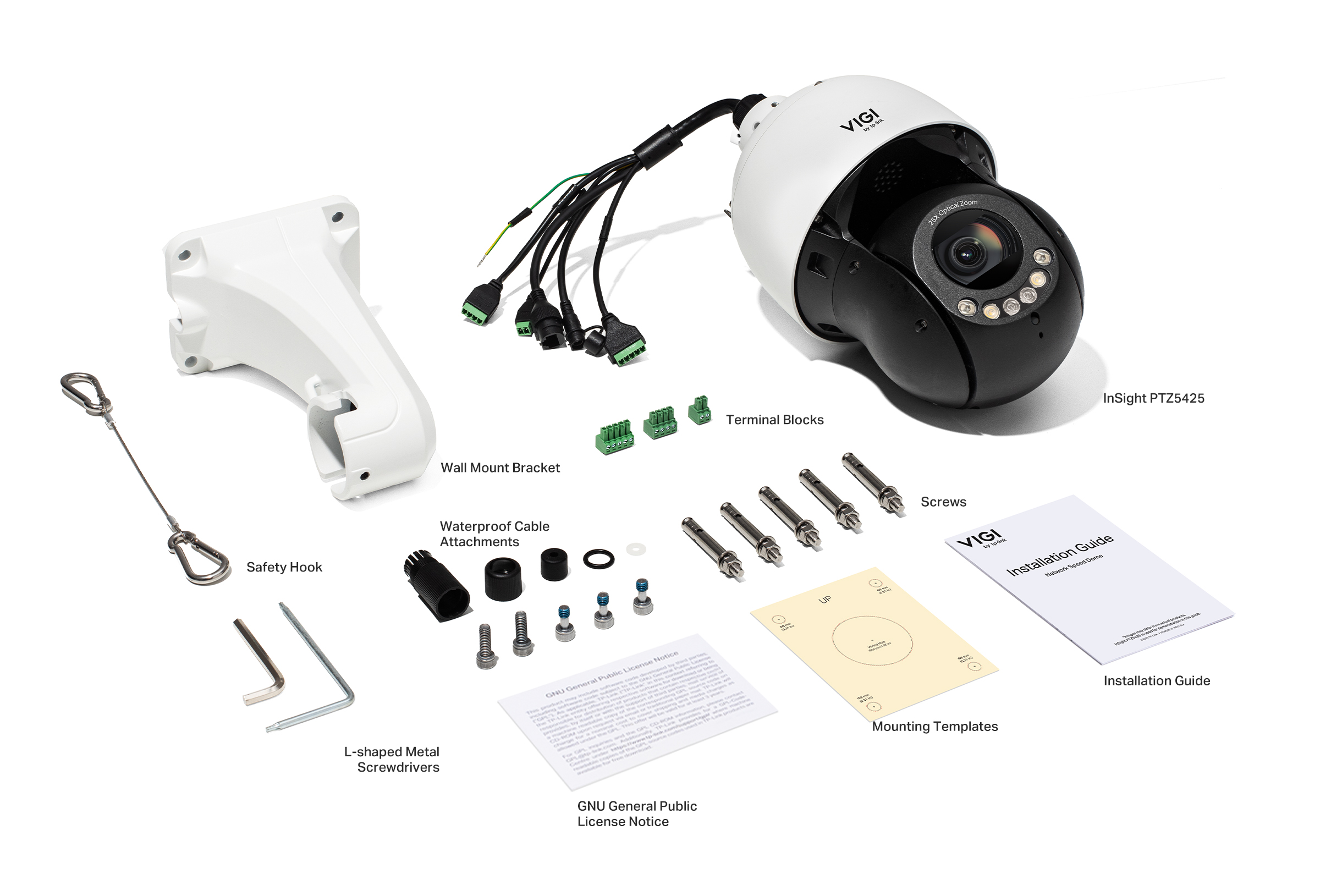

Package Content	• VIGI Network Camera • Installation Guide • Waterproof Cable Attachments • Mounting Accessories
Material	Metal
Net Weight	2.8 kg
Power Supply	DC • 12V DC ± 5%, Max. 21.6 W, 5.5 mm Coaxial Power Plug • Recommended Power Supply: PoE • PoE: 802.3at, Class 4, Max. 24.7 W ErP Information • Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 9.2W
Protection	• IP66 Weatherproof • IK08 Vandal-Proof • 6 kV Lightning Protection
Product Dimensions (L x W x H)	Φ6.3 × 10.6 in (Φ160 × 270 mm)
Certifications	CE, NTRA, VCCI, KC, BSMI, FCC, IP66, IK08, ONVIF

For additional version information, please go to the support page.

^‡This feature must be used with VIGI specified software.

*The Micro SD card and pole mounting kits are not included in the package.

^†Calculations are based on laboratory testing.Actual data is not guaranteed and will vary as a result of client limitations and environmental factors
