InSight LPR345Z
VIGI 4MP Outdoor License Plate Recognition Bullet Network Camera
- License Plate Recognition
- 5X Optical Zoom for Easy Installation
- 4MP Super-High Definition
- Full-Color Night Vision
- Audio and Alarm Interface Available
- Up to 100,000 Allowlist/Blocklist
- Recommended Recognition Range: 3-6 m (10-20 ft)
- Built-in Microphone
- Smart Video Enhancement Technology
- IP67 Weatherproof and IK10 Vandal Proof
- H.265+ Compression Technology
| CAMERA | |
|---|---|
| Image Sensor | 1/2.9” Progressive Scan CMOS |
| Shutter Speed | 1/100 to 1/1000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with White Light |
| LENS | |
|---|---|
| Type | Motorized Varifocal Lens |
| Focal Length | 2.7-13.5 mm (5X Optical Zoom) |
| Aperture | F1.6 |
| FOV | 2.7-13.5 mm:• Horizontal FOV: 29.6°-102.0° • Vertical FOV: 16.8°-53.8°• Diagonal FOV: 34.1°-122.8° |
| Lens Mount | Φ14 |
| DORI Distance | 2.7-13.5 mm:• Detect: 66-207 m (217-579 ft)• Observe: 28-86 m (92-282 ft)• Recognize: 13-41 m (43-135 ft)• Identify: 7-21 m (23-69 ft) |
| Angle Adjustment (Manual) | |
|---|---|
| Range | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| ILLUMINATOR | |
|---|---|
| White LED | • Quantity: 4 |
| Illuminator On/Off Control | Auto/Scheduled/Always off |
| VIDEO | |
|---|---|
| Max. Resolution | 2688 x 1520 |
| Main Stream | • Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080 |
| Sub-Stream | • Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264• Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 6 Mbps• Sub-Stream: 64 Kbps to 1024 Kbps |
| Image | |
|---|---|
| Image Settings | • Mirror• Brightness• Contrast• Saturation• Sharpness• Exposure• White Balance |
| Image Enhancement | BLC/3D DNR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
|---|---|
| Audio Input | Built-in MicrophoneAudio In Interface |
| Audio Output | Audio Out Interface |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
|---|---|
| Protocol | TCP/IP, UDP, ICMP, ARP, SNMP, RTMP, HTTP, HTTPS, DHCP, DNS, RTSP, RTP, NTP, IPv4, IPv6, UPnP, SSL/TLS, FTP/SFTP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile G/S/T) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | Web UI |
| Web Browser | • Google Chrome® 57 and above• Firefox® 52 and above• Safari® 11 and above• Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X authentication |
| ALARM AND EVENT MANAGEMENT | |
|---|---|
| Basic Event | • Motion Detection• Camera Tampering• Exception (Illegal Login) |
| Alarm Linkage | • Push Notifications |
| License Plate Recognition Management | |
|---|---|
| Capture Mode | • Trigger Type: Video Detection, I/O Coil• Picture Type: Scene Picture, Scene Picture + Close-up Picture• Max Recognition Distance: 8 m (26 ft) at default zoom; 15 m (49 ft) at maximum zoom• Scene Mode: Entrance & Exit |
| Capture Parameters | • Image Format: JPEG• Capture Resolution: 2560×1440• LED Control: Supports automatic light control/time control of LEDs• Smart Recognition: ANPR• Capture Picture Overlay: Capture Time, Plate Number, Vehicle Permission Type (Allowlist, Blocklist, Temporary) |
| Entrance and Exit | • Barrier Gate Control Mode: By Camera• Relay Output: 1-ch relay output, supporting opening and closing of barrier gates• Allowlist And Blocklist: Up to 100,000 allowlist and blocklist totally (recommended for use with a microSD card) |
| INTERFACES | |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | 1 Alarm In, 1 Alarm Out |
| Reset Button | Yes |
| Power | DC Power Port |
| RS-485 Port | Yes |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB* |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | N/A |
| Audio | 1 Audio In, 1 Audio Out |
| GENERAL | |
|---|---|
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Content | • VIGI Network Camera• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories |
| Material | Metal |
| Net Weight | 1.07 Kg |
| Power Supply | DC• 12V DC ± 5%, Max.10.8 W, 5.5 mm Coaxial Power Plug• Recommended Power Supply:T120100-2C1 (for EU Regions)PoE• PoE: 802.3af, class 0, Max.12.95 WErP Information• Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 2W. |
| Protection | IP67 Weatherproof, IK10 Vandal Proof |

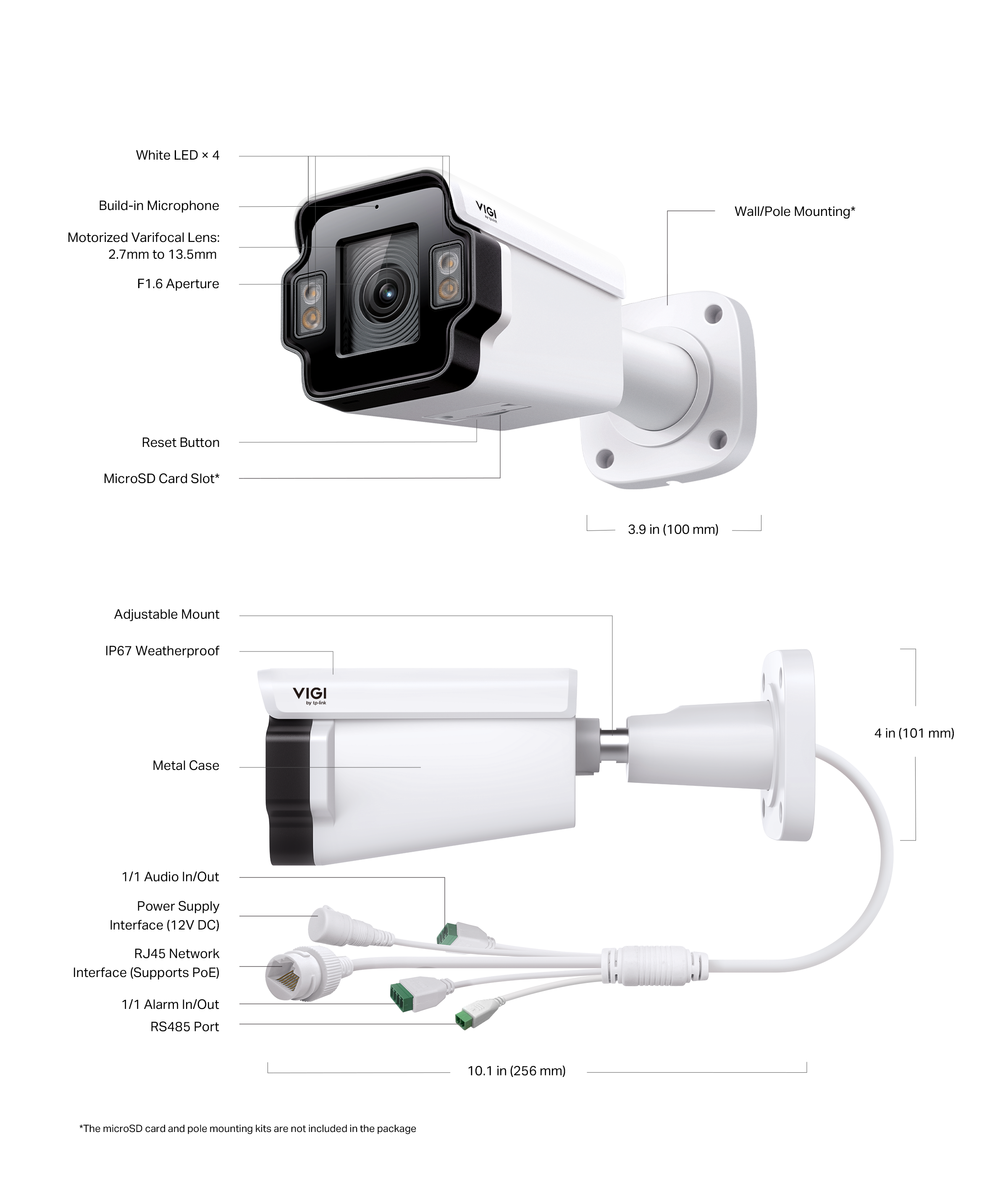

| Product Dimensions (L x W x H) | 10.1 × 3.9 × 4 in (256 × 100 × 101 mm) |
| Certifications | CE, NTRA, KC, FCC, IP67, IC, IK10, VCCI, BSMI, ONVIF |
*The micro SD card and pole mounting kits are not included in the package.
